LG LAP010BL2
LAP Series


LG LAP010BL2


LG Display Products

Direct View LED Signage TV
  • LG LAP010BL2
    3840 X 2160 (UHD), 1000 Nit, DVLED Premium 1.0 mm pitch UHD Bundle, 3-Year Warranty
    #LAP010BL2EU
    Our Price: $444,700.00

Click here to jump to more pricing!

Overview:

  • Pixel Pitch: 1.0mm
  • Brightness: 1,000 cd/m2
  • Refresh Rate: 1,920 Hz
  • Web Based Control S/W

Outstanding Image Quality

Outstanding Image Quality

Module Protection

Auto Module Protection

Easy Management

Easy Management

Features:

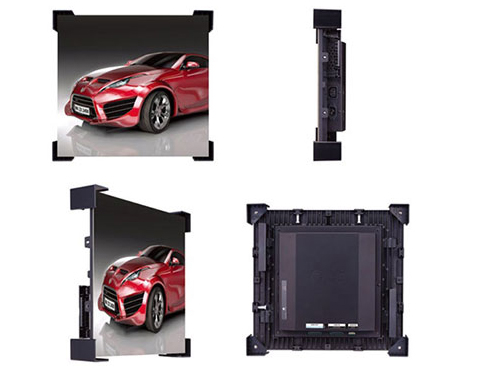

Unit Case





Unit Case


  • Pixel Pitch: 1.0 mm
  • Brightness: 1,000nit
  • Contrast Ratio: 6,000 : 1
  • Refresh Rate: 1,920 Hz

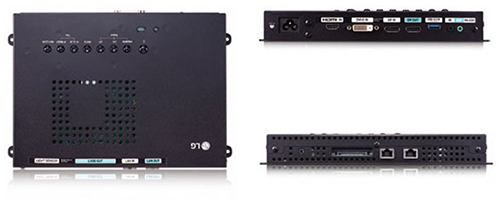

LED Controller


  • Input: Max UHD@30P
  • Output: FHD@60P
  • Media Player & Scaler Built-in
  • Input / Output Port: HDMI, DP, DVI-D / LVDS
  • Control Port: RS232C, RJ45 (LAN)

LED Controller

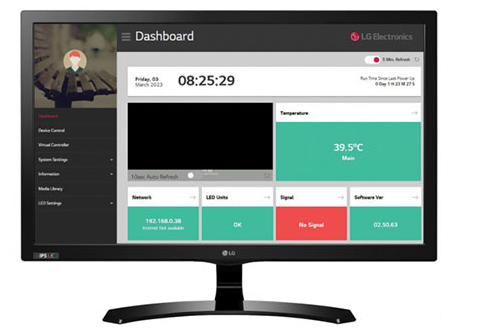

Software Control Manager



Software (Control Manager)


  • Web Based S/W (LG webOS 3.0 Platform)
  • Control & Monitoring
  • Alert Alarm (E-mail)

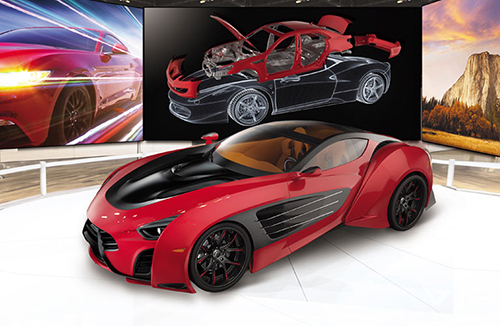

Design Room

Design Room

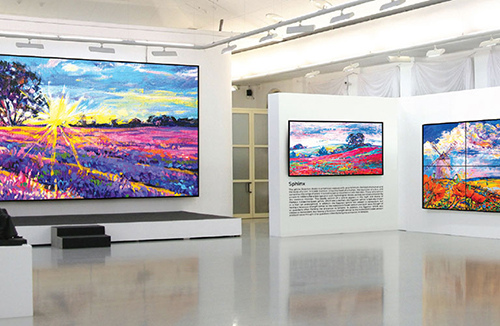

Museums-Gallery

Museums / Gallery

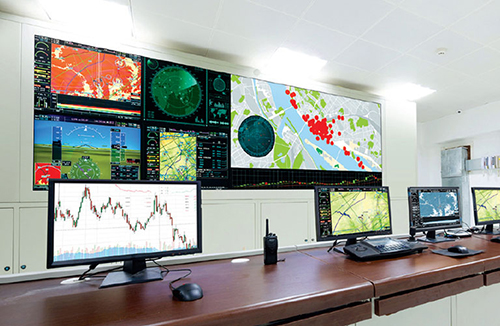

Control Room

Control Room

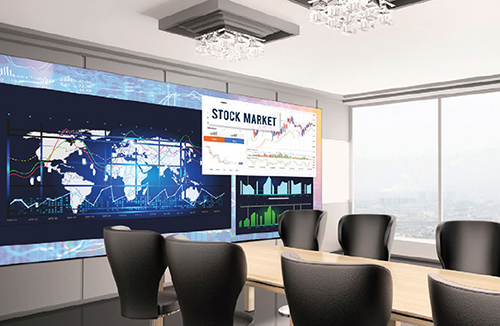

Boardrooms

Boardrooms

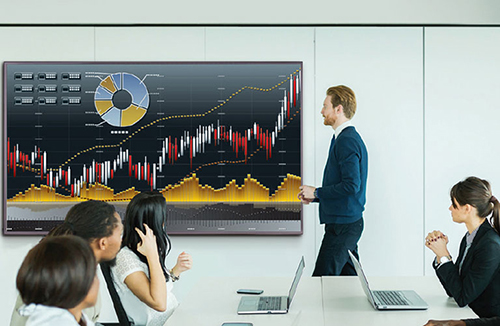

Meeting Room

Meeting Room

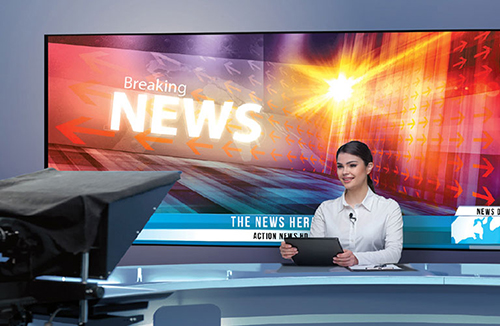

Broadcast Studio

Broadcast Studio

Specifications:


LAP Series Specifications
Physical Parameters
Pitch Name P1.0
Pixel Pitch (mm) 1.0
LED Type SMD 3-in-1
Resolution (W x H, per Unit Case) 384 x 360
Dimensions (W x H x D, per Module) 192 x 180 x 16 mm
Dimensions (W x H x D, per Unit Case) 384 x 360 x 77 mm
Weight per Square Meter (kg/m2) 37.6
Weight (per Unit Case) 5kg
Weight (per SQM) 36 kg LED Unit Case (Except LED Controller)
IP Rating N/A
Unit Frame Material Die Casting Allumium
Unit Frame Color Black
Curvature N/A
Access Rear
Optical Specifications
Brightness (After Calibration) 1,000nit
Contrast Ratio 6,000:1
Viewing Angle (H x V) 160 x 140
Bit Depth 16bit
Brightness Uniformity ≥ 97%
Color Uniformity ±0.015Cx, Cy
Color Gamut NTSC 100%, BT2020 94%
Color temperature - Default 6,500K
Color temperature - Adjustable 3,200 ~ 9,300K
Video Frame Rate 50/60Hz
Electrical Specifications
Input Power Range 100-240 V~, 50/60 Hz
Power consumption - Max/Typ (per Unit Case) 170/85 W
Power consumption - Max/Typ (per SQM) 1,230/615 W
Refresh rate 1,920Hz
Redundancy N/A
Operation Specifications
Working Temperature/Humidity 0°C to 40°C at 10% to 80%
Storage Temperature/Humidity -20°C to 60°C at 5% to 90%
LED Lifetime 100,000hrs
Connectivity
Video Inputs HDMI In, DP In/Out, DVI, USB
Control RJ45 In/Out, RS232C In/Out
Special Features Temperature Sensor, Ambient Light Sensor, Current Sensor
Standard (Certification)
Safety IEC 60950-1/EN 60950-1/UL 60950-1
EMC FCC Class A / CE / KC
Environment RoHS

Views:

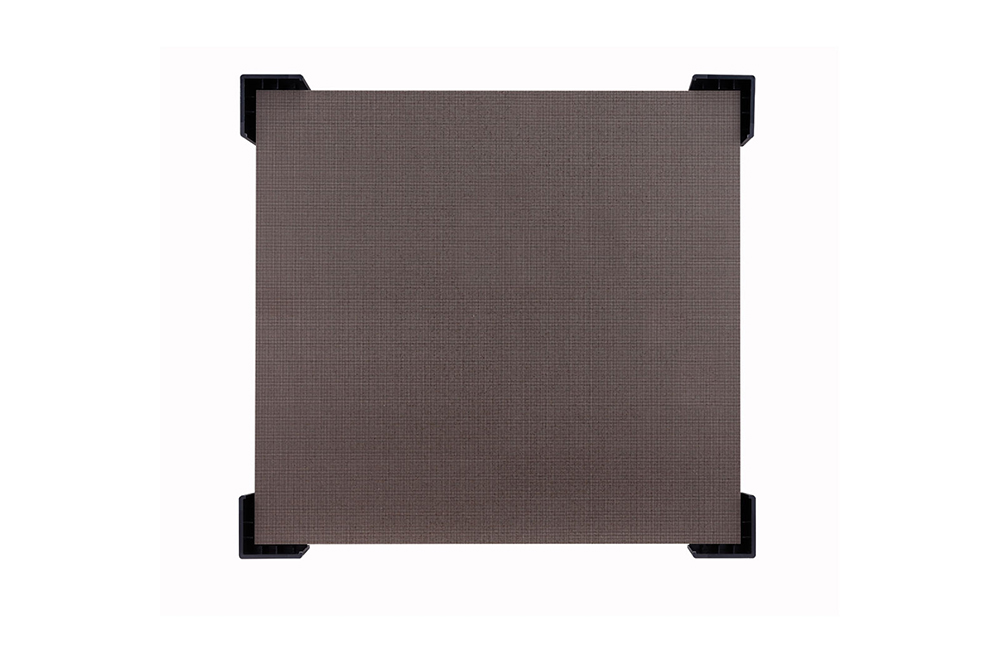

Front

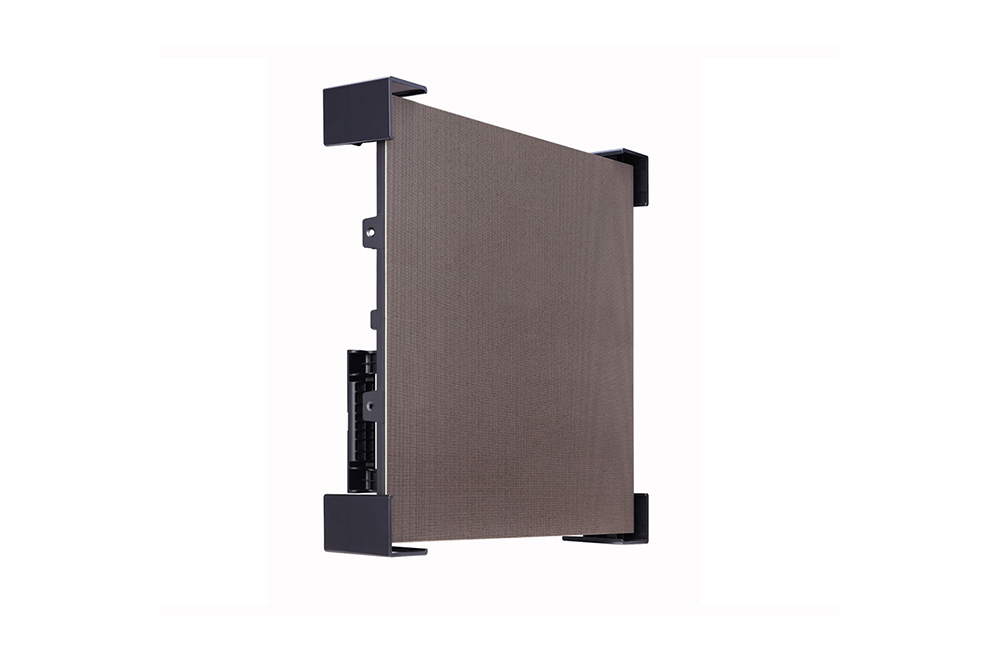

Right Perspective

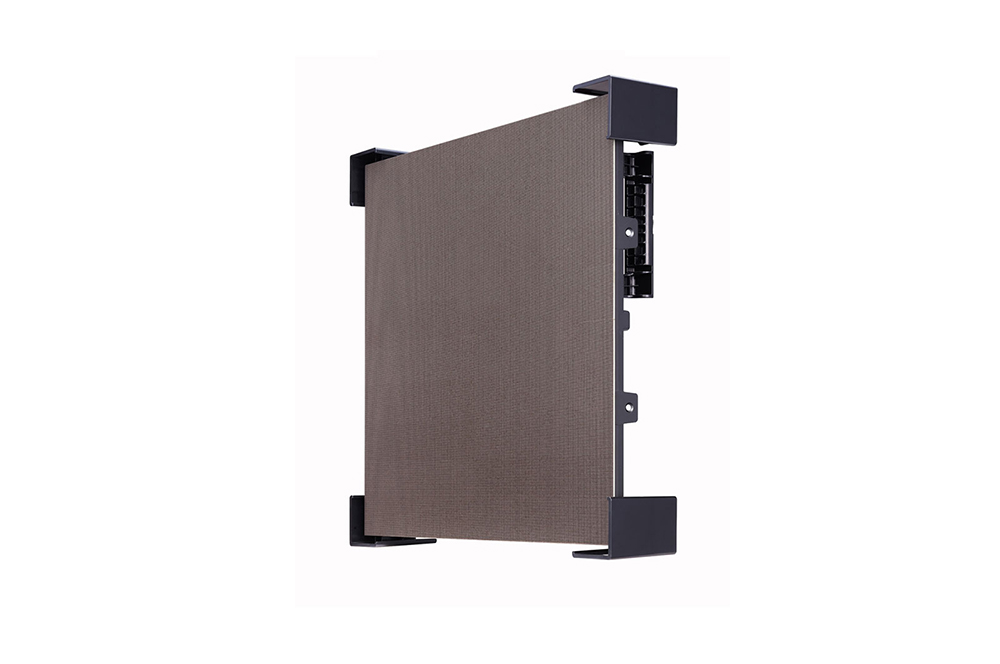

Left Perspective
Rear

Right Side

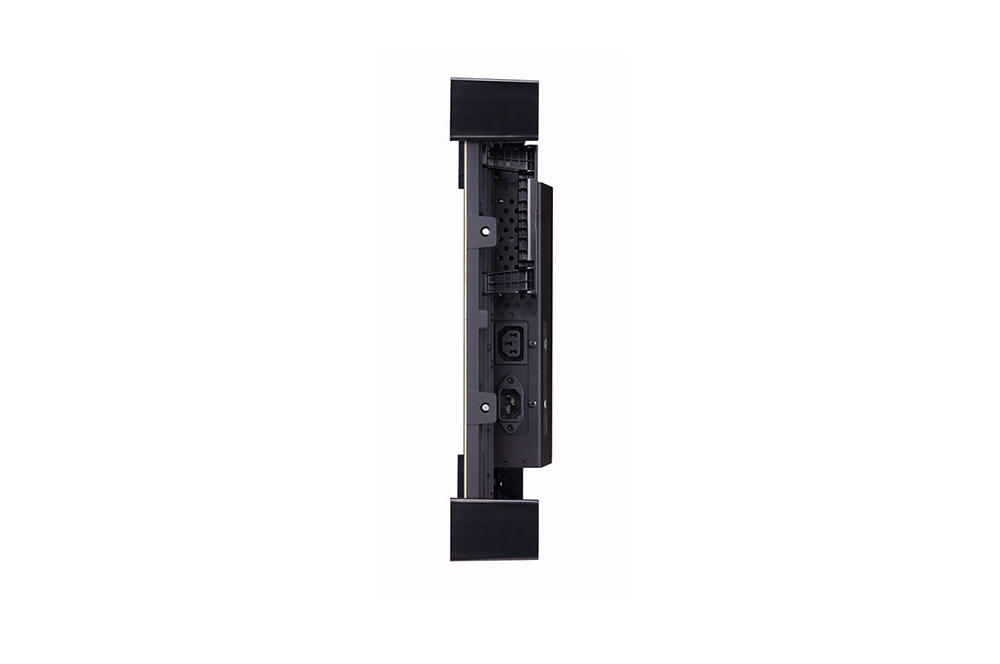

Left Side

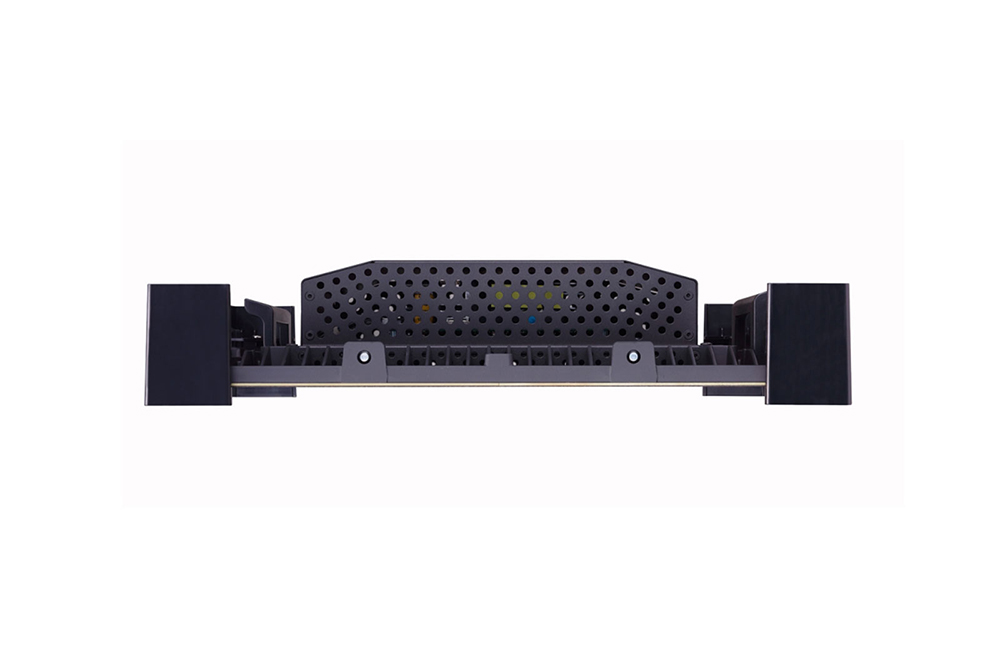

Top
