LG LAA015F
130" All-in-one DVLED LAAF Series Signage

LG LAA015F

LG Display Products

Direct View LED Signage TV
  • LG LAA015F- 130" All-in-one DVLED LAAF Series Signage
    130" Display, 1920x1080 (FHD), 500 Nit, DVLED Standard 1.5mm pitch FHD Bundle (includes 5% spare parts), Black, 2-Year Warranty
    #LAA015F130
    Our Price: $75,995.00

Click here to jump to more pricing!

Overview:

The New Standard for Optimal Visual Meetings

The LG 130" All-in-one LED Screen features a 130-inch large screen with no bezel. With superb picture quality powered by HDR10 Pro and immersive Surface Sound, attendees can get more focused and deeply engaged for more productive meetings.

  • Screen Size: 130"
  • Pixel Pitch: 1.5mm
  • Brightness: 500 cd/m2
  • HDR10 Pro / Surface Sound
  • Embedded System Controller

Features:

Lead Smarter Meetings with Increased Engagement

The display serves the most important and essential role in the meeting room by presenting discussion content from simple text to high-quality video and sound. The picture quality and performance of the display affects the quality of meetings and even the outcome of discussions at times

LG's 130" All-in-one LED Screen is an ideal display for building hassle-free and smart meeting room environments. Its large size of 130 inches and superb picture quality supported by HDR10 Pro presents accurate and vivid colors to viewers, while fully captivating them with Surface Sound driven by 36 embedded sound units.

Lead Smarter Meetings


Vivid Color Expression Powered by HDR10

With HDR10 Pro*support, content becomes more vivid and has greater visual impact. The wider color spectrum and greater contrast ratio allows viewers to fully enjoy content as it appears in real life.

Vivid Color Expression

*HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.


130" Large Screen with No Bezel

The greatest advantage of LG's LED screen is the 130-inch large-sized screen with no bezel. Even bigger than four 55-inch conventional LCD displays combined, it displays content without lines or distortions and provides a more immersive visual experience.

Large Screen

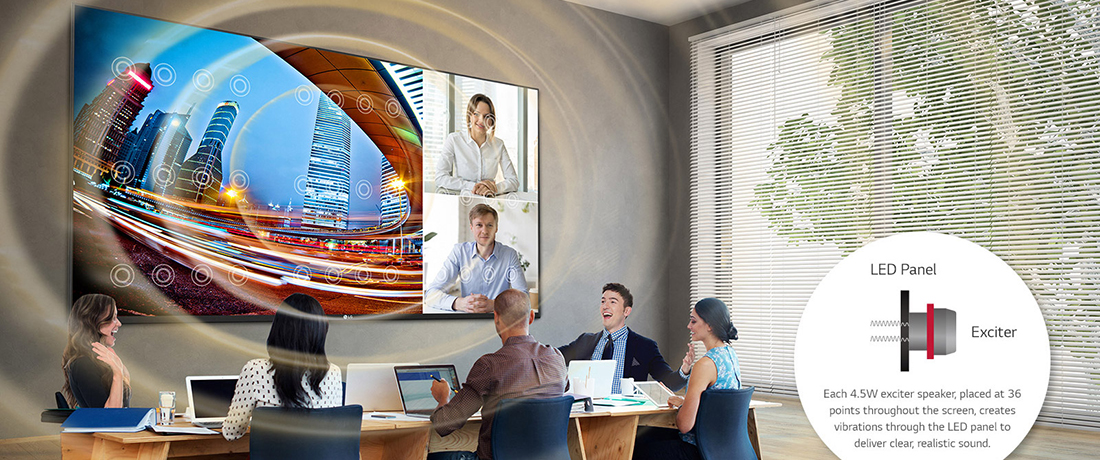

Immersive Surface Sound

The 130" All-in-one LED Screen doesn't require any additional speakers for its impactful audio effect. Its embedded Surface Sound comes from the entire screen with 162W (4.5W x 36points) and is able to reach all meeting attendees, including people seated far from the screen.

Immersive Surface Sound


Easy Installation for User Convenience

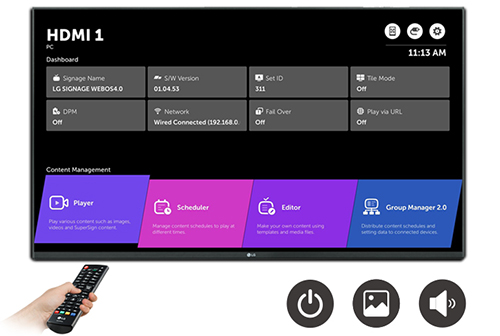

Easy Remote Control Support


The 130" All-in-one LED Screen allows the user to easily access the settings, such as picture mode, volume, etc. using a remote control instead of needing to connect to a PC. It uses the same UI as general LG digital signages, so users can easily learn how to use it.

Remote Control Support

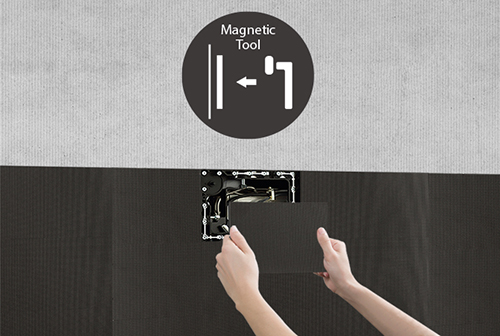

Front Serviceability


The LED screen can be easily installed and managed from the front side for easy operation. Its LED modules can also be simply attached or detached by hand or with a magnetic tool.*

Front Serviceability

*Magnetic tool is not included.


Auto Configuration

Auto Configuration


LG's 130" All-in-one LED Screen is composed of one master unit case and eight slave unit cases. Each unit case automatically recognizes its location and setting values, so the screen doesn't require any complicated screen setup process. All you need to do is turn on the screen.


High Compatibility for Meeting Room

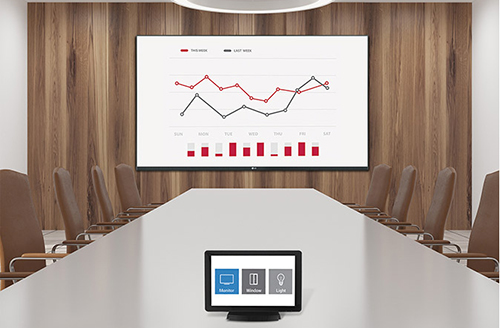

Compatibility with AV Control Systems


The LED screen has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.





* Network-based control

Compatibility with AV Control


Compatibility with LG Software Solutions

SuperSign Solution®


The LED screen is compatible with LG SuperSign CMS, which is a comprehensive software solution for integrated content management. This makes content creation and distribution much easier, helping your business save time and operate more effectively across its locations.

SuperSign Solution

Signage365Care


Maintenance is easier and faster with the optional Signage365Care service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

Signage365Care

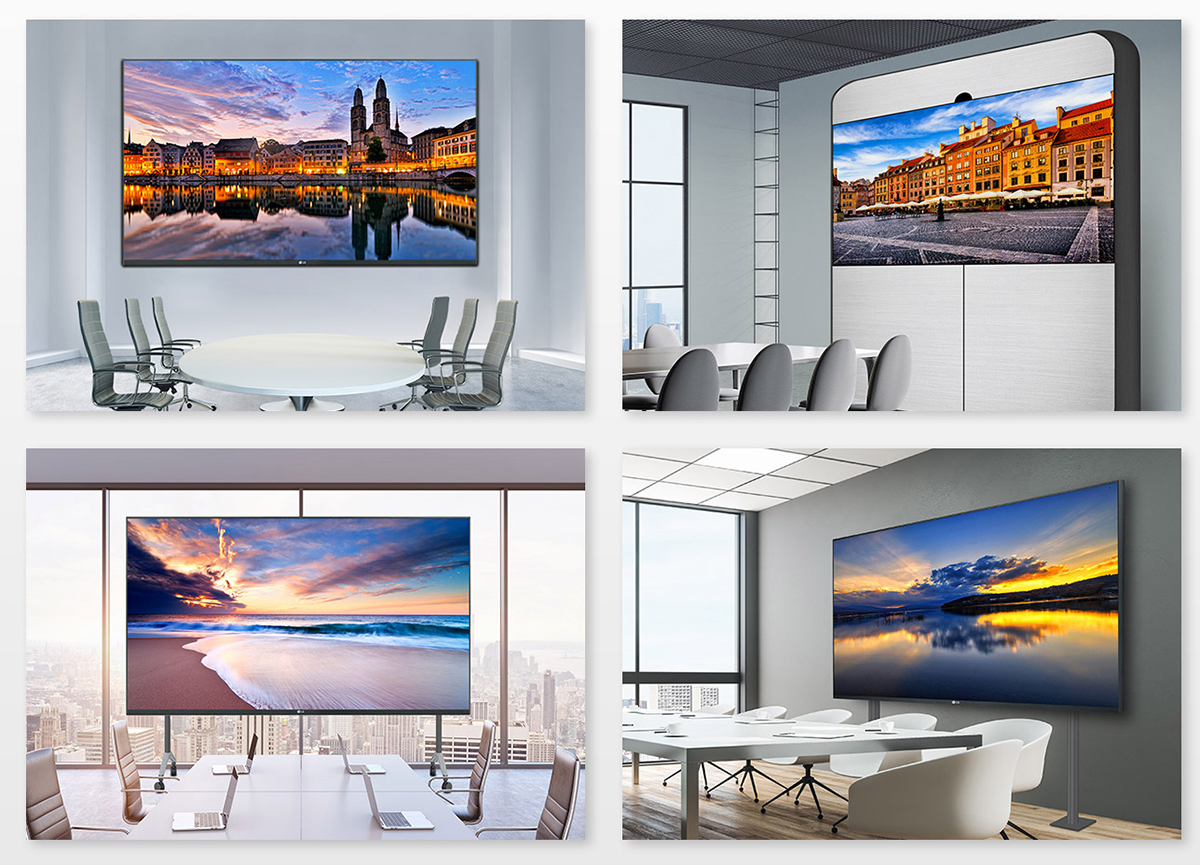

Installation Options for Various Environments

The 130" All-in-one LED Screen can be installed in various setups, depending on its environment.*

Installation Options

* Mounting accessories (wall mount, stand, etc.) are not included with LG products.

Specifications:


LAAF Series Specifications
Physical Parameters
Pixel Configuration 3 in 1 SMD
Screen Resolution (WxH) 1,920x1,080
Screen Weight (kg) 175
Unit Case Resolution (WxH) 640x360
Unit Case Surface Area (m2) 0.518
Weight per Square Meter (kg/m2) 37.6
Flatness of Unit Case (mm) ±0.2
Service Access Front and Rear
Pixel Pitch(mm) 1.50
Screen Dimensions (WxH, mm) 2,880x1,620x128.5
No. of Modules per Unit Case (WxH) 4x3
Unit Case Dimensions (W x H x D, mm) 960x540x128.5
Weight per Unit Case (kg/unit) Master: 20.85, Slave: 19.24
Physical Pixel Density (pixels/m2) 444,444
Unit Case Material Front : Die Casting Aluminum, Rear : PC+ABS
Optical Specifications
Min. Brightness (After Calibration) 500 cd/m2
Color Temperature 6,500
Visual Viewing Angle (Horizontal) 160
Visual Viewing Angle (Vertical) 140
Brightness Uniformity 95%
Color Uniformity ±0.015Cx,Cy
Contrast Ratio 5,000
Processing Depth (bit) 16 (HDR10, HDR10 Pro1)
Electrical Specifications
Power Consumption (W/unit, Avg.) 1,765
Power Consumption (W/unit, Max.) 3,530
Power Consumption (W/m2, Max.) 760
Power Supply (V) 100 to 240
Frame Rate (Hz) 50 / 60
Refresh Rate (Hz) 3,840
Operation Specifications
Lifetime (Half brightness, hrs)2 100,000
Operating Temperature 0℃ to 40℃
Operating Humidity 10-80% RH
Connectivity (Embedded Controller)
Video Inputs HDMI In(3), DP In, USB
Control RJ45 In, RS232C In/out
Special Features Temperature Sensor, IR & Ambient Light Sensor, Audio Out, Crestron Connected3)
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class A / CE / KC
Environment RoHS
Software
Platform webOS 4.0
Support Signage365Care4, SuperSign CMS
Accessory
Basic Accessory Data Cable, LAN Cable, Power Cord, RS232C Gender (9pin to Phone Jack), Remote Controller, IR Receiver, Manual
  1. HDR10 Pro is LG's own HDR solution to process HDR signal by using enhanced dynamic tone mapping.
  2. The Lifetime(Half brightness) spec is subject to LED package spec.
  3. Network based control
  4. The availability differs by region

Views:

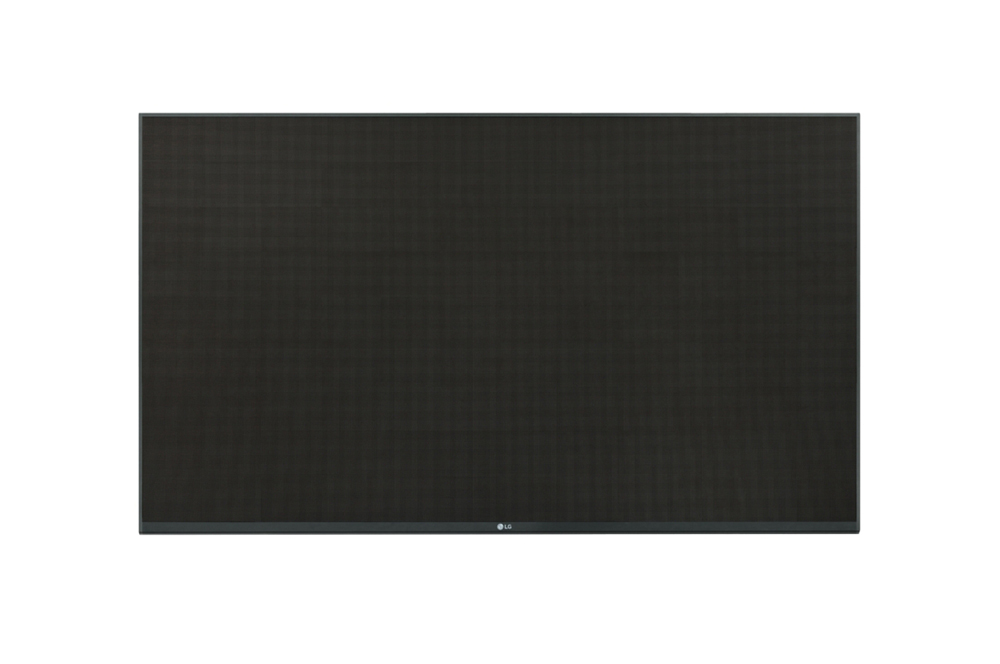

Front

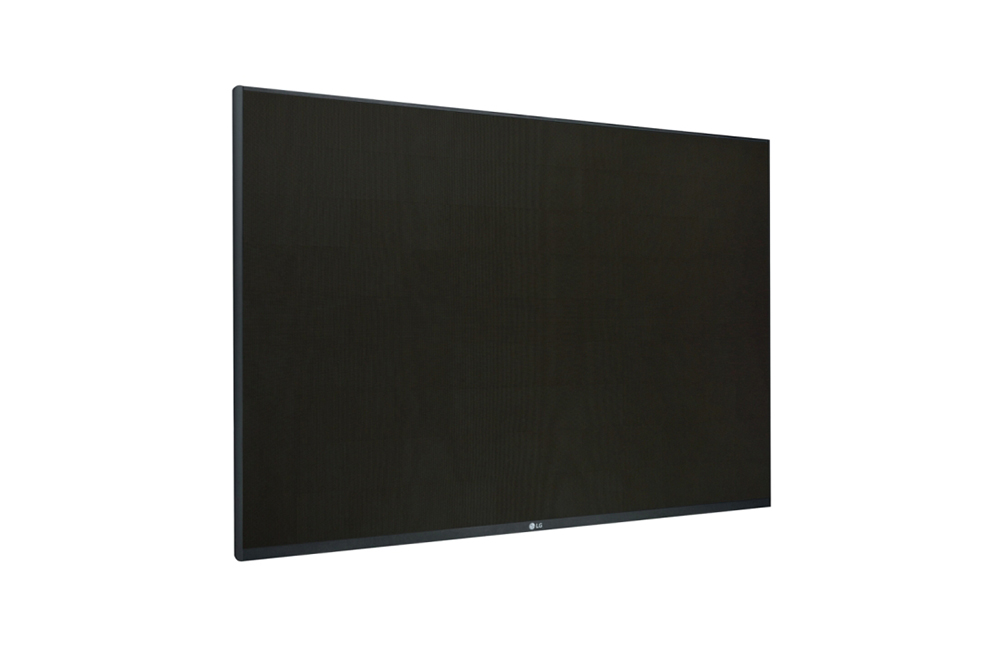

Right Perspective

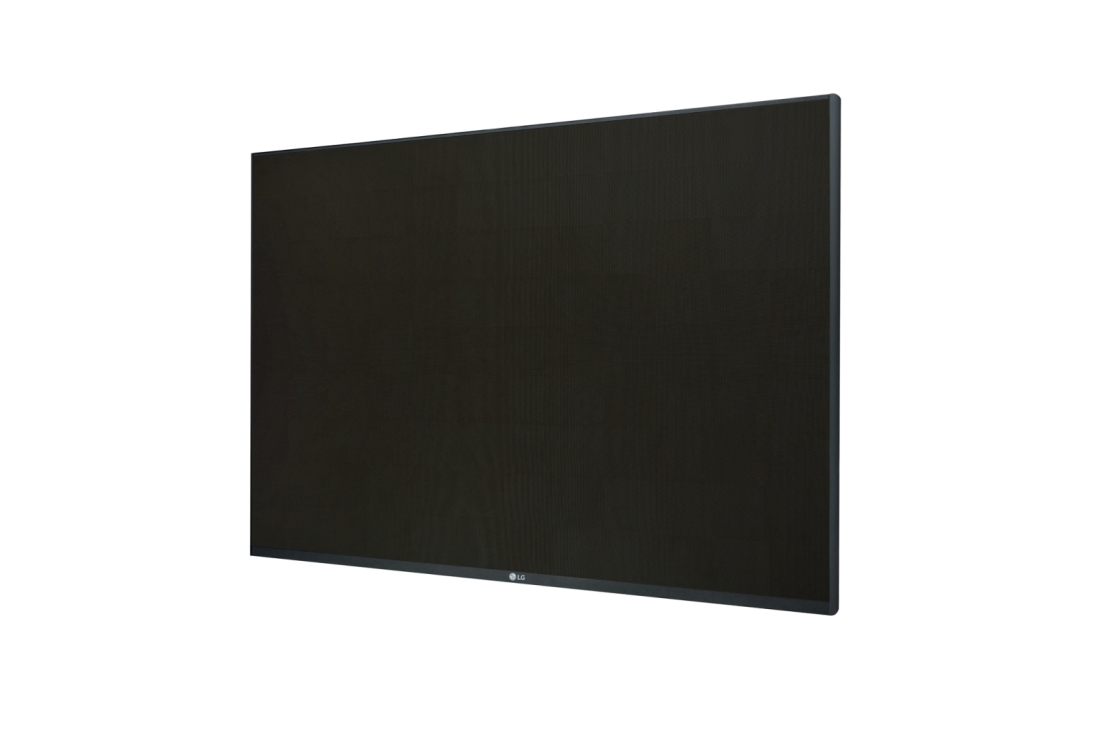

Left Perspective

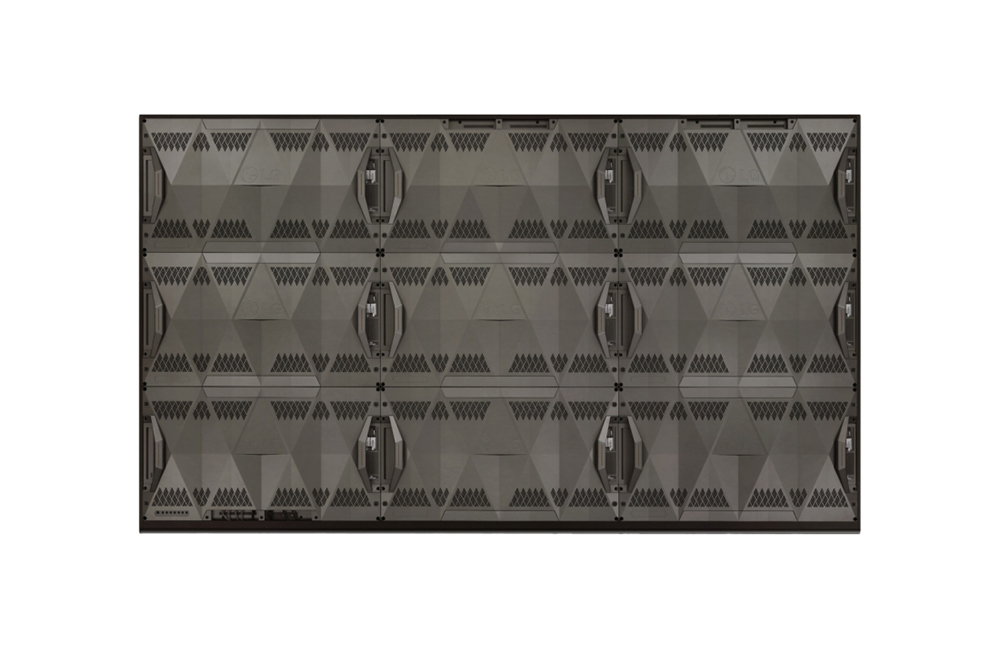

Rear

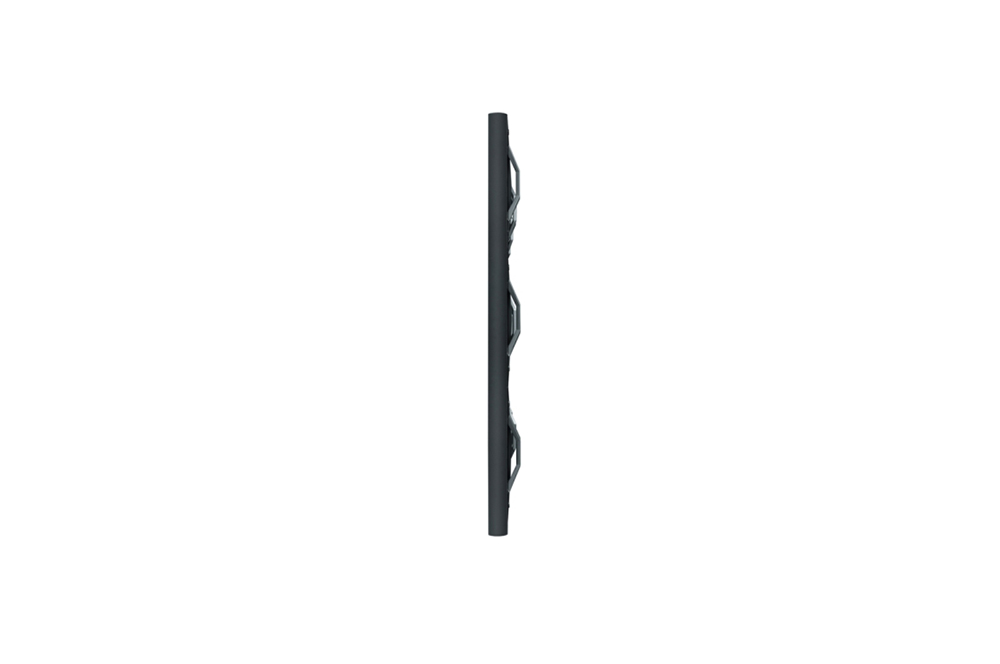

Side

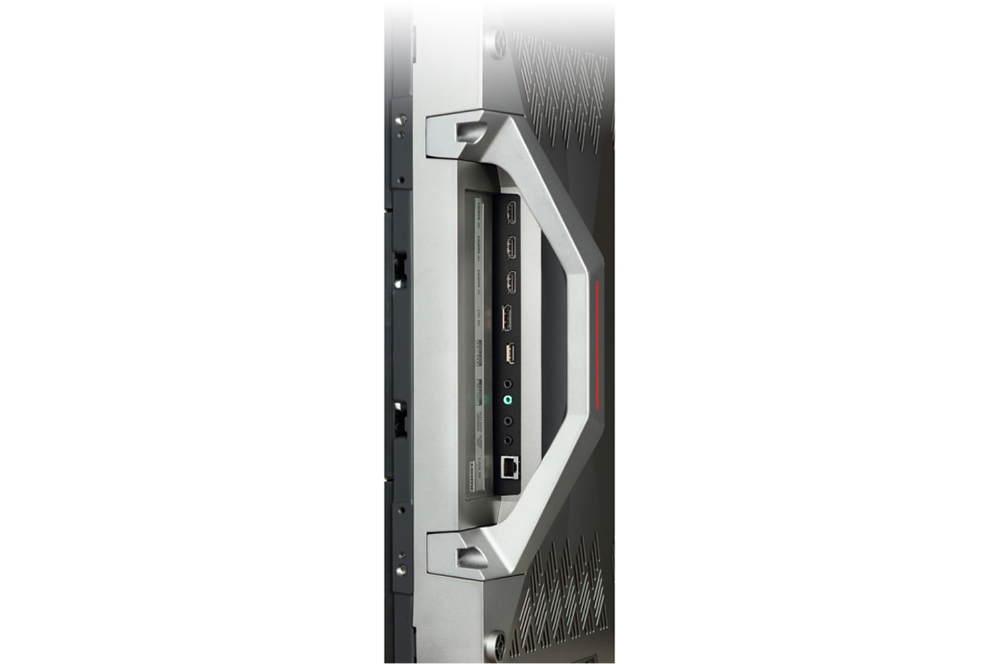

Interface

Documentation:

Download the LG LAA015F Datasheet (.PDF)
