LG 88BH7F
88" UHD Ultra Stretch IPS Display

LG 88BH7F

LG Display Products

Ultra-Stretch Digital Signage
  • LG 88BH7F 88" UHD Ultra Stretch IPS Display
    86" Display, 3840 x 1080 (UHD), 700 Nit, Web OS, HDMI (3), Display Port, DVI-D, Black, 3-Year Warranty
    #88BH7F-B
    Our Price: $8,995.00

Click here to jump to more pricing!

Overview:

Ultra Stretch Signage, 32:9 Space-Fitting Wide Screen

The 88BH7F is the most suitable display for delivering new forms of advertising and multiplexed information in a 32:9 widescreen format that brings you a new experience, captivating customers’ attention.

  • Size: 88"
  • Brightness(Typ.) : 700 cd/m²
  • Aspect Ratio: 32:9
  • Bezel: 4.4 mm(L/R), 5.9 mm(T/B)
  • Depth: 84.8mm
  • Interface: HDMI (3), DP, USB(2), Audio, DVI-D, RS232C, RJ45, IR

Features:

Extraordinary Viewing Experience

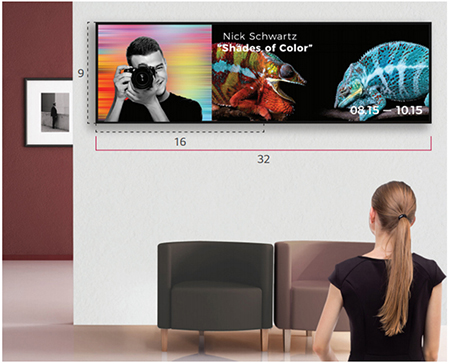

32:9 Extended Wide Format

The 88BH7F provides a unique 32:9 aspect ratio in a single wide screen which provides more flexibility in playing content than a typical 16:9 display.

32:9 Extended Wide Format

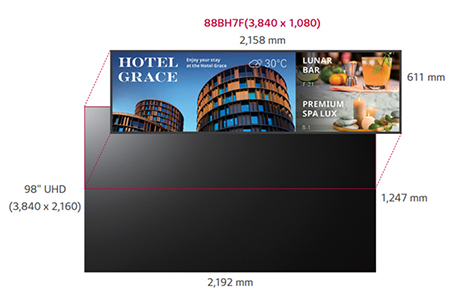

Ultra HD Resolution (3,840 x 1,080)

Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Ultra HD Resolution (3,840 x 1,080)


Effective Content Delivery

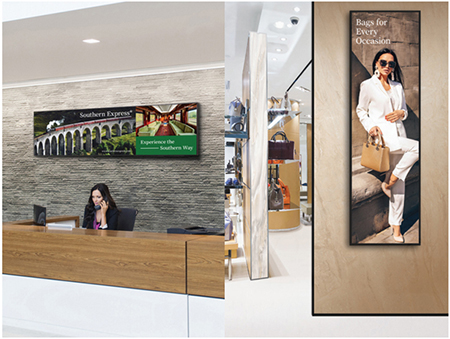

Flexibility for Content Management

The 88BH7F organizes and displays multiple content (image, video and text) streams based on the requested ratio.

Flexibility for Content Management

Multi Screen Mode with 4PBP

The Picture-by-Picture (PBP) shows multiple content screens in any combination of up to four sub-screens within a single 88" display. This allows delivery of various advertisements or information messages at the same time without calibration.

Multi Screen Mode with 4PBP


Operational Efficiency

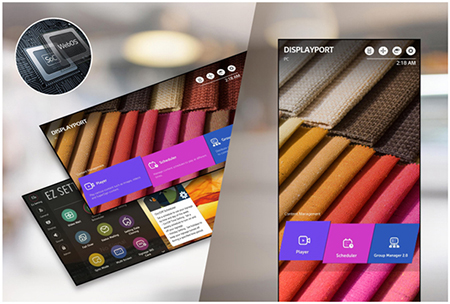

High Performance SoC with webOS

The built-in quad core System-on-Chip (SoC) executes several tasks at once while providing smooth content playback without the need to connect the 88BH7F to an external media player. The intuitive user interface of the LG webOS Signage platform provides a convenient development environment for custom signage applications.

High Performance SoC with webOS

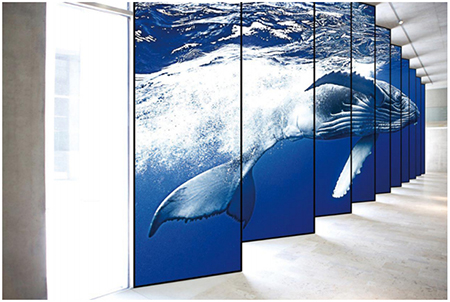

Tiled Scene with DP Daisy Chain

Use the DisplayPort (DP) daisy chain* functionality of the 88BH7F to show an extended tiled scene. This is a creative method of providing visual impact in a way not attainable by 16:9 screens.

Tiled Scene with DP Daisy Chain

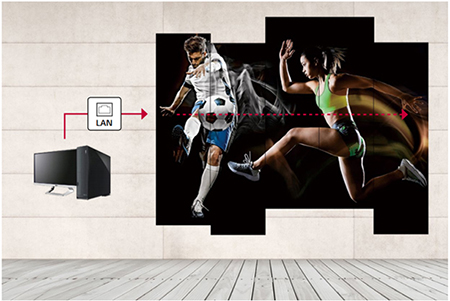

LAN Daisy Chain Management

By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

LAN Daisy Chain Management

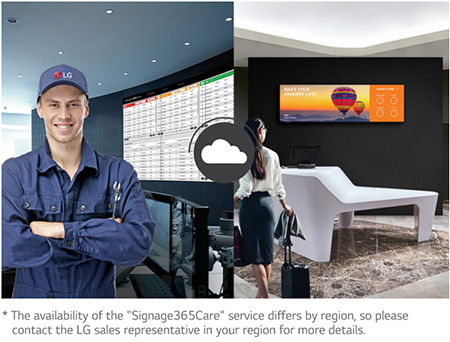

Real-Time Monitoring with Signage365Care

Easier and faster maintenance are available with our optional cloud service solution Signage365Care*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

Real-Time Monitoring with Signage365Care

Specifications:


88BH7F Specifications
Panel
Screen Size 88"
Panel Technology IPS
Aspect Ratio 32:9
Native Resolution 3,840 x 1,080 (UHD)
Brightness (Typical with Protection Glass) 700 nits
Contrast Ratio 1,100:1 (Typ)
Dynamic CR 500,000:1 (Typ)
Viewing Angle (H x V) 178 x 178
Response Time 8ms
Surface Treatment AGLR (Haze 3%)
Lifetime 50,000 Hrs (Typ.)
Operation Hours 24 Hours / 7 Days
Orientation Landscape & Portrait
Connectivity
Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
Output DP, Audio
External Control RS232C In/Out, RJ45 In/Out, IR In
Mechanical Specification
Bezel Color Black
Bezel Width 4.4 mm (L/R), 5.9 mm (T/B)
Monitor Dimension (W x H x D) 85" x 24.1" x 3.3" / 2,158.3 x 611.2 x 84.8 mm
Weight (Head) 74.7 lbs / 33.9 kg
Carton Dimensions (W x H x D) 89.5" x 28.2" x 8.3" / 2,274 x 717 x 212 mm
Packed Weight 114 lbs / 51.7 kg (Pallet included)
Handle Yes
VESA™ Standard Mount Interface 600 mm x 400 mm
Special Features
Special Features Internal Memory 8GB(System 4GB, Available 4GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, USB Auto Playback, Local Contents Scheduling, Group Manager, Failover, Image Customization (Booting Logo, No Signal), Content Sync.(RS-232C/Local Network), PBP(4), Play via URL, OSD/Content Rotation, Tile Mode Setting (Max. 15×15), Setting Data Cloning (RS-232C/Network/USB), Crestron Connected®1), Control Manager, Smart Energy Saving, DPM, PM Mode, Wake on LAN, HDMI-CEC2), webRTC, SI Server Setting
Environmental Conditions
Operating Temperature Range 32° F to 104° F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption - Typ. / Max. 450W / 530W
Power Consumption - Smart Energy Saving 210W
Certification
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP / Energy Star Yes / N/A
Compatibility
OPS Type Compatible Yes
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/ Control+
Signage365Care Yes
Accessories & Other
Basic Remote Controller, Power Cord, DP (2.6M), RS-232C Cable (3M)
Optional Accessories KT-OPSA(OPS Kit)
Warranty 3 Year Limited Warranty

Views:

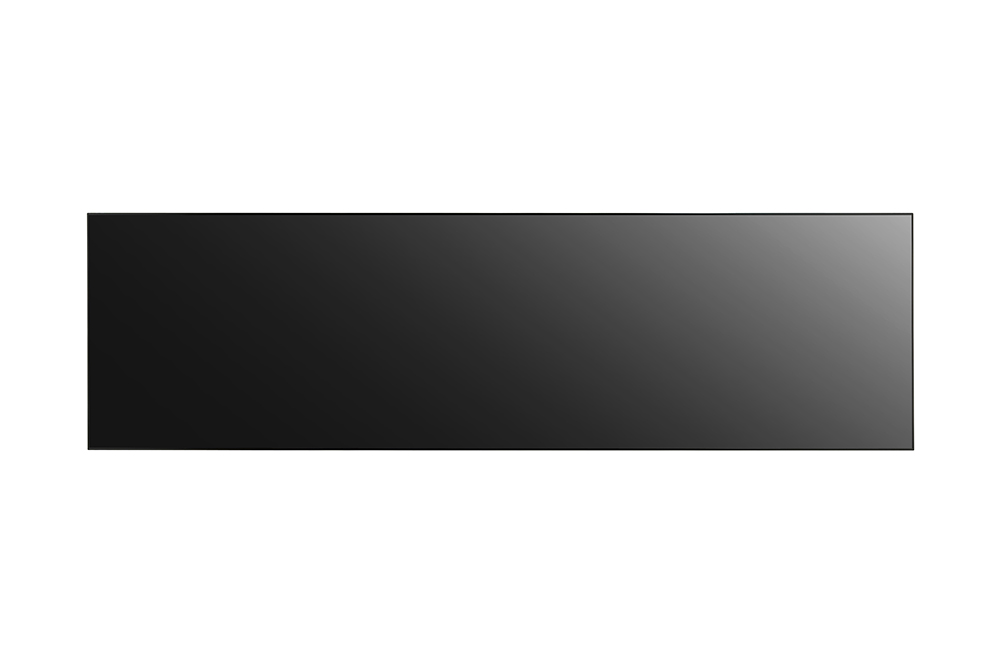

Front

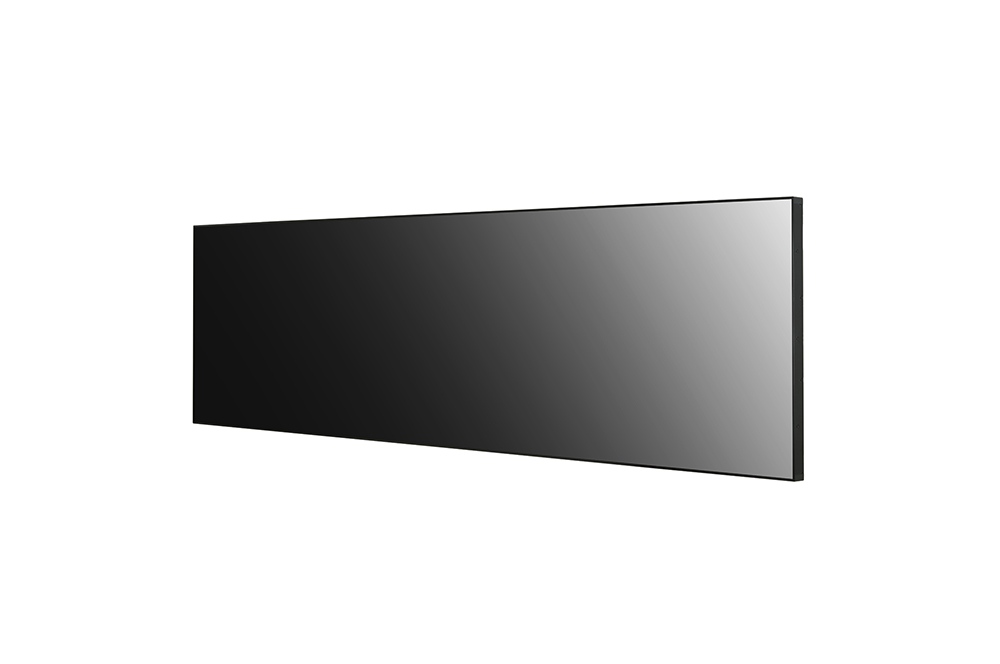

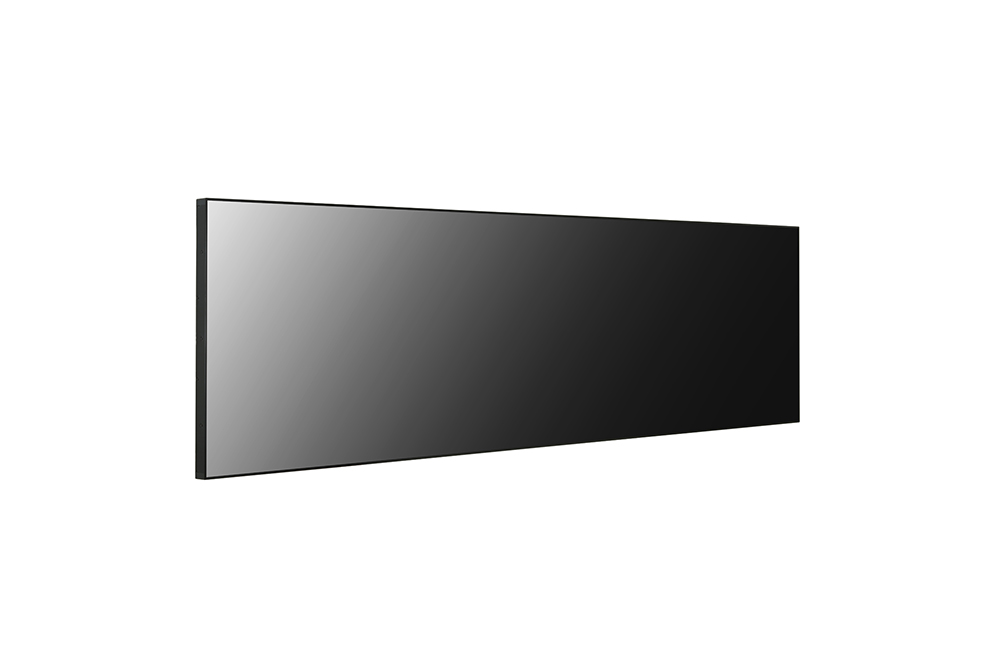

Right Perspective
Left Perspective

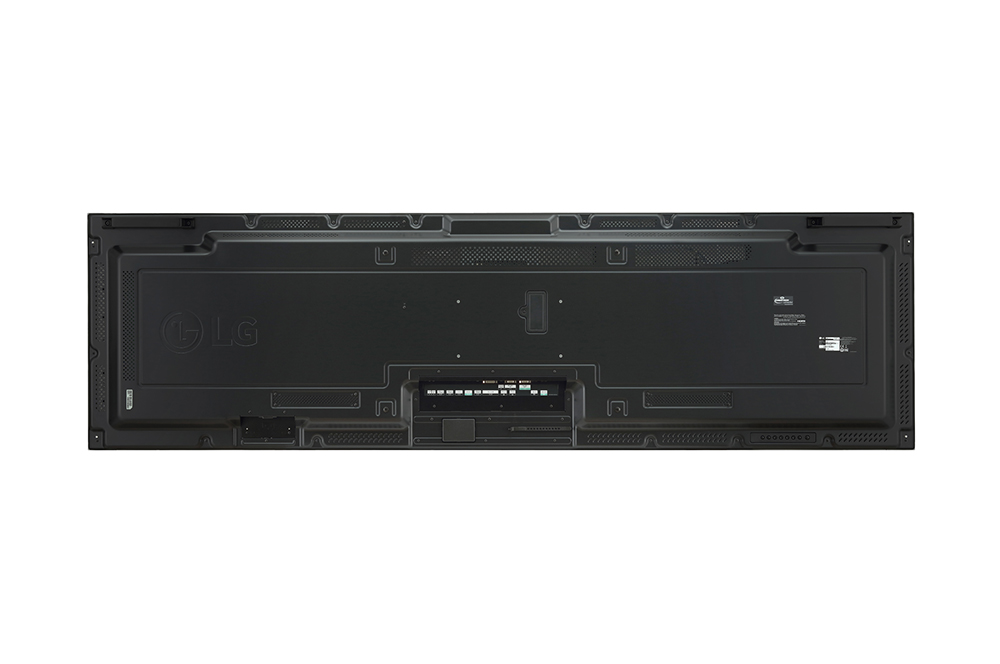

Rear

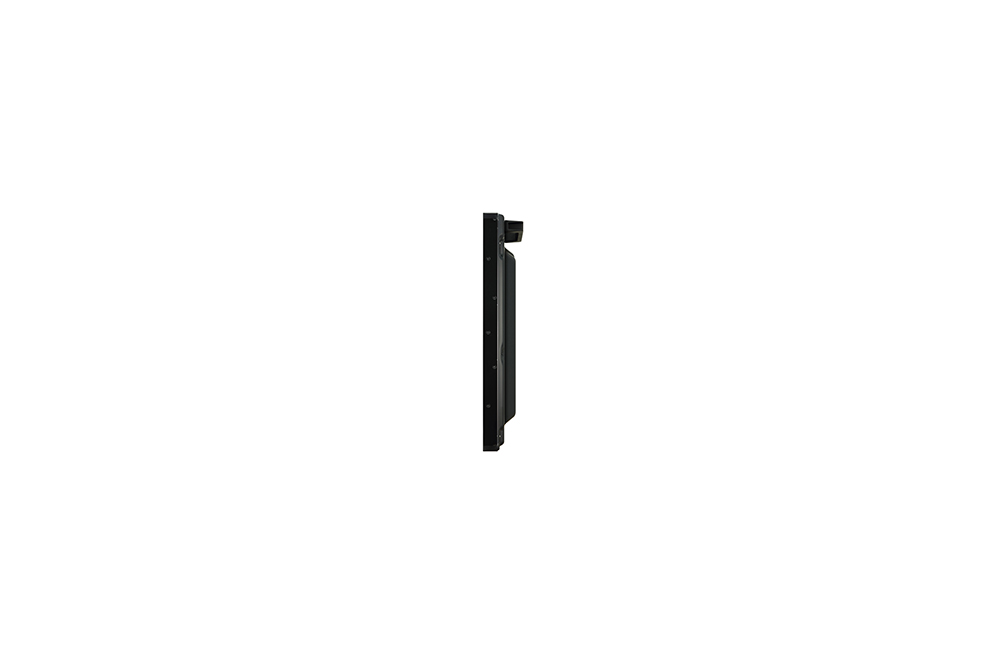

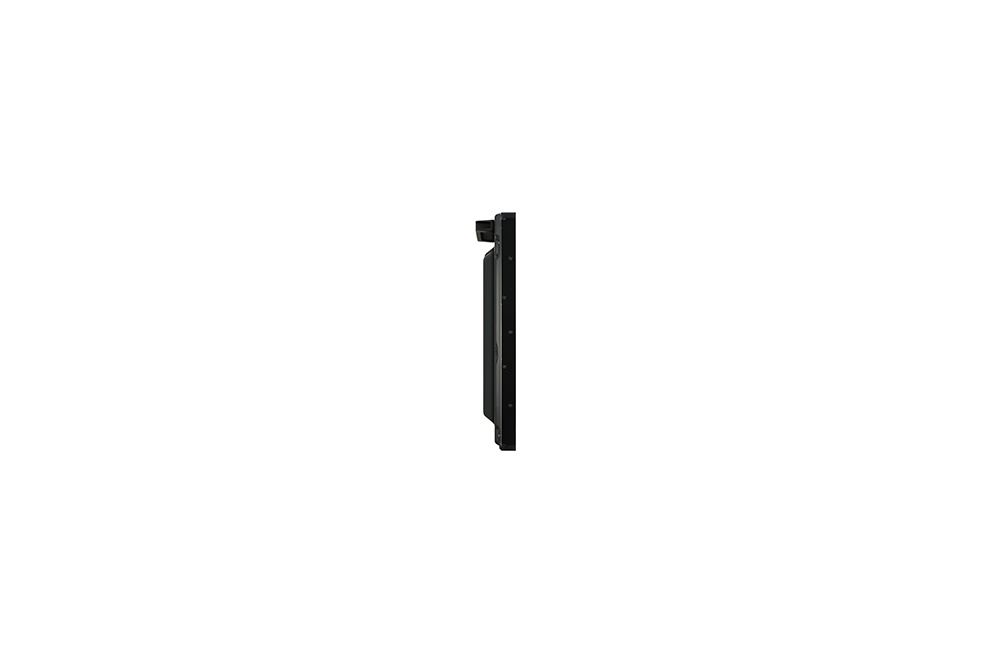

Right Side
Left Side

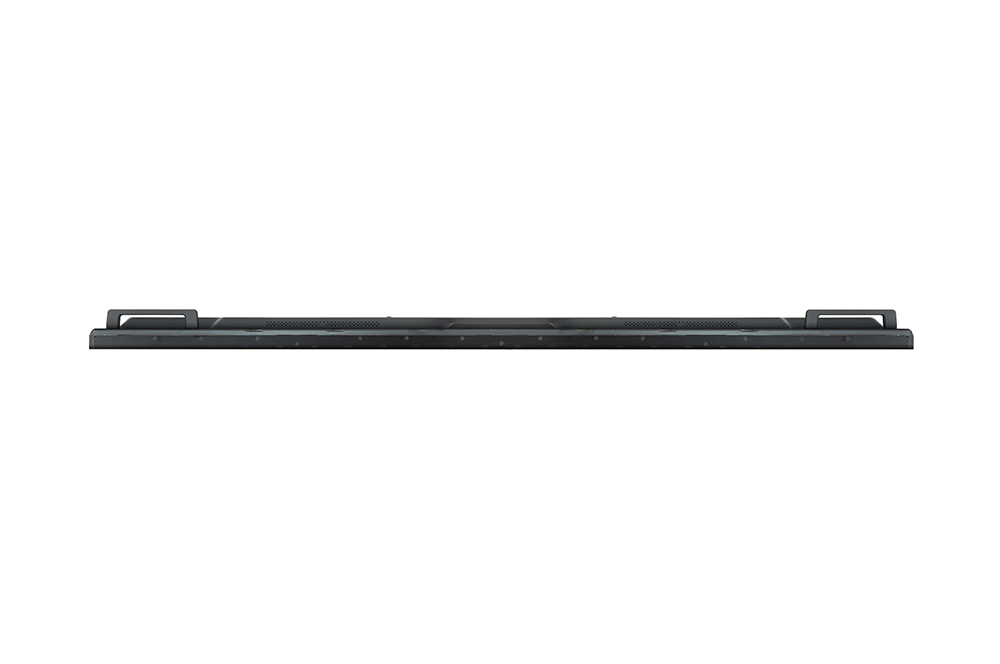

Top

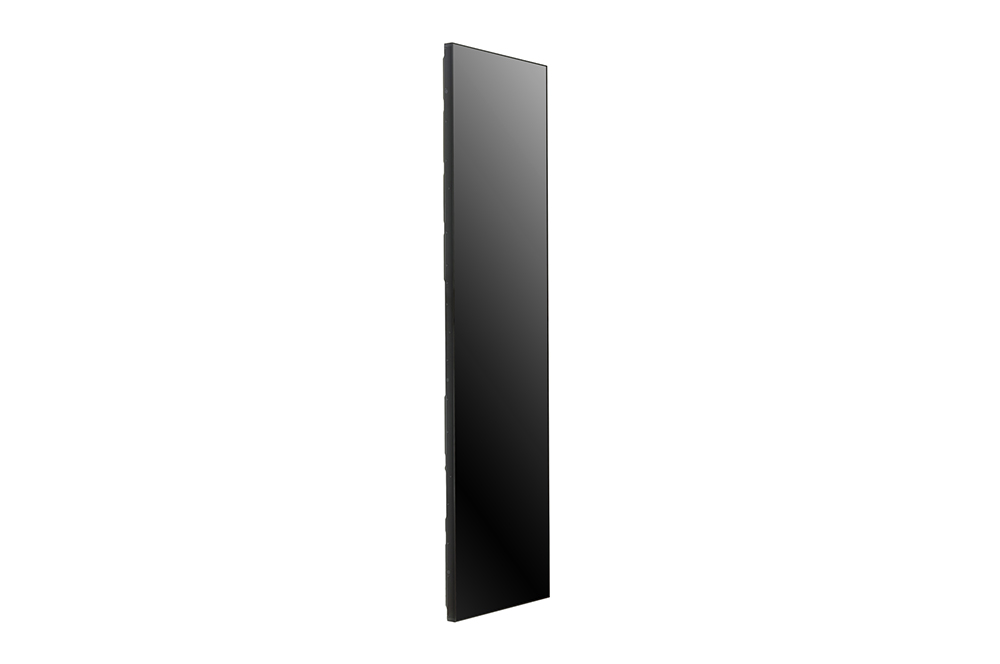

Vertical

Documentation:

Download the LG Ultra Stretch Signage - 88BH7F Series Datasheet (.PDF)
