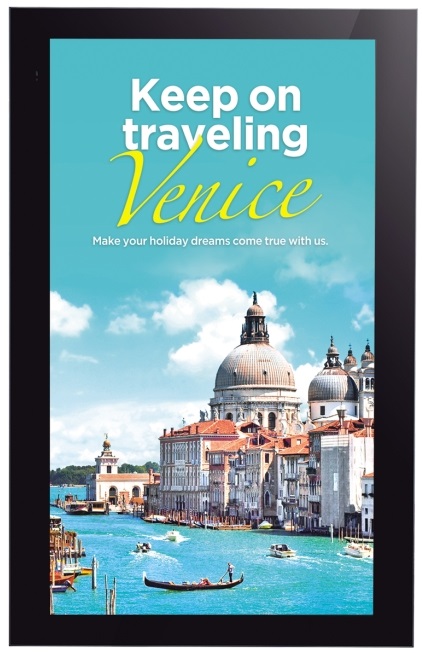

LG 86XE3FS
86" Outdoor Commercial Signage


LG 86XE3FS

Build to Order

LG Display Products

High Brightness Outdoor Displays
  • LG 86XE3FS-B 86" XE3FS Series Outdoor Commercial Display
    86" Display, 3840 x 2160 (UHD), 3000 nit, HDMI(2), Display Port, DVI-D, Black, 3-Year Limited Warranty
    #86XE3FS-B
    Our Price: $47,290.00

Click here to jump to more pricing!

Overview:

Outstanding Visiblity with High Reliability

The XE series provides the optimal solution to satisfy the high demand for accurate information. With superior picture quality and excellent durability, this outdoor display delivers eye-catching content to captivate customers even under direct sunlight or extreme changes in the environment.

  • Size: 86"
  • Brightness: 3,000 cd/m2 (Typ.)
  • Life Time: 50,000 hours
  • Operation Temperature: -22°F to 122°F / -30°C to 50°C
  • IP56 Design
  • Interface: HDMI, DP, DVI-D, RJ45, RS232C, SD Card, USB3.0, External speaker out

Features:

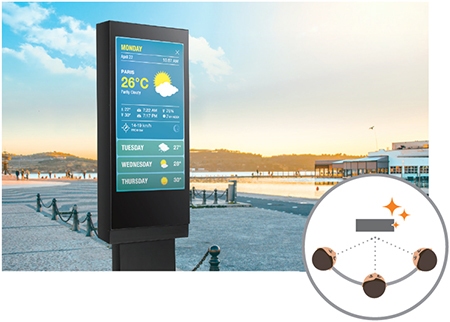

Outstanding Visibility

High Brightness
With a powerful brightness of 3,000 cd/m2 and wide viewing angles, the XE series delivers content clearly and catches the attention of viewers no matter where they are, making it the ultimate display for outdoor visibility.

High Brightness

Visible with Polarized Sunglasses
QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in daylight for better visibility, and it is decreased in darker environments for efficient power management.

Smart Brightness Control

No Blackening
Even under direct sunlight exposure, the open frame XE series remains free from blackening defects in temperatures below 230°F / 110°C, providing superior quality for outdoor usage.

No Blackening


Outdoor Reliability

Secured Protection with IP56 Design
The XE series is sealed with IP56 rated design for reliable operation. It’s designed to be not only water resistant but also resistant against the damaging effects of the sun, rain, snow, dust and wind, an essential feature for outdoor application.

Secured Protection with IP56 Design

Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board protects against dust, iron powder, humidity, etc.

Conformal Coating

Electrical Safety
An electrical circuit breaker and surge suppressor are integrated inside ensuring absolute protection from overcurrent short circuits, and unwanted voltages. This helps prevent equipment damage and safety hazards in the future.

Electrical Safety

Protective Glass
Tempered and laminated front glass ensures protection, from outdoor extremities allowing minimal damage from external impacts.

Protective Glass

Wide Range of Operating Temperatures
The panel offers superb reliablity under a wide range of operating temperatures, so the XE series requires fewer constraints for outdoor installation.

Wide Range of Operating Temperatures

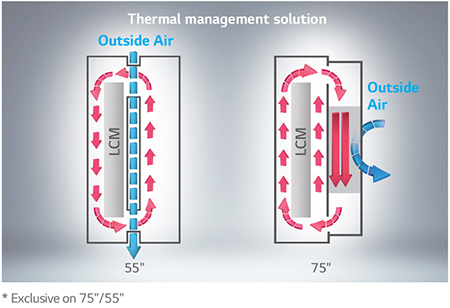

Enhanced Thermal Management
The patented thermal management technology efficiently cools down the heat generated from every part of the product, preventing outside air from entering.

Enhanced Thermal Management


Easy Management

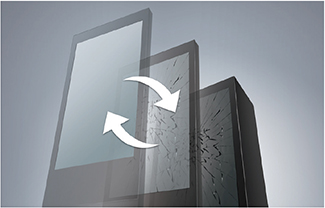

Replaceable Front Glass
In case of outdoor accidents or vandalism, the protective glass of 49XEB3E can be detached from its main body which allows for an instant replacement on site.

Replaceable Front Glass

Web Monitoring
The LG Control Manager is an embedded web monitoring program that allows a variety of parameters to be diagnosed in real time such as temperature, pixel status, door status, ambient light, filter*, and gyro sensors. The LG Control Manager can be easily monitored at all times.

Web Monitoring

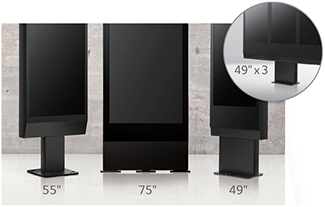

Optional Configuration
Optional stand accessories are provided to allowthe panelto stand freely on the ground and facilitate easy cable management. For the 49XEB3E there is an exclusive stand for 1x3 configuration available to meet various business requirements.

Optional Configuration


Specifications:


PANEL

  • Screen Size
    86"
    Native Resolution
    3,840 x 2,160 (UHD)
  • Brightness (Typ., cd/m²)
    3000
    Brightness (Min., cd/m²)
    2800
  • Viewing Angle (H x V)
    178 x 178
    Life Time (Typ.)
    50,000 Hrs
  • Operation Hours
    24 Hrs
    Orientation
    Portrait

CONNECTIVITY

  • Input
    HDMI, DP, DVI-D, Audio, USB
    Output
    External Speaker
  • External Control
    RS232C In/out, RJ45(LAN) In, RJ45(LAN) Out(4), External IR In

MECHANICAL SPECIFICATION

  • Bezel Width
    101 mm (T/B), 135 mm (L/R)
    Monitor Dimension (W × H × D)
    1,338 x 2,100 x 187 mm
  • Weight (Head)
    276 kg
    Packed Weight
    310 kg

ENVIRONMENT CONDITIONS

  • Operation Temperature
    -30°C to 50°C
    Operation Humidity
    5% to 100%

POWER

  • Power Supply
    100-240 V~, 50/60 Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ./Max
    1,450 W / 1,850 W

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    No

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+

ACCESSORY

  • Basic
    Remote Controller, HDMI Cable, USB Cable, Manual(IG&EIG), Regulation Book, Phone to RS232C Gender, LAN Extension Cable, Cord Grip Rubbers

Documentation:

Download the LG Outdoor Commercial Signage - XE3FS Datasheet (.PDF)
