LG 86UH5E
86" Ultra HD Signage Display


LG 86UH5E

Sorry, this product is no longer available, and has been replaced by the 86UH5F-H.

Click here to jump to more pricing!

Overview:

Vibrant Colors and Powerful Performance Bring Content

With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.

  • Size: 86"
  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.9 mm (Even, Off-Bezel)
  • Depth : 57.9 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)

Vibrant Colors and Powerful Performance Bring Content

Features:

Superior Picture Quality

Superior Picture Quality

True Color, Immersive View

The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

Vivid Color Details with Ultra HD

The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).


Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS(Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

Easy Content Management

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays1) connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Simple Group Management

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications

Multi Screen Mode

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Multi Screen Mode


Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.


Real-Time Monitoring & Control

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Real-time Care Service


Wireless Solution

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion
With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Real-time Promotion

Wireless Access Point

The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.

Wireless Access Point


High Compatibility

Compatibility with AV Control System

The UH5E series has been certified Crestron Connected for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1), boosting business management efficiency.

Compatibility with AV Control System

Compatibility with Video Conference System

For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Compatibility with Video Conference System


Space-efficient Design

Slim and Tidy in Appearance

Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.

Slim and Tidy in Appearance

Detachable Logo & Built-in Speaker

The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.

Detachable Logo & Built-in Speaker


Specifications:


86UH5E Specifications
Panel
Screen Size 86"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness 500 nits
Contrast Ratio 1,200:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Low Haze 3%
Life Time (Min.) 50,000 hours
Guaranteed Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
Output DP, Audio (Off/Fixed/Variable), External Speaker (98" Only)
External Control RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
Physical Specification
Bezel Color Black
Bezel Width 14.3 mm (Even) * Off-Bezel
Monitor Dimension (W x H x D) 75.8" x 43.2" x 2.4" / 1,926.2 x 1,097.2 x 60.6 mm (without Handle and Logo)
Weight (Head) 108 lbs / 49 kg
Carton Dimensions (W x H x D) 81.6" x 49.6" x 11.5" / 2,073 x 1,260 x 292 mm
Packed Weight 134.7 lbs / 61.1 kg
Handle Yes
VESA Standard Mount Interface 600 mm x 400 mm
Special Features
Special Features Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation, PIP/PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron Connected1 , Cisco Compatibility 2 , Beacon, HDMI-CEC3 , SI Server Setting, webRTC
Environmental Conditions
Operating Temperature Range 32° F to 104° F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption - Typ. / Max. 215 W / 280 W
Power Consumption - Smart Enegy Saving 151 W
Sound
Speaker Built-in (10W×2)
Certification
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
Media Player Compatibility
OPS Type Compatible Yes
External Media Player Attachable Yes
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/Control+
Accessory
Basic Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
Optional Media Player, OPS Kit (KT-OPSA), Wall Mount (LSW640A/B)
Warranty
Warranty 3 Year Limited Warranty

Views:

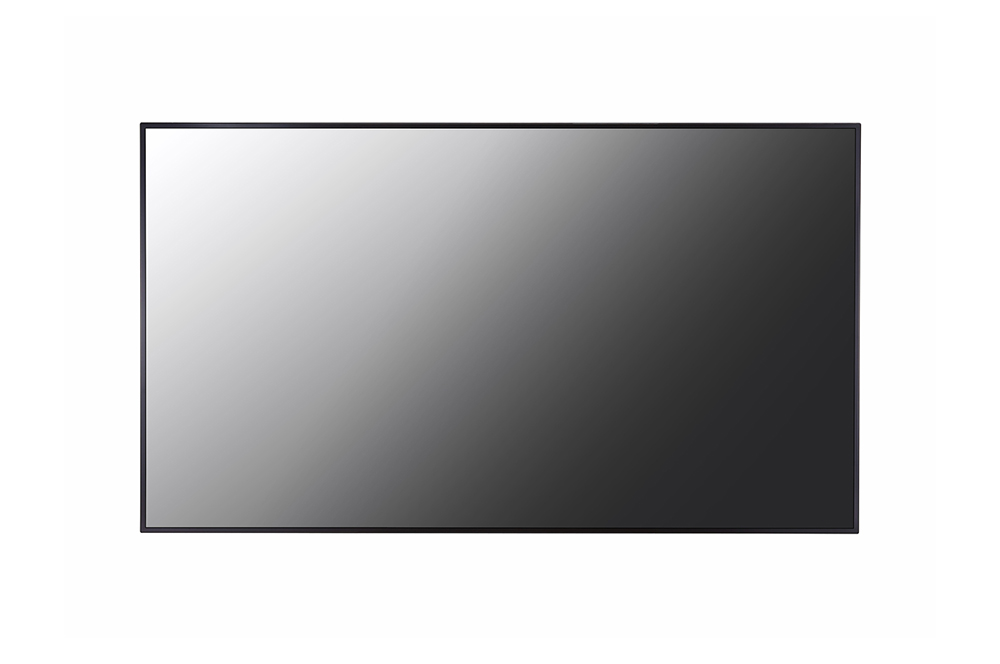

Front

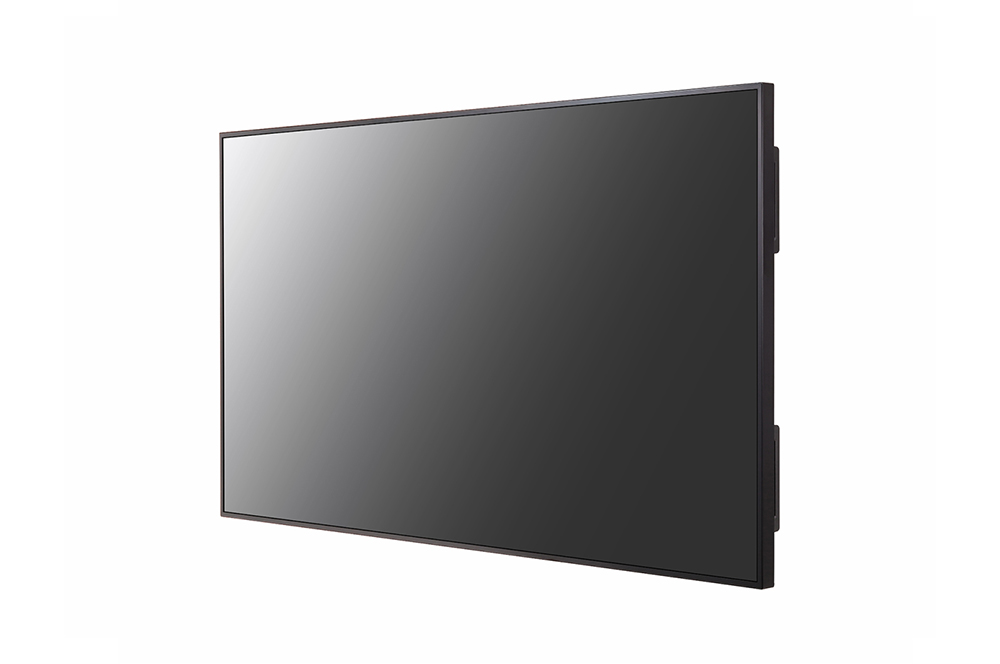

Right Perspective

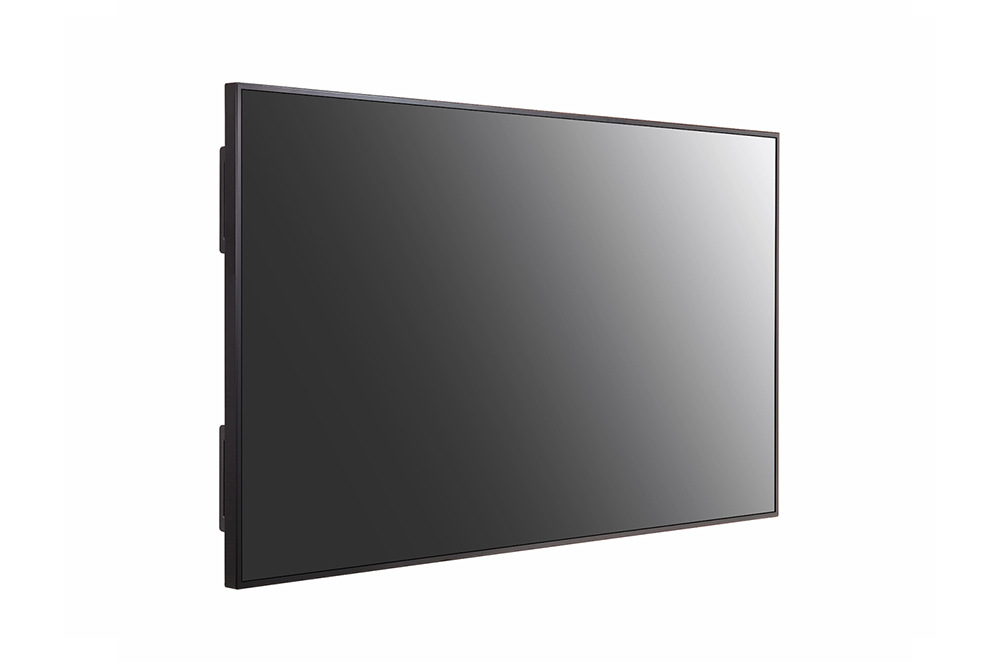

Left Perspective

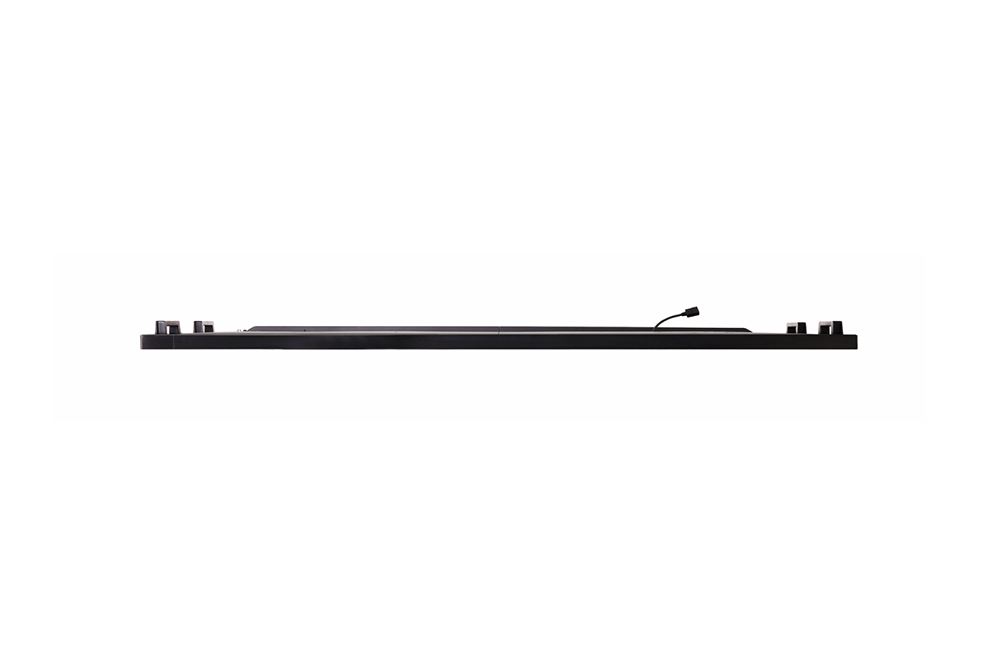

Top

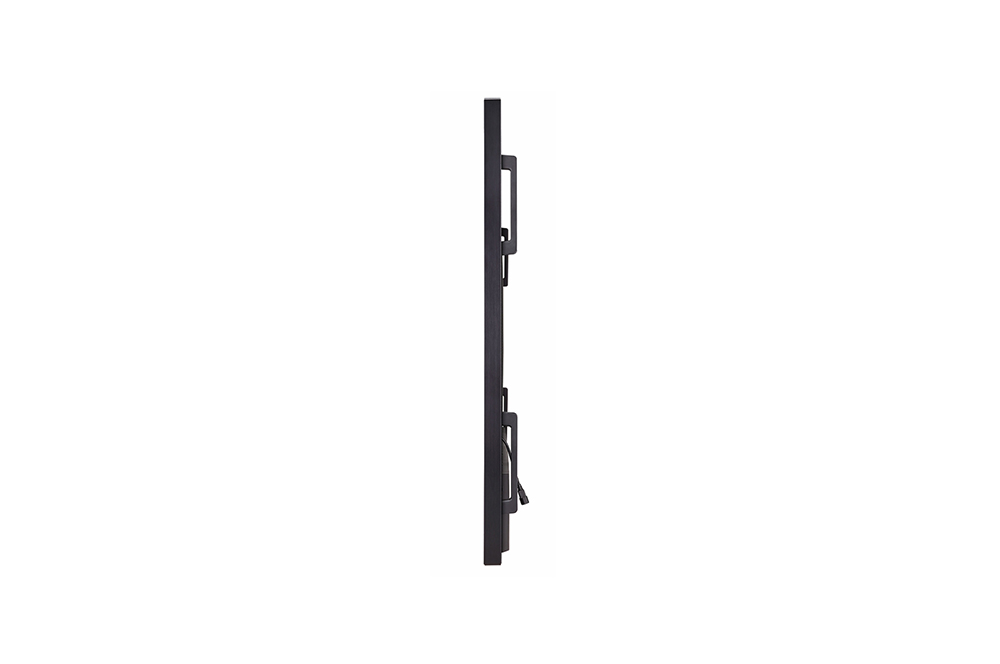

Right Side

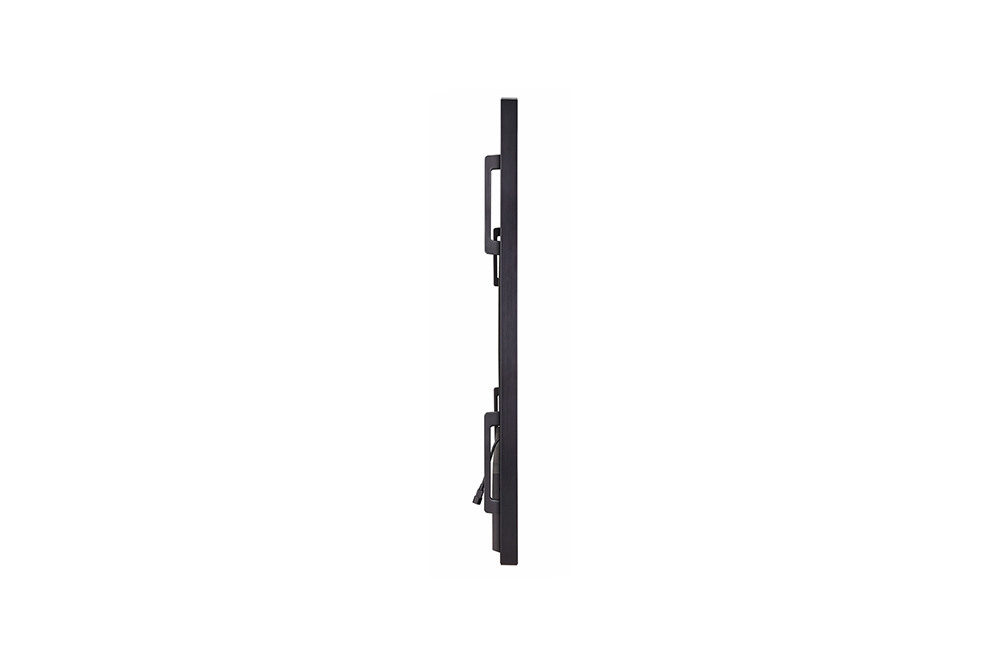

Left Side

Documentation:

Download the LG Ultra HD Signage - UH5E Series Datasheet (.PDF)
