LG 86TN3F
86" TN3F-B In-Cell UHD IPS Multi-Touch Screen Display

LG 86TN3F

LG Display Products

Interactive
  • LG 86TN3F 86" In-Cell UHD IPS Multi-Touch Screen Display
    86" Display, 3,840 x 2,160 (UHD), 350 Nit, HDMI (3), DP, DVI-D, USB, RS232C IN/OUT, Black, 3-Year Warranty
    #86TN3F-B
    Our Price: $10,300.00

Click here to jump to more pricing!

Overview:

True Interactivity for The Most Collaborative Meeting

In complex, collaborative writing environments such as meeting rooms and classrooms, the 86TN3F is the ideal solution. The InCell Touch and Active Pen, which incorporate state-of-the-art touch technology, provide an unrivaled cursive writing experience. In addition, you can easily connect anytime, anywhere with virtually any device, so that you can hold smart meetings and collaborations.

  • Size: 86"
  • Multi-touch (20 point) & Active Pen : Max 2 Point
  • Ultra HD (3,840 x 2,160 resolution)
  • IPS Panel create superior picture color & quality
  • Data mirroring, screen & file sharing
  • Integrated webOS and IDB apps
  • Interactive UX-UI

Features:

Natural Cursive Writing Experience

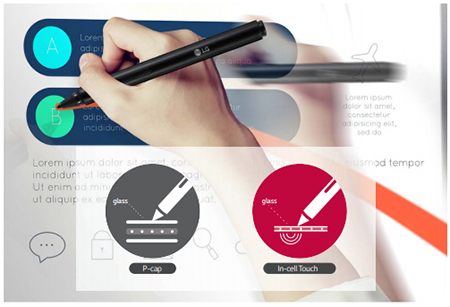

In-Cell Touch


The In-Cell Touch technology of the TN3F provides advantages in writing performance and visibility, delivering a high-quality user experience with its slim design and outstanding writing performance.

In-Cell Touch

Active Pen


Use TN3F’s Active Pen to write in a more natural and detailed way. The Active Pen is pressure sensitive, so strokes can be thick or thin, and the user’s handwriting can be perfectly reproduced on the screen.

Active Pen


Collaboration & Connectivity

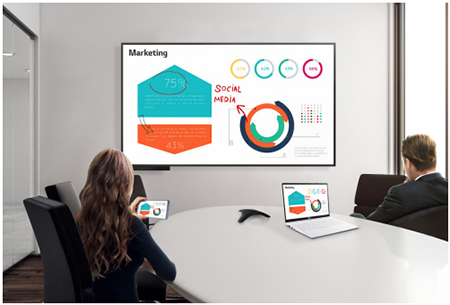

Data Mirroring


TN3F's data mirroring technology enables two-way writing and sharing in real time to remotely share annotations and facilitate collaboration in meetings in any space, anytime and anywhere.

Data Mirroring

Screen & File Sharing


TN3F's screen sharing provides the content-sharing function with laptops or various mobile devices, enabling more efficient and immersive meetings. Using the IDB DUO App, files can be directly shared between the Interactive Digital Board and the client devices, so you can carry out smarter meetings.

Screen & File Sharing


User Friendly Experience

Interactive UX-UI (New Interactive Display App)


The new Interactive Display Application features an intuitive user interface that includes a simple launcher menu, easy control center, and seamless tool bar

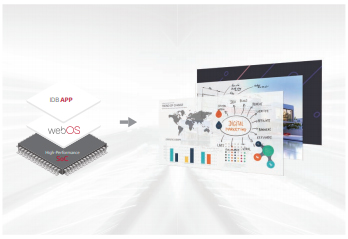

All-in One


The TN3F integrates both webOS and IDB* apps into a high-performance System on Chip (SoC) that allows functionality without the need to connect a laptop. The IDB mode can be instantly started with just one touch.

All-in One

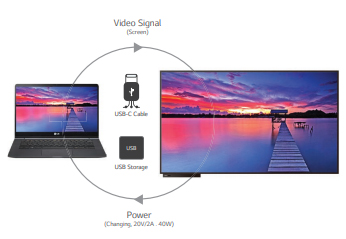

USB-C Type Ready


The TN3F provides video, audio, and power all in one, making it quick and easy to connect to other devices for smarter meetings. It also supports USB Type-C connectors that can more efficiently replace other connectors, such as USB-B, USB-A and HDMI.

USB-C Type Ready


Superior Picture Quality

True Color, Immersive View


The TN3F is large enough to display content and catch the attention of various meeting participants. The IPS panel clearly conveys content at extreme viewing angles, regardless of where participants are sitting. Each pixel of the IPS panel reproduces the actual image’s color without any distortion.

True Color, Immersive View

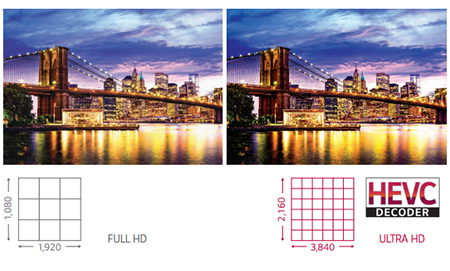

Vivid Color Details with Ultra HD


Using UHD resolution will allow you to view details at a resolution that is four times higher than FHD, even while zoomed in. Documents, images, and videos are displayed without any distortion of image quality, which is especially important in a complex business environment.

Vivid Color Details with Ultra HD

Specifications:


86TN3F Specifications
Panel
Screen Size 86"
Panel Technology IPS
Back Light Type Edge
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness (Typical with Protection Glass) 350 nits (w/Protection Glass)
Contrast Ratio 1000:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Minimum Life Time (Typical) 30,000 hours
Operation Hours 16 Hours
Orientation Landscape
Connectivity
Video / Audio HDMI (3), DP, DVI-D, USB Type C / Audio In/Out
External Control RS232C In/Out
USB USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)
Mechanical Specification
Bezel Color Black
Bezel Width (T/L/R/B) set: 28.8mm
Monitor Dimension (W x H x D) 76.9 x 45.8" x 3.4" / 1952.6 x 1164.1 x 86.4mm
Weight (Head) 147 lbs / 66.7 kg
Carton Dimensions (W x H x D) 86.2" x 57.9" x 14.6" / 2190 x 1470 x 371mm
Packed Weight 212.5 lbs / 96.4kg
Handle Yes
VESA™ Standard Mount Interface 600 mm x 400 mm
Key Features
HW Internal Memory (64GB), SoC (M16++), DDR(3GB), Wi-Fi(Built-in), Local Key Operation(2, Power/AssitvieMenu)
SW webOS 4.0
Environmental Conditions
Operating Temperature Range 32° F to 104° F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Power Consumption - Typ. / Max. 360W / 420W
Sound
Speaker Built in (10W/Ch)
Certification
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KC
Media Player Compatibility
OPS Type Compatible Yes
Optional (OPS Kit (KT-OPSA))
Touch Specifications
Touch type In-cell
Available object size for touch 5 mm ↑
Response Time (PC Windows 10) 70ms↓
Accuracy ±1.5mm
Interface USB 2.0
Protection Glass Thickness 1.85T (Anti-Glare)
Protection Glass Transmission 88% ↑
Operating System Support Win7 professional, Win8.1, Win10
Max Simultaneous Touch Finger: Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen: Max 2 Point
Special Features
IDB App Yes
Accessories & Other
Basic Remote Controller, Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(12ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter
Warranty 3 Year Limited Warranty

Views:

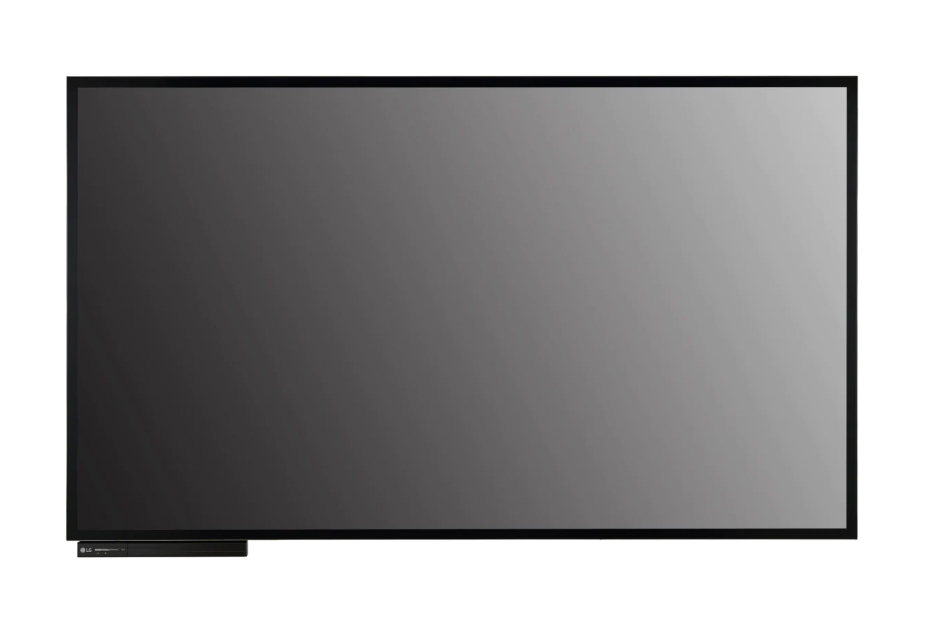

Front

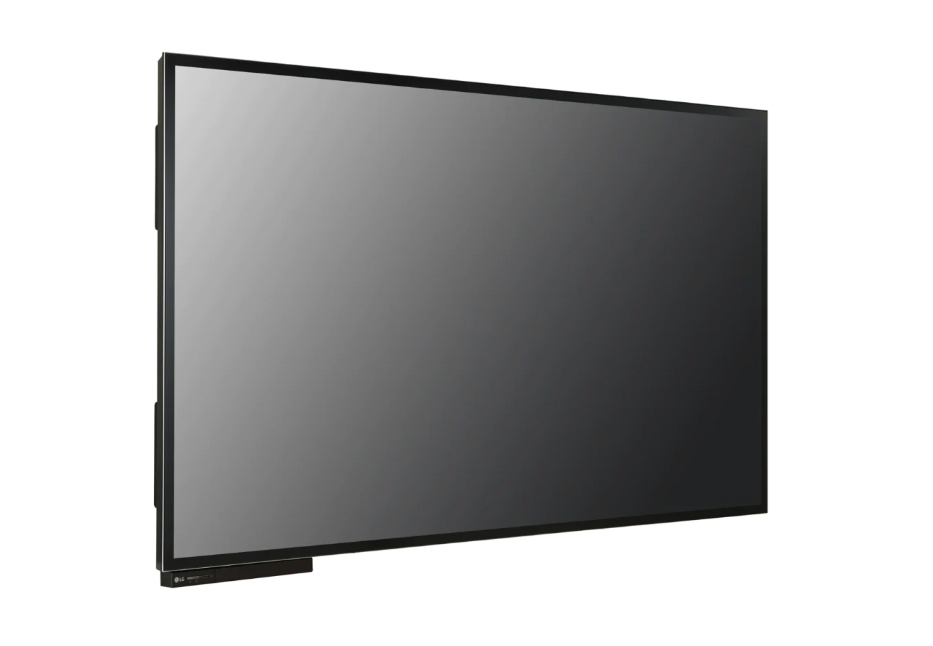

Right Perspective

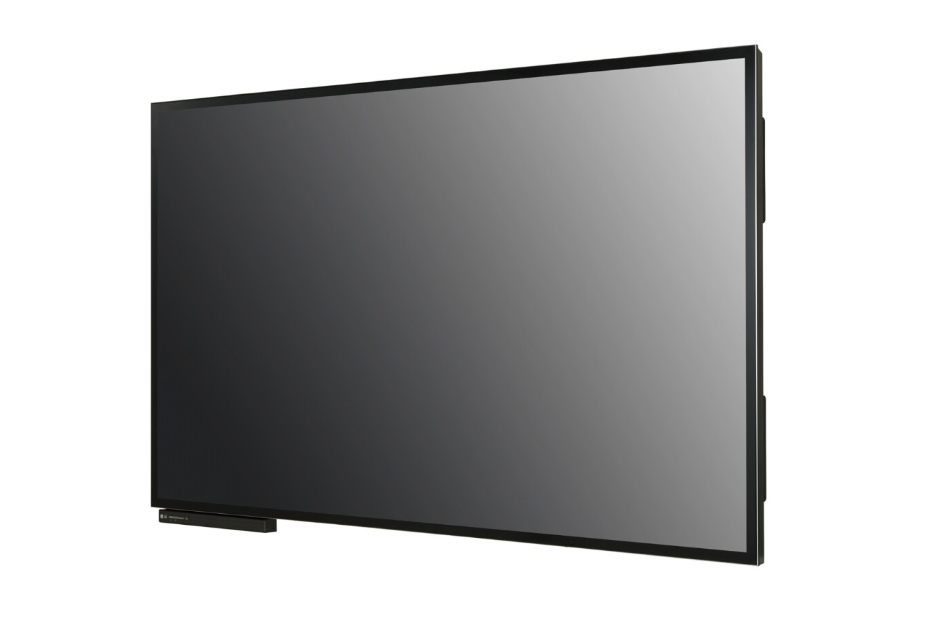

Left Perspective

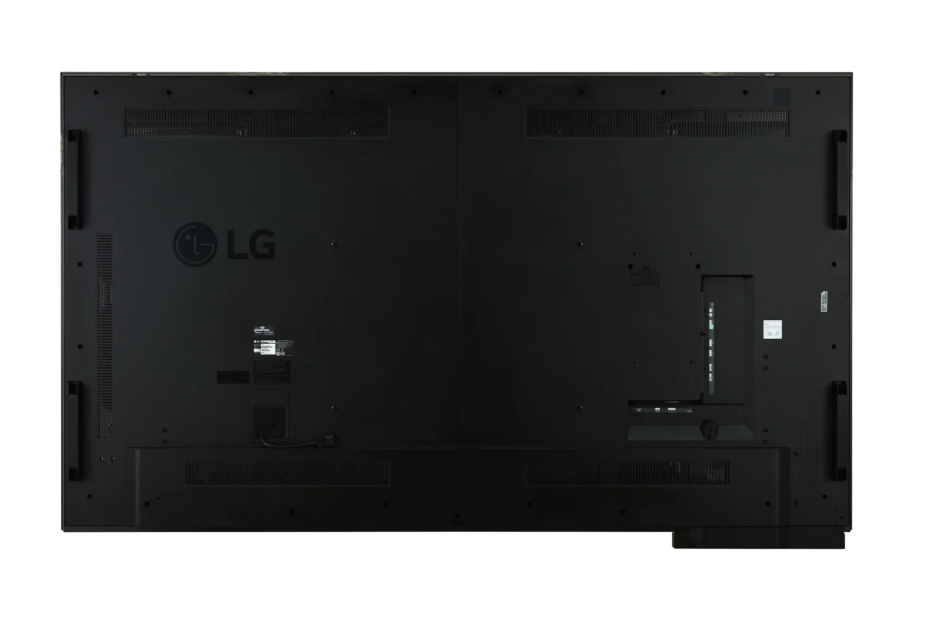

Rear

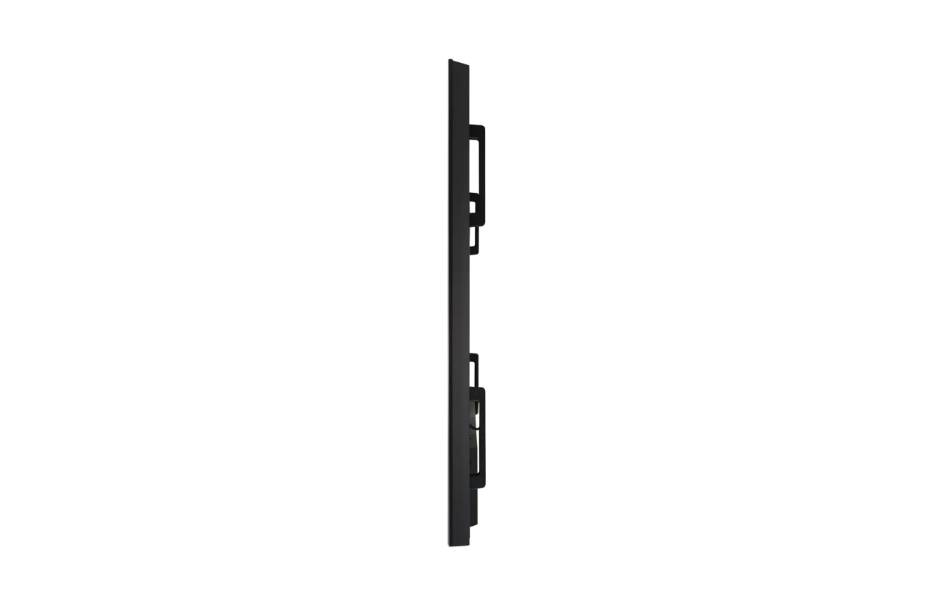

Right Side

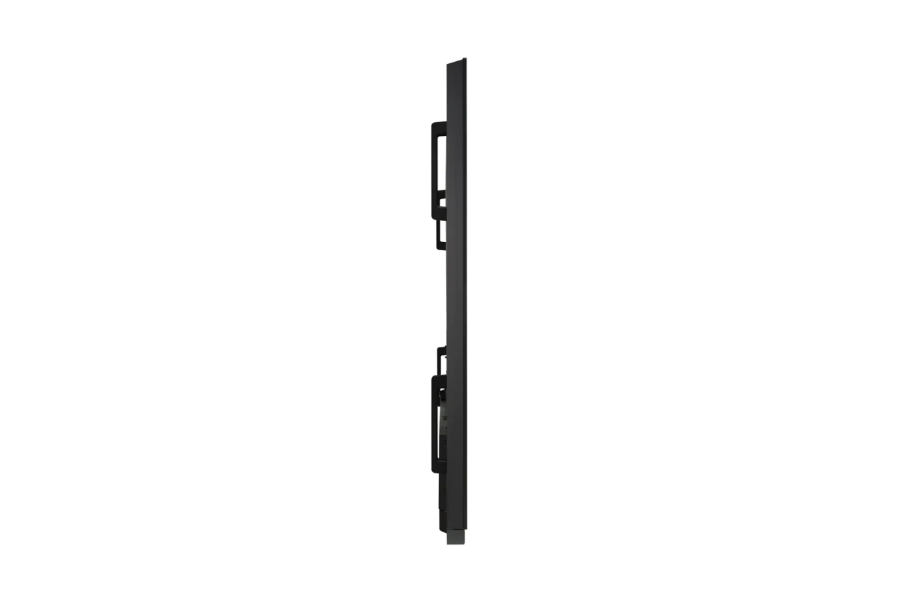

Left Side

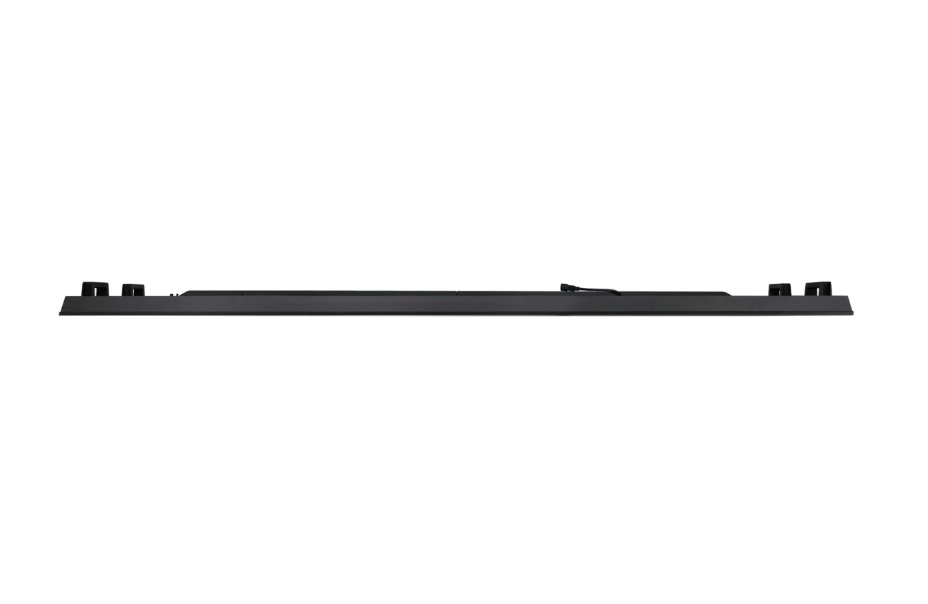

Top

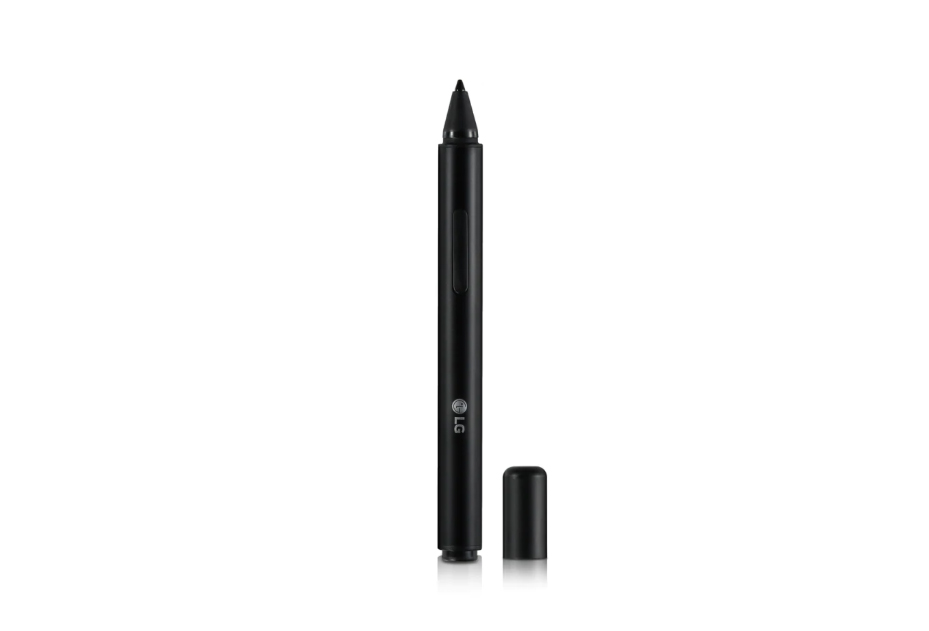

Pen

Documentation:

Download the LG Interactive Digital Board - 86TN3F Series Datasheet (.PDF)
