LG 86BH5C
86" Ultra-Stretch Digital Signage


LG 86BH5C

LG Display Products
Ultra Stretch Displays

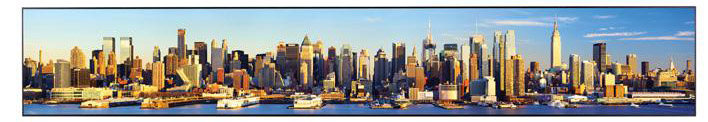

LG 86BH5C 86" Ultra-Stretch Digital Signage
86" LCD, 3840x600 (UHD), LED, 58:9 widescreen, 500 Nit, HDMI (3), DisplayPort, DVI-D, OPS, USB 2.0/USB 3.0, SD Card, Ethernet, Black, 3-Year Warranty
#86BH5C-B
Our Price: $5,321.00

Click here to jump to more pricing!

Overview:

58:9 Ultra Stretch for Dynamic Digital Content

Ultra Stretch 86BH5C is a new signage format with a 58:9 widescreen that can display dynamic content depending on the user's installation environment. (E.g. airports, subways, banks, art galleries, or retail stores) This product is also a work of structural art in itself that can be seen as digital decor

  • Size: 86"
  • Brightness(Typ.): 500 cd/m²
  • Bezel: 4.4mm (Left/Right), 5.9mm (Top/Bottom)
  • Depth: 81.7mm
  • Ultra HD Resolution (3840 x 600)
  • 58:9 Extended Wide Format
  • 4 Divided PBP in Landscape or Portrait
  • Multiple Content Creation
  • Interface: HDMI, DP, OPS, DVI-D, RJ45, IR, USB2.0, USB3.0, SD Card, Daisy-Chain (DP Out, RS232C In/Out, RJ45)

Features:

New Design Configuration

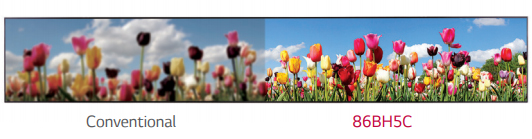

Ultra HD Resolution (3840 x 600)
Ultra HD large screens deliver an immersive viewing experience.

Ultra HD Resolution (3840 x 600)

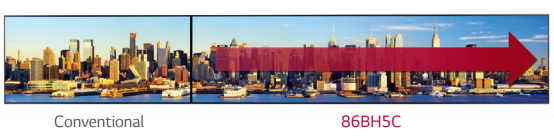

58:9 Extended Wide Format
Dynamic content is delivered on one screen since the new widescreen format is a 58:9 bar- type display.

58:9 Extended Wide Format


Multiple Screens

4 Divided PBP in Landscape or Portrait
The Picture-by-Picture (PBP) feature allows you to divide a screen into four parts in landscape or portrait installations.

4 Divided PBP in Landscape or Portrait

Content Management

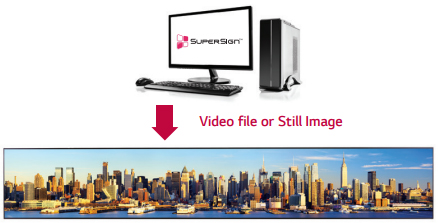

58:9 Content Editing
With the LG SuperSign media editor, you can easily edit images or video clips of original content without any additional editing programs.

58:9 Content Editing

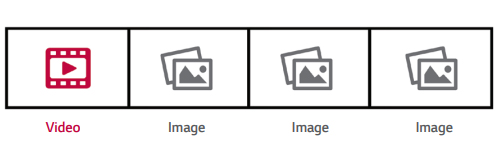

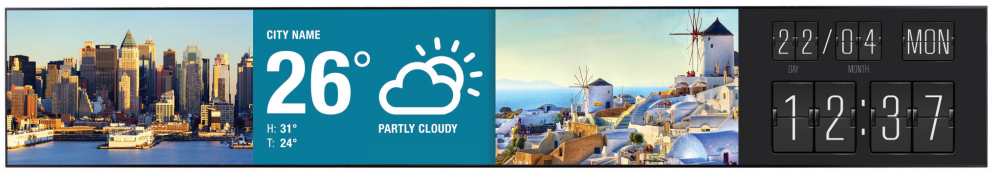

Multiple Content Creation
Users can edit content that consists of one video and several still images (up to 20) with SuperSign Editor.

Multiple Content Creation


Convenient Connectivity Support

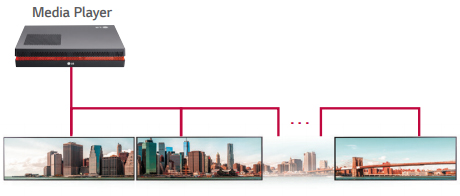

Tiling Scene with Daisy Chain
This product supports lateral tiling for 1x4 or 4x1 installations (landscape or portrait), and up to a 4x4 installation with a daisy chain configuration.

Tiling Scene with Daisy Chain

LAN Daisy Chain
The LAN daisy chain allows you to control and monitor devices, distribute content, and even update firmware.

LAN Daisy Chain


Easy Installation

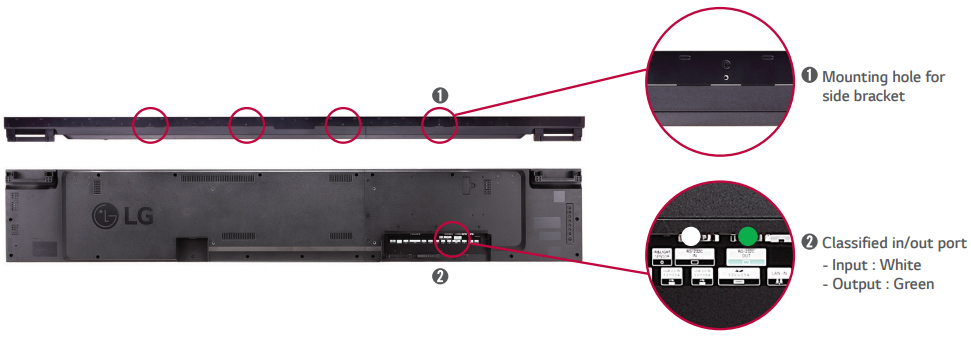

Side Bracket / Classified Port
This product supports side brackets for buried installations. The classified in/out port prevents errors when connecting a daisy chain.

Side Bracket / Classified Port

Specifications:


86BH5C-B Specifications
Panel
Screen Size 86” Class (85.6” Diagonal)
Panel Technology IPS
Aspect Ratio 58:9
Native Resolution 3840 x 600 (UHD)
Brightness 500 cd/m2 (Typ.), 400 cd/m2 (Min.)
Contrast Ratio 1,100:1(Typ)
Viewing Angle (H x V) 178 x 178
Response Time 8 ms (G to G BW, Typ.)
Surface Treatment AGP (10% Haze)
Lifetime 50,000 Hours
Orientation Landscape / Portrait
Connectivity
Input HDMI(3), DP, OPS, DVI-D, USB2.0, USB3.0, SD Card
Output Analog Audio
External Control RS232C, RJ45, IR+B Receiver, Pixel Sensor, Analog Audio
Physical Specification
Bezel Color Black
Bezel Width 4.4mm (L/R), 5.9mm (T/B)
Monitor Dimension (W x H x D) 85" x 13.7" x 3.2"
Weight (Head) 45.2 lbs
Carton Dimensions (W x H x D) 90.2" x 9" x 18.9"
Packed Weight 78 lbs
Special Features
Special Features Temperature Sensor, Auto Brightness Sensor, Tile Mode, Natural Mode@Tile Mode, ISM Method, Energy Saving, Smart Energy Saving, File Play with USB/SD/Internal Memory, PIP/PBP, 8GB (System 4GB + Available 4GB), Wi-Fi Dongle Ready, 4K Up Scaling
Environmental Conditions
Operating Temperature 32 °F to 104 °F
Operating Humidity 10% to 80%
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 180 W / 220 W
Power Consumption - Smart Enegy Saving 30% of typical
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KC
ErP / Energy Star NA / NA
Media Player Compatibility
OPS type compatible Yes
External Media player Attachable No
Software Compatibility
Content Management Software SuperSign W/Lite
Control and Monitoring Software SuperSign C
Accessory
Basic Remote Controller (2ea Batteries included), Power Cord, DP (3M), RS-232C Cable (3M) Owner's Manual (Website upload)
Optional AN-WF500 (WiFi USB Dongle), MP700, KT-OPSA (OPS KIT), KT-SP0 (RGB Sensor)
** Stand is not available
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:

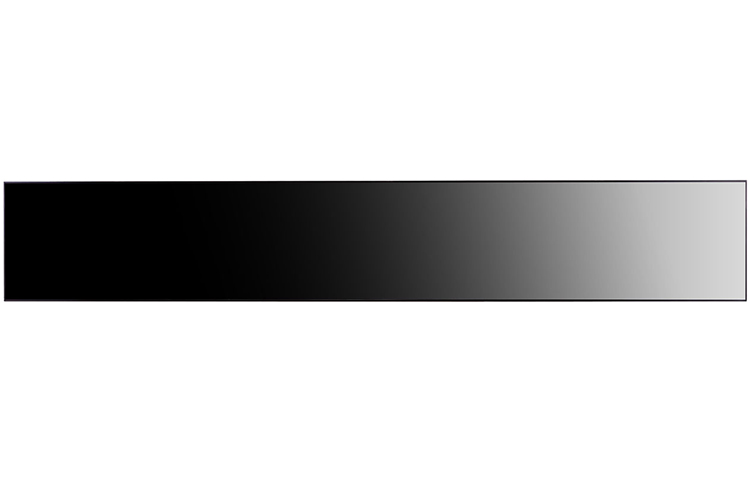

Front

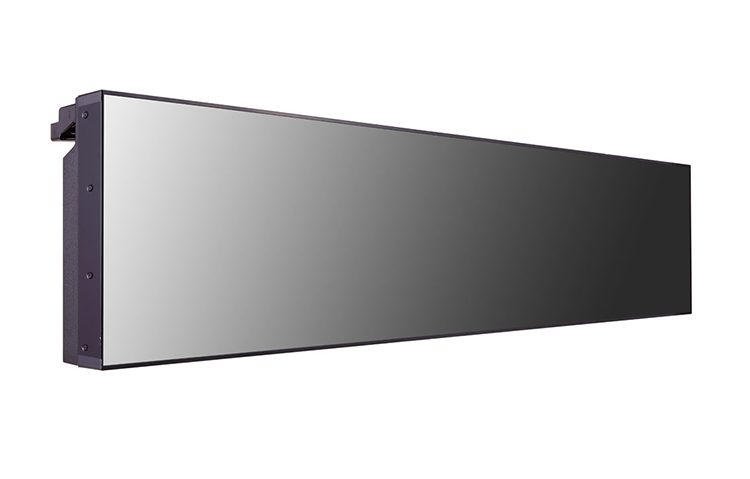

Right Perspective

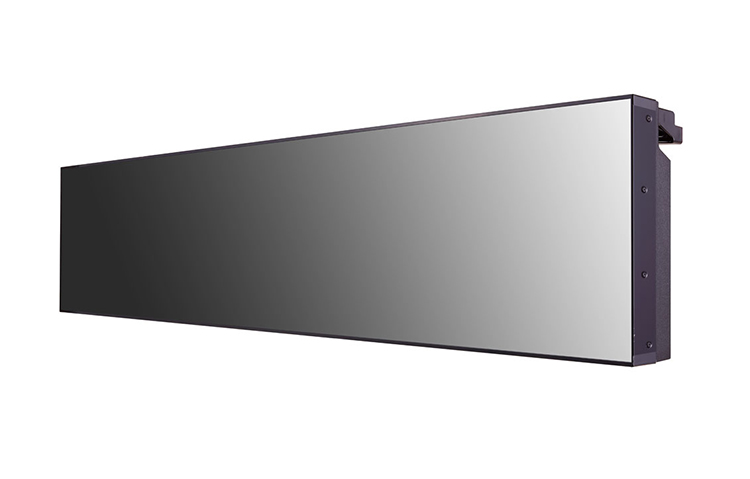

Left Perspective

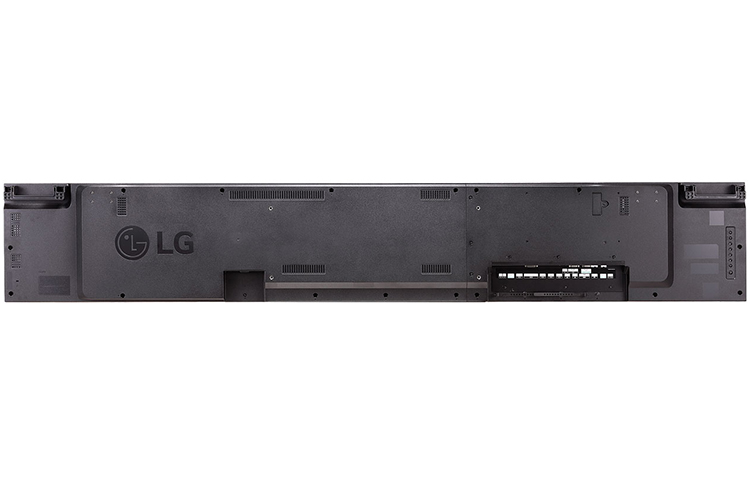

Rear

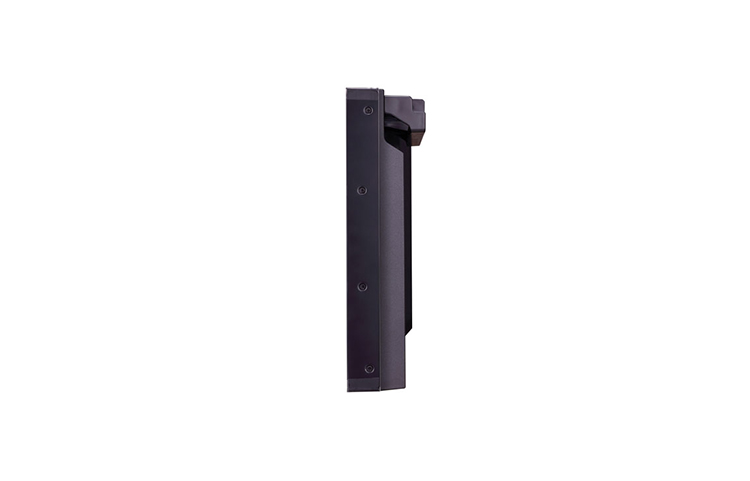

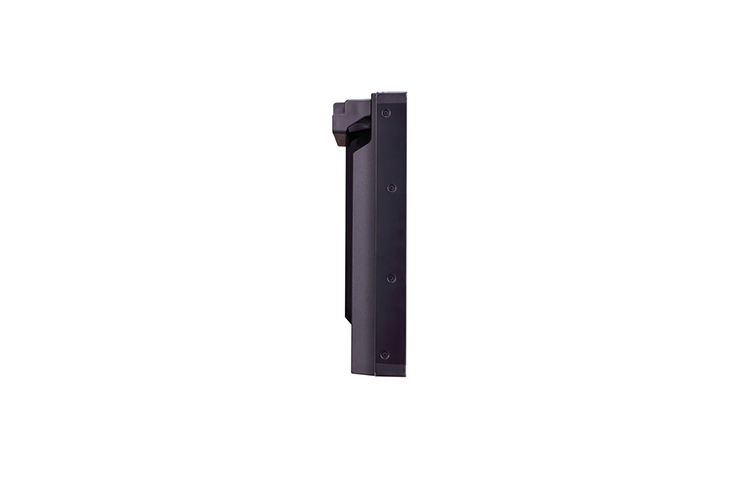

Right Side
Left Side

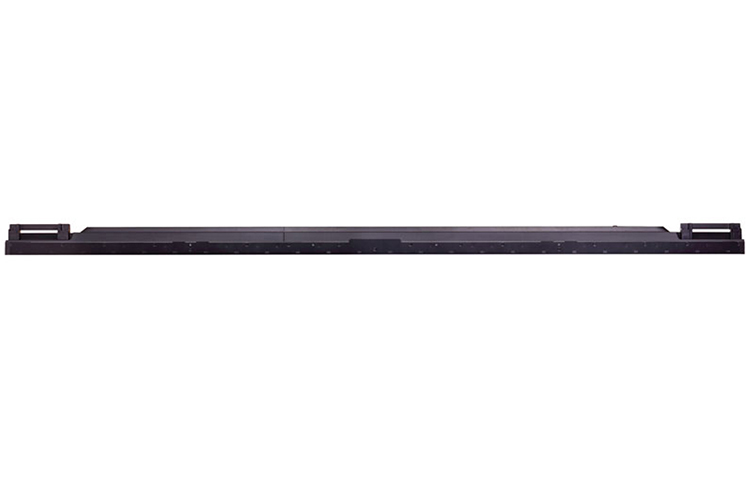

Top

Documentation:

Download the LG Ultra Stretch Signage - 86BH5C Datasheet (.PDF)
