LG 75UM3E-B
75" UM3E Series UHD LED Back-lit Digital Display with webOS Smart Signage Platform


LG 75UM3E-B

75" Display, 3840 x 2160 (UHD), Web OS, HDMI, Display Port, DVI-D, RGB, Black, 3-Year Limited Warranty

75” UM3E Series UHD LED Smart Signage Platform

75” UM3E Series UHD LED Back-lit Digital Display with webOS Smart Signage Platform

#75UM3E-B
Our Price: $3,500.00


Click here to jump to more pricing!

Overview:

Vitalize True Colors of UHD Content in a Smart Way

As an Ultra HD large display, the UM3E series delivers content in a fine detail with vivid colors enough to captivate numerous viewers. Equipped with high compatibility and intuitive user interface, the product allows you to easily connect and coordinate other devices or to manage content in a meeting room or in retail stores.

  • Size: 75"
  • Brightness (Typ.) : 350 cd/m²
  • Bezel : 14.3mm (Even)
  • Depth : 60.6mm
  • Interface : HDMI (3)/DP/DVI-D/USB 2.0 (2)/RS232C/RJ45/Audio/IR
  • Built-in Speaker (10W+10W)

Features:

Superior Picture Quality


True Color, Immersive View


The UM3E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

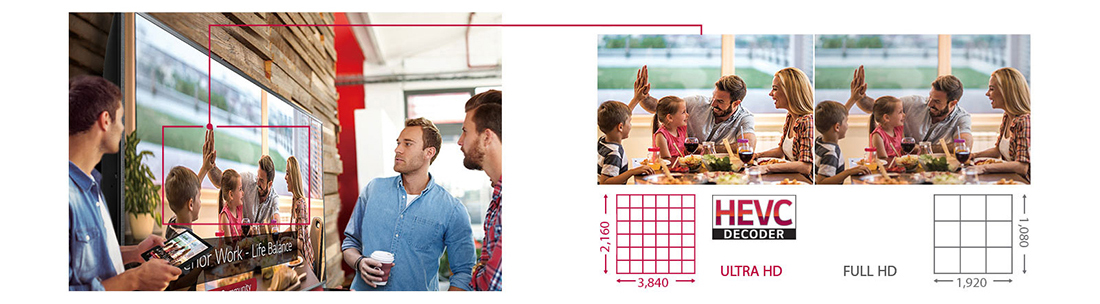

Vivid Color Details with Ultra HD


The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UL3E ensures stable UHD video playback with HEVC (High Efficiency Video Coding).

Superior Picture Quality


Powerful webOS Smart Signage Platform

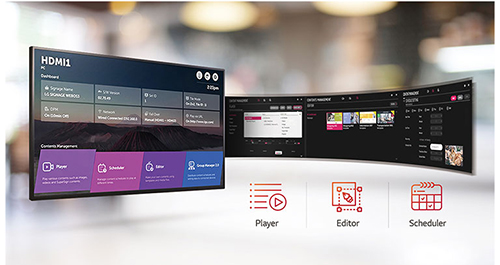

Easy Content Management


The embedded CMS (Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.

Easy Content Management

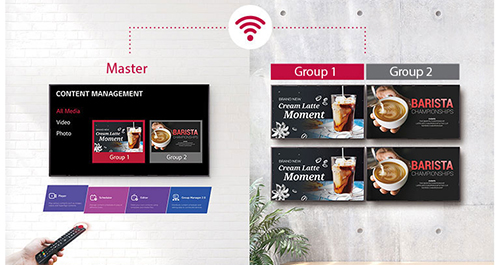

Simple Group Management


The embedded Group Manager makes a master display work as a server and manage other displays1 connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.

Simple Group Management

1) One master display can create a max. of 25 groups, and each group can consist of a max. of 12 slave displays.

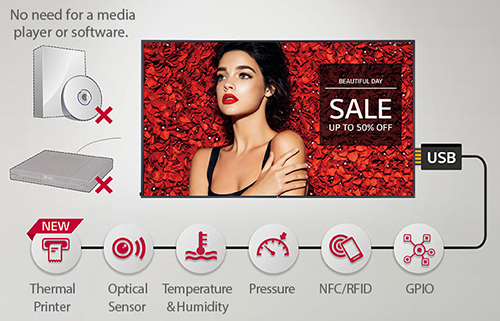

Various Sensor Applications


LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is more affordable because no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications

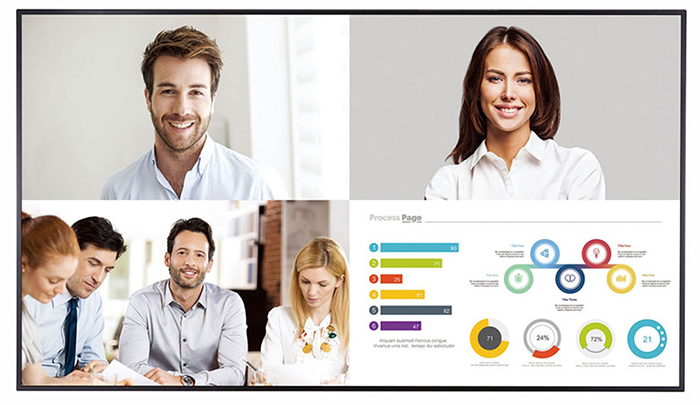

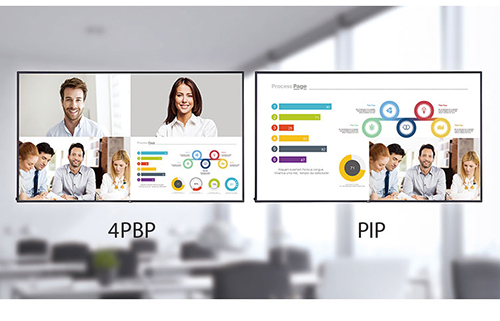

Multi Screen Mode


PBP (Picture-By-Picture) features multi screen in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.

Multi Screen Mode


Easy Maintenance


Real-Time Monitoring & Control


Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.

Real-Time Monitoring & Control

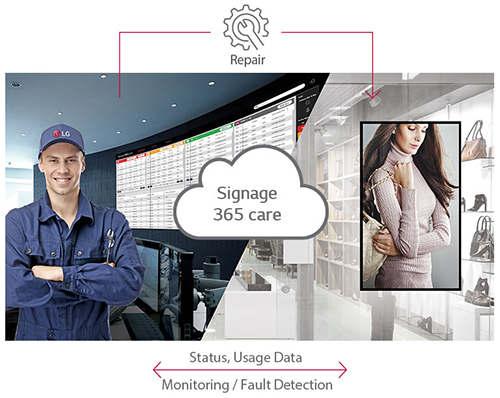

Real-time Care Service


The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Real-time Care Service


Wireless Solution

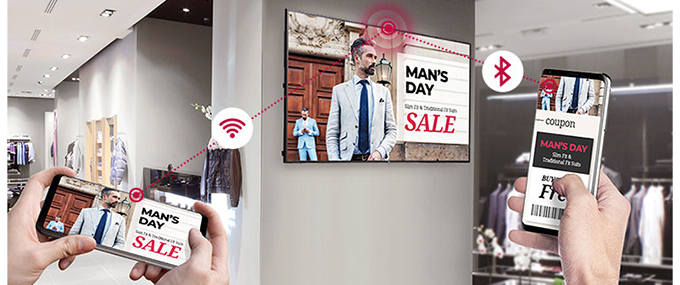

Content Sharing


Content Mirroring among devices is more convenient on a Wi-Fi network.

Real-time Promotion


With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.

Wireless Access Point


The UM3E series operates as a virtual router which can be an wireless access point for mobile devices.

Content Sharing

Wireless Access Point


High Compatibility

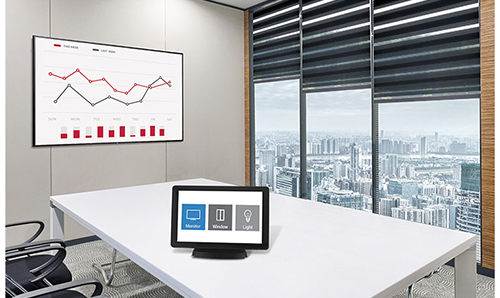

Compatibility with AV Control System


The UM3E series has been certified Crestron Connected® for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control 1), boosting business management efficiency.

Compatibility with AV Control System

Compatibility with Video Conference System


For the optimum visual meeting, the UM3E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1 for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

Compatibility with Video Conference System

Specifications


75UM3E Specifications
PANEL
Screen Size 75" Resolution 3,840 x 2,160 (UHD)
Brightness 350 nits
CONNECTIVITY
Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2) Output DP, Audio (Off/Fixed/Variable)
External Control RS232C in/out, RJ45 in, IR in
PHYSICAL SPECIFICATION
Bezel Width 14.9 mm (Even) Monitor Dimension (W x H x D) 1,682.4 x 960.3 x 57.9 mm (w/o Handle and Logo)
Weight (Head) 41.5 kg Carton Dimensions (W x H x D) 1,816 x 1,123 x 228 mm
Packed Weight 49 kg VESA™ Standard Mount Interface 600 x 400 mm
ENVIRONMENT CONDITIONS
Operation Temperature Range 0°C to 40°C Operation Humidity Range 10% to 80%
POWER CONSUMPTION
Max 185W Typ. 160W
STANDARD(CERTIFICATION)
ErP / Energy Star N/A / Energy Star 7.0 (TBD)
MEDIA PLAYER COMPATIBILITY
External Media Player Attachable Yes OPS Type Compatible Yes
SOFTWARE COMPATIBILITY
Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Control+/Control
ACCESSORY
Basic Remote Controller(include battery 2ea), Power Cord, QSG, DP Cable(1.8M), Regulation Book, Phone to RS232C Gender

Views:

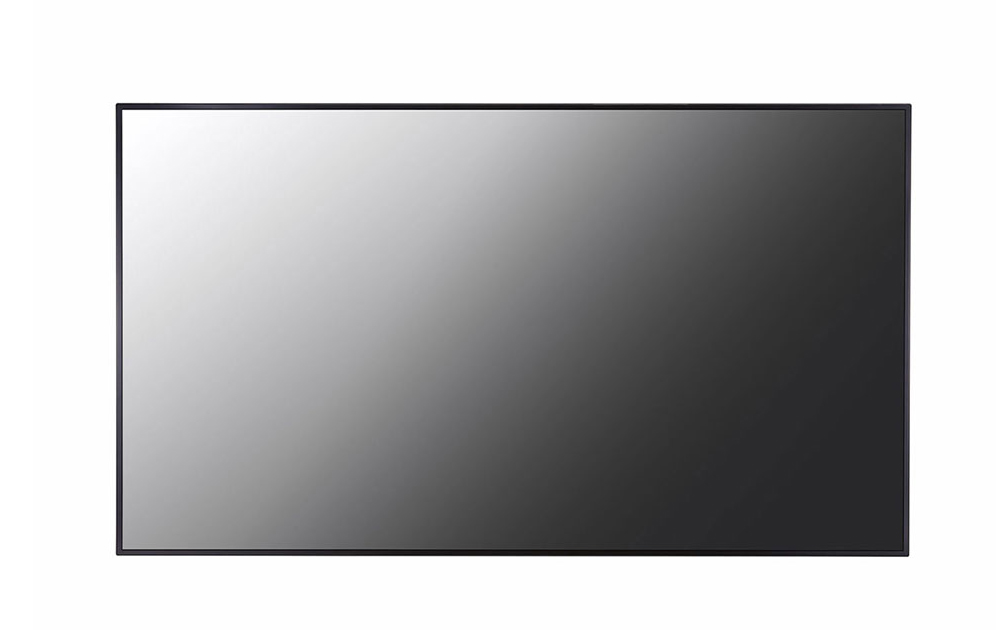

Front

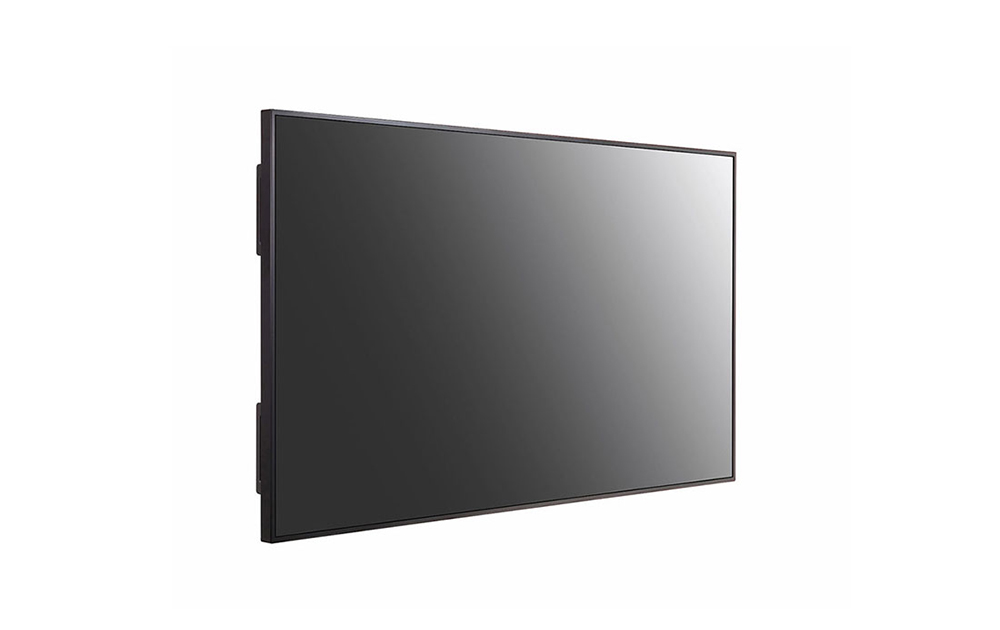

Right Perspective

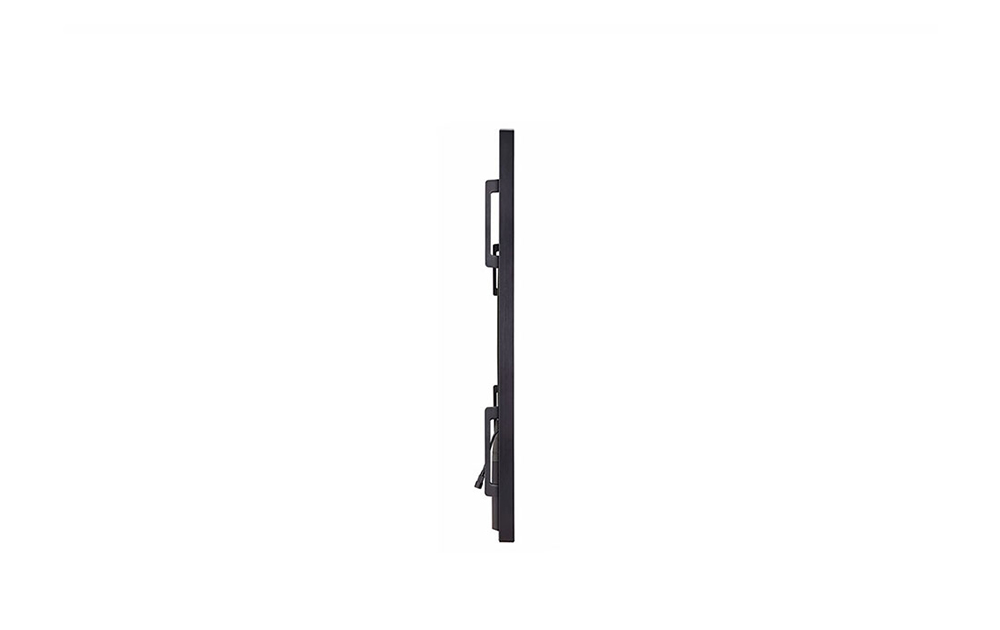

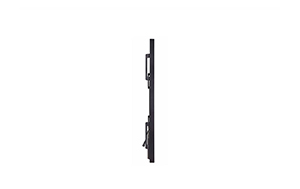

Side-Right

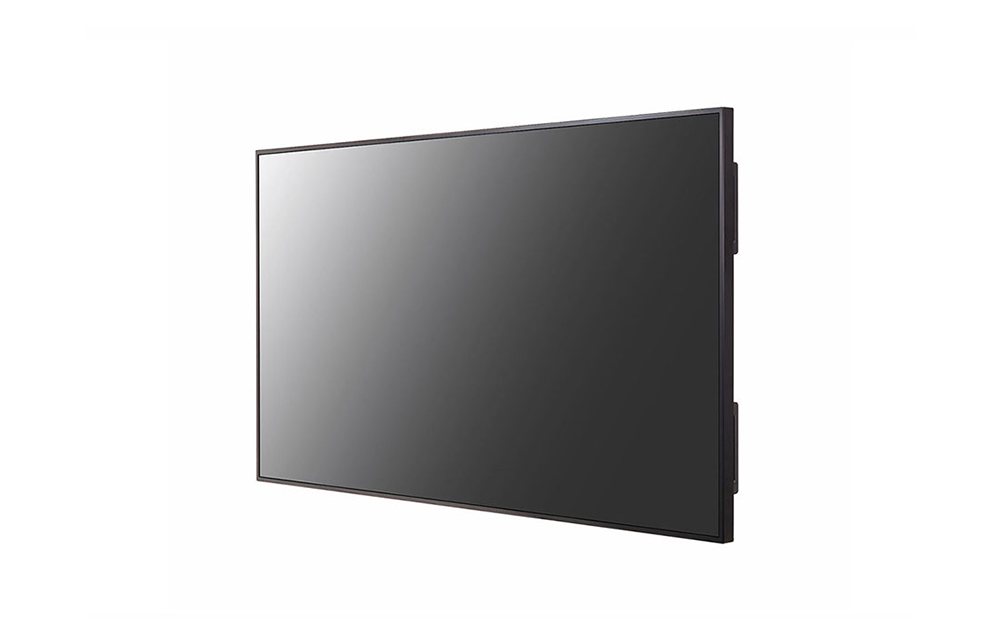

Left Perspective

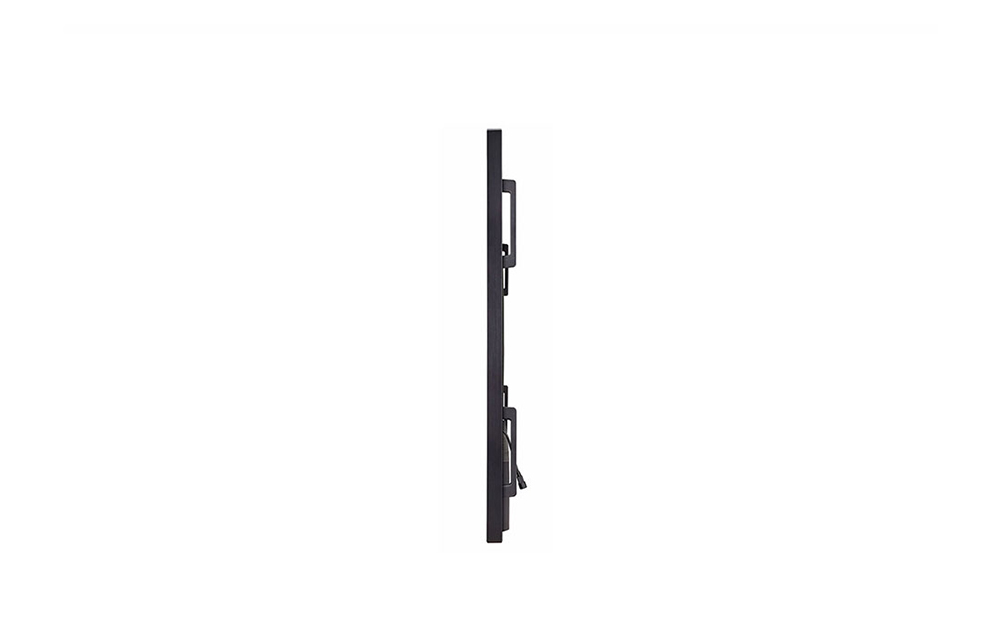

Side-left

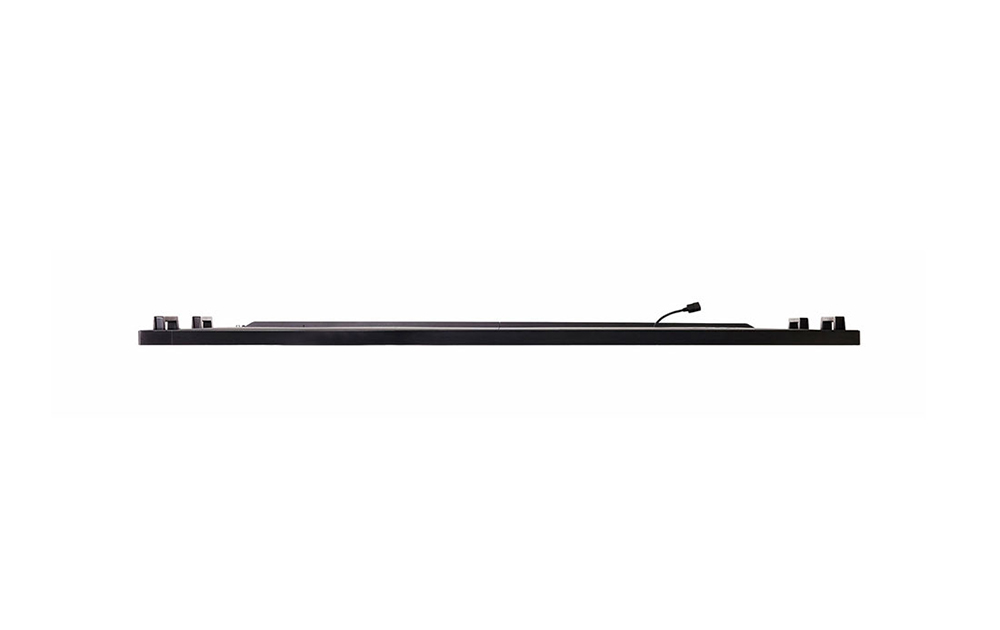

Top
