75" Ultra HD Signage Display
Sorry, this product is no longer available, and has been replaced by the 75UH5F-H.
Vibrant Colors and Powerful Performance Bring Content
With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.
- Size: 75"
- Brightness(Typ.) : 500 cd/m²
- Bezel : 14.9 mm (Even, Off-Bezel)
- Depth : 57.9 mm (without Handle and Logo)
- Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W+10W)
Superior Picture Quality
True Color, Immersive View
The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.
Vivid Color Details with Ultra HD
The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).
Powerful webOS Smart Signage Platform
Easy Content Management
The embedded CMS(Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier.
Simple Group Management
The embedded Group Manager makes a master display work as a server and manage other displays1) connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.
Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.

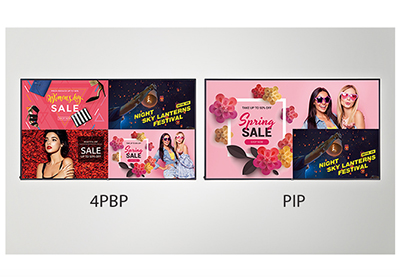

Multi Screen Mode
PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
Real-Time Monitoring & Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
Real-time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Content Mirroring among devices is more convenient on a Wi-Fi network.
With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Access Point
The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.
Compatibility with AV Control System
The UH5E series has been certified Crestron Connected for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1), boosting business management efficiency.
Compatibility with Video Conference System
For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.

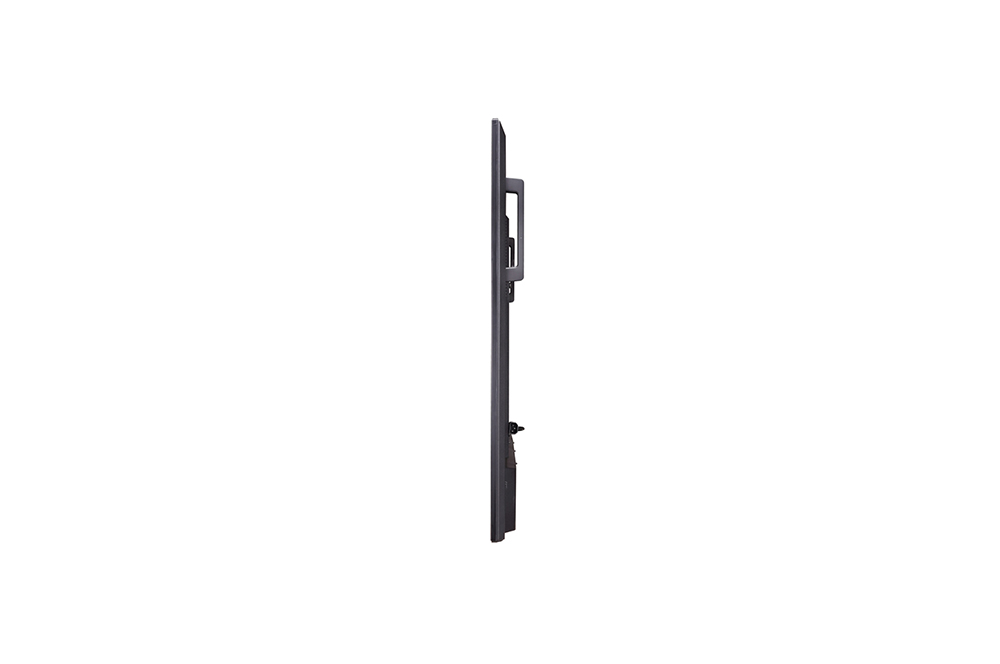

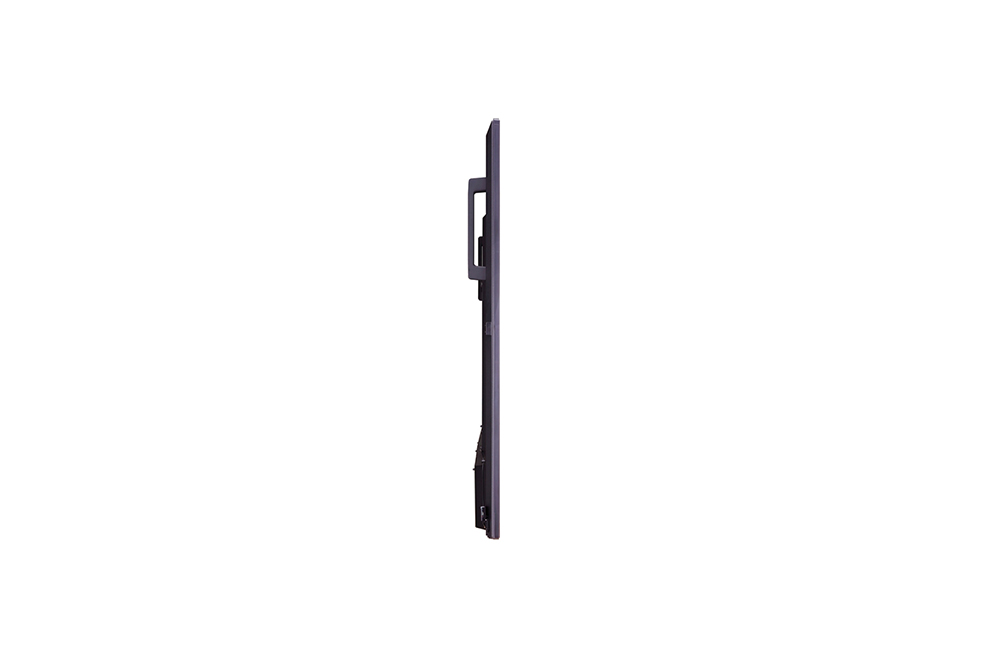

Slim and Tidy in Appearance
Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, giving advertisements greater impact.
|Aspect Ratio||16 : 9|
|Native Resolution||3,840 x 2,160 (UHD)|
|Viewing Angle (H x V)||178 x 178|
|Response Time||6ms (G to G)|
|Surface Treatment||Low Haze 3%|
|Life Time (Min.)||50,000 hours|
|Guaranteed Operating Hour||24 Hours|
|Orientation||Landscape & Portrait|
|Input||HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)|
|Output||DP, Audio (Off/Fixed/Variable), External Speaker (98" Only)|
|External Control||RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In|
|Bezel Width||14.9 mm (Even) * Off-Bezel|
|Monitor Dimension (W x H x D)||66.2" x 37.8" x 2.3" / 1,682.4 x 960.3 x 57.9 mm (without Handle and Logo)|
|Weight (Head)||91.5 lbs / 41.5 kg|
|Carton Dimensions (W x H x D)||71.5" x 44.2" x 9" / 1,816 x 1,123 x 228 mm|
|Packed Weight||109.1 lbs / 49.5 kg|
|VESA Standard Mount Interface||600 mm x 400 mm|
|Special Features||Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Image Customization, Failover, Content Sync (RS232C, Local Network), Screen Share, Play via URL, OSD Rotation, Content Rotation, PIP/PBP(4), Tile Mode Setting (Max 15x15), Setting Data Cloning, Firmware Update by Network, SNMP 1.4, ISM Mode, Crestron Connected1 , Cisco Compatibility 2 , Beacon, HDMI-CEC3 , SI Server Setting, webRTC|
|Operating Temperature Range||32° F to 104° F / 0°C to 40°C|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240 V~, 50/60 Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max.||180 W / 260 W|
|Power Consumption - Smart Enegy Saving||126 W|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KC|
|Media Player Compatibility|
|OPS Type Compatible||Yes|
|External Media Player Attachable||Yes|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control/Control+|
|Basic||Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender|
|Optional||Media Player, OPS Kit (KT-OPSA), Wall Mount (LSW640A/B)|
|Warranty||3 Year Limited Warranty|
Download the LG Ultra HD Signage - UH5E Series Datasheet (.PDF)
