LG 55XS4F
55" Full HD Indoor Window-Facing Signage


LG 55XS4F

LG Display Products

High Bright & Indoor Window-Facing Options
  • LG 55XS4F 55" Full HD Indoor Window-Facing Signage
    55" LCD, 1920x1080, LED, 2,500 Nit, 1080p, HDMI (2), DisplayPort, DVI-D, USB, IR Receiver, Wi-Fi & Ethernet, Black, 3-Year Warranty
    #55XS4F-B
    Our Price: $2,995.00

Click here to jump to more pricing!

Overview:

Outstanding Visiblity with Quiet Operation

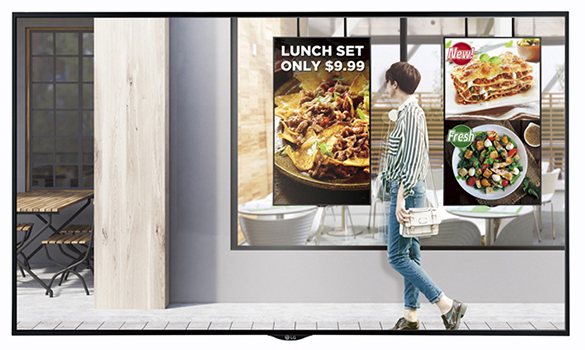

Easily installed in store windows, LG’s XS series of window facing digital signage captivates customers with its vivid image quality and quiet operation. The XS series helps businesses enhance their brand image while enriching the customers’ shopping experience.

  • Size: 55"
  • Brightness: 2,500cd/m2 (Typ)
  • Life Time: 50,000 Hours
  • Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
  • Depth: 85.4 mm
  • Interface: HDMI(2), DP, DVI-D, RJ45, IR, RS232C, USB, External Speaker Out(L/R)

Features:

Outstanding Visibility

High Brightness
With a great brightness of 2,500 cd/m2, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

High Brightness

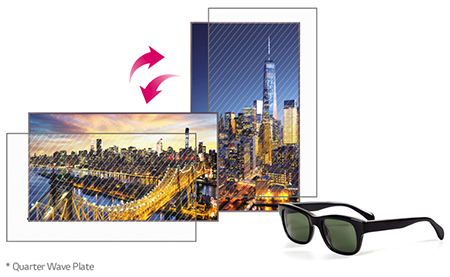

Visible with Polarized Sunglasses
QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

Quiet Operation

Fan-less Design
By eliminating the need for a cooling fan, we have made the XS series an ideal choice for the in-window environment. Its operating noise level is under 25dB, which is quieter than that of typical daily conversation.

Fan-less Design

Space Efficiency

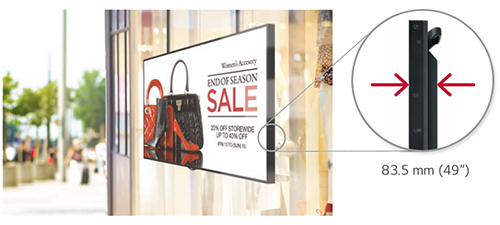

Slim Design
Thanks to its thin depth, the XS series takes up minimal space, which leads to space efficiency in an in-window environment.

Slim Design


User Convenience

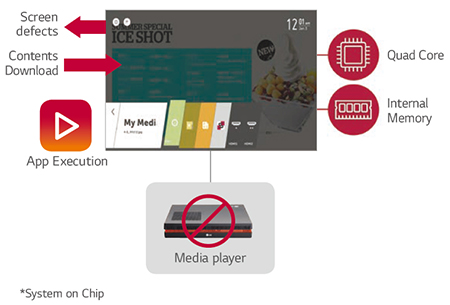

High-Performance with webOS
The Quad Core SoC* technology can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

High-Performance with webOS

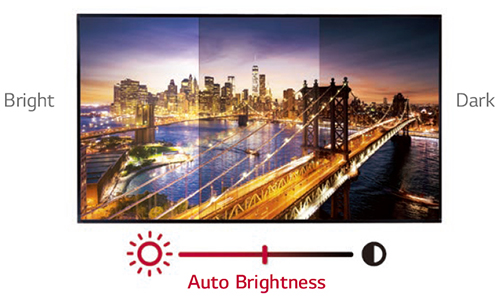

Smart Brightness Control
The auto brightness sensor and preset time scheduler save power consumption by adjusting the brightness.

Smart Brightness Control


Specifications:


55XS4F Specifications

Screen Size

75"

55"

49"

Panel Technology

IPS, M+ (WRGB)

IPS, M+ (WRGB)

IPS, M+ (WRGB)

Native Resolution

3,840 × 2,160 (UHD)

1,920 × 1,080 (FHD)

1,920 × 1,080 (FHD)

Brightness

2,500 nit (Typ.), 2,250 nit (Min.)

4,000 nit (Typ.), 3,200 nit (Min.)

4,000 nit (Typ.), 3,200 nit (Min.)

Contrast Ratio (Typ.)

1,200 : 1

1,000 : 1

1,300 : 1

Viewing Angle (H × V)

178 × 178

178 × 178

178 × 178

Surface Treatment

Haze 3 %, QWP

Haze 3 %, QWP

Haze 3 %, QWP

Operation Hours

24 Hrs

24 Hrs

24 Hrs

Orientation

Landscape & Portrait

Landscape & Portrait

Landscape & Portrait





CONNECTIVITY



Input

HDMI (2, HDCP 1.4), DP (HDCP 1.3),

DVI-D, Audio, USB 3.0 Type A, SD Card

HDMI (2, HDCP 1.4), DP (HDCP 1.3),

DVI-D, Audio, USB 3.0 Type A

HDMI (2, HDCP 1.4), DP (HDCP 1.3),

DVI-D, Audio, USB 3.0 Type A

Output

DP, External Speaker (L/R, 10 W - 10 W)

DP, External Speaker (L/R, 10 W + 10 W)

DP, External Speaker (L/R, 10 W + 10 W)

External Control

RS232C In (4 Pin Phone Jack) / Out, RJ45 In, IR In

RS232C In (4 Pin Phone Jack) / Out, RJ45 In, IR In

RS232C In (4 Pin Phone Jack) / Out, RJ45 In, IR In







PHYSICAL SPECIFICATION

Bezel Width

11.8 mm (Even)

12.0 mm (T/B), 9.9 mm (L/R)

9 mm (T/B), 6.5 mm (L/R)

Monitor Dimensions (W × H × D)

1,675.2 × 953.6 × 116 mm

1,235.5 × 709.4 × 85.4 mm

1,092.7 × 626.4 × 83.5 mm

Weight (Head)

43.0 kg

25.0 kg

20.5 kg

Packed Weight

52.2 kg

30.2 kg

25.0 kg

Handle

Yes (2 ea)

Yes (2 ea)

Yes (2 ea)

VESATM Standard Mount Interface

600 x 400 mm

600 × 400 mm

600 × 400 mm



SPECIAL FEATURES





Internal Memory (8 GB), Wi-Fi Dongle Ready, Temperature Sensor, Auto Brightness Sensor (55”, 49” Only), USB Plug & Play,

Embedded CMS (Local Contents Scheduling), Sync Mode (RS-232C Sync, Local Network Sync), Rotation (Screen Rotation, External Input Rotation), Tile Mode Setting (Max. 15 × 15), SNMP, ISM Method, Control Manager, Smart Energy Saving, PM Mode, Wake on LAN, HDMI-CEC1)

ENVIRONMENTAL CONDITIONS

Operation Temperature2)

0°C to 40°C

0 °C to 40 °C

0 °C to 40 °C

Operation Humidity

10% to 85%

10 % to 80 %

10 % to 80 %



POWER

Power Type

Built-in Power

Built-in Power

Built-in Power

Power Supply

AC 100 - 240 V ~, 50 / 60 Hz

AC 100 - 240 V ~, 50 / 60 Hz

AC 100 - 240 V ~, 50 / 60 Hz

Power Consumption

Typ. / Max.

585 W / 600 W

375 W / 400 W

345 W / 370 W



STANDARD (CERTIFICATION)

Safety

CB / NRTL

CB / NRTL

CB / NRTL

EMC

FCC Class "A" / CE / KC / VCCI

FCC Class "A" / CE / KC / VCCI

FCC Class "A" / CE / KC / VCCI

ErP

Yes (EU Only)

Yes (EU Only)

Yes (EU Only)

SOFTWARE COMPATIBILITY 3)

Content Management Software

SuperSign CMS

SuperSign CMS

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

SuperSign Control / Control+

SuperSign Control / Control+





ACCESSORIES



Basic

Remote Controller, Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver (w / Ambient Light Sensor)

Remote Controller, Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver (w / Ambient Light Sensor)

Remote Controller, Power Cord, HDMI Cable, Manual (EIG, IG), IR Receiver (w / Ambient Light Sensor)



Optional



Wall Mount (LSW630), Wi-Fi Dongle (AN-WF500)

Landscape Wall Mount (WM-L640V),

Portrait Wall Mount (WM-P640V), Wi-Fi Dongle (AN-WF500)



WM-L640V, Wall Mount (WM-L640V), Wi-Fi Dongle (AN-WF500)

Views:

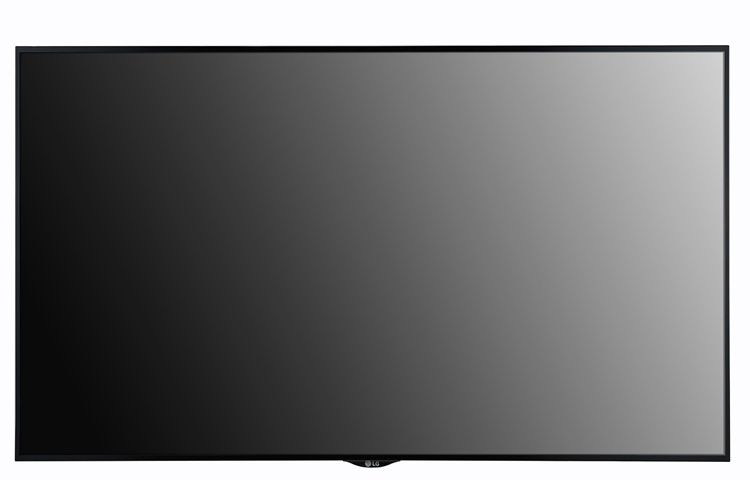

Front

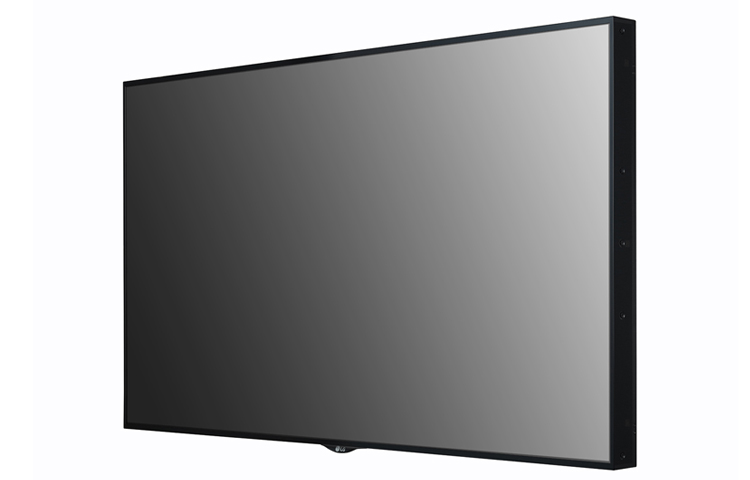

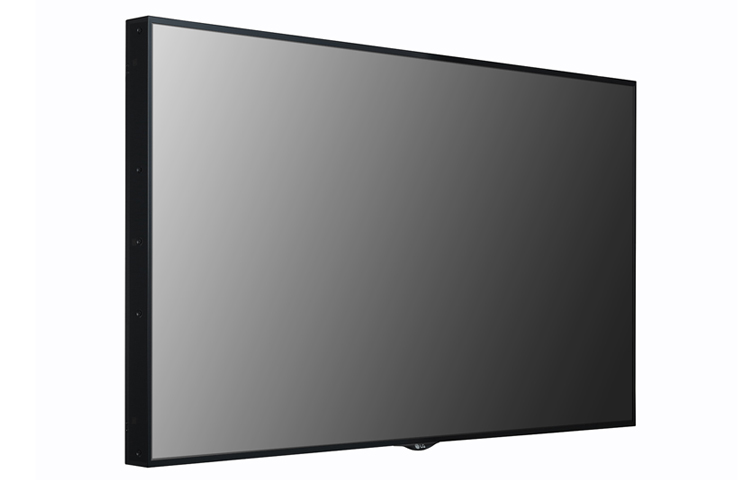

Right Perspective
Left Perspective

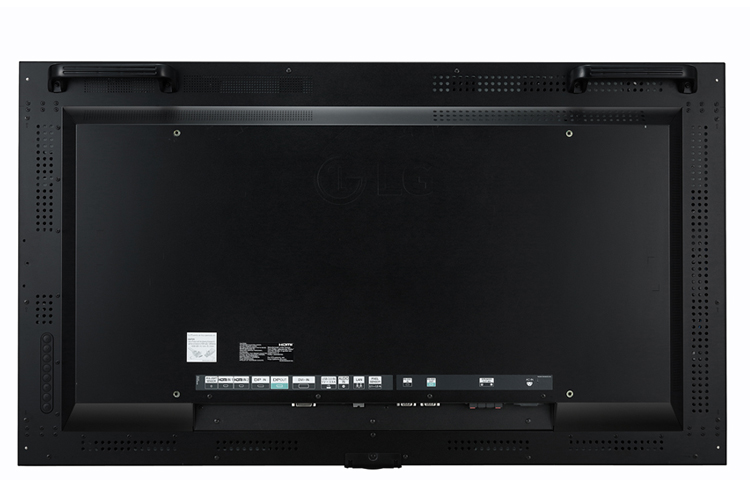

Rear

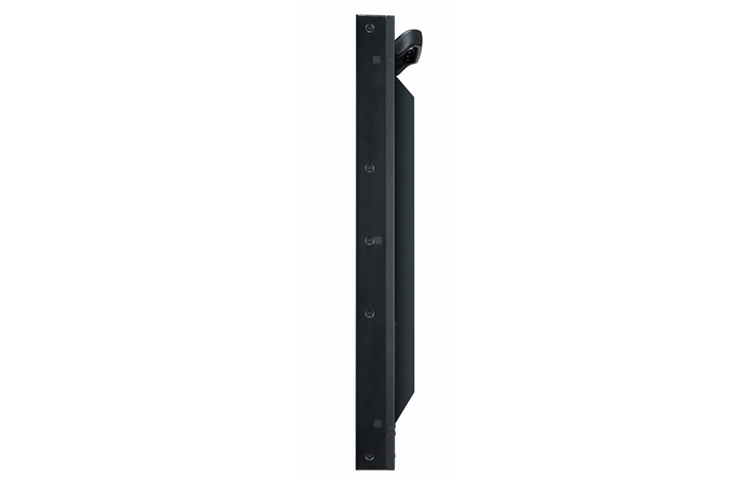

Right Side
Left Side

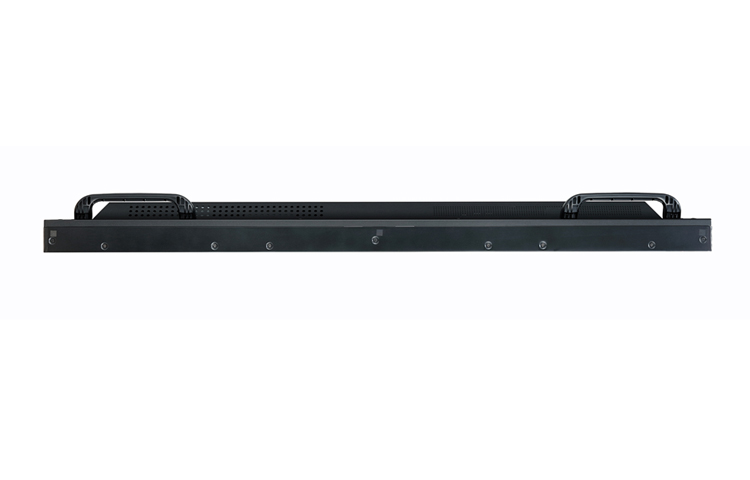

Top

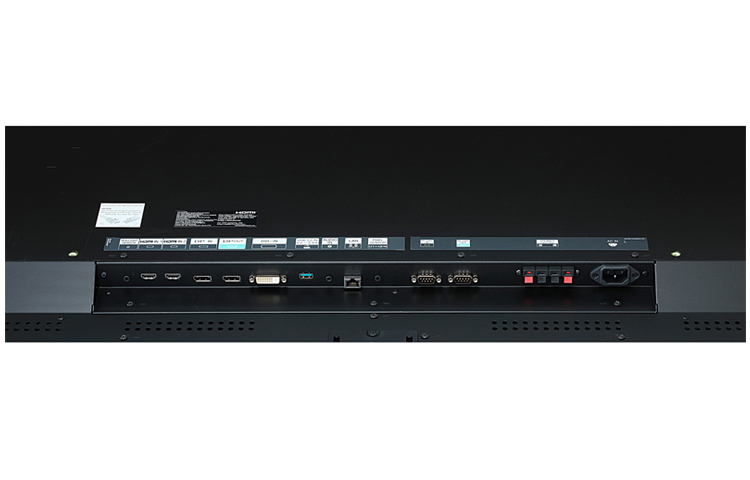

Ports

Documentation:

Download the LG Indoor Window-Facing Signage - XS Series Datasheet (.PDF)
