LG 55XF3E
55" Open Frame Outdoor Signage


LG 55XF3E

LG Display Products
High Bright & Outdoor Options
LG 55XF3E 55" High Brightness Video Wall
55" LCD, 1920x1080, LED, 3,000 Nit, 1080p, HDMI, DisplayPort, DVI-D, USB 3.0, RGB, IR Receiver, Wi-Fi & Ethernet, Black, 3-Year Warranty
#55XF3E-B
Our Price: $4,774.00

Click here to jump to more pricing!

Overview:

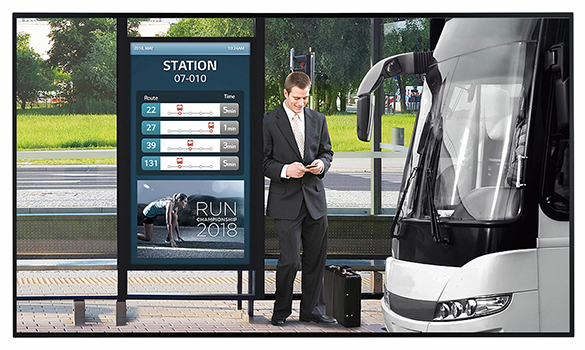

Outstanding Visibility with Reliable Performance

There is increasing demand for outdoor signage for delivering information and advertisement. With high-brightness and reliable performance, the open frame XF Series is able to achieve these goals effectively in any location.

  • Size: 55"
  • Brightness: 3,000 cd/m2 (Typ.)
  • Life Time: 50,000 hours
  • Bezel: 9.9 mm (L/R), 12 mm (T/B)
  • Depth: 106.8mm
  • Interface: HDMI(2), DP, DVI-D, RJ45, RS232C, USB, External speaker out (L/R)

Features:

Outstanding Visibility

High Brightness
With a great brightness of 3,000 cd/m2, XF series clearly deliver contents and attract public attention, which is the ultimate display for outdoor visibility.

High Brightness

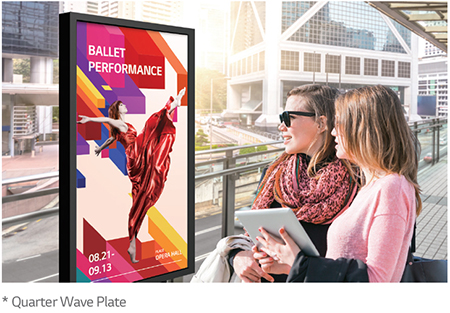

Visible with Polarized Sunglasses
QWP (Quarter Wave Plate)1 enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses

No Blackening
Even under direct sunlight exposure, the open frame XF series remain free of blackening defects under 110°C and provide superior quality for outdoor usage.

No Blackening

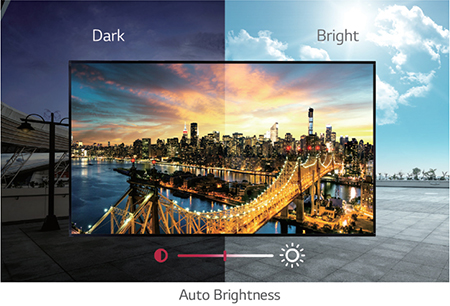

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Smart Brightness Control


Product Reliability

High Operating Temperature
Its high reliability under high operating temperatures reduces additional costs for air conditioning system.

High Operating Temperature

Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on every major circuit board eliminates such troubles by protecting it against dust, iron powder, humidity, etc.

Conformal Coating


Easy Maintenance

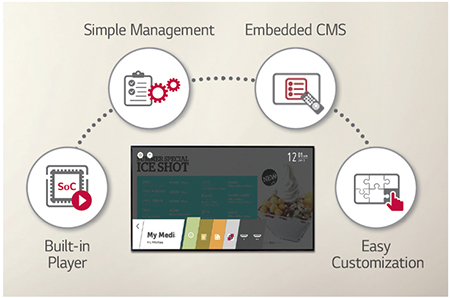

webOS Smart Platform
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

webOS Smart Platform

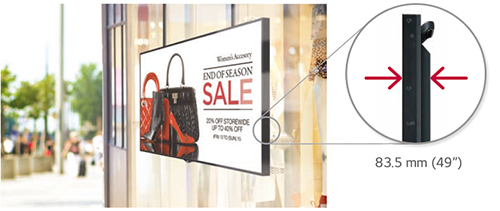

Slim Design
Thanks to its thin depth, the XF series takes up less space and leads to ease of installation for various applications.


Slim Design

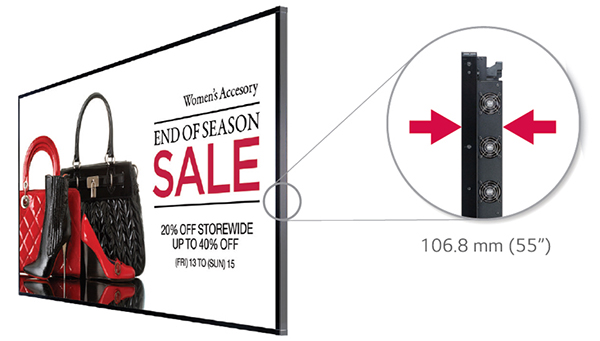

Space Efficiency
The slim depth saves space for installation and makes the enclosure design slimmer.

Space Efficiency

Specifications:


55XF3E Specifications
Panel
Screen Size 55" (54.64" Measured Diagonal)
Panel Technology IPS, M+ (WRGB)
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 3,000 cd/m2 (Typ.), 2,400 cd/m2 (Min.)
Contrast Ratio 1,000:1
Viewing Angle (H x V) 178 x 178
Color Depth 16.7 Million
Surface Treatment AGLR (Haze 3%), QWP
Lifetime 50,000 Hours
Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI (2), DP, DVI-D, Audio, USB
Output DP, External Speaker
External Control RS232C In/out, RJ45 In, IR Receiver In
Physical Specification
Bezel Color Black
Bezel Width 12 mm (T/B), 9.9 mm (L/R)
Monitor Dimension (W x H x D) 1,235.5 x 709.4 x 106.8 mm
Weight (Head) 58.5 lbs / 26.5 kg
Carton Dimensions (W x H x D) 1,344 x 236 x 820 mm
Packed Weight 71.1 lbs / 32.25 kg
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features webOS 3.0, Temperature Sensor, Cooling Fan, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (up to 15 x 15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory (8GB, System 4GB + Available 4GB), Wi-Fi Dongle Ready
Environmental Conditions
Operating Temperature Range1 32 °F to 122 °F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 250 W / 300 W
Power Consumption - Smart Enegy Saving 120 W
Sound
Speaker 20 W (10 W x 2) for External Speaker
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software2 SuperSign Control+
Accessory
Basic Remote Controller (2 Batteries Included), Power Cord, IR Extension Kit, HDMI Cable, Manual (ESG&EIG)
Optional Wi-Fi Dongle (AN-WF500)
* Stand is not available
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

1 Without direct sunlight or with cooling systems in direct sunlight
2 Software compatibility may change over time. Please contact LG sales representative for details.

Views:

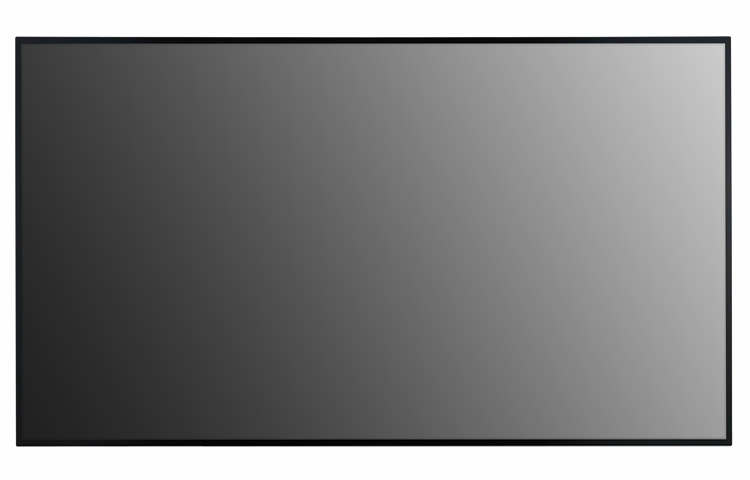

Front

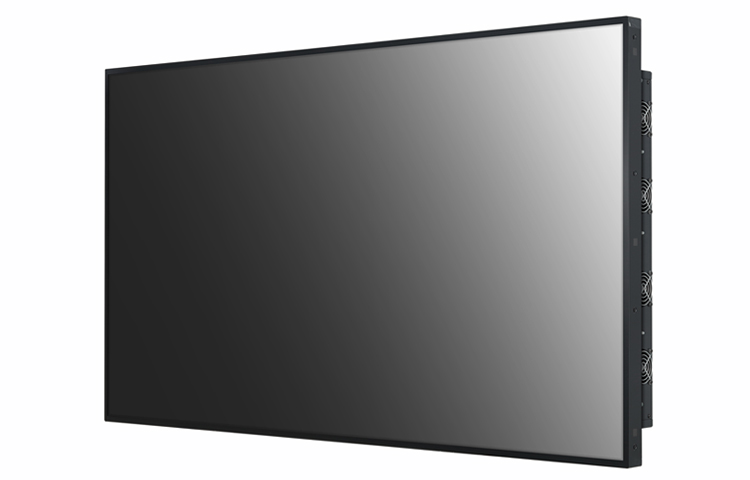

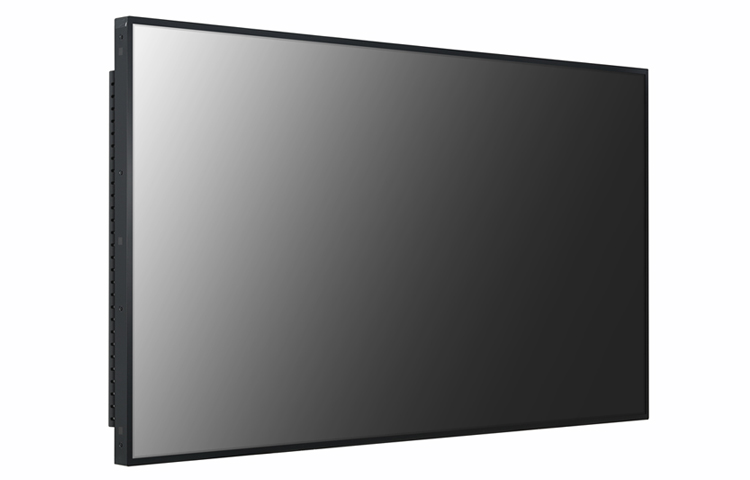

Right Perspective
Left Perspective

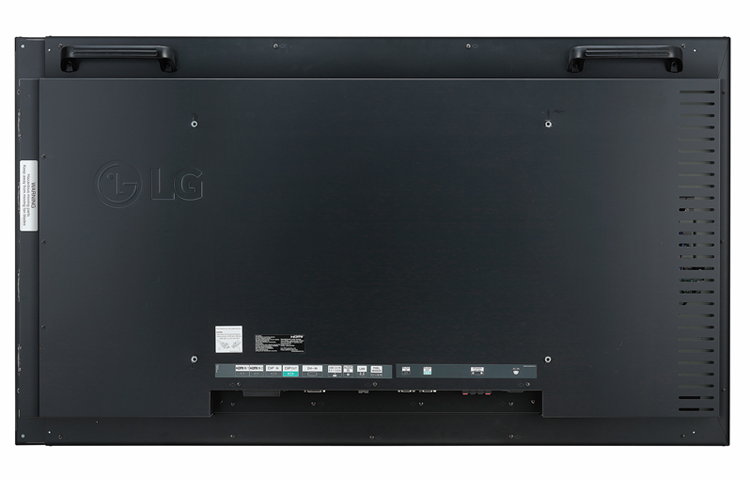

Rear

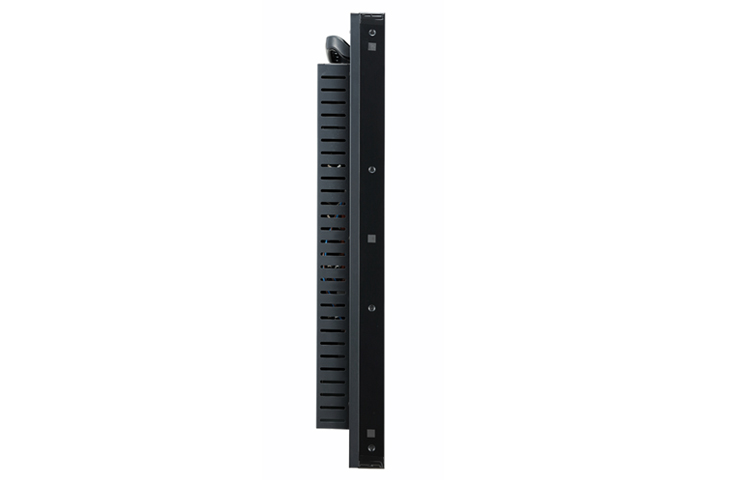

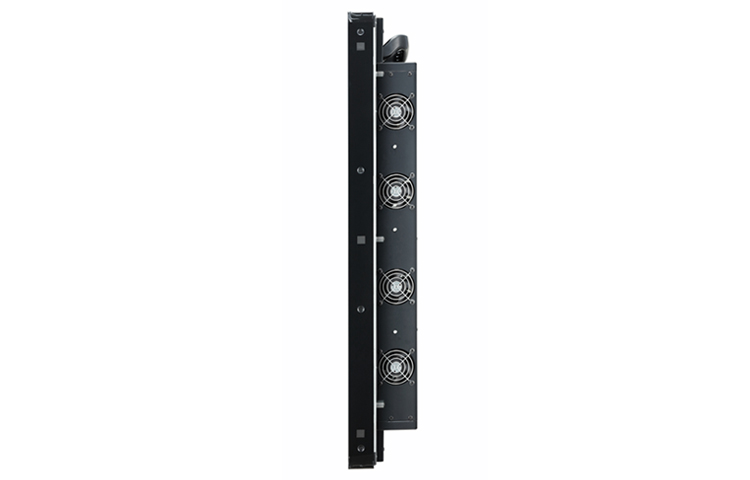

Right Side
Left Side

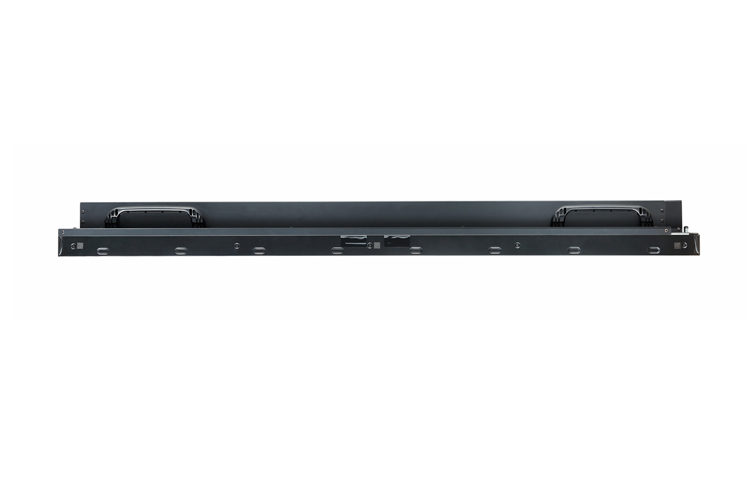

Top

Documentation:

Download the LG Open Frame Outdoor Signage - XF Series Datasheet (.PDF)
