LG 55VX1D
55" High Brightness Video Wall


LG 55VX1D

LG Display Products
Video Walls
LG 55VX1D 55" High Brightness Video Wall
55" LCD, 1920x1080, LED, 700 Nit, 1080p, HDMI, DisplayPort, DVI-D, USB 3.0, RGB, IR Receiver, Ethernet, Black, 3-Year Warranty
#55VX1D-B
Our Price: $6,988.00

Click here to jump to more pricing!

Overview:

Video walls have been applied in various locations to attract passersby and deliver advertisements, but the effect can sometimes be hampered due to natural light or bright indoor lighting conditions. The LG VXID delivers extremely clear images with color that remains vivid, even in very bright environments, and an immersive viewing screen with an ultra narrow bezel.

  • Size: 55"
  • Brightness(Typ.): 1,500 cd/m²
  • Bezel: 2.25 mm (Top/Left), 1.25 mm (Bottom/Right)
  • Depth: 92.8mm
  • Interface: HDMI, DP, DVI-D, RGB, RS232C, RJ45, USB 3.0, IR Receiver, Audio
  • webOS 3.0+

Features:

High Brightness & Narrow Bezel

Clear and Vivid Screen
Other video walls are unable to sufficiently display content due to low visibility under bright lighting. LG's new high brightness video wall stands out against such backgrounds, with a high luminance of 1,500 cd/m2. It delivers advertisements clearly under the brightest lights.

Clear and Vivid Screen

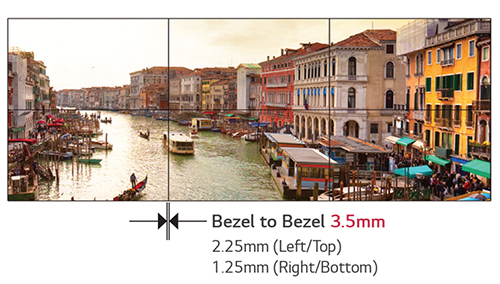

Ultra Narrow Bezel
The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Ultra Narrow Bezel


Superior Picture Quality

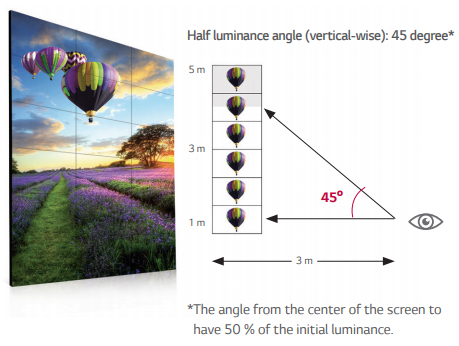

Clear Viewing Angle
Stable image reproduction is critical in video walls, as it is usually installed in places above eye level and is seen from various angles. Thanks to the IPS panel and the high half luminance angle, VX1D delivers the best picture quality from any viewer position.

Clear Viewing Angle

Uniform Brightness
LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new VX1D generates high visibility and a consistent brightness across the whole screen.

Uniform Brightness

Consistent White Balance
Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Consistent White Balance

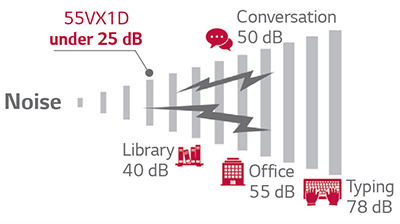

Quiet Operation

Fan-Less Noise Reduction
55VX1D is the perfect choice for an in-window environment due to its efficient design not requiring a cooling fan. Its operating noise level is under 25 dB, which is quieter than a typical recording studio (30 dB).

Fan-Less Noise Reduction

Smart Platform

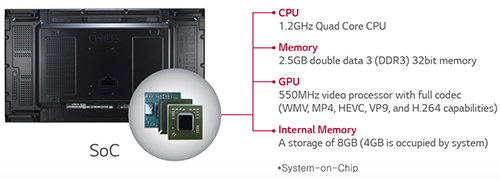

Built-in SoC and Synced Playback
The optimized built-in quad-core System-on-Chip (SoC) technology in the 55VX1D can play various content formats and eliminates the need for an external media player. Using its built-in SoC, each display plays its video tile without lag which ensures synchronized content playback.

Built-in SoC and Synced Playback


Enhanced Usability

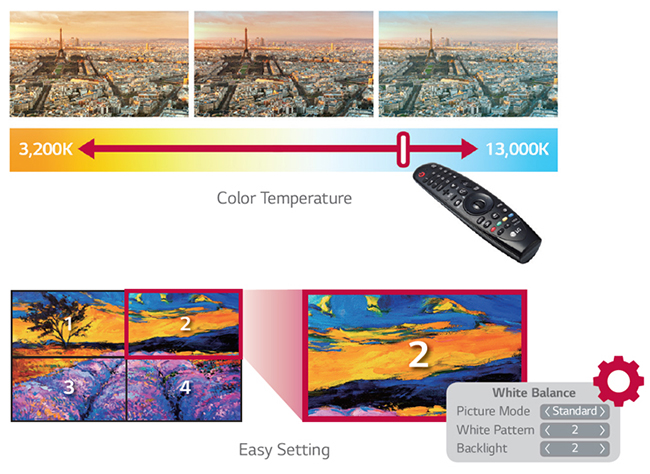

Convenient UX for Video Wall
The color temperature of the screen can be easily adjusted by users with a remote control (depends on the input content). Also, the settings for tile mode and content playback have a dedicated menu for ease of use.

Convenient UX for Video Wall

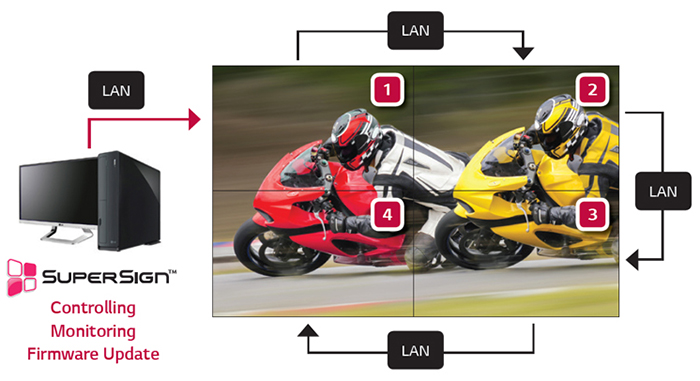

Easy Management with LAN Daisy Chain
All the panels in the Video Wall are linked together via Local Area Network (LAN). This LAN daisy chain allows users to control and monitor the signage, distribute content, and even update firmware.

Easy Management with LAN Daisy Chain

Specifications:


55VX1D Specifications
Panel
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 1,500 cd/m2
Contrast Ratio 1,300:1
Dynamic CR 500,000:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Hard Coating (2H), Anti-glare Treatment of the Front Polarizer (Haze 3% Typ.)
Guaranteed Operating Hour 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI, DP, DVI-D, RGB, Audio In, USB 3.0
Output DP, Audio Out
External Control RS232C In/out, RJ45 In/out, IR Receiver In
Physical Specification
Bezel Color Black
Bezel Width 2.25 mm (L/T) / 1.25 mm (R/B)
Monitor Dimension (W x H x D) 47.8" x 26.9" x 3.7" / 1,213.4 x 684.2 x 92.8 mm
Weight (Head) 51.8 lbs / 23.5 kg
Carton Dimensions (W x H x D) 53.3" x 33.7" x 10.4" / 1,353 x 855 x 263 mm
Packed Weight 80.7 lbs / 36.6 kg
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features Temperature Sensor, Tile Mode (Up to 15 x 15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, Internal memory (8GB, System 4GB + Available 4GB), USB Cloning, Contents Scheduling, Fail Over, Media Share
Environmental Conditions
Operating Temperature Range 32 °F to 104 °F
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. / Max 250 W / 280 W
Power Consumption - Smart Enegy Saving 213 W
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KCC
ErP / Energy Star NA / Yes (Energy Star 7.0)
Media Player Compatibility
OPS Type Compatible -
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign Premium
Accessory
Basic Remote Controller, Power Cable, DP Cable, Manual, IR Receiver, RS-232C Cable, LAN Cable, Guide Bracket, Screws
Optional Wall mount (Landscape: WM-L640V, Portrait: WM-P640V)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:

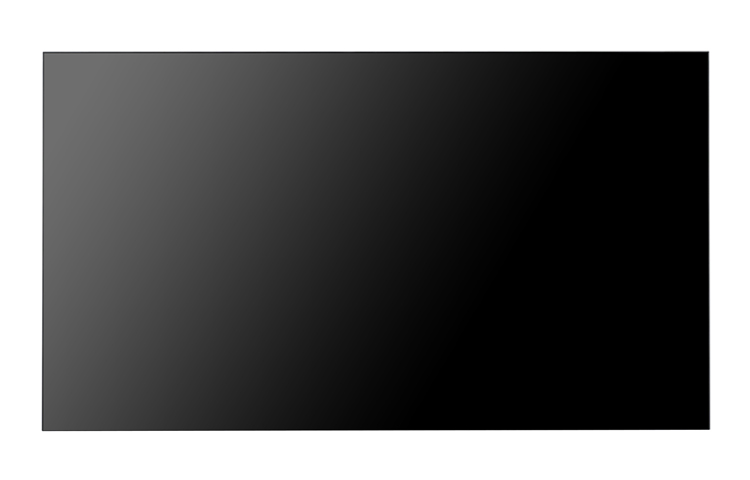

Front

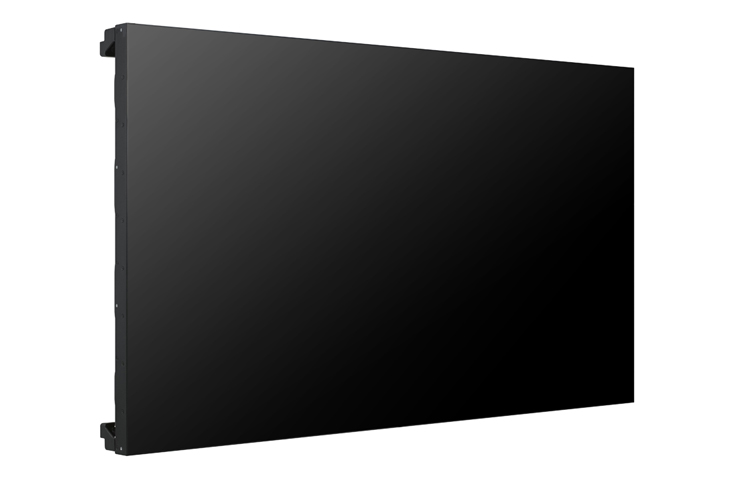

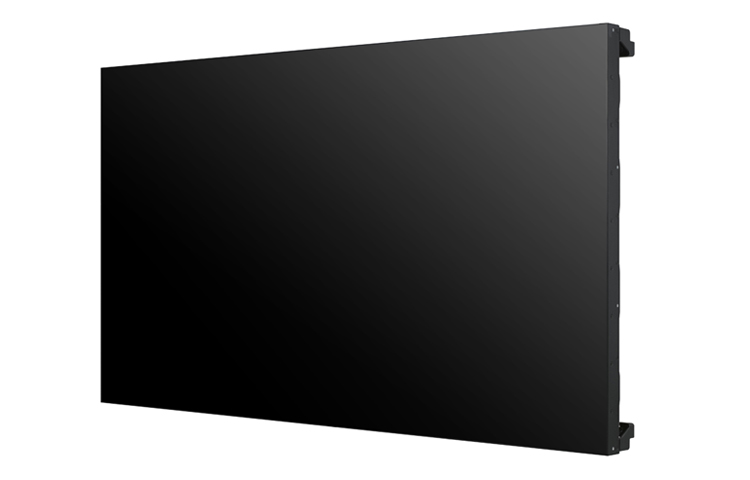

Right Perspective
Left Perspective

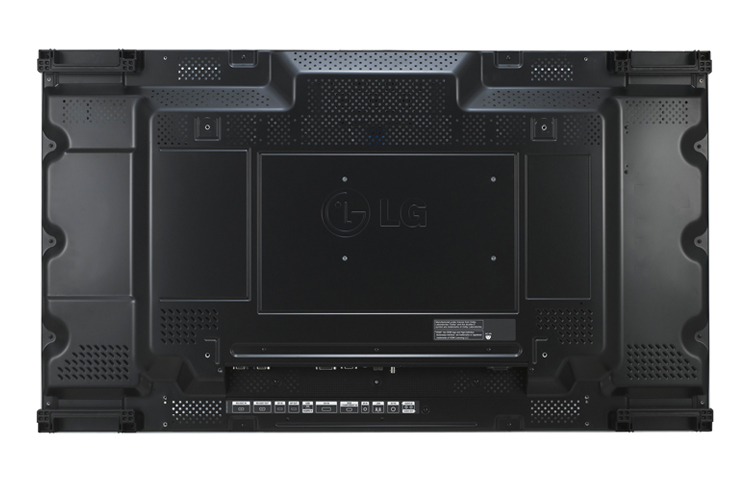

Rear

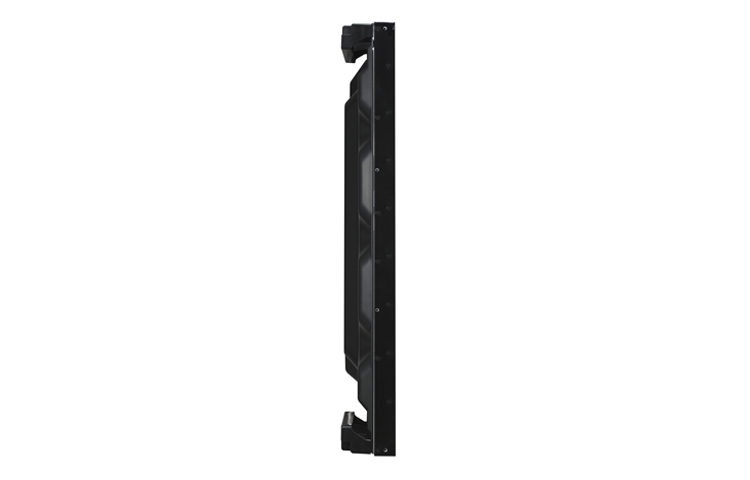

Right Side

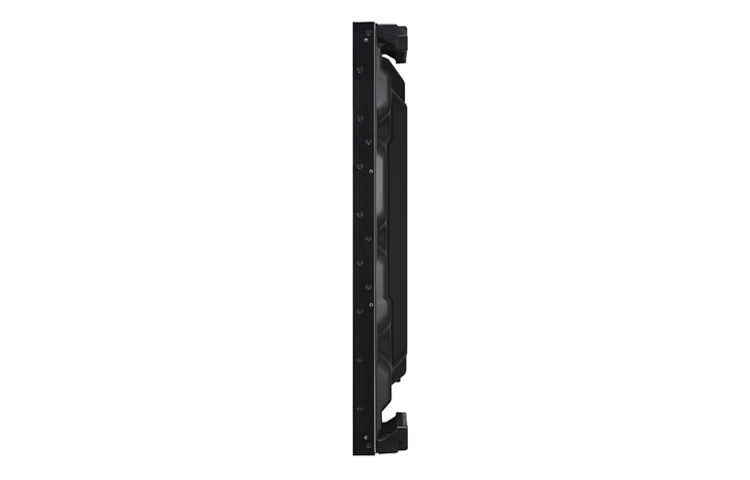

Left Side

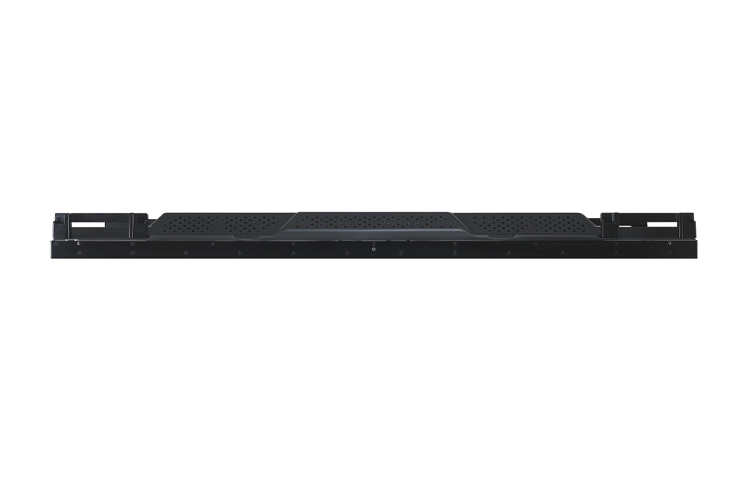

Top

Documentation:

Download the LG High Brightness Video Wall - 55VX1D Datasheet (.PDF)
