LG 55UH7F
55" Ultra HD Slim Indoor Digital Display with 700 nits brightness and LG webOS Smart Signage Platform


LG 55UH7F

LG Display Products

Standard Premium Digital Signage
  • LG 55UH5E 55" Ultra HD Slim Indoor Digital Display
    55" Display, 3840 x 2160 (UHD), Edge LED, 700 Nits, HDMI (2), USB, RS232C , RJ45 (RGB Panel), Black, 3-Year Warranty
    #55UH7F-B
    Our Price: $1,890.00

Click here to jump to more pricing!

Overview:

LG UHD Signage Provides Information Effectively

The UH7F series is a UHD signage that has been optimized for various indoor environments. It features bright, 700-nit UHD quality, slim design, external dust protection, and both portrait and landscape operation for flexible applications and installations.

  • Size: 55"
  • Brightness (Typ.) : 700 nits
  • Bezel : 9.9 mm (T/R/L), 14.4 mm (B)
  • Depth : 39.9 mm
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker and Detachable Logo
  • 30º Tilting Installation

LG UHD Signage
Provides Information
Effectively

Features:

Superior Picture Quality

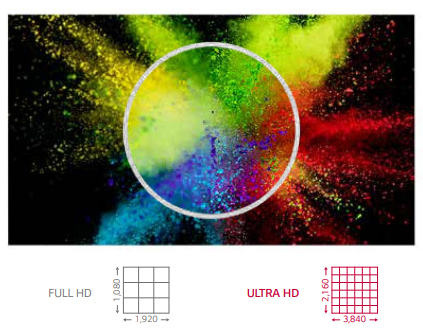

ULTRA HD Resolution

With the resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle enabled by the LG IPS panel provides clear contents with no distortion.

ULTRA HD Resolution

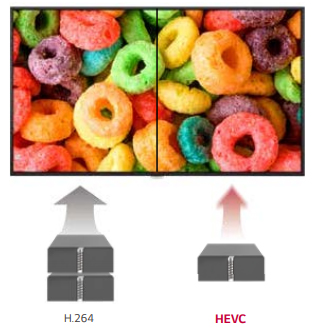

High Efficiency Video Coding

The UH7F series supports HEVC* which efficiently compresses/decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic when compared to the existing H.264 codec.

High Efficiency Video Coding


Sleek and Practical Design

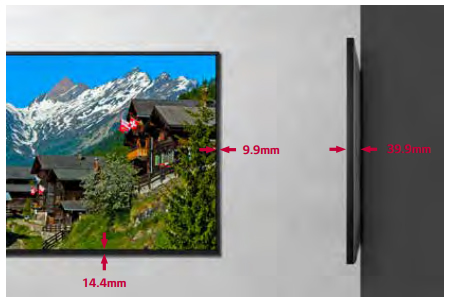

Narrow Bezel & Slim Depth

The UH7F Series has a narrow bezel thickness, which enhances the immersive viewing experience and provides a sophisticated design, improving the décor of virtually any space where the product is installed.

Narrow Bezel & Slim Depth

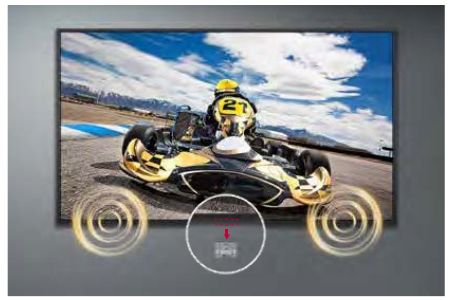

Detachable Logo and Built-in Speaker

The new transparent logo on the UH7F Series is detachable, which gives it multiple ways of blending seamlessly with the environment. The built-in speakers enrich the viewing experience and provide increased engagement without the need to purchase and install external speakers.

Detachable Logo and Built-in Speaker


Product Reliability

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is well-protected from dust, eliminating the risk of performance degradation.

IP5x Certified Design

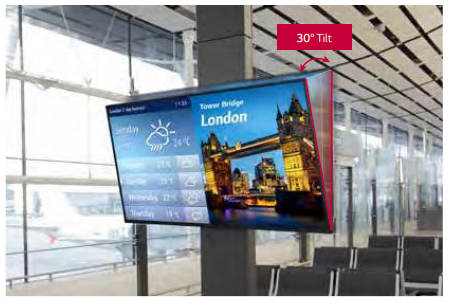

30° Tilting Installation

When a display is installed at high places, it is usually tilted for the user's comfort viewing. In consideration of this, the UH7F series supports the installation with 30 degrees of tilt*.

30° Tilting Installation


Easy Installation

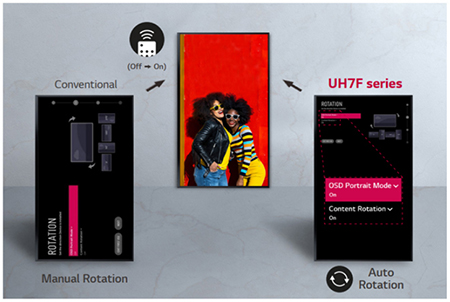

Auto Screen Rotation

The UH7F series automatically detects its orientation (landscape or portrait mode) in the initial installation step, so manual rotation set-up process isn't required. The direction of OSD and background contents will be already set when you turn on a display at first.

Auto Screen Rotation

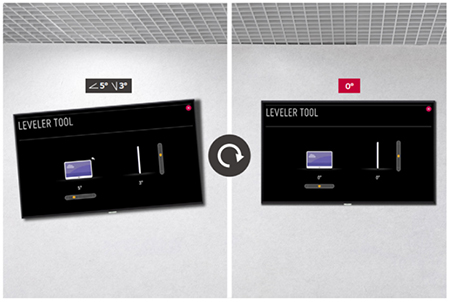

Fine Adjustment

The UH7F series is equipped with a "horizontal sensor" which shows users how the device is tilt, so that it can be precisely installed.

Fine Adjustment

Remote Monitoring

The UH7F series can email notifications to users when there is a problem, such as tilting of the product by external impact, so users can operate the product in a safer manner as they can get the information about the problem right away.

Remote Monitoring

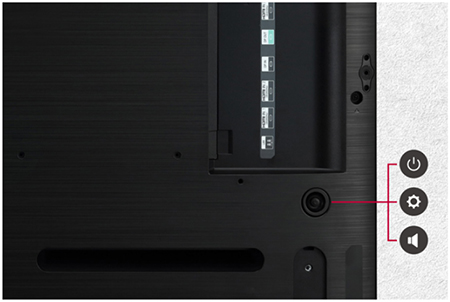

Simple Accessibility

Unlike previous models where various buttons have to be pressed for control, the UH7F series provides a single joystick to easily facilitate power on/off, input/ setting operation, volume control, etc.

Simple Accessibility


Smart Function

High-Performance with webOS

Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also LG webOS platform enhances user convenience with intuitive GUI and simple app development tools.

Easy Content Management

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.

Various Sensor Applications

Compatibility with AV Control System

The UH7F series has been certified Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

Compatibility with AV Control System

Compatibility with Video Conference System

For the optimum visual meeting, the UH7F series has certified its compatibility with Cisco System that offers powerful and integrated control* for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.

Compatibility with Video Conference System


Specifications:


55UH7F Specifications
Panel
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 3,840 x 2,160 (UHD)
Brightness 700 cd/m²
Contrast Ratio 1,100:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Haze 3%
Life Time (Min.) 50,000 hours
Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
Output DP, Audio (Off/Fixed/Variable)
External Control RS232C In/out, RJ45 (LAN) In, IR In
Physical Specification
Bezel Color Black
Bezel Width 9.9mm (T/R/L), 14.4mm (B)
Dimension (W x H x D) 48.6 x 28.4" x 1.6" / 1,234.4mm x 720.9mm x 39.9mm
Weight 41.9 lbs / 19.0 kg
Shipping Dimensions (W x H x D) 53.5" x 31.9" x 6.9" / 1,360mm x 810mm x 175mm
Shipping Weight 53.4 lbs / 24.2 kg
VESA Standard Mount Interface 300 mm x 300 mm
Special Features
Special Features Internal Memory 8GB (System 4GB + Available 3.6GB), Built-in Wi-Fi, Built-in Speaker, Temperature Sensor, Auto Brightness Sensor, Acceleration Sensor, Local Key Operation, Embedded CMS (USB Auto Playback, Local Contents Scheduling, Group Manager), Fail over, Image Customization (Booting Logo, No Signal), Content Sync (RS232C, Local Network), PIP/PBP(4), Screen Share, Video Tag(4), Play via URL, OSD Rotation, Tile Mode Setting (Max. 15 x 15), Setting Data Cloning, Firmware Update by Network, SNMP 2.0, ISM Mode, Crestron Connected®1), DPM, Smart Energy Saving, Wake on LAN, Beacon, HDMI-CEC2), SI Server Setting
Tilt (Facedown) Max. 30°
IP Rating IP5x
Environmental Conditions
Operating Temperature Range 32° F to 104° F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240 V~, 50/60 Hz
Power Type Built-In Power
Max Power Consumption 160 W
Typical Power Consumption 110 W
Smart Enegy Saving 85 W
Certification
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP / Energy Star Yes / Yes (Energy Star 7.0)
Media Player Compatibility
OPS Type Compatible Yes
External Media Player Attachable Yes
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control/Control+
Signage365Care Yes
Accessory
Basic Remote Controller, Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender
Optional Stand(ST-653T), Media Player, Wall Bracket(LSW350B), VESA Adapter(AM-B330S), OPS Kit(KT-OPSH)
Warranty
Warranty 3 Year Limited Warranty

Views:

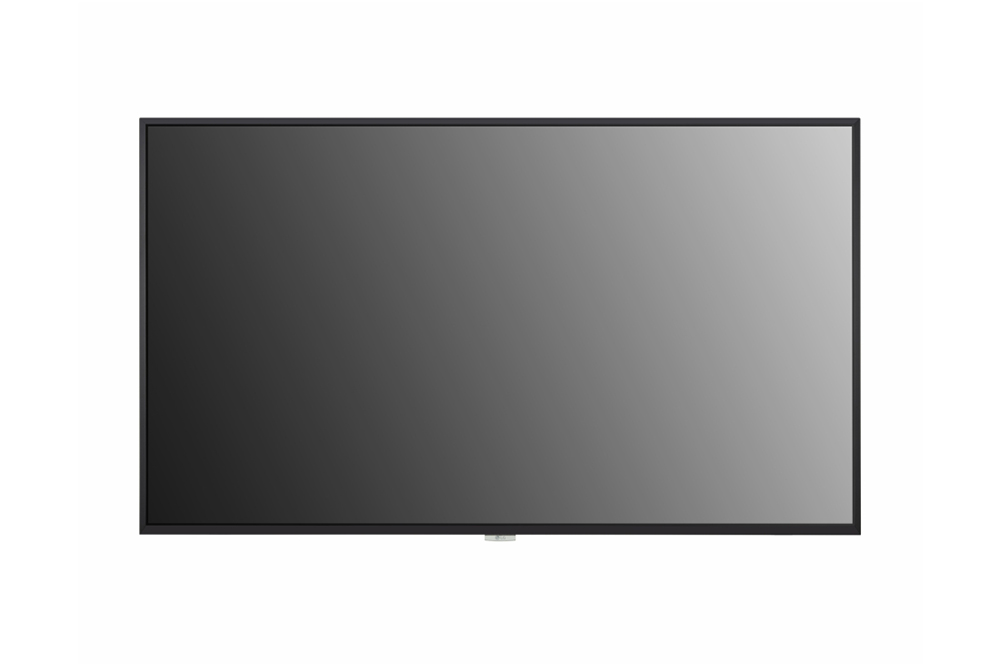

Front

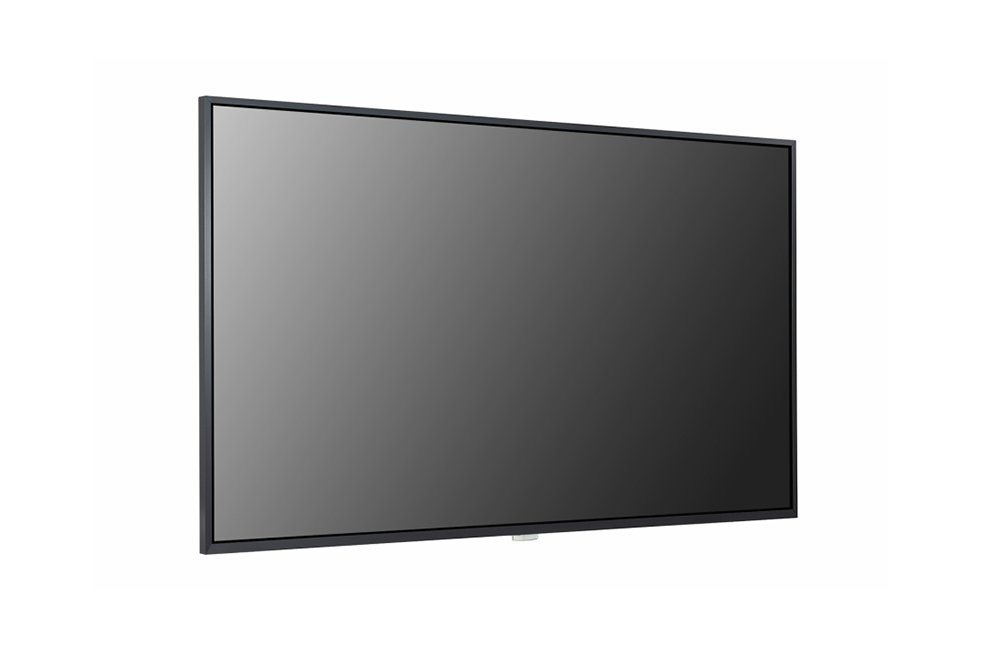

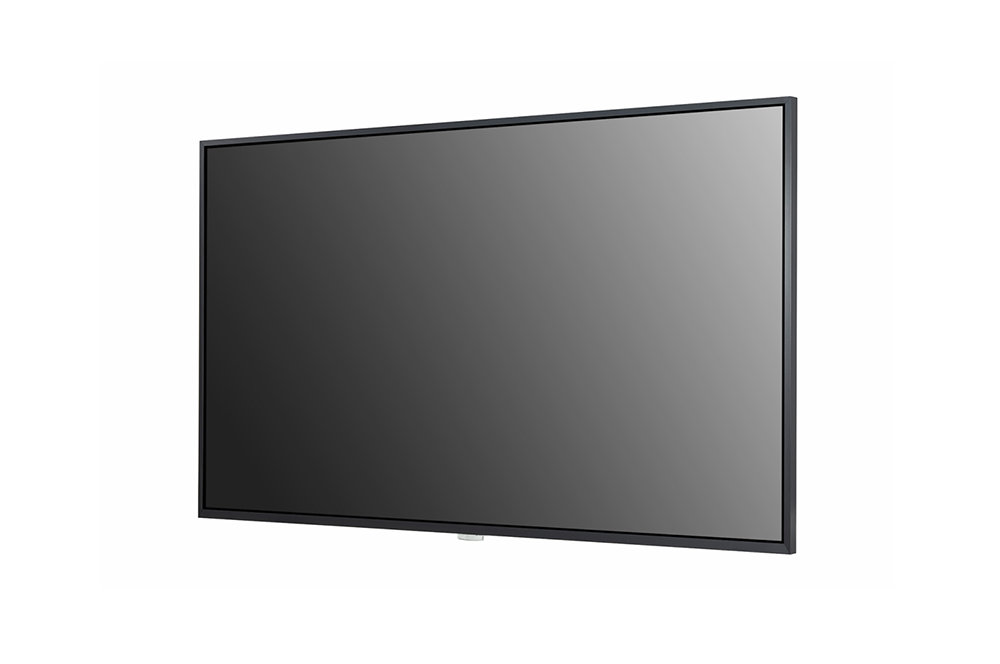

Right Perspective
Left Perspective

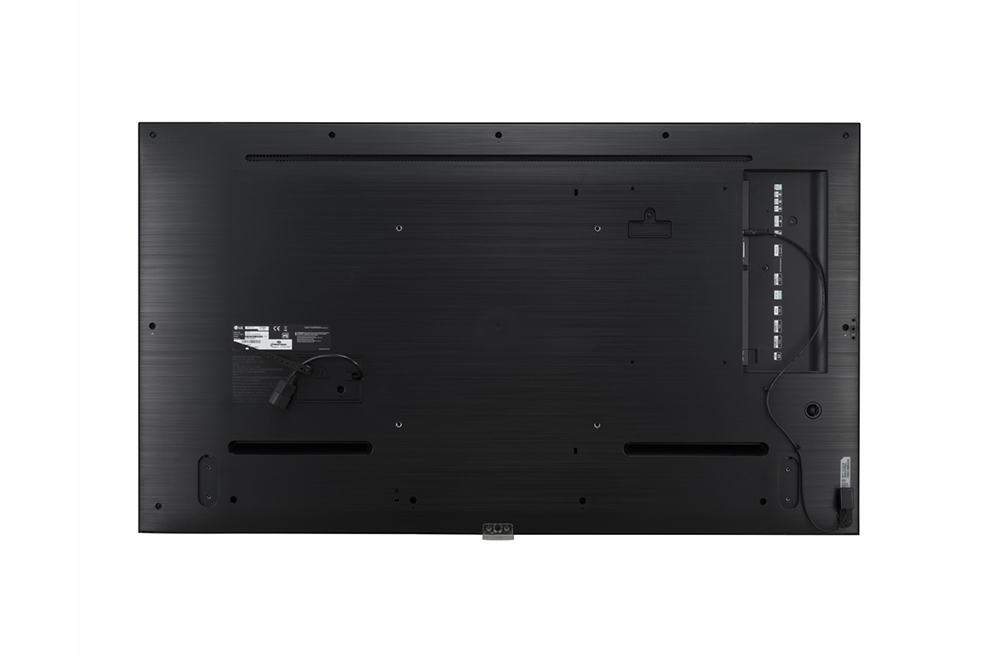

Rear

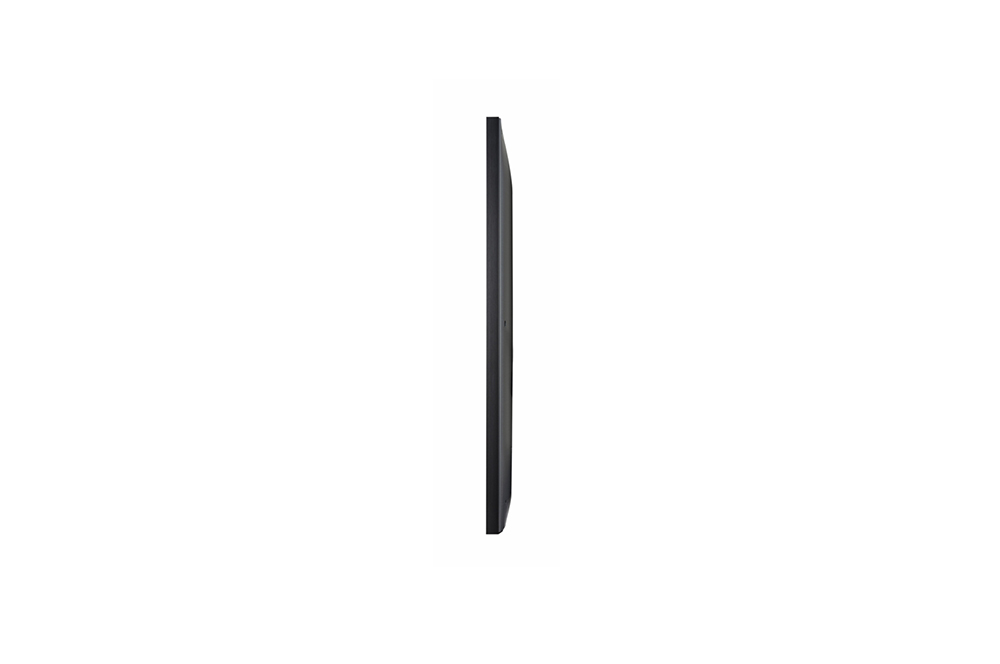

Right Side

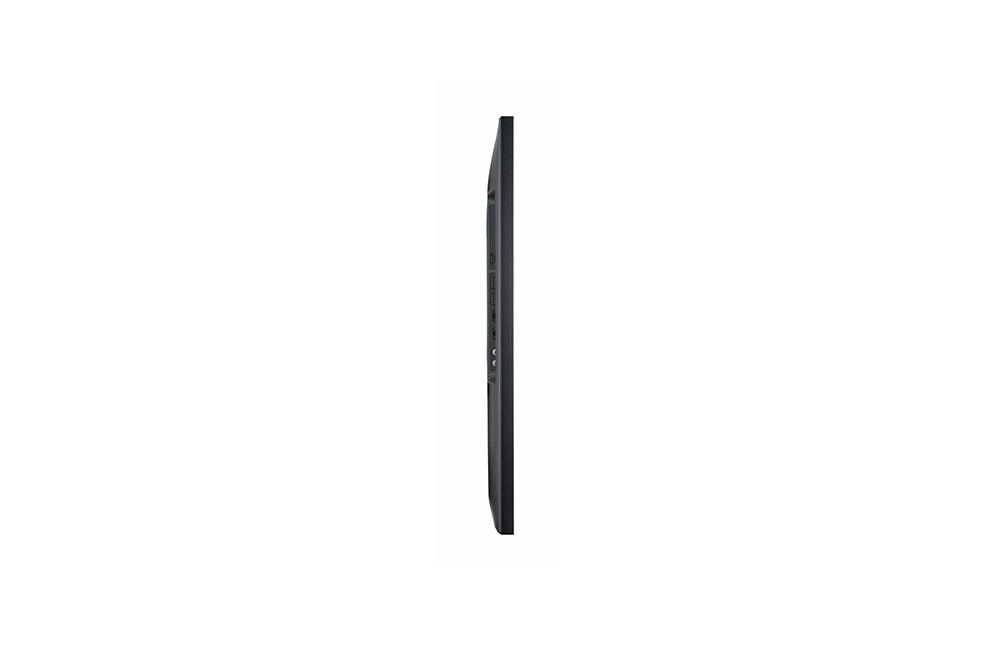

Left Side

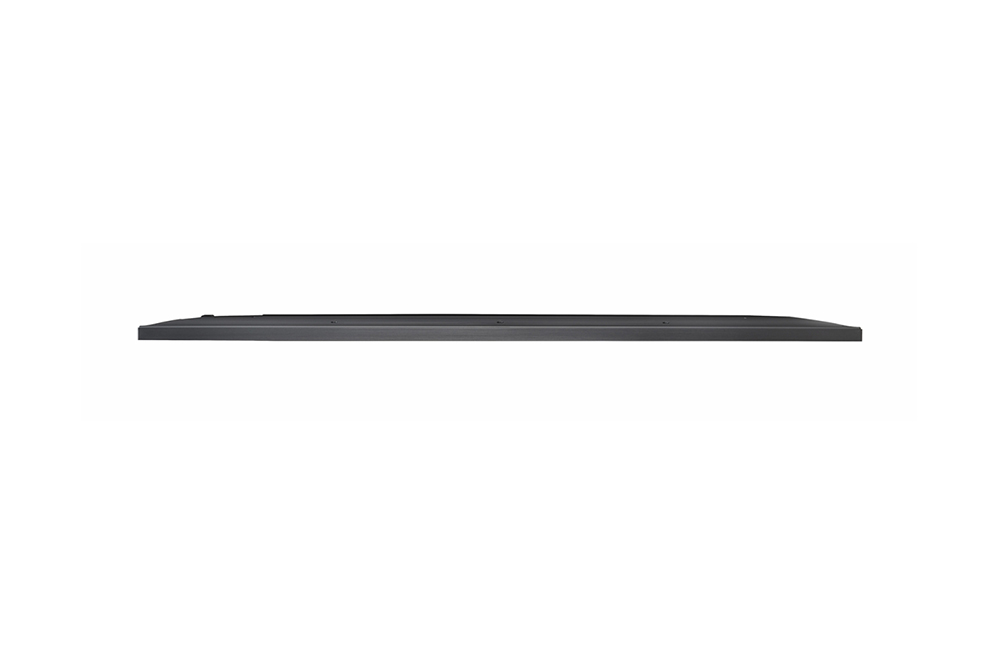

Top

Documentation:

Download the LG Ultra HD Signage - UH7F Series Datasheet (.PDF)
