55" Class TA3E Series - Effective Customer Engagement with LG Touch Display
55" Display, 1920x1080 (FHD), 450 Nit, HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0, Black, 3-Year Warranty
LG 55TA3E 55" Class TA3E Series - Effective Customer Engagement with LG Touch Display
Sorry, this product is no longer available, please contact us for a replacement.
Effective Customer Engagement with LG Touch Display
The LG touch display TA3E series offers an all-in-one touch experience powered by a webOS Smart Signage Platform. The built-in touch capability and embedded writing app facilitates powerful and meaningful interactions between customers and your brand.
- Size: 55"
- Floating Tool Bar
- SoC and LG webOS
- IDB App for Efficient Collaboration
- LG FHD Technology
- LG IPS Panel with Wide Viewing Angles and True Color
- Auto Signal/Touch Switching
All-in-one Touch Experience

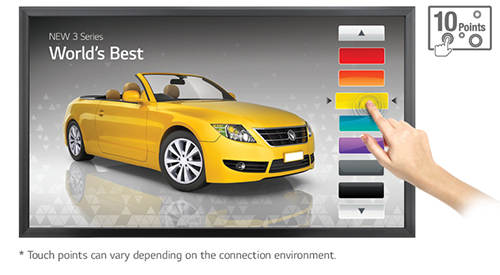

Built-in Interactive Touch
The TA3E series is a built-in touch display that provides immediate touch experiences without the need to purchase any separate overlay touch accessories. Various touch-based solutions can be applied for customer interactions to promote your brand, with a maximum of 10 touch points* supported.
Embedded Writing Solution
The LG IDB, the embedded writing application, offers an all-in-one solution for advanced customer engagement. No separate PC or software is necessary for white board performance, so operators can easily create two-way communication channels.

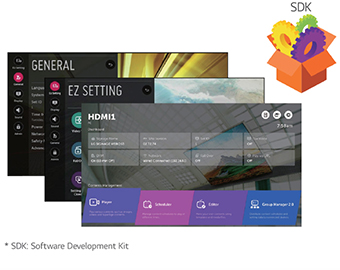

User-friendly Smart Platform
The LG webOS smart platform supports web-based HTML5 and offers SDK*, allowing SIs to easily build their own apps for customer solutions. Also, it enhances user convenience with an intuitive UI optimized for business purposes.

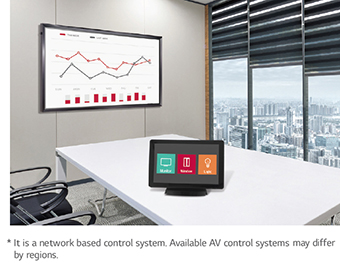

Compatibility with AV Control System
The TA3E series is compatible with network-based AV control systems**, with which users can easily manage, monitor and control LG commercial displays from one location.
With Beacon and Bluetooth Low Energy (BLE) support, the TA3E series enables stores to provide coupons and information in real-time, which increases interactivity with customers at the moments when it most counts.

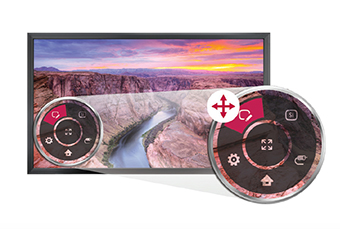

Easy Touch Navigator on Display
The touch menu is a subsidiary menu introduced to improve user-friendliness. Users can run the desired function or change the settings from anywhere by softly pressing the screen to call up the touch menu. The SI folder is especially designed to gather and show customized apps, making it easy for users to find and use them.

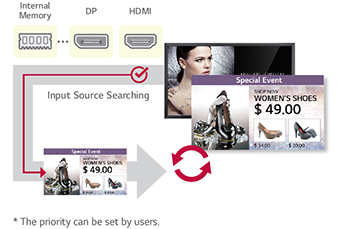

Auto Signal Switching
The failover function enables the display to detect the available input signals and automatically change the source when the current signal is disconnected or other higher priority signals* are connected. Users can prepare backup sources for any unexpected error.

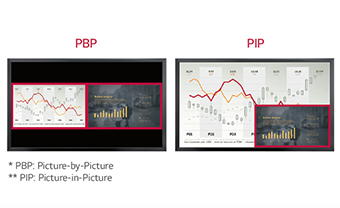

Multi Screen with PBP/PIP
PBP* features multi screen in a single display with up to 2 input sources, thus maximizing usability of the screen. In addition, PIP** supports playing both main screen and sub screen at the same time with various layouts, so users can arrange many different usage scenarios efficiently.
Superior Picture Quality with IPS
The LG IPS panel has a wide viewing angle that delivers clear content, no matter where viewers see content on the display. Moreover, every pixel in the IPS panel truly reproduces the image colors without distorting them
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
|Aspect Ratio||16 : 9|
|Native Resolution||1920 x 1080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Response Time||12 ms (G to G BW), 9.0 ms (WOT)|
|Surface Treatment||Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze Typ. 1%)|
|Operating Hour||24 Hours|
|Orientation||Portrait & Landscape|

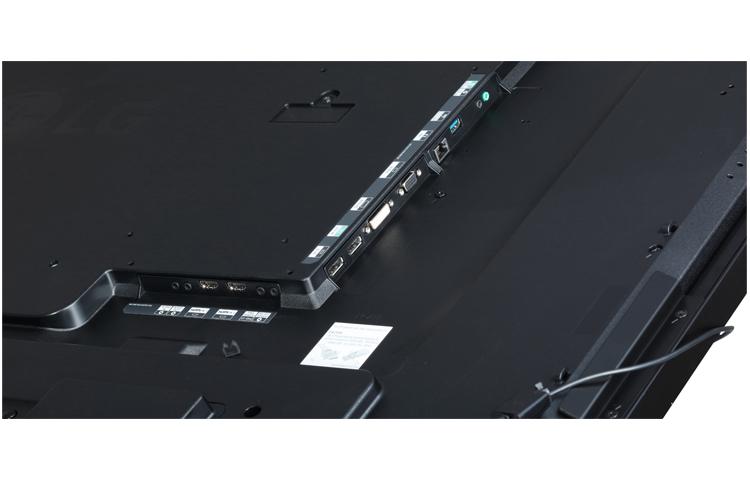

|Input||HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0|
|Output||DP, Audio Out|
|External Control||RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In|

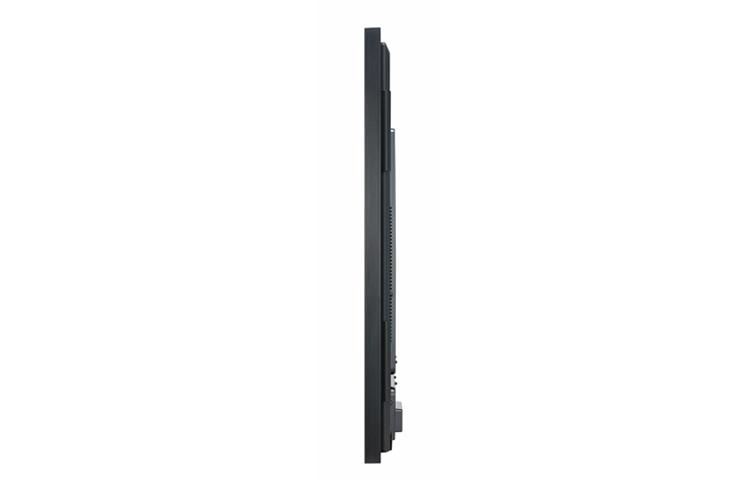

|Bezel Width||32.7 mm (Even)|
|Monitor Dimension (W x H x D)||1,278 x 748.8 x 71.4 mm / 50.3" x 29.8" x 2.8"|
|Weight (Head)||28.0 kg / 61.7 lbs|
|Carton Dimensions (W x H x D)||1,410 x 880 x 207 mm / 55.5" x 34.6" x 8.1"|
|Packed Weight||33 kg / 72.8 lbs|
|VESA Standard Mount Interface||300 x 300 mm|
|Special Features||Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving, Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning, Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected®**|
|Operating Temperature Range1||0°C to 40°C / 32°F to 104°F|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max||100 W / 115 W|
|Power Consumption - Smart Enegy Saving||70 W|
|Safety||UL / cUL / CB / TUV / KC|
|EMC||FCC Class "A" / CE / KC|
|ErP / Energy Star||N/A / Yes (EnergyStar 7.0)|
|ePEAT (US Only)||N/A|
|Media Player Compatibility|
|OPS Type Compatible||Yes|
|External Media Player Attachable||Yes (MP500/MP700)|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Link|
|Basic||Remote Controller (2ea Batteries Included), Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, Memory Cover|
|Optional||Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KTOPSA), HDBaseT (EB-B100)|
|Touch Type||IR (Scattering)|
|Scan Time||10 ms ↓|
|Protection Glass Thickness||2.8T (Anti-glare)|
|Operating System Support||Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later)|
|Multi Touch Point||Max 10 Points|
|Warranty||3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available|
** Network Based Control
Download the LG Touch Display - TA3E Series Datasheet (.PDF)
