LG 55SVH7E
55" Class 0.44mm Even Bezel Video Wall


LG 55SVH7E

LG Display Products

Bezel Video Walls
  • LG 55SVH7E 55" 0.44mm Even Bezel Video Wall
    55" LCD, 1920x1080 (FHD), LED, 700 Nit, 1080p, HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0, Black, 3-Year Warranty
    #55SVH7E-A
    Our Price: $4,225.00

Click here to jump to more pricing!

Overview:

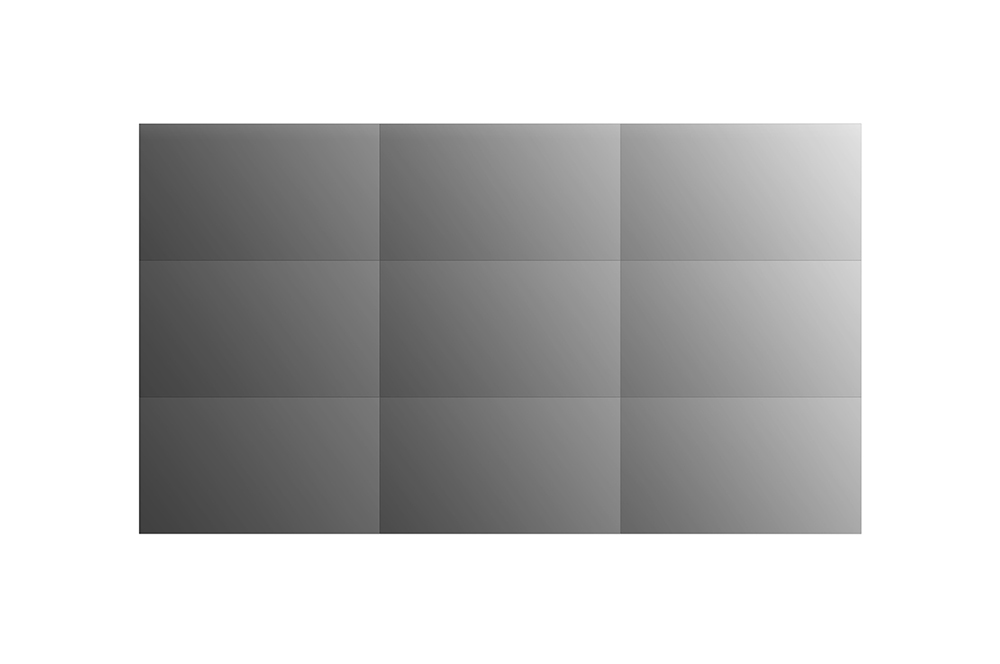

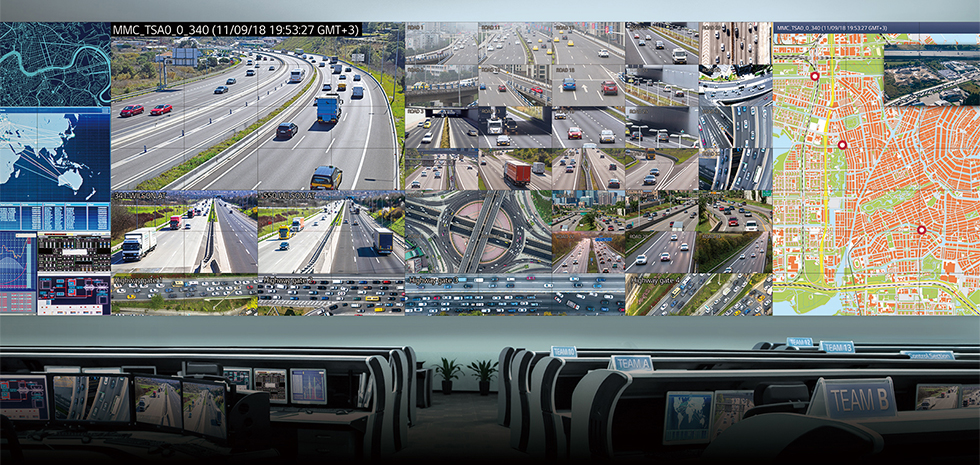

Zero. Video Wall.

LG has finally introduced the world’s first* slim bezel under 1 mm, the 0.44 mm even bezel. Instead of contrasting the reduced bezel size with previous bezels, LG’s 55SVH7E highlights the similarity of its display with the bezel-less ‘original’ picture. Providing the perfection of an authentic seamless view, it will penetrate markets which traditional video walls have not been able to access.

  • Size: 55"
  • Brightness(Typ.) : 700 cd/m²
  • Bezel : 0.44 mm (Even)
  • Depth : 86.5 mm
  • Interface : HDMI(2)/ DP/ DVI-D/ RGB/ USB 2.0/ RS232C/ RJ45/ Audio/ IR

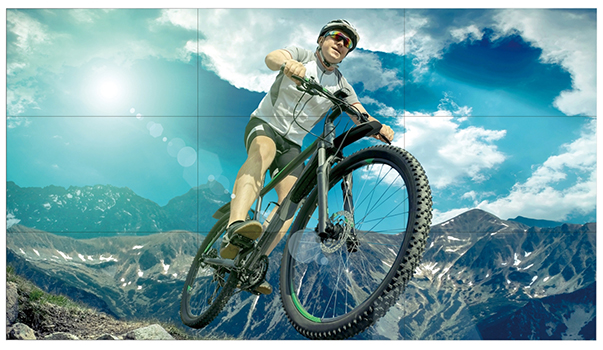

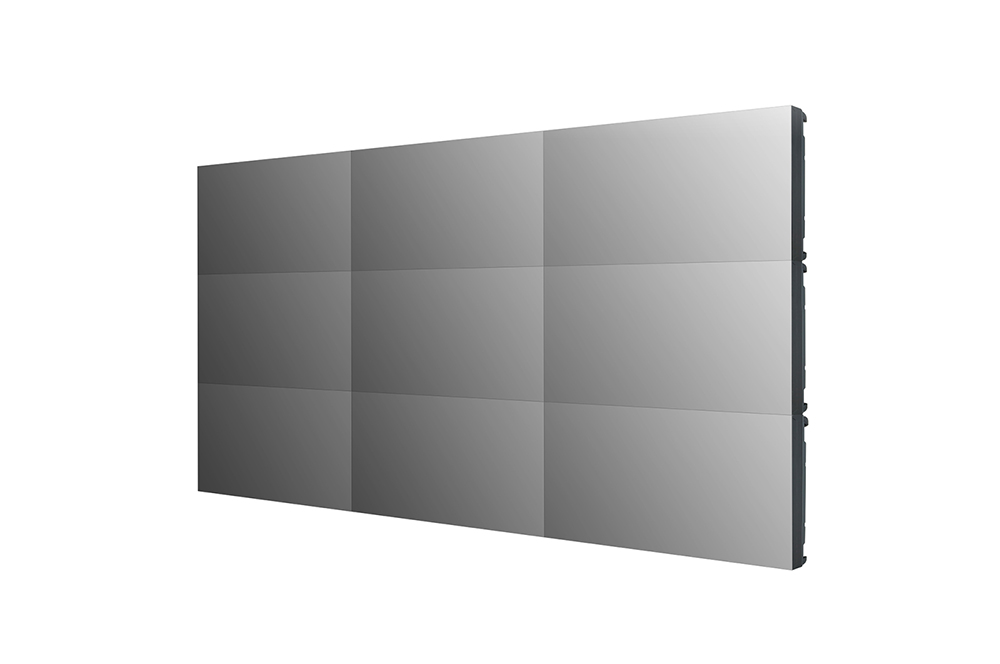

Zero. Video Wall.

Groundbreaking 0.44mm Even Bezel

The unprecedented razor-thin bezel – 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL – which has been verified by Nemko*, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the 55SVH7E will provide an even more immersive experience to viewers.

Groundbreaking 0.44mm Even Bezel

Features:

Vivid and Dynamic Picture Quality

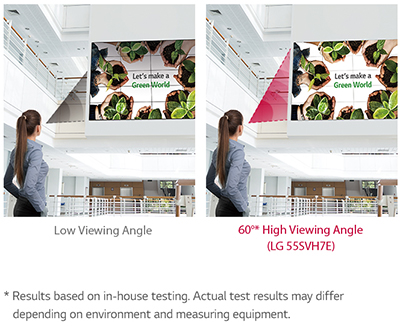

Higher Viewing Angle

Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the 55SVH7E is superior to that of conventional video walls, allowing it to display vivid colors throughout the screen with no distortion.

Higher Viewing Angle

Wider Viewing Angle

It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the 55SVH7E captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.

Wider Viewing Angle

Uniform Color Expression

Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn’t look good on a large screen. However, the 55SVH7E has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.

Uniform Color Expression

Image Gap Reduction

The 55SVH7E includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.

Image Gap Reduction


Powerful Smart Signage Platform

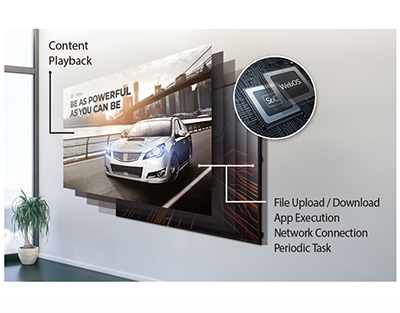

High Performance and Great Scalability

Thanks to its built-in SoC and webOS smart signage platform, the 55SVH7E can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Soft Development Kit), it is even easier for SIs to build and optimize.

High Performance and Great Scalability

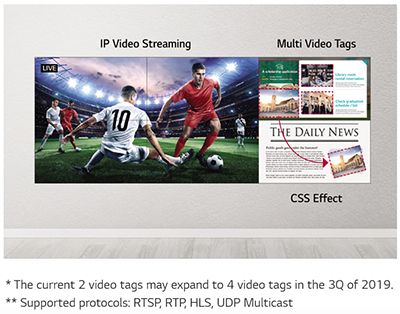

Flexible Content Creation

Several different videos* can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS(Cascading Style Sheets) transition effects. Real-time streaming** is also available, providing the flexibility to organize and diversify content free from capacity limits.

Flexible Content Creation


User-Friendly Smart Signage UX

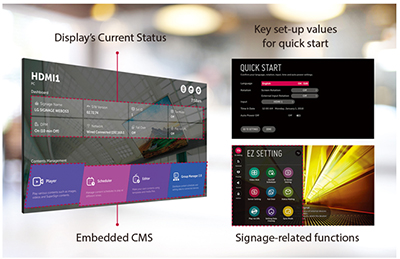

Intuitive Menu Structure

The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trialand-error when exploring desired functions and managing displays.

Intuitive Menu Structure

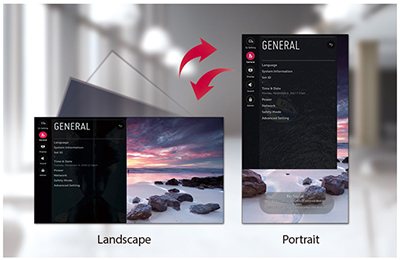

Dedicated GUI for Portrait Orientation

The conventional GUI (Graphic User Interface) was designed based on landscape-oriented consumer TV usage, so OSD(On Screen Display) wasn’t well-suited for screens in portrait mode. The OSD of the 55SVH7E, however, consists of a long range menu with bigger font sizes and a 9:16 ratio.

Dedicated GUI for Portrait Orientation


User Convenience

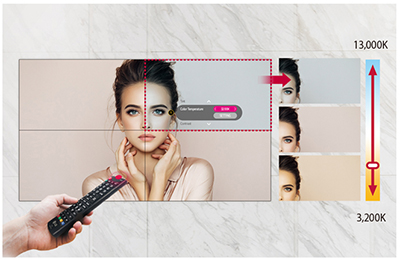

Easy Color Adjustment

Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control.

Easy Color Adjustment

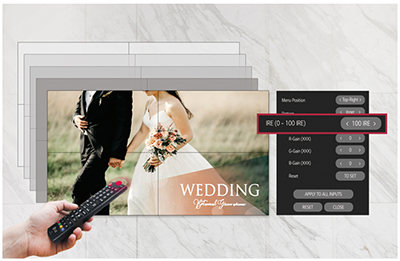

Simple White Balance Adjustment

In conventional video walls, white balance was adjustable only in “full-white” mode, but the 55SVH7E allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment.

Simple White Balance Adjustment

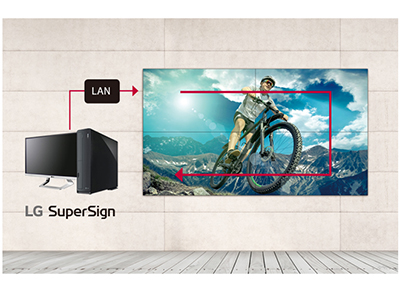

LAN Daisy Chain Management

A LAN daisy chain allows you to execute commands to control and monitor video walls and even update their firmwares at once.


LAN Daisy Chain Management

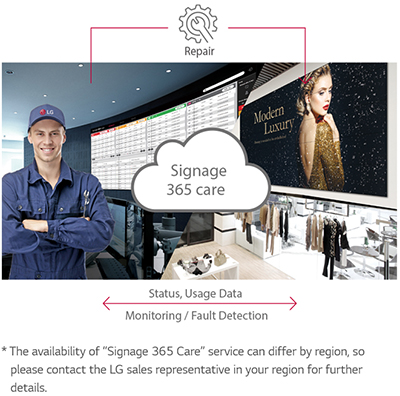

Real-Time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.

Real-Time Care Service


Specifications:


55SVH7E Specifications
Panel
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 700 cd/m2
Contrast Ratio 1,200:1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Haze 3%
Life Time (Typ.) 60,000 Hours
Operation Hours 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI (2), DP, DVI-D, RGB, Audio, USB 2.0
Output DP, Audio
External Control RS232C In/out, RJ45 In/out, IR In
Physical Specification
Bezel Color Black
Bezel Width 0.44 mm (Even)
Monitor Dimension (W x H x D) 1,210.51 x 681.22 x 86.5 mm
Weight (Head) 37.1 lbs / 16.8 kg
Carton Dimensions (W x H x D) 1,353.0 x 855.0 x 263.0 mm
Packed Weight 52.1 lbs / 23.6 kg
Handle Yes
VESA Standard Mount Interface 600mm x 400mm
Special Features
Special Features Internal Memory 8GB (System 4GB, Available 4GB), Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Smart Energy Saving, Contents Scheduling(USB, Internal Memory), USB Cloning, Easy Brightness Control, Calibration Mode, Content Rotation, OSD Portrait Mode, Sync Mode, PM Mode, Still Image Diagnosis, HDMI-CEC, Wake on LAN, Fail Over, No Signal Image (Up to 5MB), Embedded Template, Check Screen (via Pixel Sensor), OPS Power Control, Scan Inversion (with Pivot Mode)
Environmental Conditions
Operating Temperature Range 32 °F to 104 °F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. 170 W
Power Consumption - Max. 220 W
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC
ErP / Energy Star N/A / Yes (Energy Star 7.0)
Media Player Compatibility
OPS Type Compatible Yes (Piggyback)
External Media Player Attachable Yes (MP500/MP700)
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control / Control+
Accessory
Basic Remote Controller, Power Cord, RS232C Cable, LAN Cable, DP Cable, IR Receiver, Guide Bracket, Screws, Manual
Optional Wall Mount (Landscape: WM-L640V, Portrait: WM-P640V), OPS Kit (KT-OPSA)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor)

Views:


Front

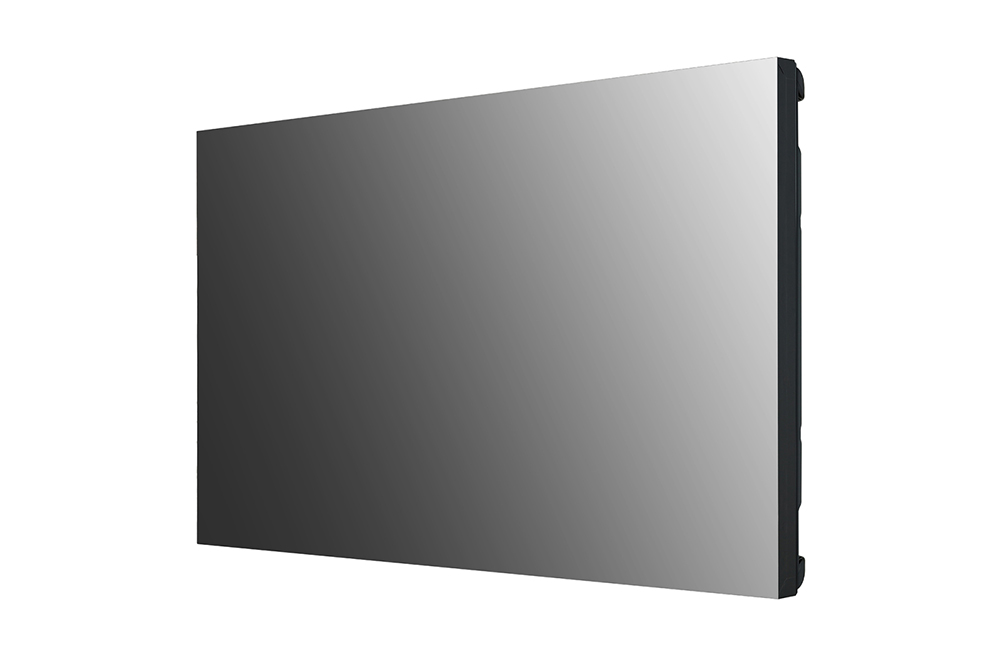

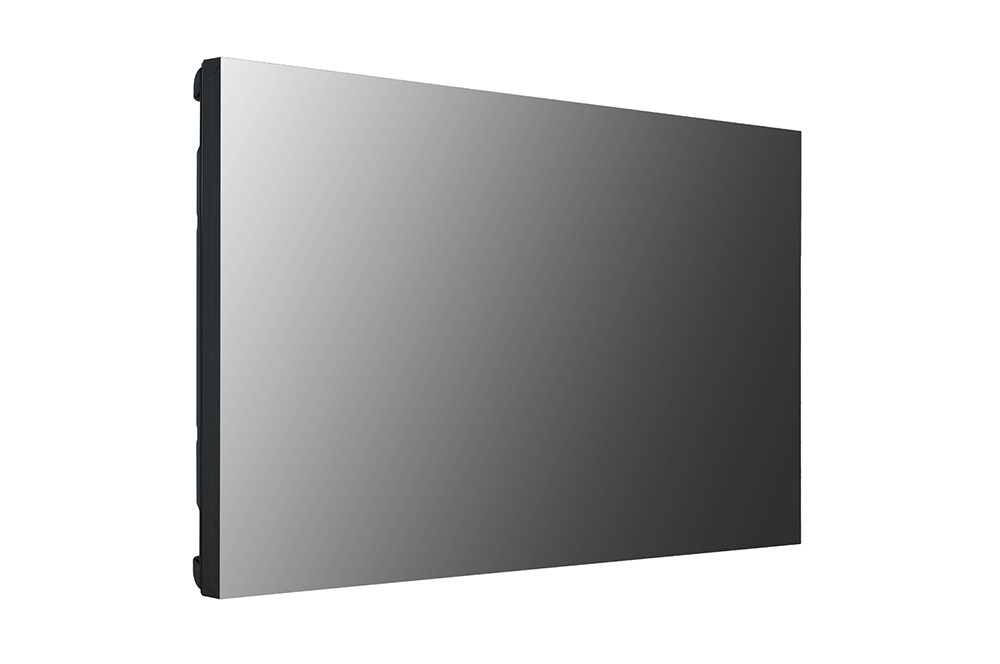

Left Perspective
Front
Left Perspective

Right Perspective

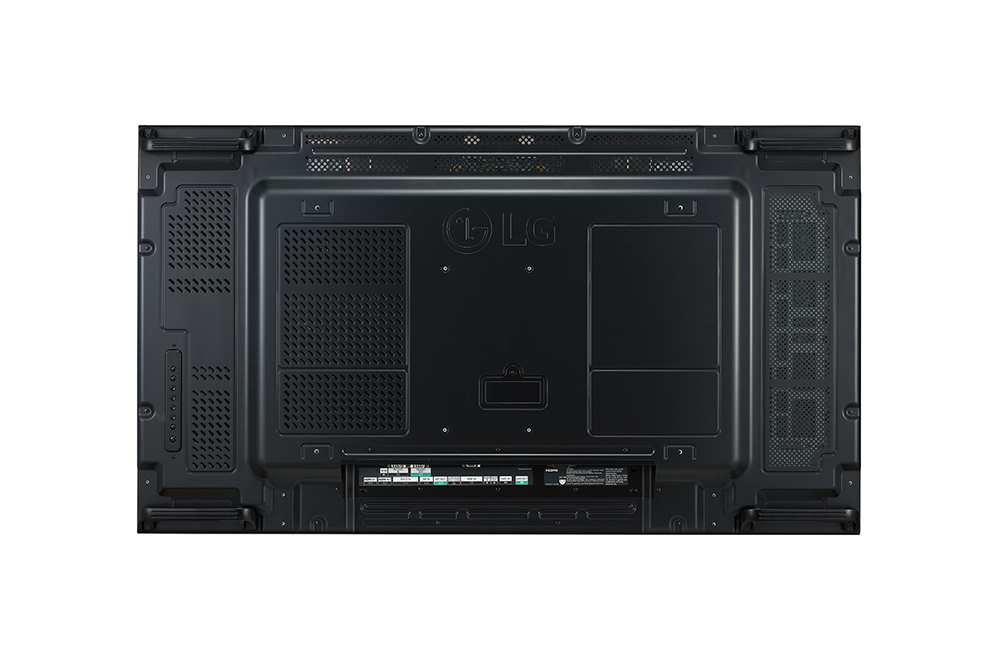

Rear

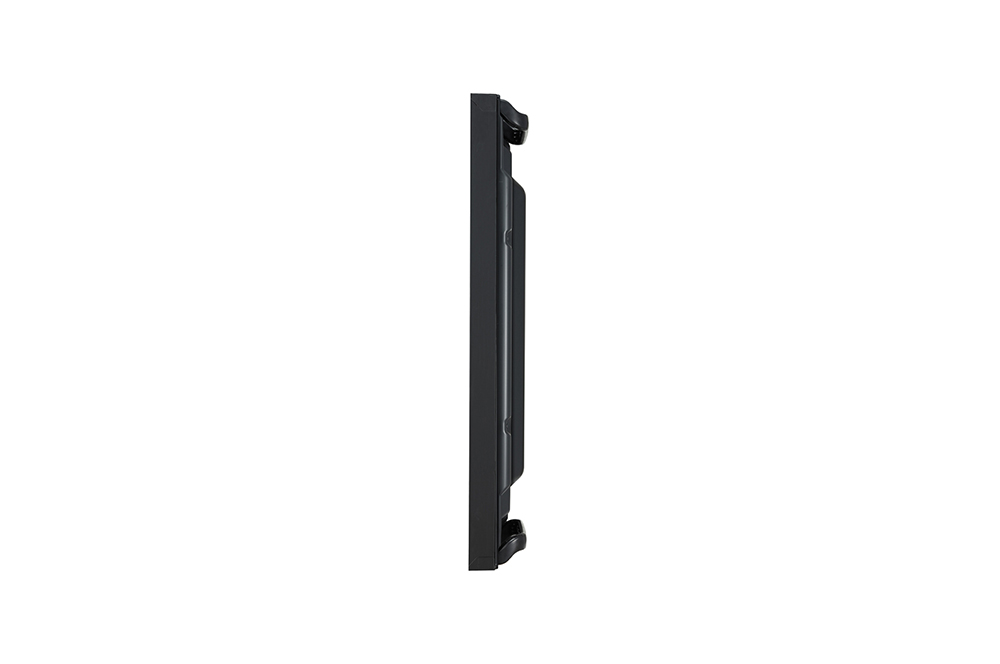

Left Side

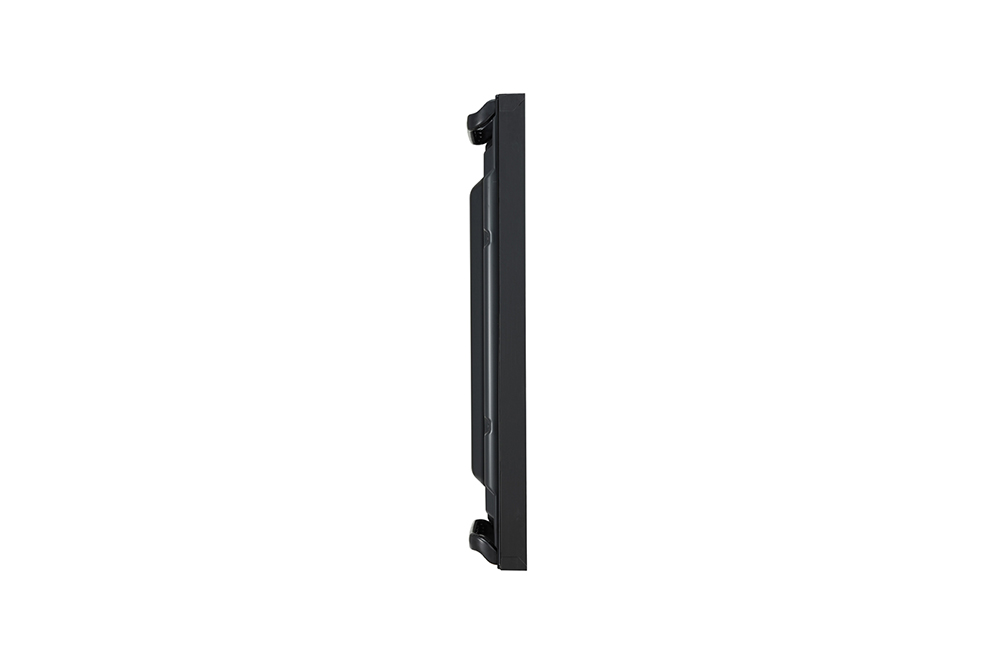

Right Side

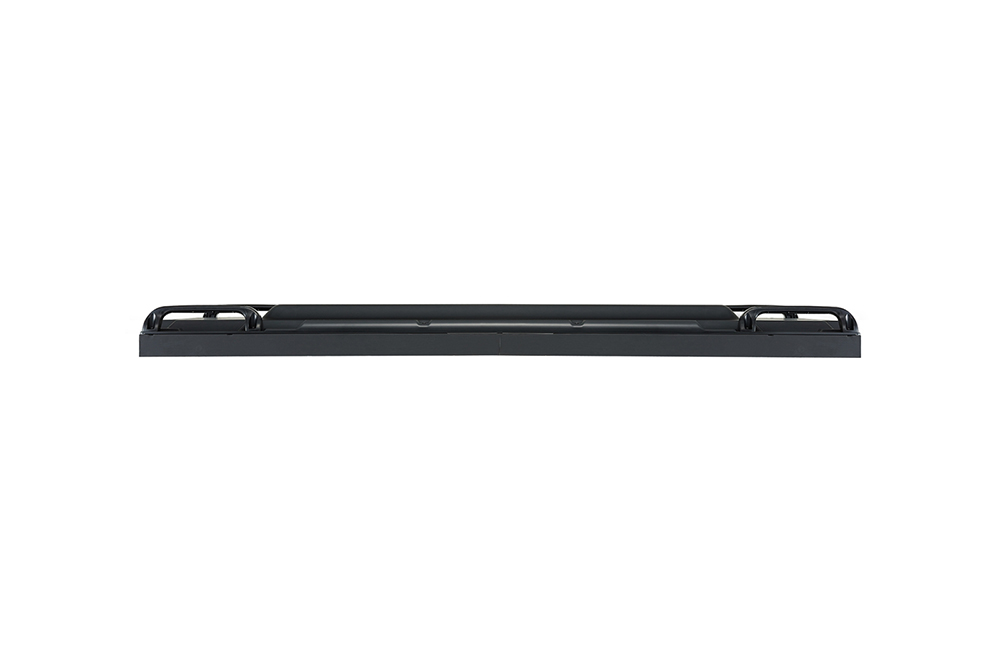

Top

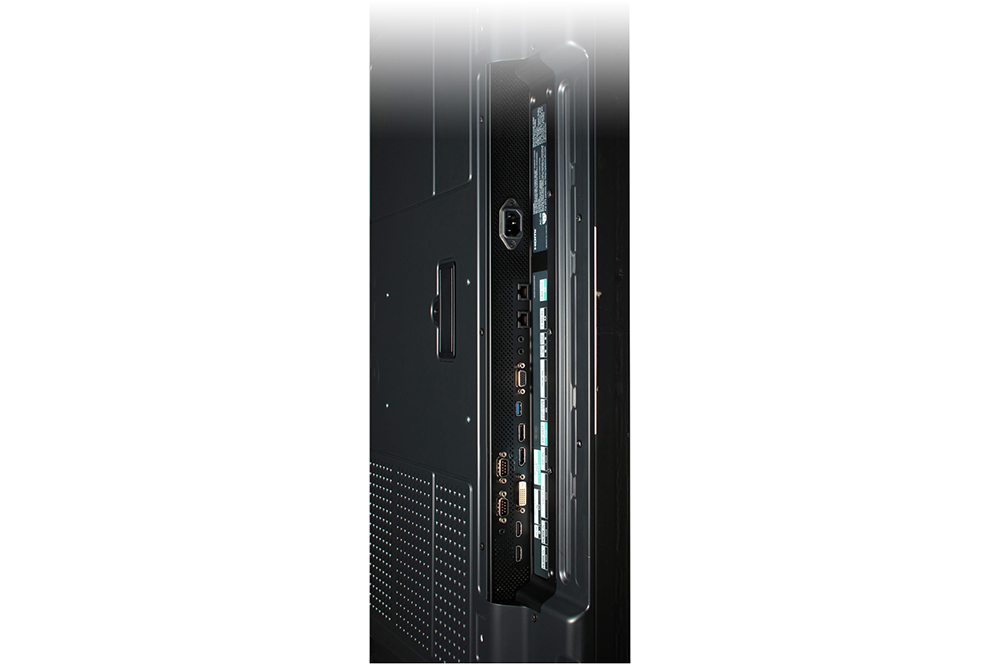

Side Ports

Documentation:

Download the LG 0.44mm Even Bezel Video Wall - 55SVH7E Datasheet (.PDF)
