55" Versatile Signage with a User-friendly Smart Platform
55" LCD, 1920 x 1080 (FHD), Direct LED, 450 Nit, Web OS, HDMI, Disply Port, DVI-D, RGB, Built-in Speakers, Black, 3-Year Warranty

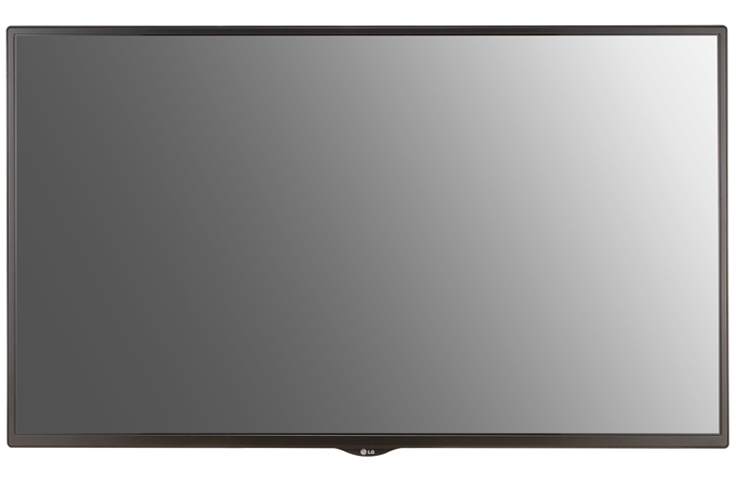

LG 55SM5KE 55" Full HD LED-LCD Signage Display
Sorry, this product is no longer available, please contact us for a replacement.
Versatile Performance with a User-friendly Smart Platform
The SM5KE series provides dynamic content with clear picture quality, enhancing advertising effectiveness and helping to generate demand for your brand and products. LG webOS 4.0 Smart Platform has not only been optimized to develop and run a variety of customized apps, but user convenience has been enhanced with intuitive UI and value-added functions.
- Size: 55"
- User-Friendly Smart Platform
- Content Display and Management
- Powerful Wireless Capabilities
- Reliable Operation
- Value-added Offerings
- Industrial Design
User-Friendly Smart Platform
Simple Set-up & Customization
The LG webOS 4.0 smart signage platform supports HTML5 as a web-based platform and offers an SDK (Software Development Kit), so System Integrators can easily build and execute their own apps. Also, it is easy to use with intuitive menu and usable without instructions, as all of signage-related functions can be indexed in one menu.
Embedded Content Management
The embedded CMS (Content Management System) allows you to edit and play content, schedule a playlist and even group and control signage via remote control, mouse or even mobile phone, without needing a separate PC or software. This makes content management much easier and user-friendly.
Content Display and Management
Multi Screen Mode
PBP (Picutre-By-Picture) and PIP (Picture-In-Picture) feature gives a chance to compose up to 2 divided split screen on landscape or portrait display format. This gives great flexibility to users to allocate space for each content source.
SM5KE series can play real-time streaming content by supporting various types of IP video streaming protocols such as RTSP/RTP/HLS and UDP Multicast*. This easy-to-manage content system is free from capacity limits for content playback and can provide live broadcasts in real time.
Powerful Wireless Capabilities
With Beacon and Bluetooth Low Energy (BLE), shop managers can provide coupons and information in realtime.
Content Mirroring among devices is more convenient on a Wi-Fi network.
Wireless Access Point
The SM5KE series operates as a virtual router which can be an wireless access point for mobile devices.
Quick Web Access via Proxy Server
Web access speed and security can be improved by supporting proxy server. Managers can not only block unwanted websites, but also quickly access to resources using caches.
Secured Network Communication
HTTPS* protocol support ensures secure communication between clients and servers. Content or documents using HTTPS can be shared and displayed on digital signage, so owners can protect their critical business assets from unwelcome pirates.
Thermal Printer Supported
Users can easily enable the thermal printer solution* by plugging a USB into the display. This can function as a ticketing machine for various locations such as restaurants, movie theaters, banks and airports.
Real-time Care Service
The maintenance gets easier and faster with an optional service Signage 365 Care, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
Detachable Logo & Built-in Speaker
The detachable logo allows for installation in the desired orientation in landscape or portrait mode, making it easy for the user to arrange the signage. Also, sound can be played from built-in speakers, giving advertisements greater impact.
Electronics products can be often unavoidably exposed to dust and water during maintenance. LG applies a conformal coating on major circuit boards to minimize such circumstances by protecting against dust, iron powder, humidity, etc.
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Response Time||12 ms (G to G BW), 9.0 ms (WOT)|
|Surface Treatment||Hard Coating (3H), Anti-glare Treatment of the Front Polarizer (Haze 1% (Typ.))|
|Life Time (Min.)||50,000 hours|
|Guaranteed Operating Hour||24 Hours|

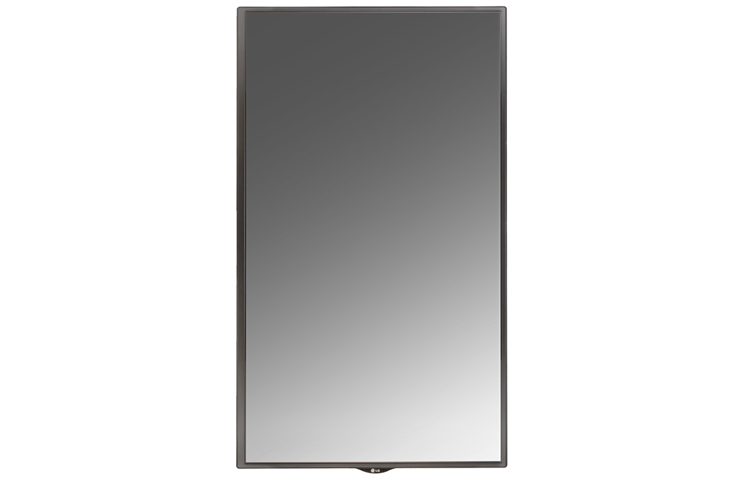

|Orientation||Landscape & Portrait|
|Input||HDMI (3), DP, DVI-D, Audio, USB 3.0|
|Output||DP (SST), Audio (Off/Fixed/Variable)|
|External Control||RS232C In/out, RJ45 In, IR Receiver In|
|Bezel Width||11.9 mm (T/R/L), 18 mm (B)|
|Monitor Dimension (W x H x D)||48.7” x 28.4” x 2.1” / 1,238 x 714.9 x 54 mm|
|Weight (Head)||38.6 lbs / 17.5 kg|
|Monitor with Optional Stand Dimensions (W x H x D)||48.7” x 30.4” x 8.6” / 1,238m x 773.4 x 219.6 mm|
|Weight (Head+Stand)||45.9 lbs / 20.8 kg|
|Carton Dimensions (W x H x D)||52.4” x 31.8” x 6.7” / 1,330 x 807 x 170 mm|
|Packed Weight||47.8 lbs / 21.7 kg|
|VESA Standard Mount Interface||300 mm x 300 mm|
|Special Features||Internal Memory 8GB (System 4GB, Available 3.6GB), Built-in Wi-Fi, Temperature Sensor, Auto Brightness Sensor, Current Sensor, webOS 4.0, Embedded CMS, Fail Over, Image Customization, PIP/PBP(2), Screen Share, Video Tag (2), Play via URL, Gapless Playback, Tile Mode Setting (Up to 15x15), Setting Data Cloning, Firmware Update by Network, SNMP (Ver. 1.4), Control Manager, Crestron Connected, Extron IP Link, Smart Energy Saving, Beacon, HDMI-CEC (2), Built-in Speaker (10W+10W)|
|Operating Temperature Range||32° F to 104° F / 0°C to 40°C|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240 V~, 50/60 Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max.||100 W (TBD) / 115 W|
|Power Consumption - Smart Energy Saving||70 W (TBD)|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KC|
|ErP / Energy Star||N/A / Yes (Energy Star 7.0)|
|Media Player Compatibility|
|OPS Type Compatible||Yes|
|External Media Player Attachable||Yes|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control/Control+|
|Basic||Remote Controller (2ea Batteries Included), Power Cord, QSG, HDMI Cable, Regulation Book, Phone to RS232C Gender, Memory Cover|
|Optional||Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100), Touch Overlay (KT-T55E)|
|Warranty||3 Year Limited Warranty|
