LG 55LV77D
55" Class Ultra Narrow Bezel Video Wall


LG 55LV77D

LG Display Products

Video Walls
  • LG 55LV77D 55" Ultra Narrow Bezel Video Wall
    55" LCD, 1920x1080 (FHD), LED, 700 Nit, 1080p, HDMI, DP, DVI, RGB, Audio, USB, Black, 3-Year Warranty
    #55LV77D-B
    Our Price: $4,075.00

Click here to jump to more pricing!

Overview:

With an ultra narrow bezel, the 55LV77D/75D provides viewers with greater immersion, thus imprinting the content on their minds. No matter where a passerby is when watching the screen, it maintains superior picture quality with vivid colors, allowing the content to come alive. The content can be produced easily in various layouts to match regular or irregular forms of the video wall screen with LG SuperSign software.

  • Size: 55"
  • Overwhelming screen immersion with ultra narrow 3.5mm bezel to bezel
  • Clear and consistent color reproduction from any angle with IPS panel
  • Reliable picture quality supported by uniformed brightness and white balance
  • Vivid Content Playback with TruMotion 60Hz Refresh Rate
  • Convenient content management using SuperSign W

Features:

Immersive Viewing Experience

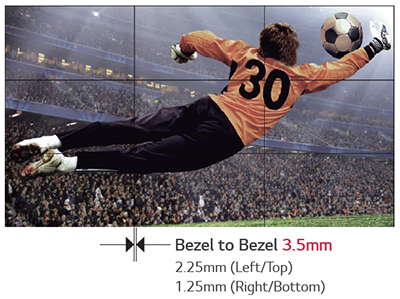

Ultra Narrow Bezel

The 3.5mm ultra narrow bezel size creates immersive and seamless viewing experiences on assembled video wall screens.

Ultra Narrow Bezel

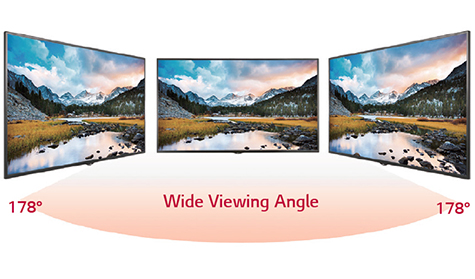

Wide Viewing Angle

IPS panel technology means a more advanced control of the loqiud crystal display. As a result, it has a wide viewing angle that delivers clear content, no matter where a passerby views. Every pixel in the IPS panel truly reproduces the image colors without distorting them.

Wide Viewing Angle


Superior Picture Quality


Uniform Brightness

LG’s LED backlight technology guarantees high uniformity in brightness to ensure a clear picture. On other screens, certain spots may appear darker than others, but the new LV77D/75D generates high visibility and a consistent brightness across the whole screen.

Uniform Brightness

Consistent White Balance

Through Video Wall Image Creation (VIC) technology, color and brightness differences are compensated in circuit part with an algorithm to make the panels into a same characteristic so that each video wall maintains the consistent white balance.

Consistent White Balance

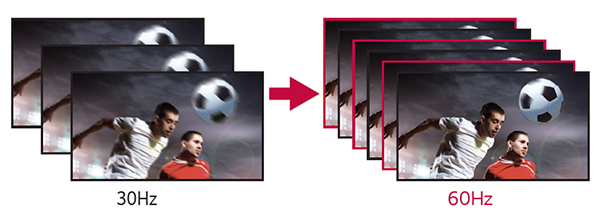

Vivid Imagery Viewing

TruMotion 60Hz Refresh Rate drastically reduces motion blur and judder ensuring vivid image playback with fine details.

Vivid Imagery Viewing

Content Management

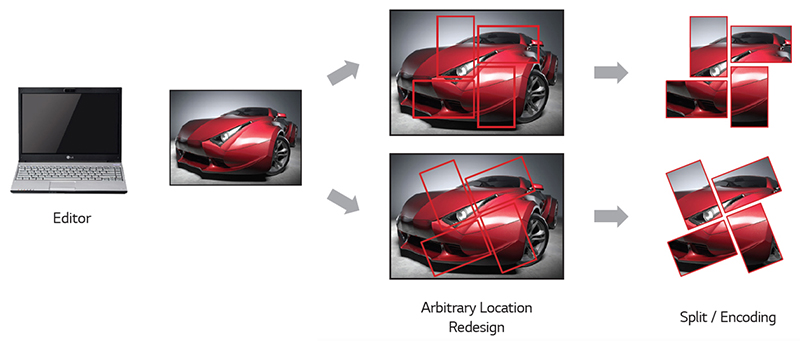

SuperSign W Content Management

Flexible content editing in various layouts including regular matrix and non-formal irregular video-wall is possible to your preference in a timely and cost effective manner without unnecessary expensive video wall console.

SuperSign W Content Management

Specifications:


55LV77D Specifications
Panel
Screen Size 55"
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 700 cd/m2
Viewing Angle (H x V) 178 x 178
Response Time 12ms (G to G)
Surface Treatment Hard coating (3H), Anti-refl ection treatment of the front polarizer (Refl ectance <2%)
Life Time (Typ.) 60,000 Hours
Operation Hours 24 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI, DP, DVI, RGB, Audio, USB
Output DP, Audio
External Control RS232C In/Out, RJ45 In, IR Reciever
Physical Specification
Bezel Color Black
Bezel Width 2.25 mm (L/T) / 1.25 mm (R/B)
Monitor Dimension (W x H x D) 1,213.4 x 684.2 x 88.5 mm
Weight (Head) 50.7 lbs / 23 kg
Carton Dimensions (W x H x D) 1,337 x 828 x 239 mm
Packed Weight 67.3 lbs / 30.5 kg
Handle Yes
VESA Standard Mount Interface 600mm x 400mm
Special Features
Special Features Temperature sensor, Cooling FAN (LV77D Only), Tile mode (up to 15x15), Natural mode @Tile mode, ISM method, DPM select, Energy saving, Smart energy saving, File play with USB
Environmental Conditions
Operating Temperature Range 32 °F to 104 °F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. 230 W
Power Consumption - Max. 290 W
Power Consumption - Smart Energy Saving 130 W
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KCC
ErP / Energy Star NA / No
Media Player Compatibility
OPS Type Compatible No
External Media Player Attachable Yes
Software Compatibility
Content Management Software SuperSign W
Control and Monitoring Software SuperSign C
Accessory
Basic Remote controller, Power cable, DP cable, IR receiver, RS-232C cable, Tiling guide, Screw
Optional WM-L640V (Landscape), WM-P640V (Portrait), Frame kit (Horizontal: FK-55V10 / Vertical: FK-55V20)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor)

Views:

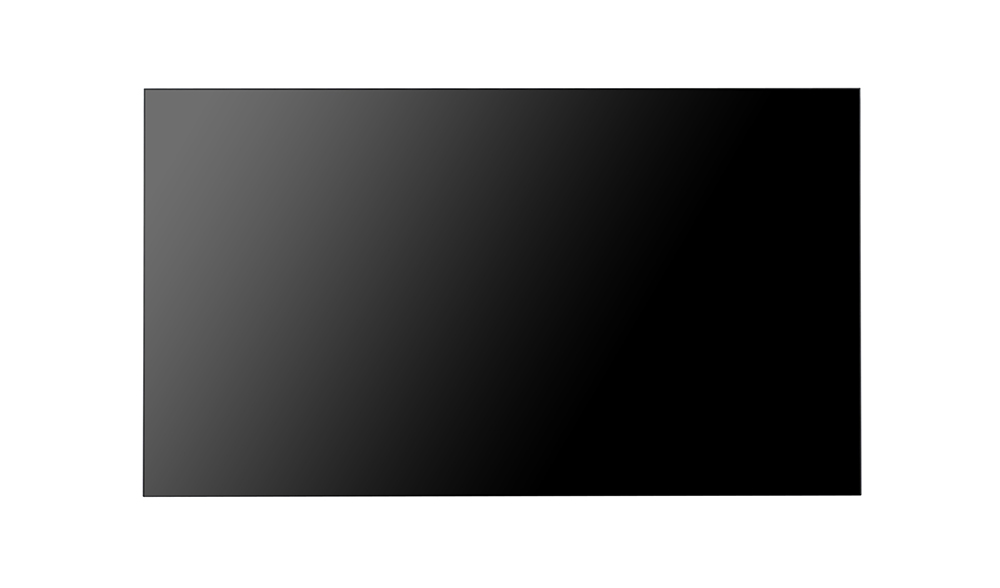

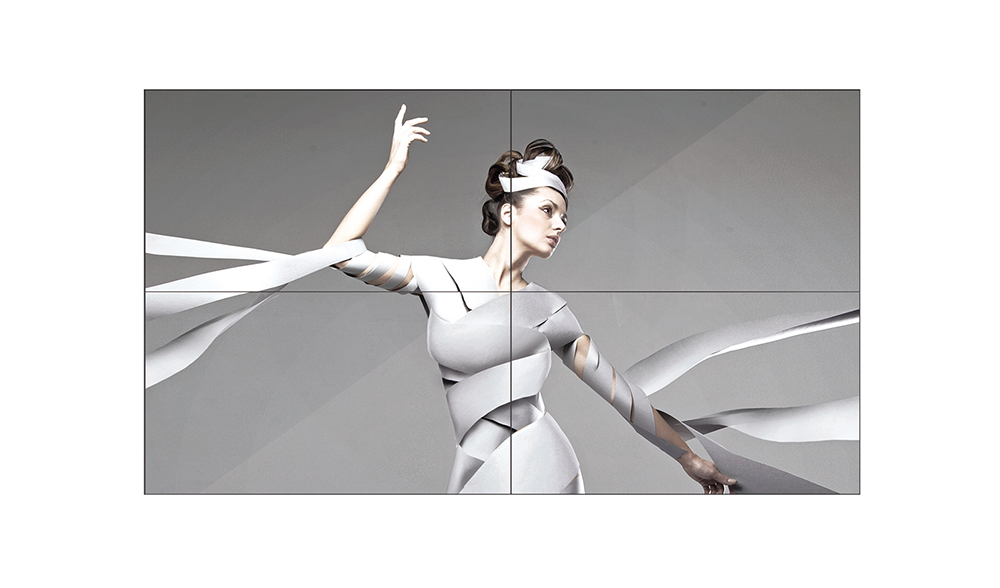

Front
Front

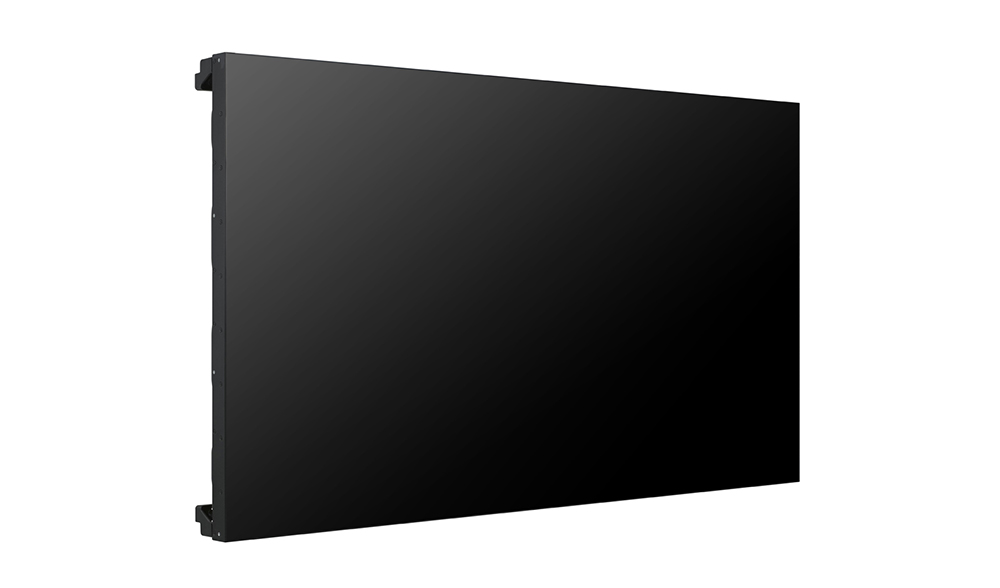

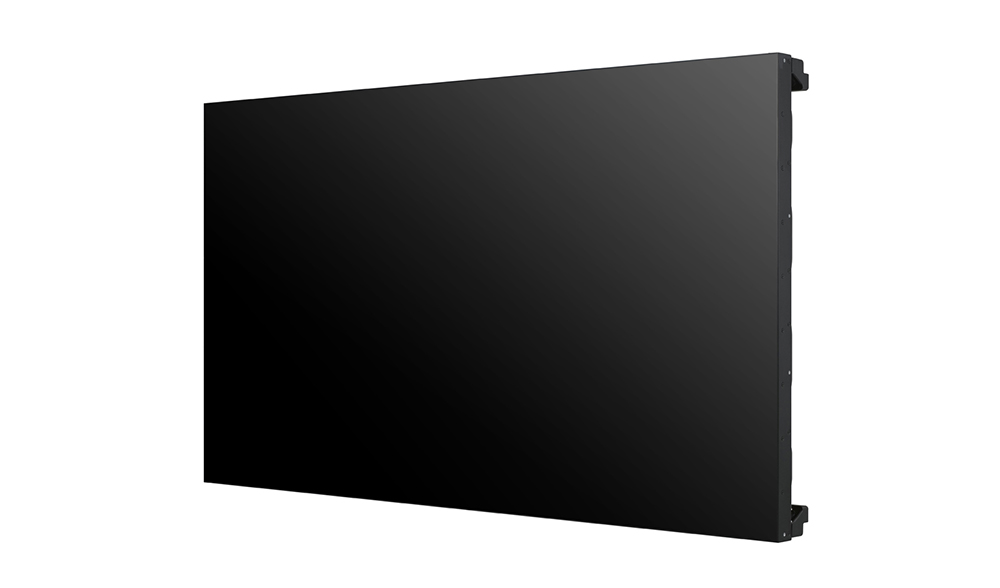

Left Perspective
Right Perspective

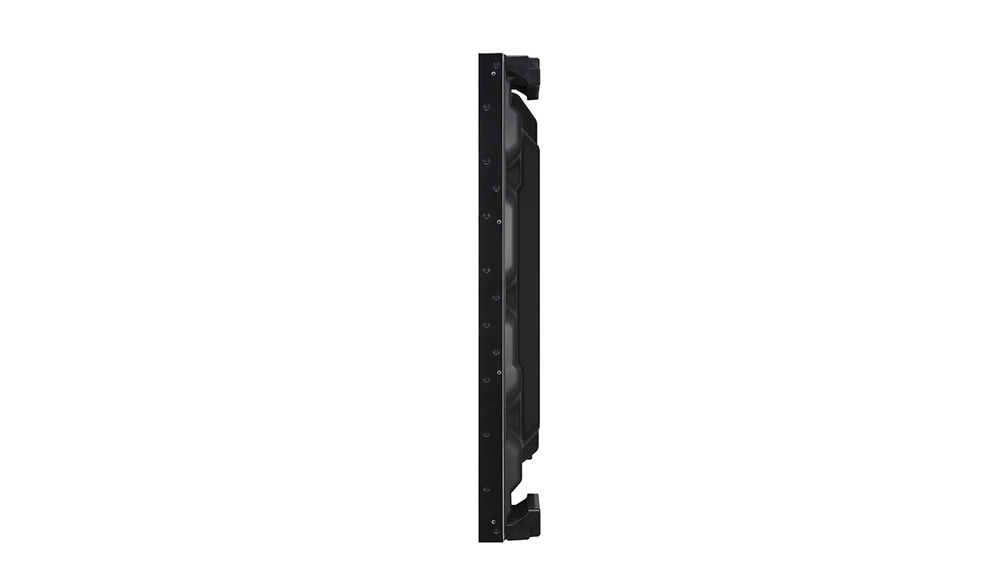

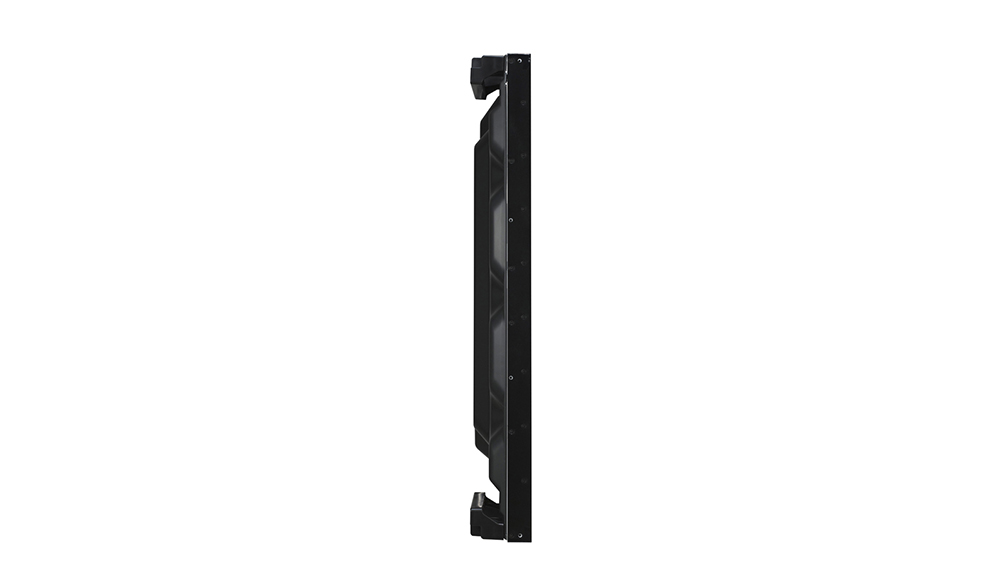

Left Side
Right Side

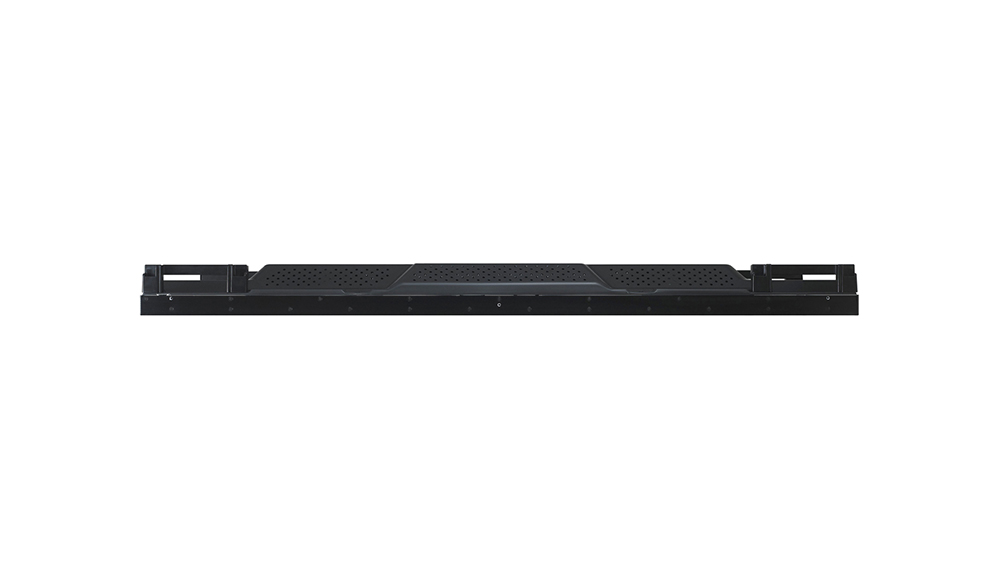

Top
