LG 55EW5TF-A
55" Transparent OLED Signage


LG 55EW5TF-A

LG Display Products

OLED Signage Display
  • LG 55EW5TF-A 55" Transparent OLED Signage
    55" OLED, 1920 x 1080 (FHD), 400 Nit, 1080p, HDMI, DP, USB , RS232C In/out, RJ45, 3-Year Warranty
    #55EW5TF-A
    Our Price: $20,750.00

Click here to jump to more pricing!

Overview:

A New Dimension to Digital Signage

LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings. Boasting vivid and clear colors with high transparency, this display provides valuable information about as well as visual enhancements to objects placed behind it, giving viewers an impressive “wow” factor.

  • Size: 55"
  • Brightness(Typ.): 400 cd/m² (APL 25%, without Glass)
  • Transparency(Typ.) : 38% (Panel)
  • Bezel : 7.9 mm (T/B/L), 121.7 mm (B)
  • Interface : HDMI/DP/USB(2)/ RS232C/ RJ45/ Audio/ IR
  • IEC 61373 Standard Verified

Features:

A New Level of See-through View

LG Transparent OLED signage illuminates spaces that once were hidden away behind the display, completely harmonizing with its surroundings.

A New Level of See-through View

Unrivaled Picture Quality

LG’s OLED technology, featuring self-lighting pixels, maintains accurate and vivid colors even when the display becomes transparent. It brings content to life, making it difficult for people to separate content from the real objects placed behind the screen.

Unrivaled Picture Quality

High Transparency

Thanks to its high transparency (38%), much higher than conventional LCD transparent displays, LG Transparent OLED signage blends into its surroundings seamlessly and naturally. The display’s see-through view turns places where it is installed into open and interactive spaces.

High Transparency

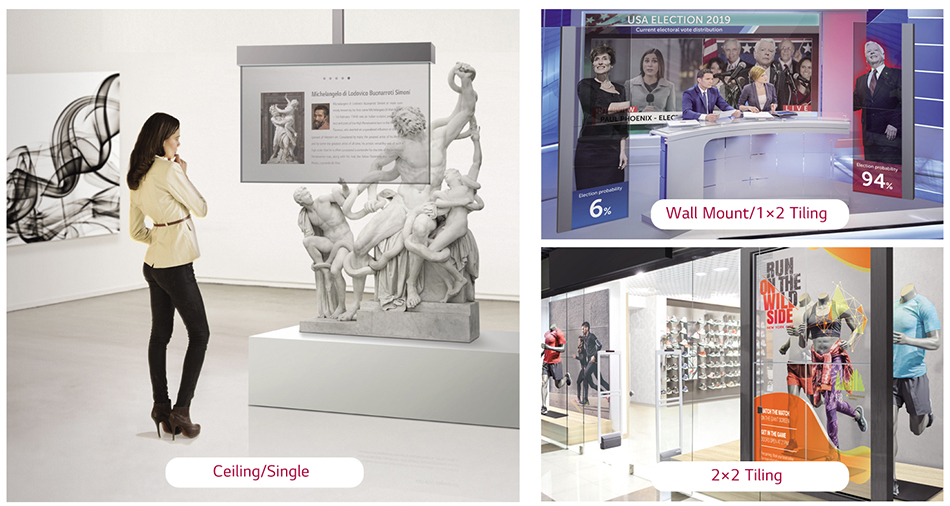

Customizable and Expandable Design

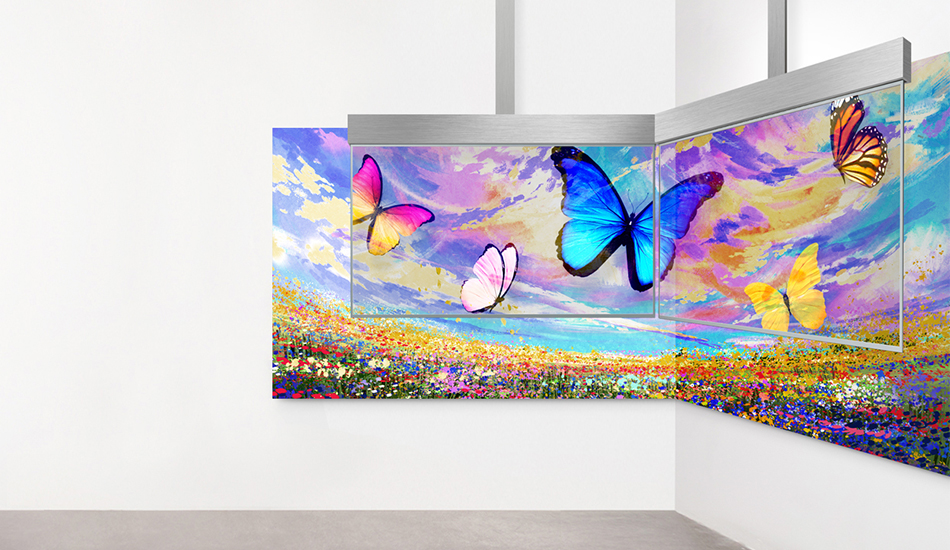

LG Transparent OLED signage is designed as a semi-assembled display, meaning you can install it in various ways to fit into existing structures and spaces. There is no limit to the applications of Transparent OLED signage, and it can complement any venue in which it is installed.

* Installation accessories are not supplied by LG.

Customizable and Expandable Design


See Through

Effective Information Delivery

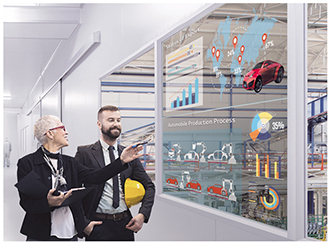

While clearly showing objects behind the screen, LG Transparent OLED signage overlays information right over them so that viewers can easily see both the object and the relevant information without having to change their view.

Effective Information Delivery

Visual Feast

AR Effects in the Dark

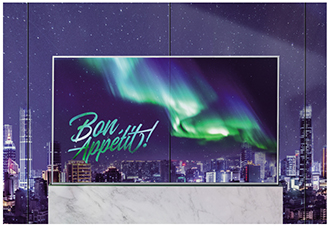

Using LG transparent OLED signage, you can surprise viewers with AR effects in the dark. The content displayed seems life-like, adding another “wow” factor to the viewing experience.

AR Effects in the Dark

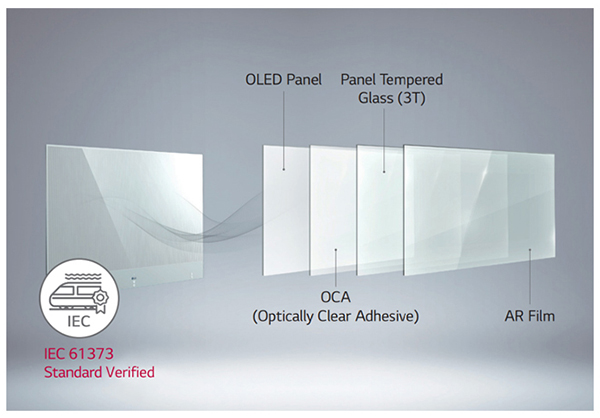

Product Durability

Robust Design for Safety
The tempered front glass protects the screen from external impact, and its verified safety design means it is reliable enough to endure shock and vibration caused by the surrounding environment, such as moving trains.

Robust Design for Safety

Specifications:


55EW5TF-A Specifications

PANEL

Screen Size

55"

Panel Technology

Transparent OLED Touchscreen

Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)

Refresh Rate

120 Hz

Brightness (Typ.)

400 / 150 nits (APL 25 % / 100 %, Without Glass)

Contrast Ratio

150,000 : 1

Color gamut

120% BT709

Viewing Angle (H x V)

178° x 178°

Color Depth

10 bit (R), 1.07 Billion Colors

Response Time

1 ms (G to G)

Lifetime (Typ.)

30,000 Hrs

Operation Hours (Hours / Day)

18 / 7 (Moving Content Only)

Portrait / Landscape

Yes / Yes

Transparency (Typ.)

33% (Set)



CONNECTIVITY

Input

HDMI, DP, USB 2.0 Type A,

USB 2.0 Type A (Touch Control Board only)

Output

DP, Audio, USB 2.0 Type B (Touch USB)

External Control

RS232C In/Out, RJ45 (LAN) In/Out, IR In (External IR Receiver)









MECHANICAL SPECIFICATION

Bezel Color

Matte Silver

Bezel Width

7.9 / 7.9 / 7.9 / 144.5 mm (T / R / L / B)

Weight (Head)

32.2 lbs / 14.6 kg (Head)

7.5 lbs / 3.4 kg (Signage Box)

Packed Weight

50.9 lbs / 23.1 kg

Monitor Dimensions (W x H x D)

48.2" x 32.8" x 0.3" / 1,225.5 x 832.9 x 7.0 mm (Head)

30.8" x 9.4" x 1.4" / 782.8 x 238.4 x 34.7 mm (Signage Box)

Carton Dimensions (W x H x D)

53" x 32.7" x 8.4" / 1,345 x 945 x 207 mm

Protection Glass

Depth 3.0 mm , Tempered / Chemical Strengthening, Anti-Reflective, Shatter-Proof

KEY FEATURES

Internal Memory (16GB), Temperature Sensor, Local Contents Scheduling, Group Manager, USB Plug & Play, Fail Over, Screen Rotation, Setting Data Cloning, SNMP,

ISM Method (Image Sticking Minimization), Auto Set ID, Status Mailing, Control Manager, Crestron Connected®1, DPM, PM Mode, Wake on LAN, HDMI-CEC2 , SI Server Setting

ENVIRONMENT CONDITIONS

Operation Temperature Range

32° F to 104° F / 0° C to 40° C

Operation Humidity Range

10% to 80%



POWER

Power Supply

100-240 Vac, 50/60 Hz

Power Type

Built-In Power

Power Consumption (Typ. / Max.)

250 W / 280 W



CERTIFICATION

Safety

CB, NRTL

EMC

FCC Class "A" / CE / KC

ErP / Energy Star

Yes (EU Only) / No

SOFTWARE & SERVICES3

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control / Control+

Signage365Care

Yes

ACCESSORIES (BASIC)

Remote Controller, Power Cord, IR Receiver, Phone to RS232C Gender, FFC Cables (1,600 mm x 4 ea), HDMI Cable (3 m), Micro to A Type USB Cable (1.8 m), A to B Type USB Cable, Tapes, Screws, Shield Cover Assy', Rubber Dampers, Touch Cable Holders, QSG, Regulation Book



TOUCH

Touch Type

P-Cap

Operating System Support

Windows

Multi Touch Point

Max 10 Points

Views:

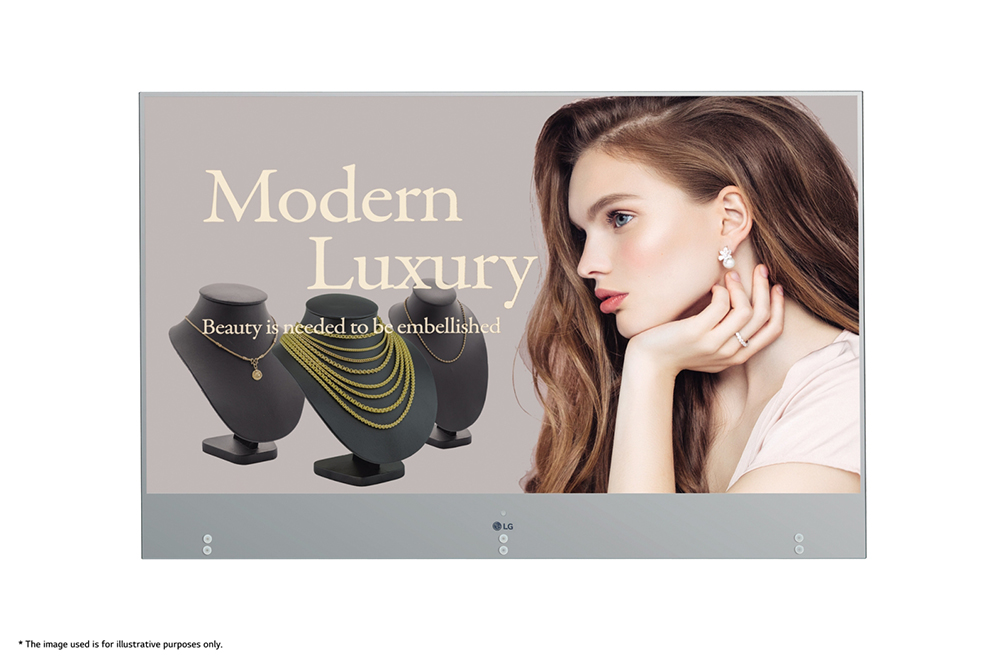

Front

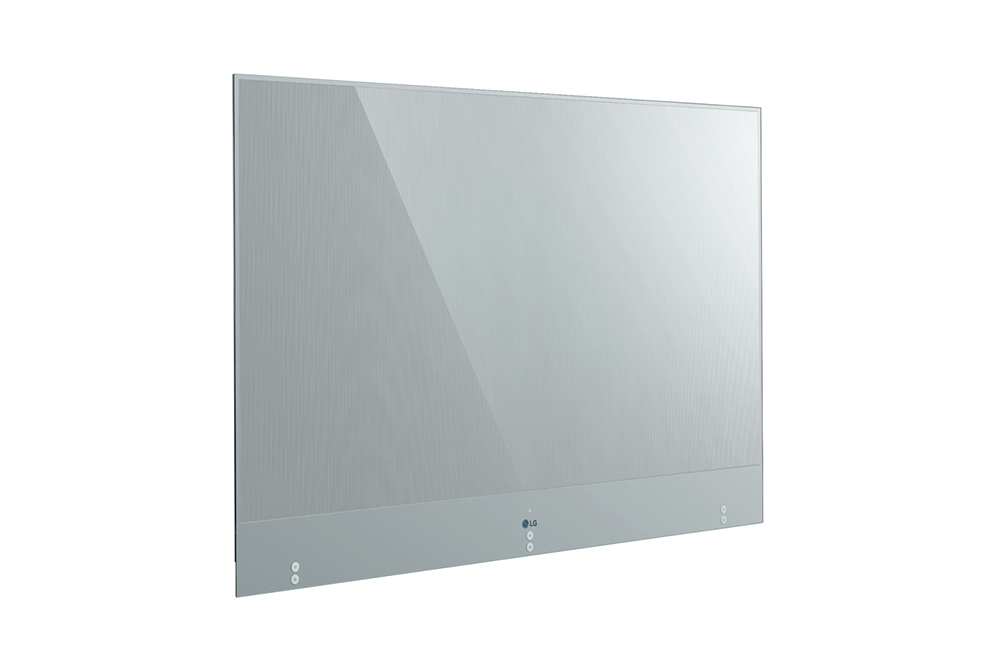

Right Perspective

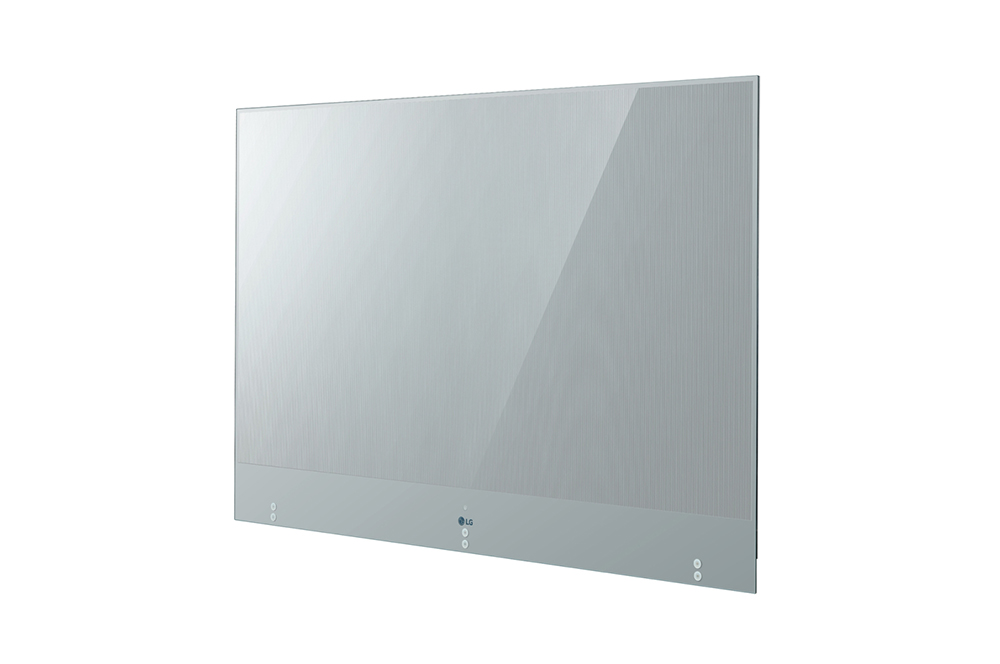

Left Perspective

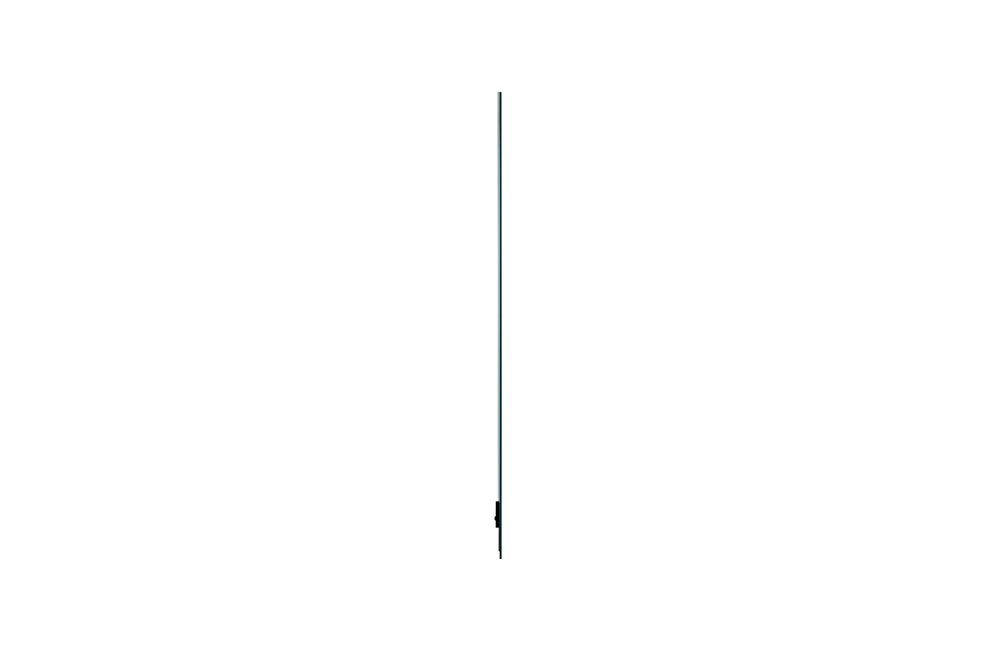

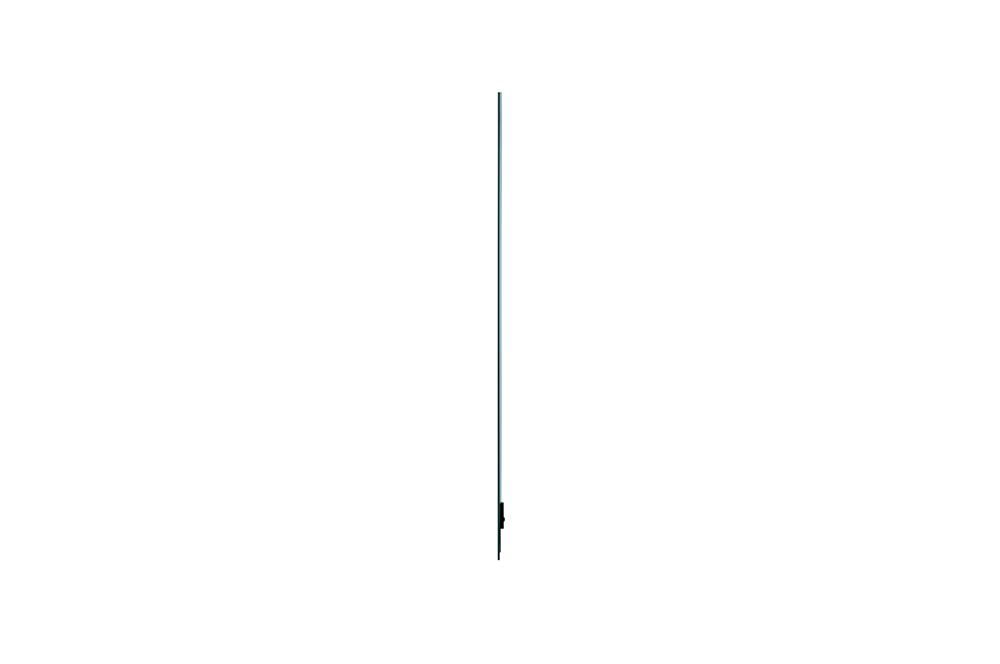

Right Side

Left Side

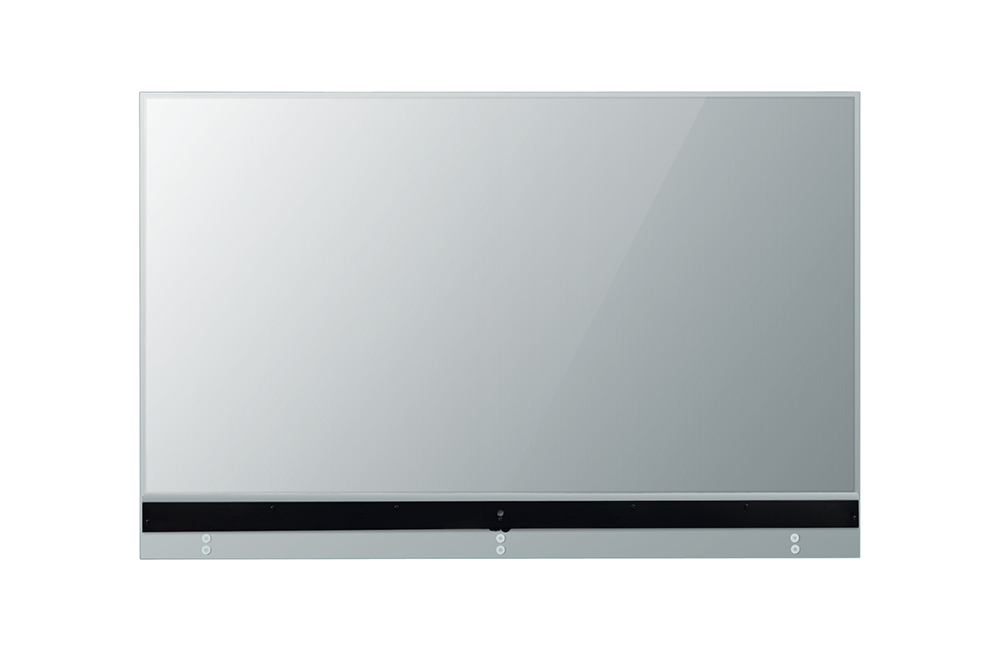

Rear
Rear

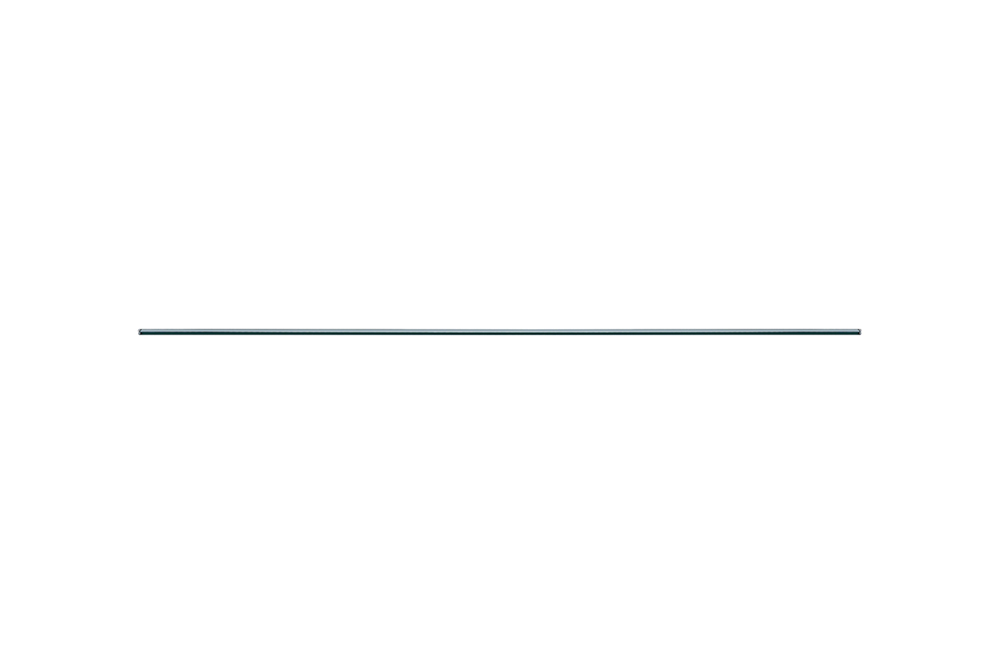

Top

Documentation:

Download the LG Transparent OLED Signage - 55EW5TF-A Datasheet (.PDF)
