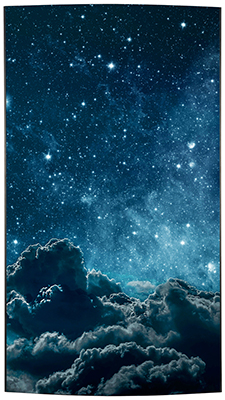

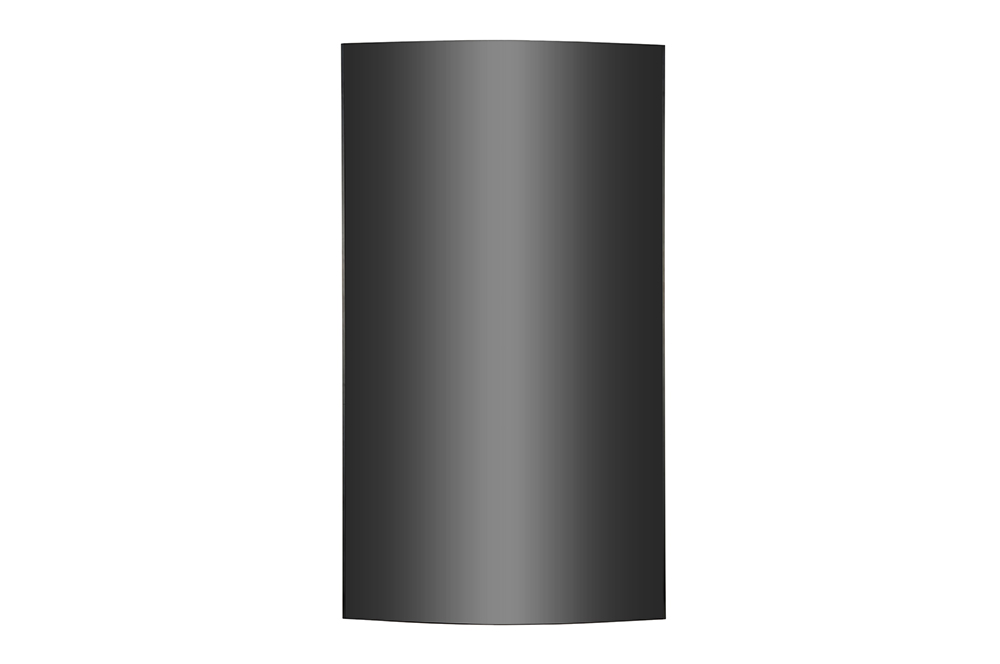

55" FHD Flexible Curved Open Frame OLED with Perfect Black & built-in SoC (Portrait Only)
55" OLED, 1920x1080 (FHD), 400 Nit, 1080p, HDMI, Display Port, OPS, USB, Black, 3-Year Warranty
Artistic Space beyond Display LG OLED Signage
Blending in with the space while captivating everyone’s mind, LG OLED signage offers unprecedentedly flexible design. Beyond its industry-leading features, LG OLED signage delivers unsurpassed advertising effectiveness, reimagnining space as a prestigeenhancing landmark with perfect colors and innovative forms.
- Size: 55"
- Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)

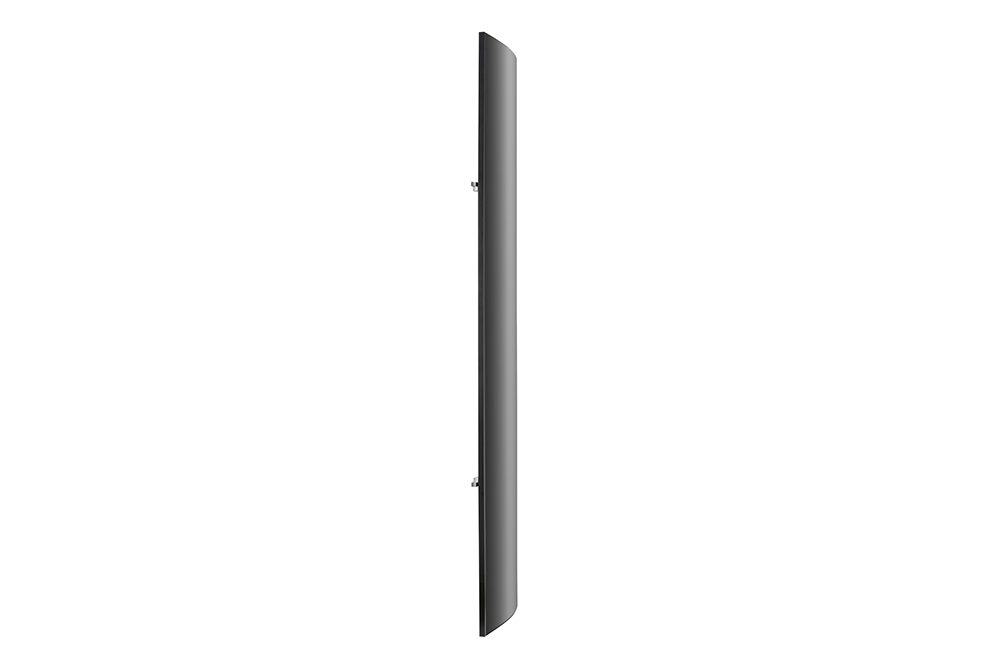

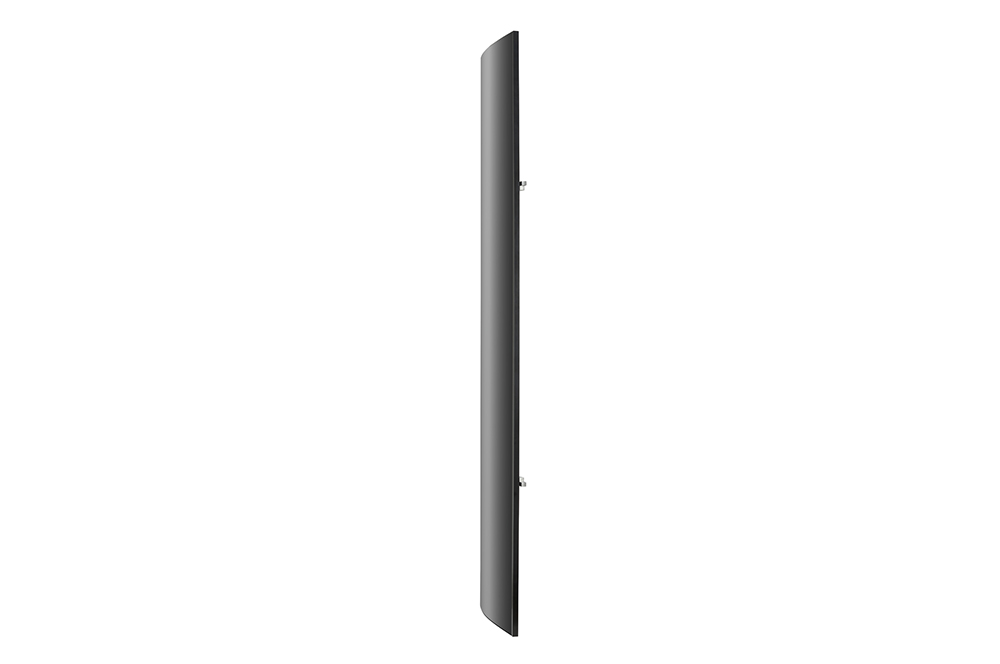

- Depth: 12.4 mm (Head Only)

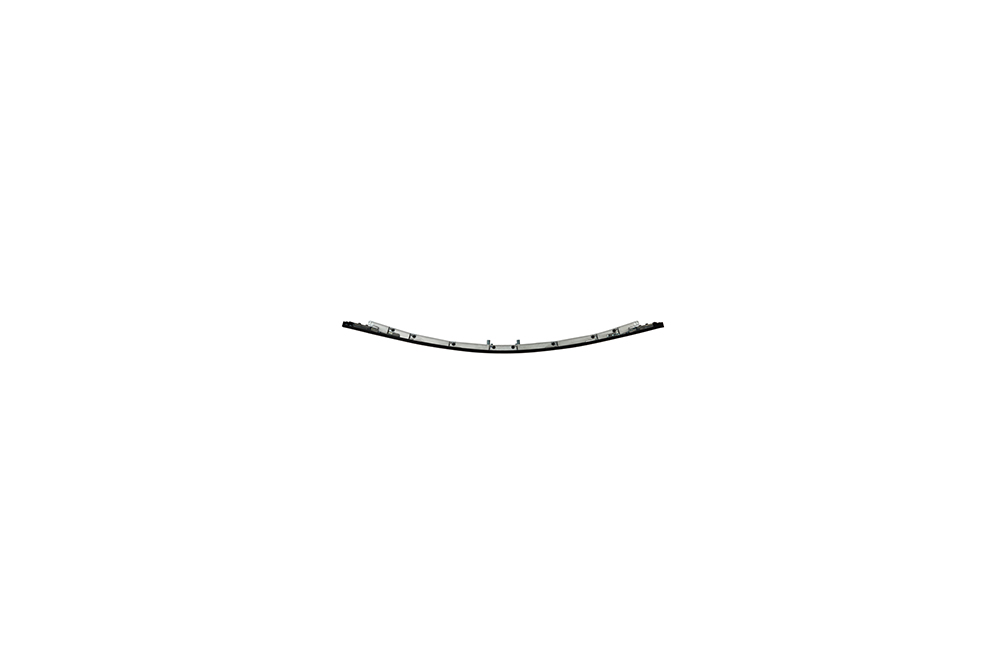

- Curvature: ~1,000R(Concave/convex)
- Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR

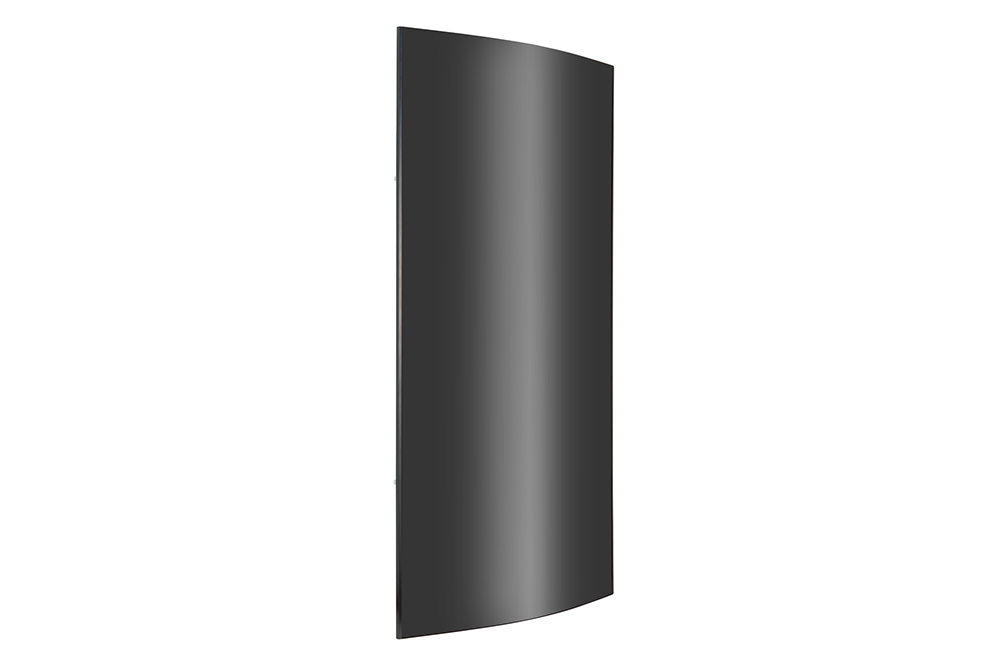

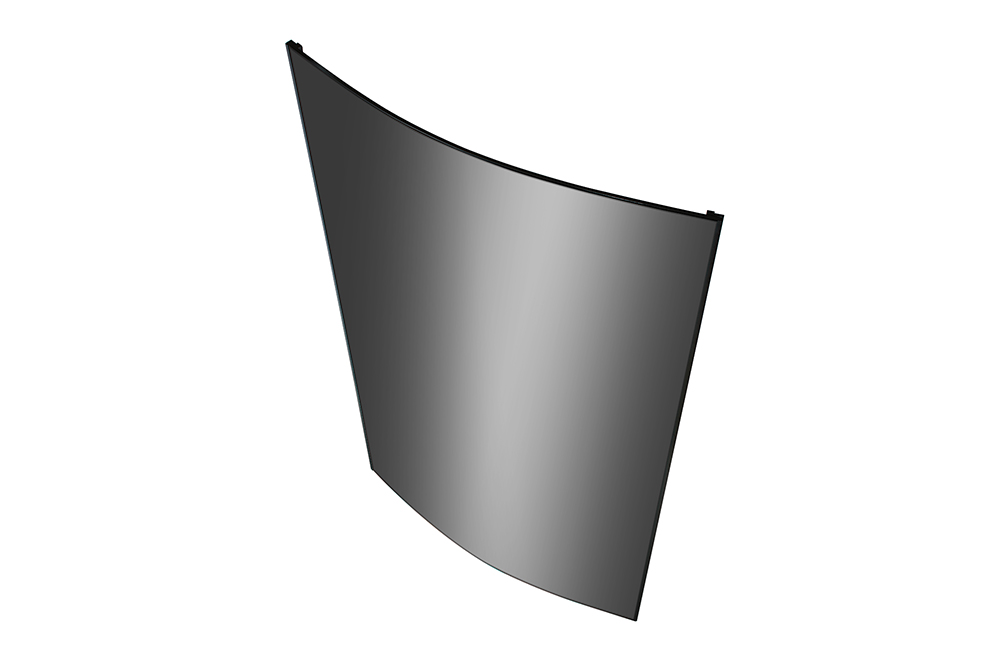

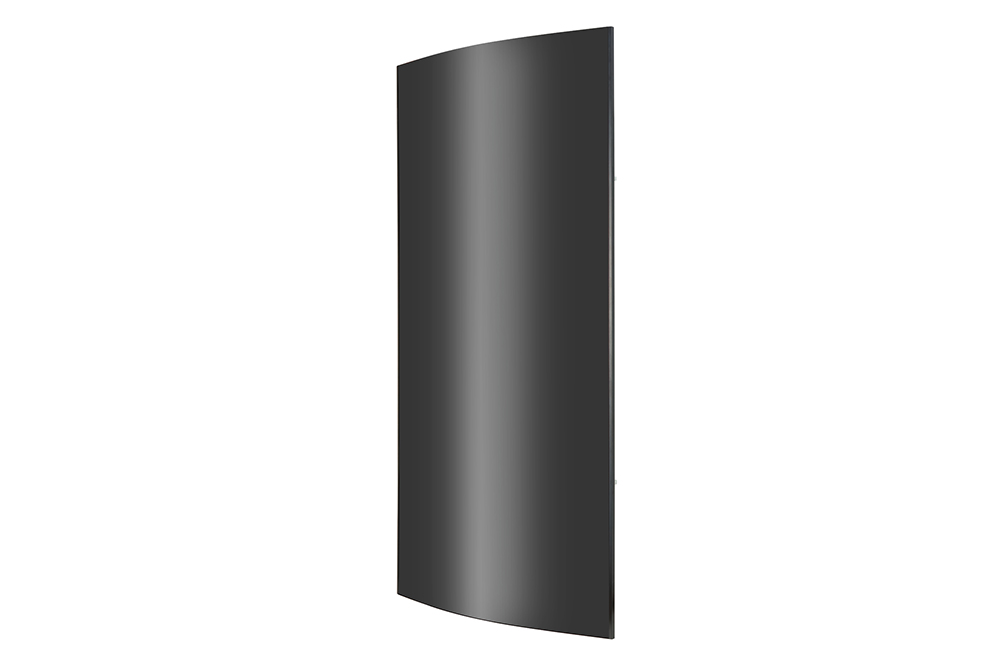

Variety of Curvature for Landmarks
The 55EF5F series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.
The 55EF5F series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)1)" supports the coordination of displays with various convex and concave curvature, depending on the requirements.
Unrivaled Picture Quality
Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.
LG OLED Signage provides richness in all colors, bringing colors to life with superb accuracy and vividness.
Perfect Viewing Screen
LG OLED Signage delivers its awe-inspiring picture quality and brightness even from wide viewing angles.
LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer, so it offers a flexible design with unbelievably lightweight and slim features.
Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive visual experience.
LAN Daisy Chain Management
The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.
Through its built-in high performance SoC, each display plays its video tile without lag for synchronized content playback.
|55EF5F-P (Portrait) Specifications|
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Brightness (Typ.)||400/150 cd/m2 (APL 25%/100%)|
|Brightness||150,000 : 1|
|Viewing Angle (H x V)||178 x 178|
|Life Time (Typ.)||30,000 Hrs|
|Operation Hours||18 Hrs / 7 Days (Moving Video Only)|
|Input||HDMI, DP, USB 2.0 (2)|
|Output||DP, Audio (Fixed/Off/Variable)|
|External Control||RS232C In/out, RJ45 In/out, IR In|
|Bezel Width||0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
5.0 / 5.0 / 7.8 / 13.2 mm (Flat, On Bezel)
|Model Dimensions (W x H x D)||Display Only 27.6" x 48" x 0.5" / 701.4 x 1,219.7 x 12.4 mm
Display & mounts for Signage Box 27.6" x 48" x 1.5" / 701.4 x 1,219.7 x 38.0 mm
Display with mounted Signage Box 27.6" x 48" x 3.5" / 701.4 x 1,219.7 x 89.6 mm
Signage Box Only 16.3" x 13.9" x 3.3" / 413 x 353 x 57.3 mm
Shipping Dimensions 53.1" x 33" x 9.8" / 1,350 x 837 x 250 mm
|Weight||Landscape (w/ Signage Box) 24.9 lbs / 11.3 kg
Signage Box Only 7.7 lbs / 3.5 kg Shipping
Weight (Landscape) 41.7 lbs / 18.9 kg
|Special Features||Internal Memory (64GB), Temperature Sensor, USB Auto Playback, Local Contents Scheduling, Group Manager, Failover (USB/DP/HDMI/Internal Memory), Content Sync. (RS232C/Local Network), Video Tag(4), OSD/Content Rotation, Gapless Playback, Tile Mode, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, DPM, Wake on LAN, HDMI-CEC2), Crestron Connected®3), SI Server Setting|
|Operating Temperature Range||32°F ~ 104°F / 0°C ~ 40°C|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max.||309 W / 318 W|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KCC|
|ErP / Energy Star||Yes / No|
|Media Player Compatibility|
|OPS Type Compatible||No|
|External Media Player Attachable||Yes|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control+ / Control|
|Basic||Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)|
|Optional||Curvature Calibrator (ACC-CC-EF5E)|
|Warranty||3-Year Limited Warranty (Parts and Labor)|
Download the LG Flexible Curvable Open Frame Tiling OLED - 55EF5F Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
LG Display Products
OLED Signage Display
LG 55EF5F 55" Curvable Open Frame Tiling OLED (Portrait Only)
55" OLED, 1920x1080 (FHD), 400 Nit, 1080p, HDMI, Display Port, OPS, USB, Black, 3-Year Warranty#55EF5F-P
Our Price: $6,995.00
