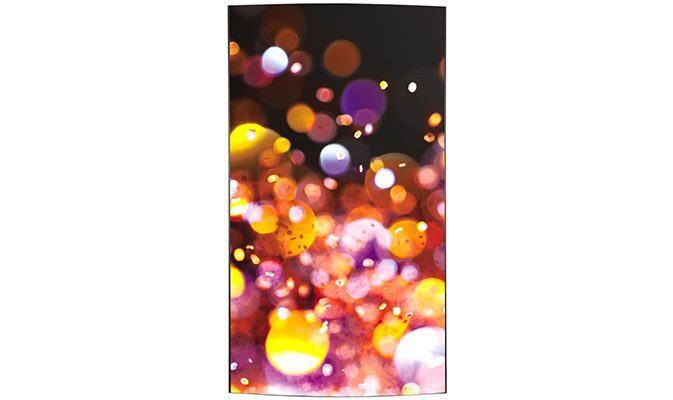

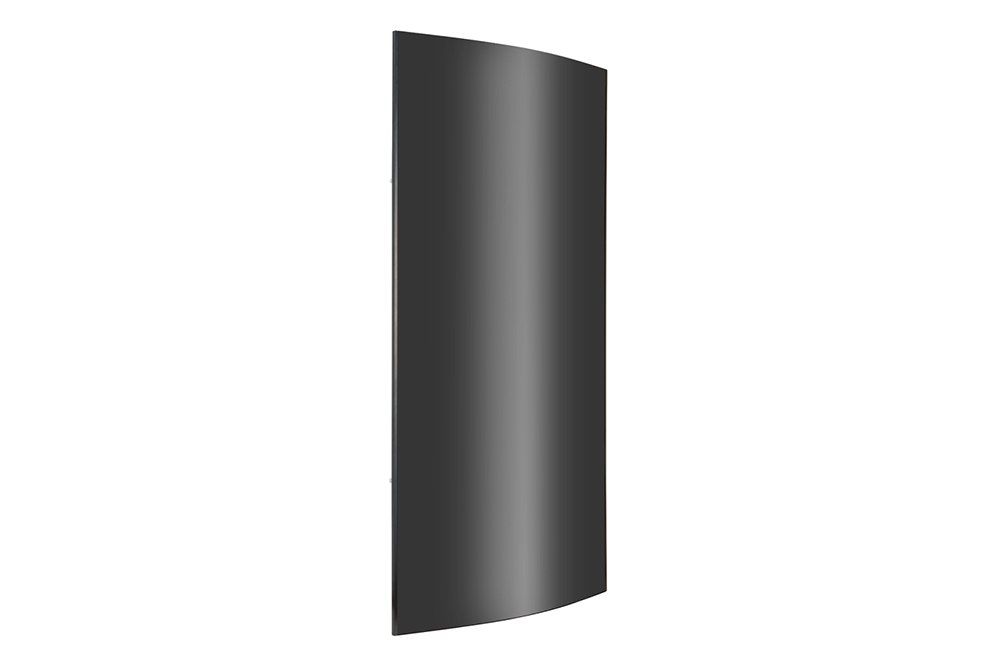

55" Flexible Curvable Open Frame Tiling OLED (Portrait Only)
55" OLED, 1920x1080 (FHD), 400 Nit, 1080p, HDMI, Display Port, OPS, USB, Black, 3-Year Warranty
Sorry, this product is no longer available, and has been replaced by LG 55EF5G-P.
Artistic Space beyond Display LG OLED Signage
Blending in with the space while stamped on everyone’s mind. With LG OLED signage, discover unprecedentedly flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige-enhancing landmark with perfect colors and innovative forms.
- Size: 55"
- Brightness (Typ.): 400cd/m² (Average Picture Level 25%)

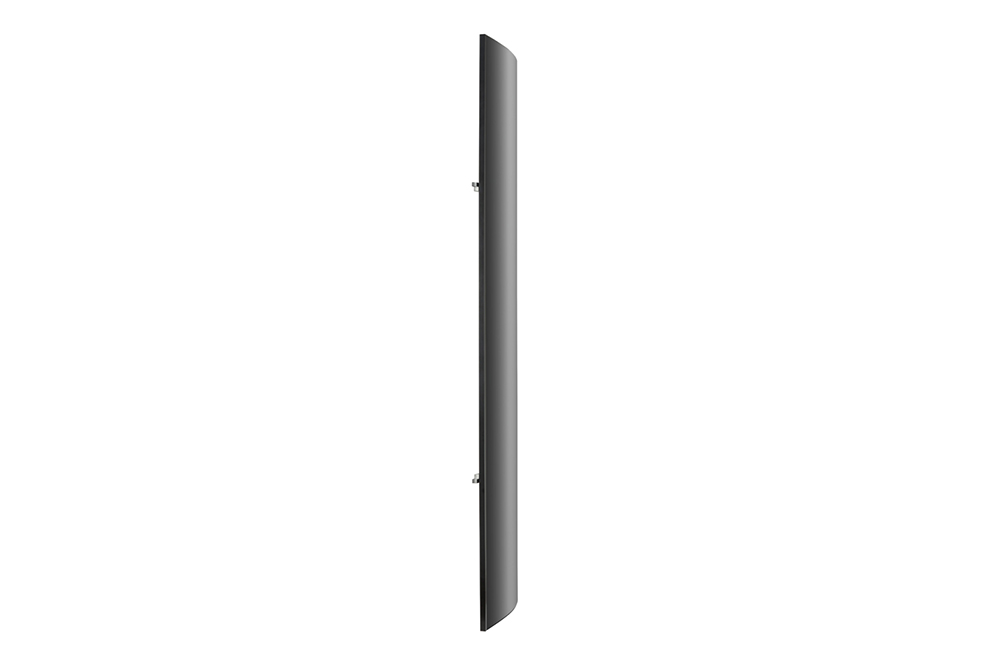

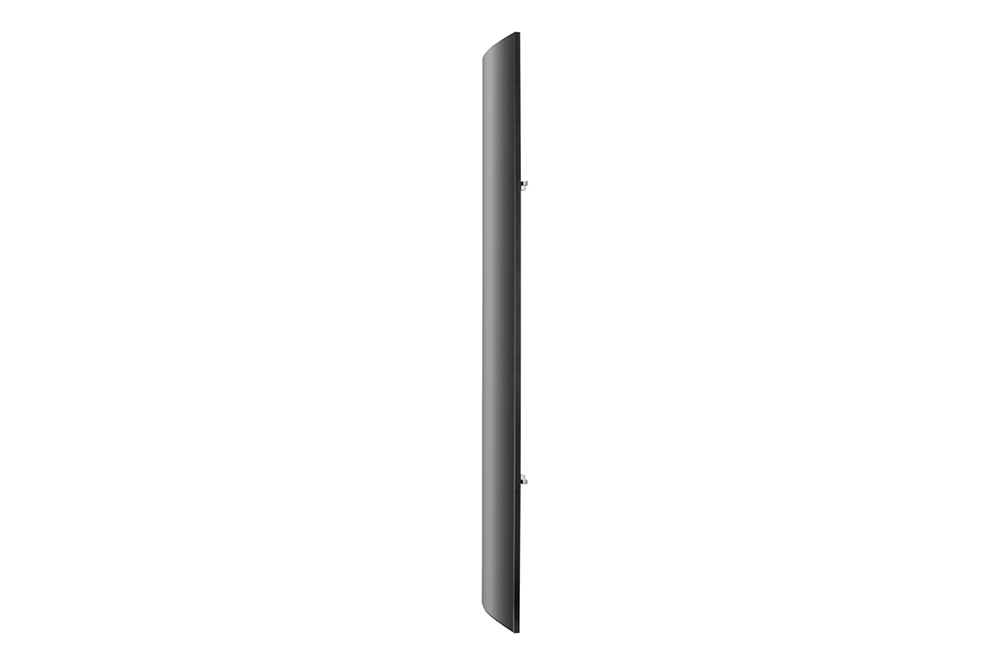

- Depth: 12.4mm (Head Only)

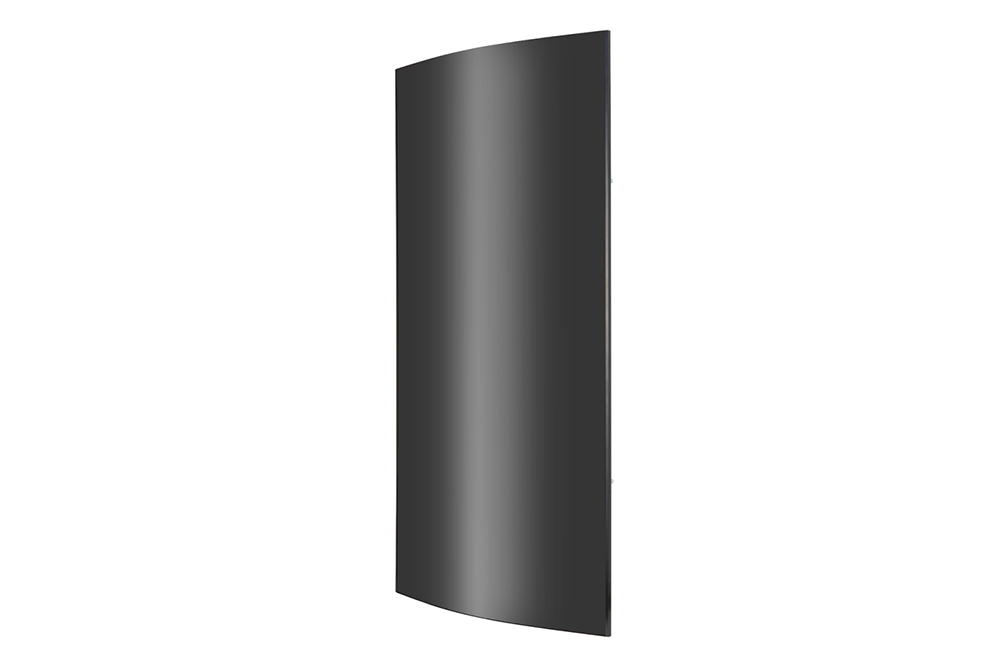

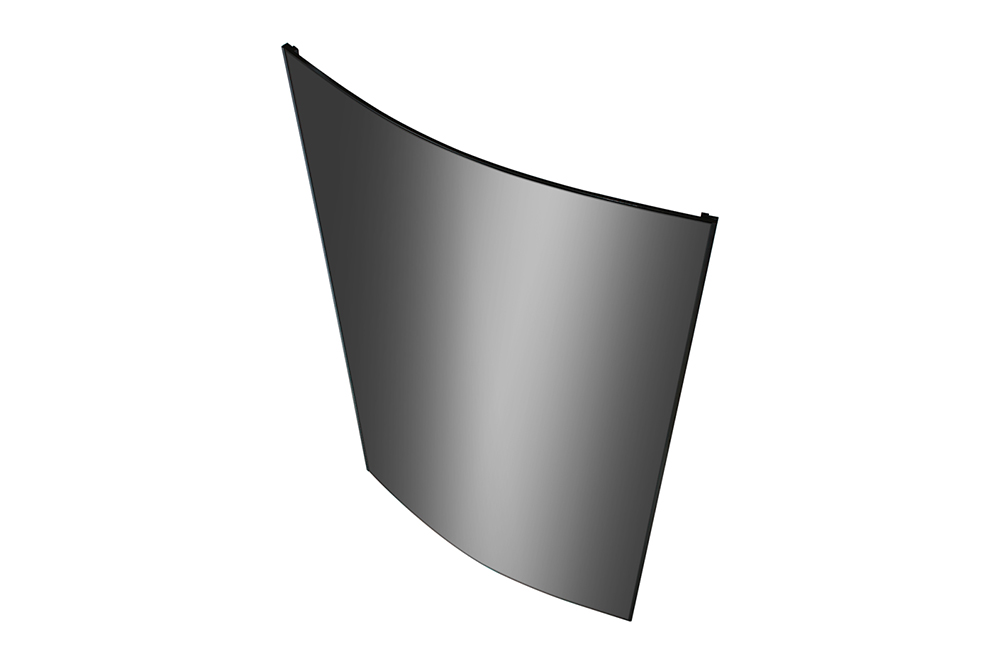

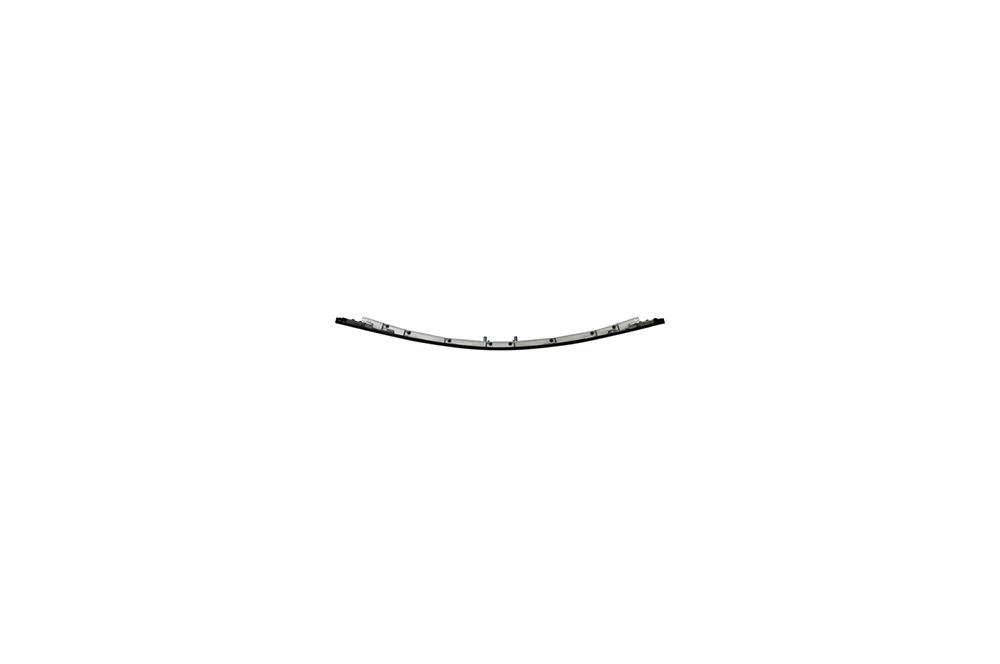

- Supported Curvature: Up to 1,000R (Concave/Convex)
- Interface: HDMI, DP, USB, Audio, RS232C, RJ45, IR

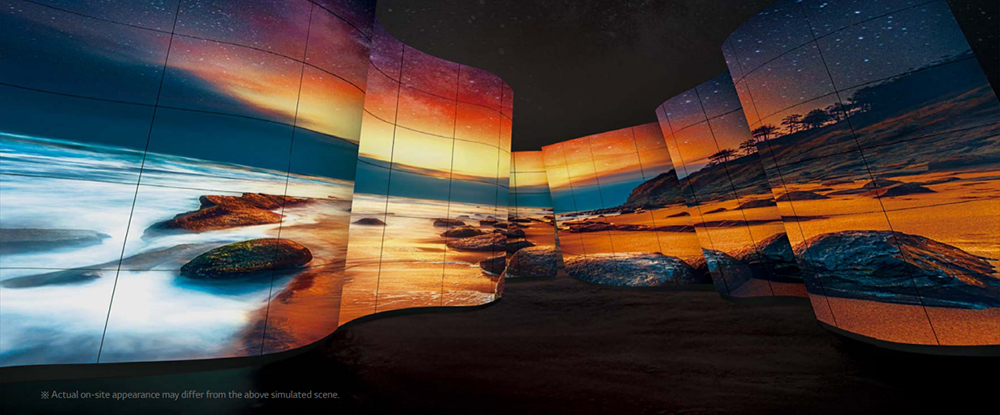

Variety of Curvatures for Landmarks
The 55EF5E series supports a various concave and convex curvatures in both portrait and landscape orientations. It can be positioned in a variety of ways to keep passengers captivated.
The 55EF5E enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)1" supports the coordination of displays with various convex and concave curvatures, depending on the requirements.
Immersive Viewing Experience
Compared to the previous model, 55EF5E has reduced its bezel size to provide much more immersive and seamless viewing experiences to viewers.
Unrivaled Picture Quality
Limitless contrast and the deepest blacks. Self-lighting pixels switch off completely to reproduce absolutes blacks with no light bleed, offering infinite contrast

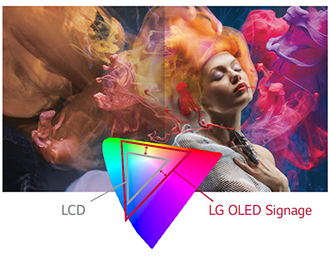

Accurate & stable color reproduction. Self-lighting pixels bring colors to life with superb accuracy.
Perfect Viewing Screen
Wide viewing angle LG OLED Signage delivers awe-inspiring picture quality across the entire screen, even from wide viewing angles.
LG’s OLED technology unlocks the new worlds of design flexibility with unbelievably lightweight and slim display.

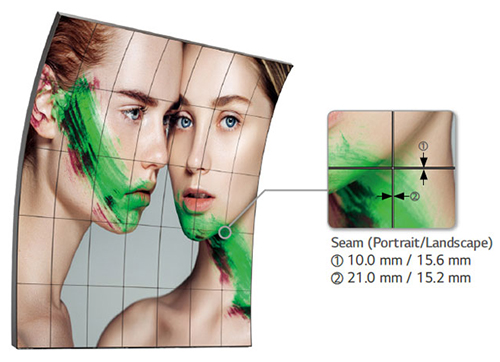

Expandable Screen Size
The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with incredible immersion in their viewing experience.
Immersive Viewing Experience
|55EF5E-P (Portrait) Specifications|
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Brightness (Typ.)||400/150 cd/m2 (APL 25%/100%)|
|Brightness||150,000 : 1|
|Viewing Angle (H x V)||178 x 178|
|Response Time||1ms (G to G), 8ms (MPRT)|
|Surface Treatment (Haze)||Hard Coating (2H), Anti-reflection Treatment of the Front Polarizer (Reflectance Typ. 1.2%)|
|Life Time (Typ.)||30,000 Hrs|
|Operation Hours||18 Hrs / 7 Days (Moving Video Only)|
|Input||HDMI, DP, USB 2.0 (2)|
|Output||DP, Audio (Fixed/Off/Variable)|
|External Control||RS232C In/out, RJ45 In/out, IR In|
|Bezel Width||0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
5.0 / 5.0 / 7.8 / 13.2 mm (Flat, On Bezel)
|Monitor Dimension (W x H x D)||701.4 x 1,219.7 x 38.0 mm (Head, w/Pem-nut)
701.4 x 1,219.7 x 12.4 mm (Head Only)
Signage Box: 413 x 353 x 57.3 mm
|Weight||9.9 kg (Set)
Signage Box: 7.8 lb / 3.5 kg
|Carton Dimensions (W x H x D)||1,350 x 837 x 250 mm|
|Packed Weight||37.5 lb / 17 kg|
|Special Features||Internal Memory (64GB), Temperature Sensor, webOS 3.0+, USB Auto Playback, Local Contents Scheduling, Group Manager, Failover (USB/DP/HDMI/Internal Memory), Content Sync. (RS232C/Local Network), Video Tag(2), OSD/Content Rotation, Gapless Playback, Tile Mode, Setting Data Cloning, Firmware Update by Network, SNMP, ISM Mode, DPM, Wake on LAN, HDMI-CEC2, Crestron Connected|
|Operating Temperature Range||32°F ~ 104°F / 0°C ~ 40°C|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240V~, 50/60Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max.||309 W / 318 W|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KCC|
|ErP / Energy Star||Yes / No|
|Media Player Compatibility|
|OPS Type Compatible||No|
|External Media Player Attachable||Yes|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control+ / Control|
|Basic||Remote Controller (2 Batteries Included), Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, RS232 Cable (4p-4p), FFC Cables (220mm x 4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, LC (VLC Cable)|
|Optional||Curvature Calibrator (ACC-CC-EF5E)|
|Warranty||3-Year Limited Warranty (Parts and Labor)|
Download the LG Flexible Curvable Open Frame Tiling OLED - 55EF5E Datasheet (.PDF)
