LG 49XS4F
49" Full HD High Brightness Window Facing Indoor Digital Display


LG 49XS2E

LG Display Products

High Brightness Outdoor Displays
  • LG 49XS4F-B 49" XS4F Series High Brightness Outdoor Digital Display
    49" Display, 1920 x 1080 (FHD), 4000 nit, HDMI(2), Display Port, DVI-D, Black, 3-Year Limited Warranty
    #49XS4F-B
    Our Price: $2,490.00

Click here to jump to more pricing!

Overview:

Outstanding Visibility with Extreme Brightness

LG’s XS4F series of window-facing digital signage captivates customers with their bright and vivid image quality. The XS 4F series helps businesses enhance their brand image while making customers’ shopping experience more enjoyable.

  • Size: 49"
  • Brightness: 4,000 nits (Typ.)
  • Lifetime: 50,000 Hours (approx.)
  • Bezel Width: 12.0 mm (T/B), 9.9 mm (L/R)
  • Depth: 85.4 mm
  • Interface: HDMI(2) / DP / DVI-D / RJ45 / IR / RS232C / USB / External Speaker Out (L/R)

Features:

Outstanding Visibility

High Brightness
With a great brightness of 4,000 nits, the XS4F series clearly delivers contents and attracts public attention, which is the ultimate display for outdoor visibility.

High Brightness

Visible with Polarized Sunglasses
Quarter-wave Plate technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Visible with Polarized Sunglasses


High Performance & Reliability

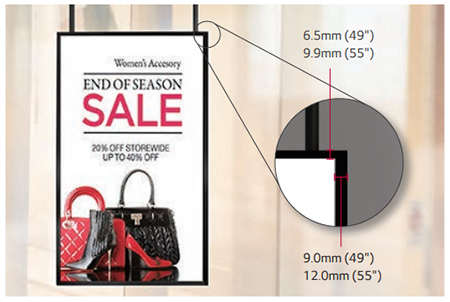

Slim Bezel
The XS4F series attracts attention with elegant design, featuring a slim bezel. These displays enhance the visual impact of important content and the retail store’s overall atmosphere.

Slim Bezel

Smart Brightness Control
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management.

Smart Brightness Control


Wide Operating Temperature Range
This panel offers superb reliability in a wide range of operating temperatures.

Wide Operating Temperature Range

Conformal Coating
Conformal Coating improves the long-term reliability of the main board and power board, protecting them from dust, iron powder, humidity, etc.

Conformal Coating

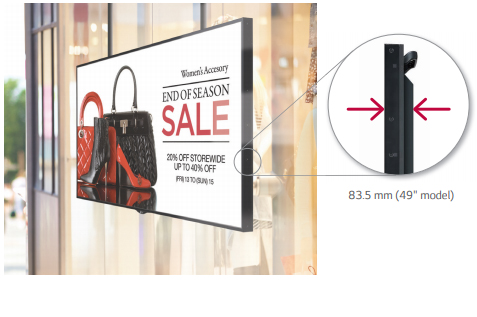

Space Efficiency
Thanks to its thin depth, the XS series takes up minimal space, which leads to space efficiency in an in-window environment.

Space Efficiency

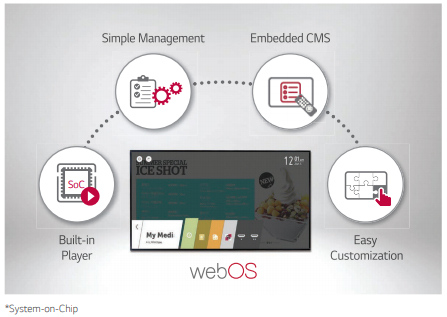

webOS Smart Platform
Quad Core SoC* can execute several tasks at the same time without a separate media player. In addition, webOS 3.0 platform enhances user convenience with intuitive UI and simple app develoment tools.

webOS Smart Platform


Specifications:


49XS4F Specifications
Panel
Screen Size 49" class (48.5" diagonal)
Panel Technology IPS, M+ (WRGB)
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 4,000 nits (Typ.), 3,200 nits (Min.)
Contrast Ratio 1,000:1
Viewing Angle (H x V) 178 x 178
Surface Treatment Haze 3%, QWP
Lifetime 50,000 Hours
Operating Hour 24 Hours
Orientation Landscape & Portrait
Connectivity
Input HDMI (2), DP, DVI-D, Audio, USB
Output DP, Externel Speaker (L/R)
External Control RS232C In/out, RJ45 In, IR Receiver In
Physical Specification
Bezel Color Black
Bezel Width 9 mm (T/B), 6.5 mm (L/R)
Monitor Dimension (W x H x D) 43” x 24.7” x 3.3” / 1,092.7 x 626.4 x 83.5 mm
Weight (Head) 55.1 lbs / 25.0 kg
Carton Dimensions (W x H x D) 47” x 6.9” x 29.9” / 1,194 x 175 x 760 mm
Packed Weight 55.1 lbs / 25.0 kg
Handle Yes (2ea)
VESA Standard Mount Interface 600 x 400 mm
Special Features
Special Features Temperature Sensor, Auto Brightness Sensor, Energy Saving, Smart Energy Saving, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, Source Selection, Brightness/Contrast/Backlight, DPM Select, File Play with USB, Internal Memory, Wi-Fi Dongle Ready
Environmental Conditions
Operating Temperature Range1 32°F to 104°F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Max Power Consumption 370 W
Typical Power Consumption 345 W
Smart Energy Saving 135 W
Standard (Certification)
Safety IEC 60950-1 / EN 60950-1 / UL 60950-1
EMC FCC Class "A" / CE / KC / VCCI
Software Compatibility
Content Management Software SuperSign CMS
Control and Monitoring Software SuperSign Control+
Accessory
Basic Remote Control, Power Cord, HDMI Cable, Manual (ESG/EIG), IR Receiver (w/ Ambient Light Sensor)
Optional Landscape Wall Mount (WM-L640V), Portrait Wall Mount (WM-P640V), Wi-Fi Adapter (AN-WF500)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:


Front
Right Perspective
Left Perspective
Rear

Right Side
Left Side
Top
Ports

Documentation:

Download the LG Outdoor Signage - XS4F Series Datasheet (.PDF)
