LG 49VL5B
49" Class Narrow Bezel Video Wall


LG 49VL5B

LG Display Products

Video Walls
  • LG 49VL5B 49" Narrow Bezel Video Wall
    49" LCD, 1920x1080 (FHD), LED, 450 Nit, 1080p, HDMI, DVI-D, RGB, Black, 3-Year Warranty
    #49VL5B-B
    Our Price: $1,725.00

Click here to jump to more pricing!

Overview:

49VL5B provides overwhelming screen immersion thanks to its narrow bezel and delivers a clear image from up to 178 degree viewing angle with the innovative IPS panel. With its extremely attractive and highly functional design, it can be used to deliver information in a variety of business environments.

  • Size: 49"
  • Super-Narrow Bezel
  • Wide Viewing Angle
  • Stable Panel
  • SuperSign W-Lite for Content Management

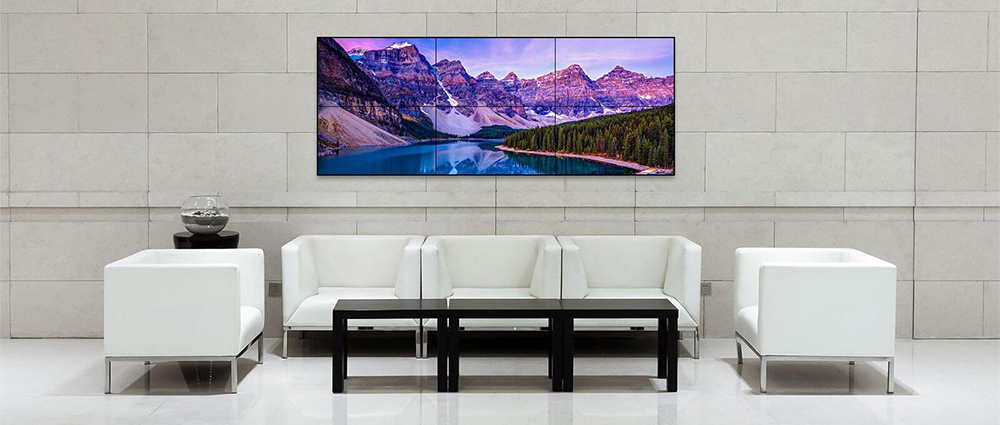

Video Wall Configurator

Want a custom video wall? LG’s got it. Now imagine it before you buy it. Use our online tool to visualize and map custom video wall configurations in standard environments or upload your own.

Video Wall Configurator

Features:

Narrow Bezel

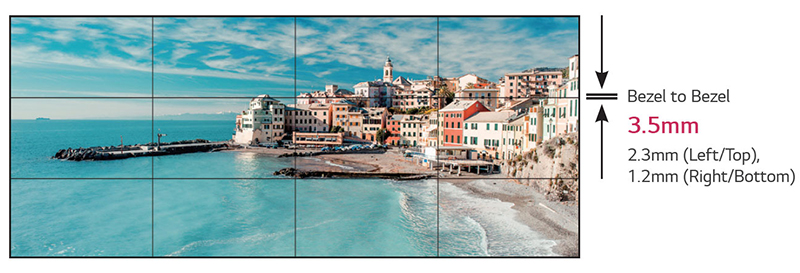

Super-Narrow Bezel

The super-narrow bezel video wall creates a visually stunning digital wall that is efficiently installed, maintained and managed.

Super-Narrow Bezel

Advanced IPS Technology


Wide Viewing Angle

IPS panel technology means a more advanced control of the liquid crystal display. As a result, it allows users to view the screen from virtually any angle.

Wide Viewing Angle

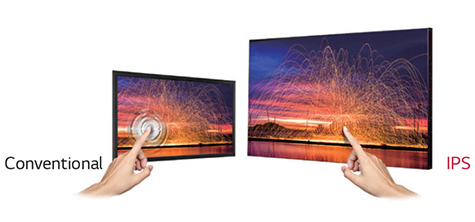

Stable Panel

On account of the structure of the liquid crystal in an IPS display, when you touch the screen, there are no flashes or ripple effects due to the rapid recovery.

Stable Panel


Content Management

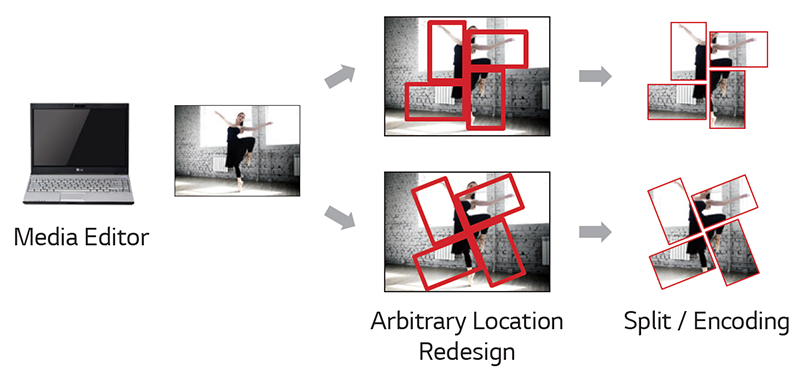

SuperSign W for Content Management

Flexible content editing in various layouts, including both regular and irregular video-wall layouts, is made possible in a timely and cost-effective manner without the need for an expensive video-wall console.

SuperSign W for Content Management

Specifications:


49VL5B Specifications
Panel
Screen Size 49" (48.50" diagonal)
Panel Technology IPS
Aspect Ratio 16 : 9
Native Resolution 1920 x 1080 (FHD)
Brightness 450 cd/m2
Contrast Ratio 1,300 : 1
Viewing Angle (H x V) 178 x 178
Response Time 8ms (G to G)
Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer (Haze 10%)
Life Time (Typ.) 50,000 Hours
Orientation Portrait & Landscape
Connectivity
Input HDMI, DVI-D, RGB
Output DVI-D
External Control RS232C (In/Out), RJ45, IR Receiver, USB
Physical Specification
Bezel Color Black
Bezel Width 2.3 mm (Left / Top), 1.2 mm (Right / Bottom)
Monitor Dimension (W x H x D) 42.4" x 24" x 3.5"
Weight (Head) 39.3 lbs
Carton Dimensions (W x H x D) 47.8" x 30.6" x 10.4"
Packed Weight 50.5 lbs
VESA Standard Mount Interface 600mm x 400mm
Special Features
Special Features Temperature Sensor, Tile Mode (Up to 15x15), Natural Mode@Tile Mode, Energy Saving, Smart Energy Saving, File Play with USB
Environmental Conditions
Operating Temperature Range 32 °F to 104 °F / 0°C to 40°C
Operating Humidity Range 10 % to 80 %
Power
Power Supply 100-240V~, 50/60Hz
Power Type Built-In Power
Power Consumption - Typ. 90 W
Power Consumption - Smart Energy Saving 40 W
Standard (Certification)
Safety UL / cUL / CB / TUV / KC
EMC FCC Class "A" / CE / KCC
Media Player Compatibility
Slot PC compatible (optional) No
External Media player Attachable Yes
Software Compatibility
Content Management Software SuperSign-W Lite
Control and Monitoring Software SuperSign C
Accessory
Basic Remote Control, Power Cable, DVI Cable, Manual, IR Receiver, RS-232C Cable, Guide Bracket, Screw
Optional Wall Mount (Landscape : WM-L640V, Portrait : WM-P640V)
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor) | Extended Warranties Available

Views:

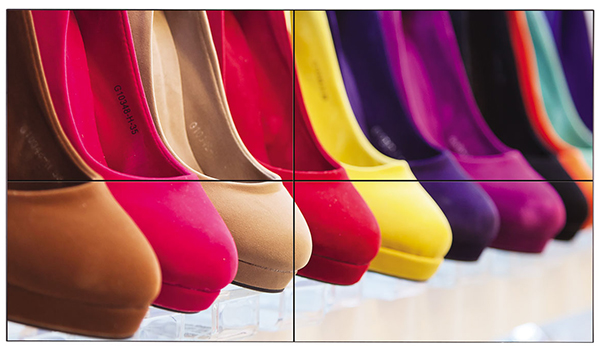

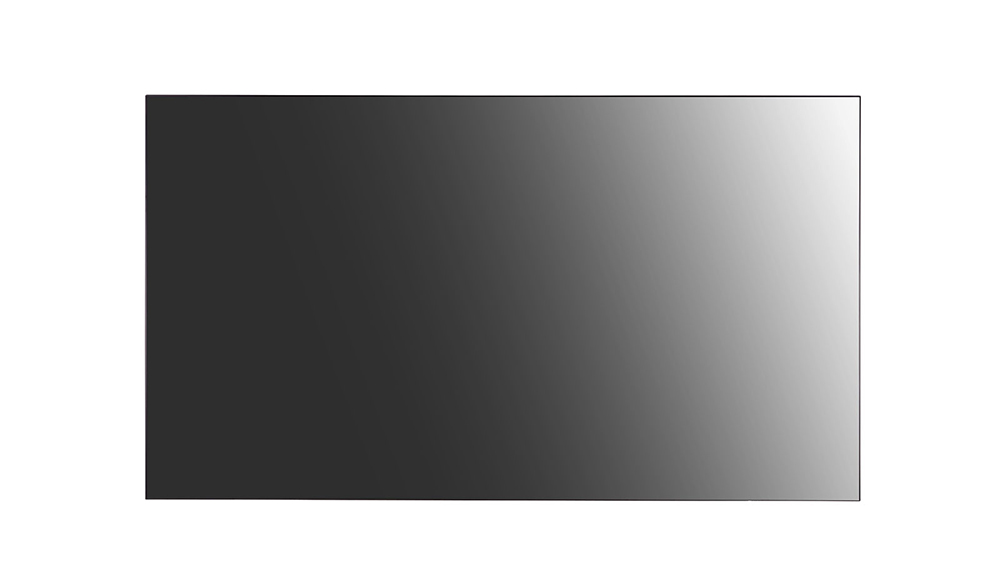

Front

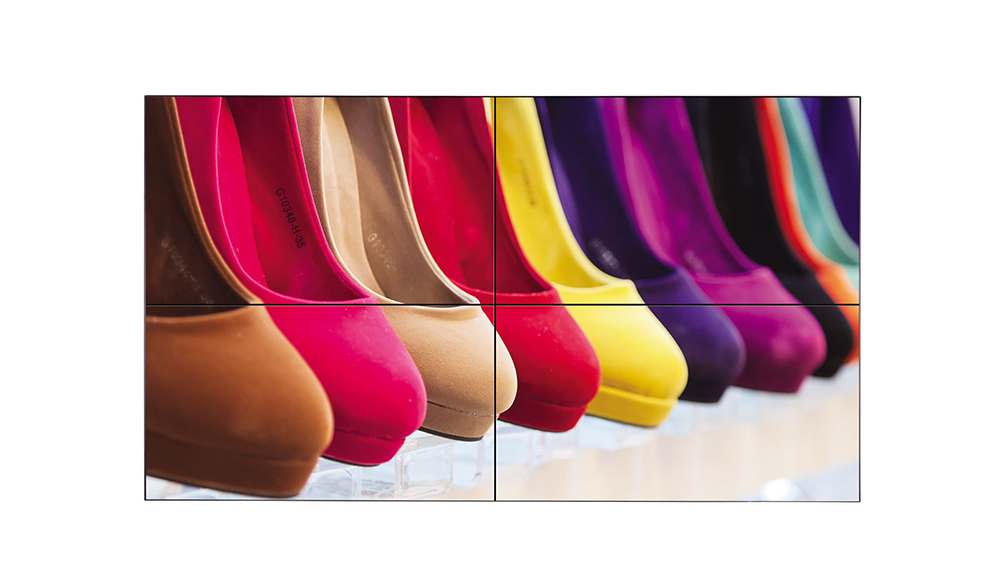

Front

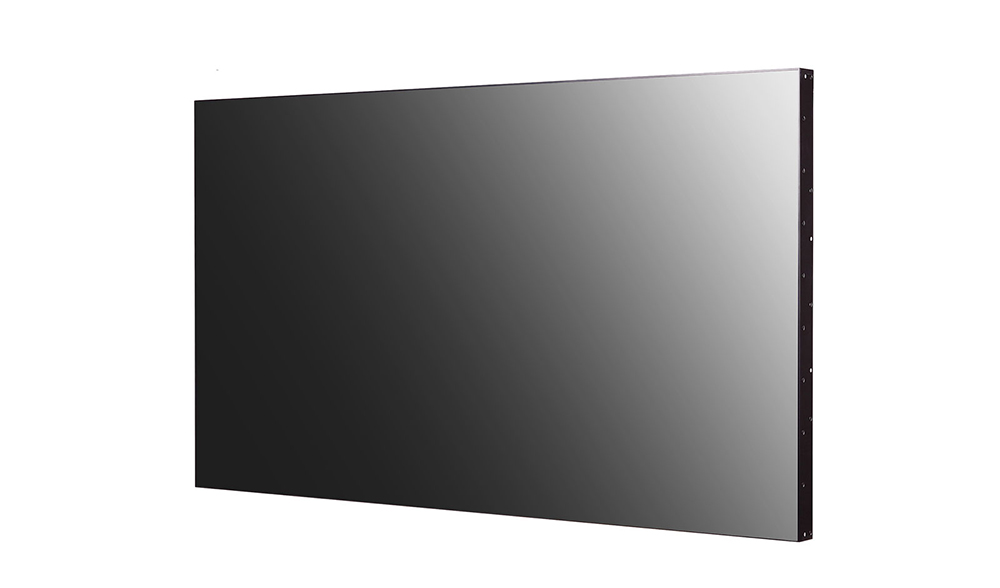

Left Perspective

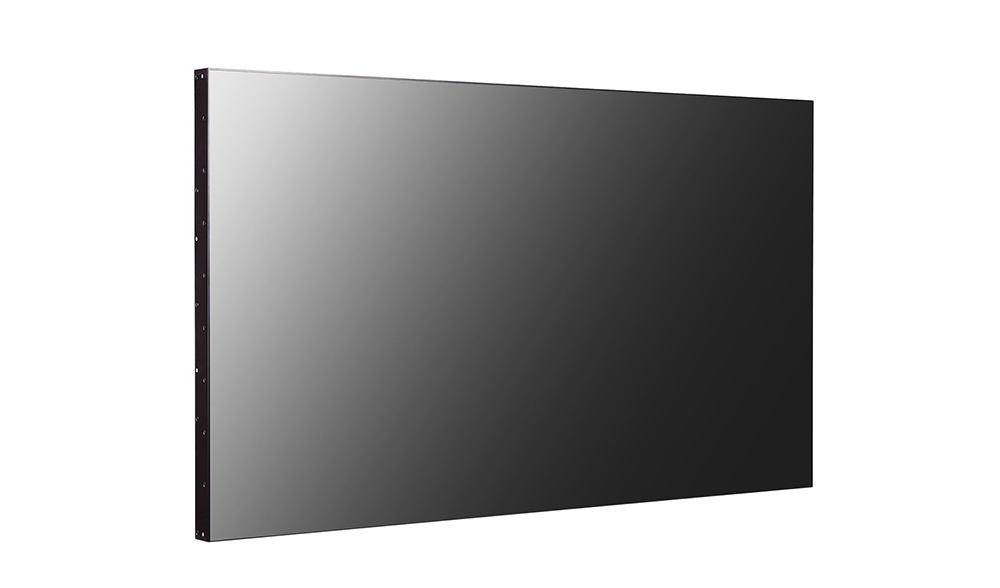

Right Perspective

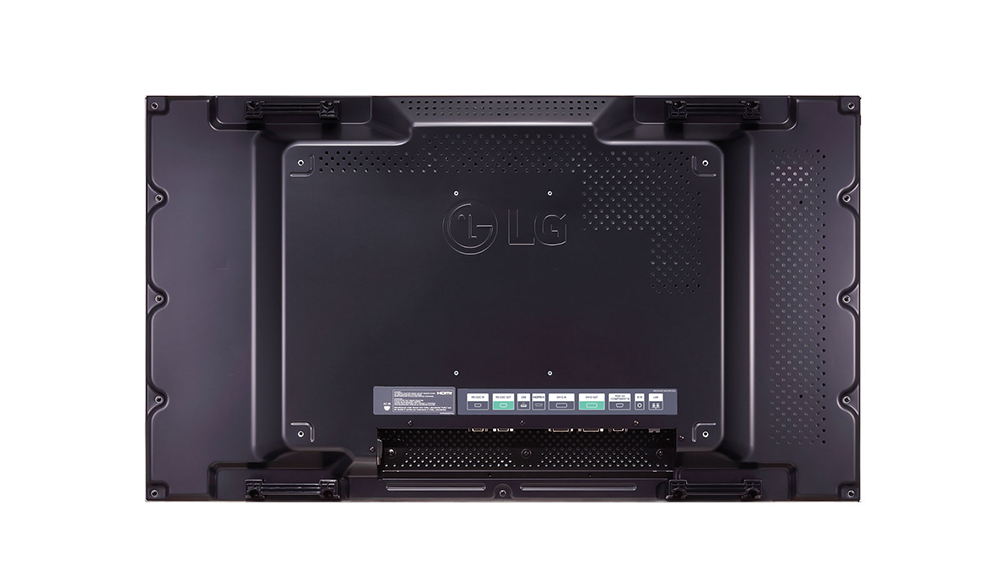

Rear

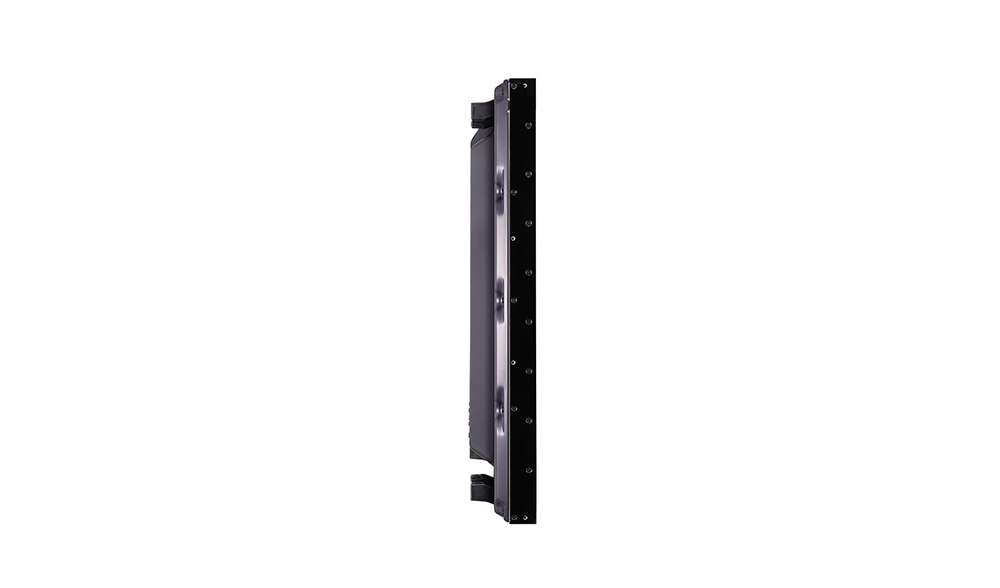

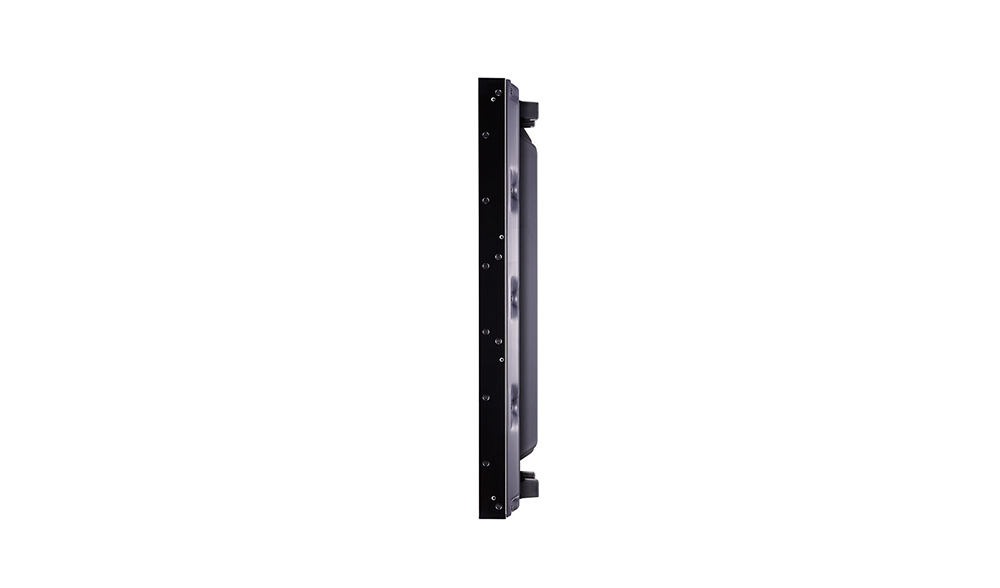

Left Side
Right Side

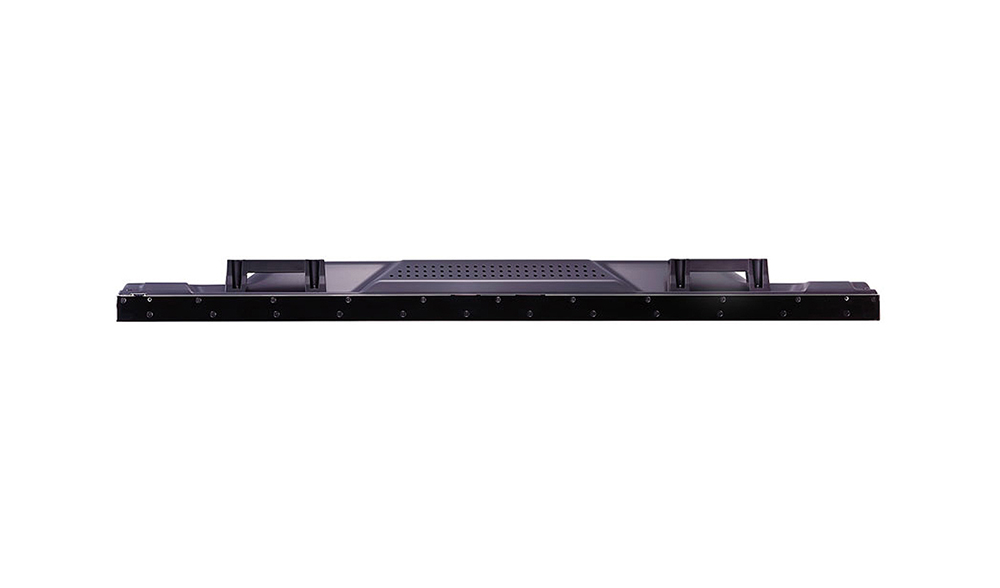

Top

Documentation:

Download the LG Narrow Bezel Video Wall - 49VL5B Datasheet (.PDF)
