32" LED HD Signage Display
32" LCD, 1920 x 1080 (FHD), Direct LED, 350 Nit, HDMI (2), DVI-D, RGB, Built-in Speakers, Black, 3-Year Warranty
Sorry, this product is no longer available, and has been replaced by LG 32SM5K-E.
An Essential Way of Delivering Dynamic Content
Managing informative or promotional content becomes simpler with the SE3KE series. This cost-effective display satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.
- Size: 32"
- Brightness(Typ.) : 350 cd/m²
- Bezel : 13 mm(T/R/L), 18 mm(B)
- Depth : 55.5 mm

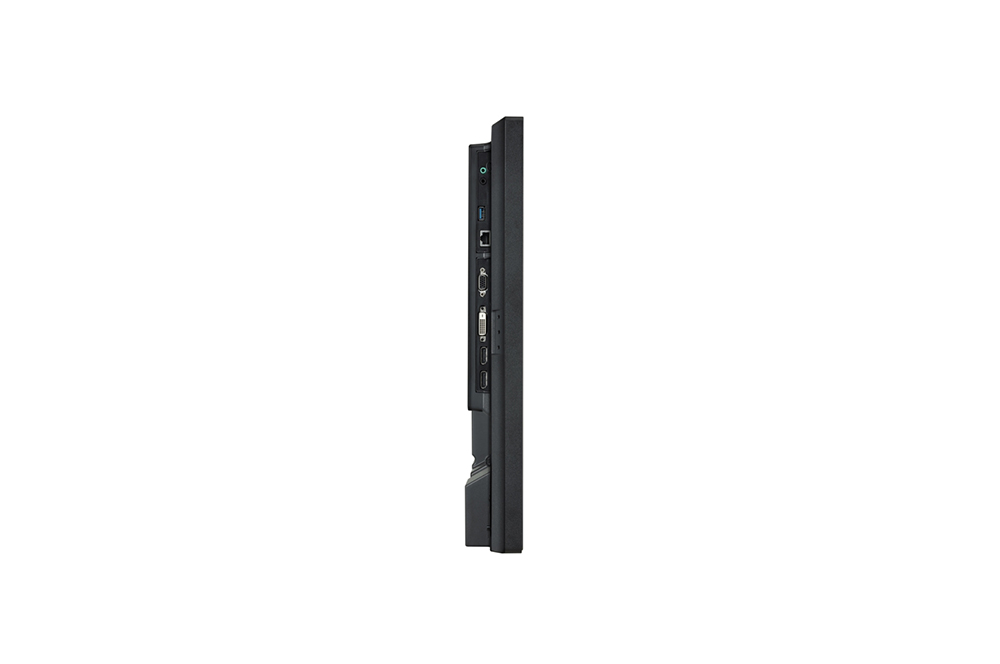

- Interface : HDMI(2)/ DVI-D/ RGB/ USB/ RS232C/ RJ45/ Audio/ IR
- Built-in Speaker(10W×2)
Simple Content Management
User-Friendly Menu for Digital Signage
With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.
USB Content Scheduling
USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don’t have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.
Stand-by Screen Mode
The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.
Scheduled Screen Wash
ISM (Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.
The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.
A Wide Range of Interfaces
Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.
Compatibility with AV Control System
The SE3KE series has been certified Crestron Connected for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1), boosting business management efficiency.
Detachable Logo & Built-in Speaker
The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on power board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
|Aspect Ratio||16 : 9|
|Native Resolution||1,920 x 1,080 (FHD)|
|Viewing Angle (H x V)||178 x 178|
|Response Time||10 ms (G to G BW), 7.1 ms (WOT)|
|Surface Treatment||AGP Haze 1%|
|Life Time (Min.)||50,000 hours|
|Guaranteed Operating Hour||18 Hours|
|Orientation||Landscape & Portrait|
|Input||HDMI (2), DVI-D, RGB, Audio, USB|
|External Control||RS232C In/out, RJ45 In, IR In|
|Bezel Width||13 mm (T/R/L), 18 mm (B)|
|Monitor Dimension (W x H x D)||729.4 x 428.9 x 55.5 mm|
|Weight (Head)||5.4 kg|
|Monitor with Optional Stand Dimensions (W x H x D)||729.4 x 481 x 154.2 mm|
|Weight (Head+Stand)||6.2 kg|
|Carton Dimensions (W x H x D)||810 x 510 x 132 mm|
|Packed Weight||6.7 kg|
|VESA Standard Mount Interface||200 mm x 200 mm|
|Special Features||Wi-Fi Dongle Ready, Temperature Sensor, Local Key Operation, USB Auto Playback, Local Contents Scheduling, Fail Over, Image Customization (Booting Logo/No Signal), Content Sync. (RS232C/Local Network), SNMP (ver.2), ISM Mode, Crestron Connected, DPM, PM Mode, Wake on LAN, Smart Energy Saving, HDMI-CEC|
|Operating Temperature Range||32° F to 104° F / 0°C to 40°C|
|Operating Humidity Range||10 % to 80 %|
|Power Supply||100-240 V~, 50/60 Hz|
|Power Type||Built-In Power|
|Power Consumption - Typ. / Max.||45 W / 80 W|
|Power Consumption - Smart Energy Saving||31.5 W|
|Speaker||20 W (10 W x 2)|
|Safety||IEC 60950-1 / EN 60950-1 / UL 60950-1|
|EMC||FCC Class "A" / CE / KC|
|ErP / Energy Star||Yes / Yes (Energy Star 7.0)|
|Content Management Software||Yes|
|Control and Monitoring Software||Yes (MP500 / MP700)|
|Content Management Software||SuperSign CMS|
|Control and Monitoring Software||SuperSign Control/Control+|
|Basic||Remote Controller, Power Cord, QSG, RGB Cable, Regulation Book, Phone to RS232C Gender, IR Receiver|
|Optional||Stand (ST-322T), Media Player, Wall Bracket (LSW230B), VESA Adapter (AM-B220S), Wi-Fi Dongle (AN-WF500), Touch Overlay (KT-T32E)|
|Warranty||3 Year Limited Warranty|
Download the LG HD Signage - SE3KE Series Datasheet (.PDF)
