LG 32HL710S
32" 4K IPS Surgical Monitor


LG Display Products

Medical Displays
  • LG 27HJ713S 32" 4K IPS Surgical Monitor
    27" IPS Panel, 3840 x 2160 (UHD), DVI (1 IN/1 OUT), 3G-SDI (1 IN/1 OUT), HDMI, DP (1 IN/1 OUT), USB 2.0 (1 UP/1 DOWN), RS-232, 3-Year Warranty
    #32HL710S-W
    Our Price: $6,245.00

Click here to jump to more pricing!

Overview:

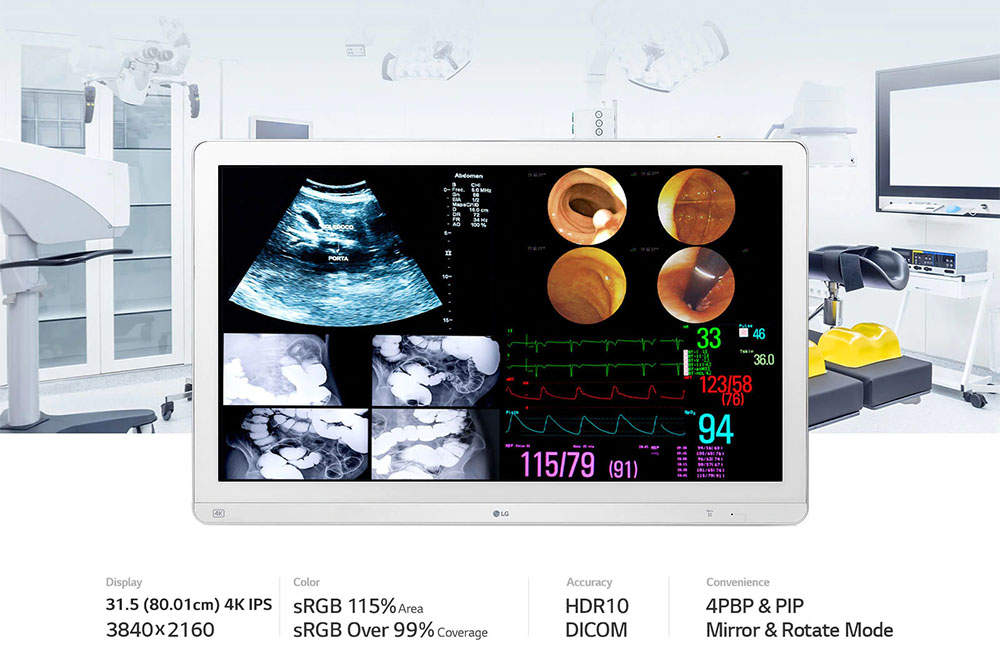

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

  • 31.5 (80.01cm) 4K (3840x2160) IPS
  • Support HDR10
  • Mirror & Rotation Mode
  • Up to 4PBP, PIP
  • Dustproof, Water Resistant
  • Protection Glass

Large Display for Surgical Precision

Features:

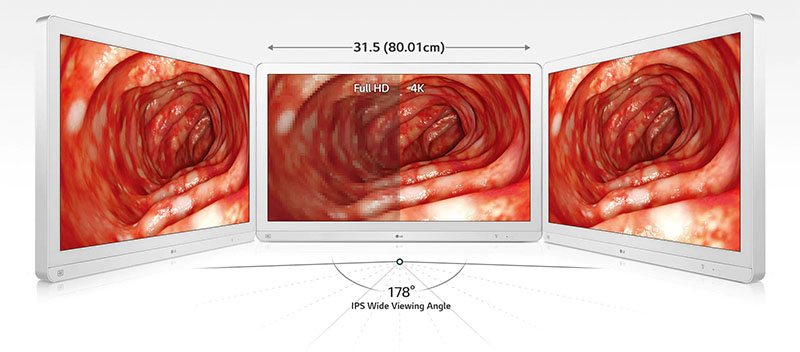

31.5 (80.01cm) 4K IPS

Enhanced Accuracy with Wide View
With 31.5 (80.01cm) 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

Enhanced Accuracy with Wide View




sRGB 115% (Area), Over 99% (Coverage)

The 32HL710S, supports sRGB 115% (Area) and Over 99% (Coverage) with the standard DICOM Part 14, is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

sRGB 115%(Deep Red)

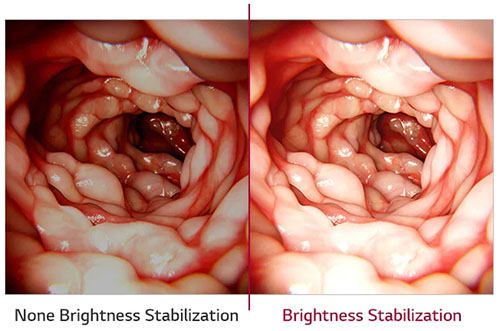

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.

Brightness Stabilization

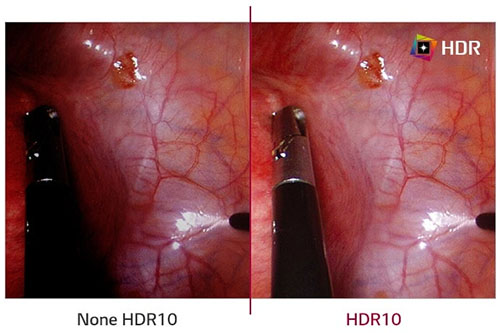

Support HDR10

LG surgical monitor is designed to fits with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

Support HDR10

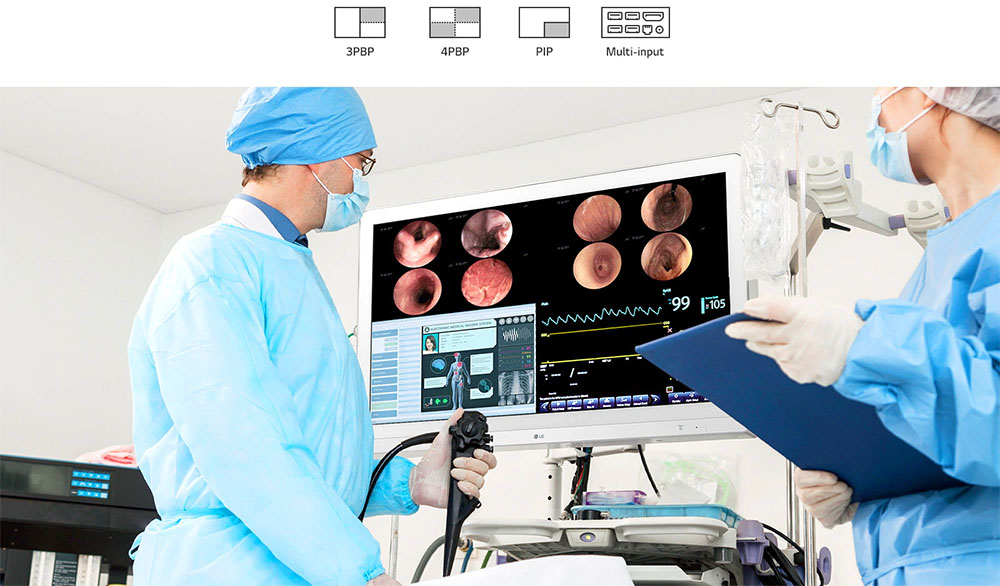

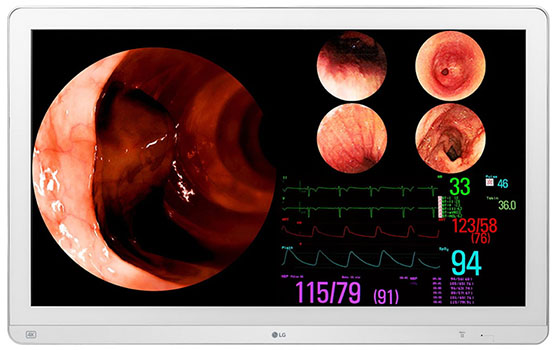

PBP, PIP & Multi-input

Multiple Signals on One Screen
The 32HL710S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

Multiple Signals on One Screen

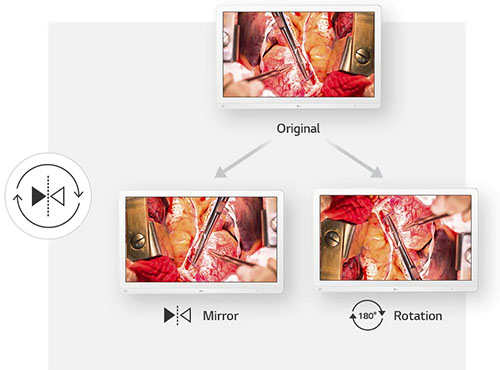

Find the Perfect Operating View

The 32HL710S with Mirror & Rotate functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

Find the Perfect Operating View

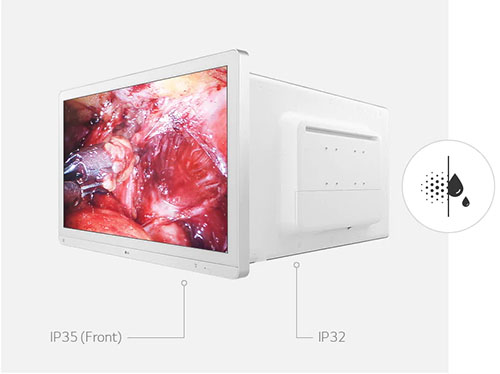

Dustproof & Water Resistant

To ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

Dustproof & Water Resistant

Specifications:


32HL710S Specifications
Panel
Type IPS + Glass
Size 32
Native Resolution 3840 x 2160
Pixel Pitch 0.18159(H)mm x 0.18159(V)mm
Aspect Ratio 16:9
Color Gamut (Typ.) sRGB 115% (Area),
Over 99% (Coverage)
Viewing Angle 178(R/L), 178(U/D)
Brightness 800cd/m2 (Typ.)
Contrast Ratio 1000:1 (Typ.)
Peak Brightness 800 (Typ.)
Surface Treatment Protection Glass (1.6t, AR, AF)
Response Time (GTG) 14ms (Off), 5ms (Faster)
Features
Auto Luminance sensor Yes
Factory Calibration Yes (Delta E<5, Gamma 1.8~2.6/DICOM curve)
Color Temperature 6500K/7500K/9300K
Manual (5000K ~ 10000K)
HDR 10 Yes
HW Calibration Yes (True color pro)
PBP Yes (2PBP/3PBP/4PBP)
Picture Mode (SDR) Custom, Mono, Vivid, HDR Effect, DICOM, Calibration 1, Calibration 2, (HDR) Custom, Vivid, Standard
Smart Energy Saving Yes
Uniformity Yes
Black Stabilizer Yes
DICOM Yes (<=10%)
Flicker safe Yes
HDR Effect Yes
OSD Language 17 Languages
PIP Yes
Screen Flip Yes
Super Resolution+ Yes
Software Application
True Color Pro Yes
Connectivity
3G-SDI Yes (3G,IN x 1/OUT x 1)
DVI Yes (1In / 1Out)
HDMI Yes (1ea)
RS-232 Yes
USB Upstream Port Yes (1ea/ver2.0)
DP Version 1.2
DisplayPort Yes (in 1ea/out 1ea)
HDMI Version 2.0
USB Downstream Port Yes (1ea/ver2.0)
Power
AC Input 100-240Vac, 50/60Hz
Power Consumption (DC Off) Less than 0.3W
Type External Power (Adapter)
DC Output 19-24V, 6.32A-5.0A (24V Ready)
Power Consumption (Max.) 120W
Control Key
Key Number (Power Key Included) 10
Key Type Dome Tact
LED Color(On mode) Green
Key LED Color White (5/10/20sec,Always)
[ Key Location ] Front
Mechanical
Wall Mountable 200 x 100 mm & 100 x 100 mm
Dimensions/Weight
Dimension in Shiping (W x H x D) 883 x 599 x 200 mm
Dimension without Stand (W x H x D) 764.6 x 480.8 x 94.4 mm
Pallet Stuffing (20ft/40ft/40ft HC) 216EA/405EA/495EA
Weight without Stand 12.2 kg
Weight in Shipping 17.2 kg
Standard
IEC (IEC 60601-1/IEC 60601-1-2) Yes
EN (EN 60601-1/EN 60601-1-2) Yes
cUL (ANSI/AAMI ES 60601-1, CSA CAN/CSA-C22.2 NO. 60601-1) Yes
FCC (FCC part 15 Class A) Yes
FDA Registration (Class I)
CE (MDD 93/42/EEC, 2007/47/EC) Yes
ISO13485 Yes
GMP Yes
KGMP Yes
RoHS Yes
REACH Yes
WEEE Yes
MFDS Yes
IP (front/except for front) IP35/IP32
Vandal-proof IK06
Accessories
Adapter Yes
Calibration Report (Paper) Yes
Display Port Yes
HDM Yes
Power Cord Yes
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor)

Views:

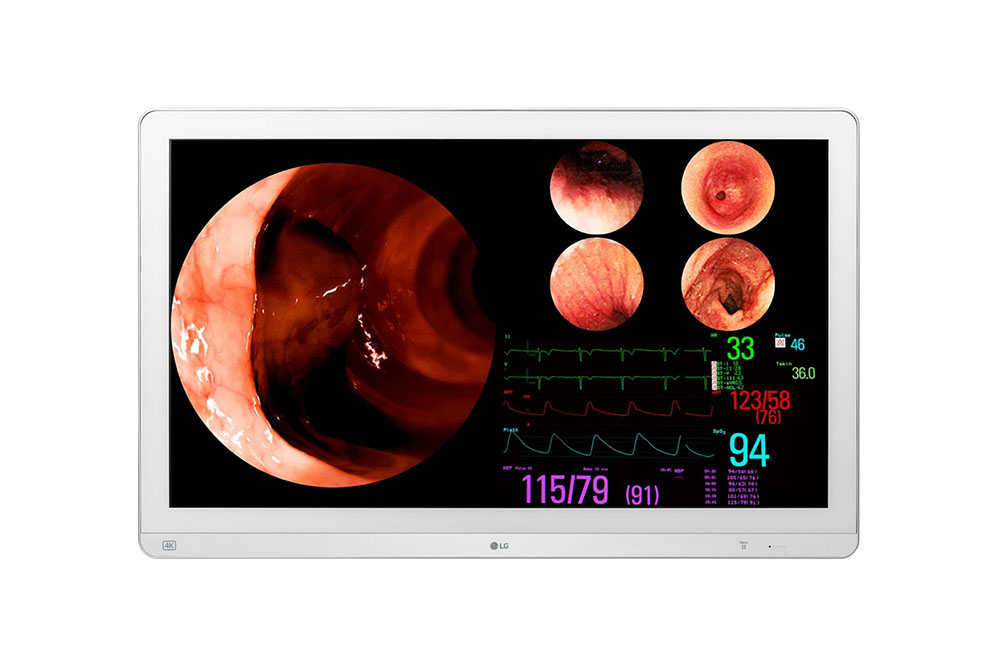

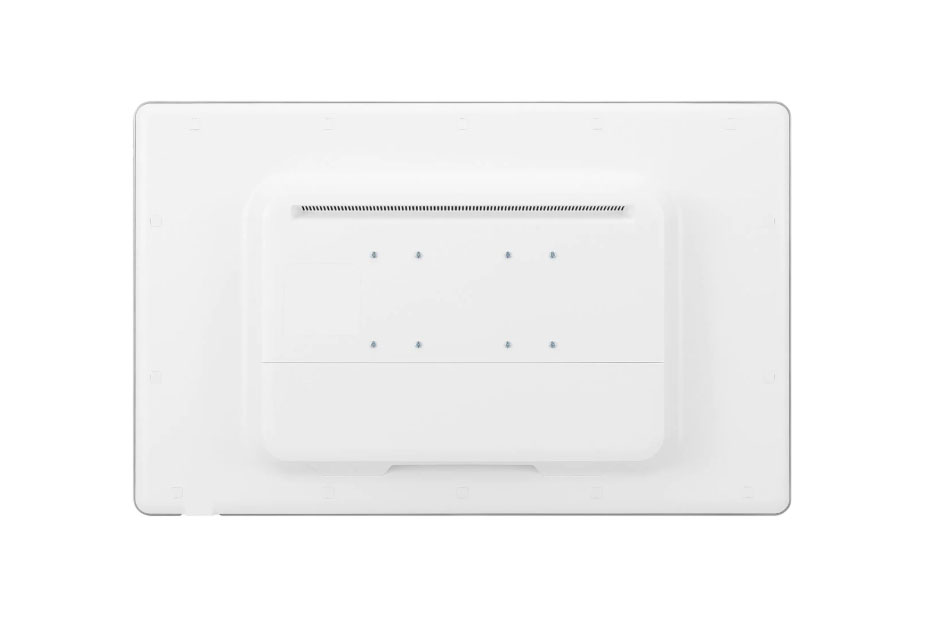

Front

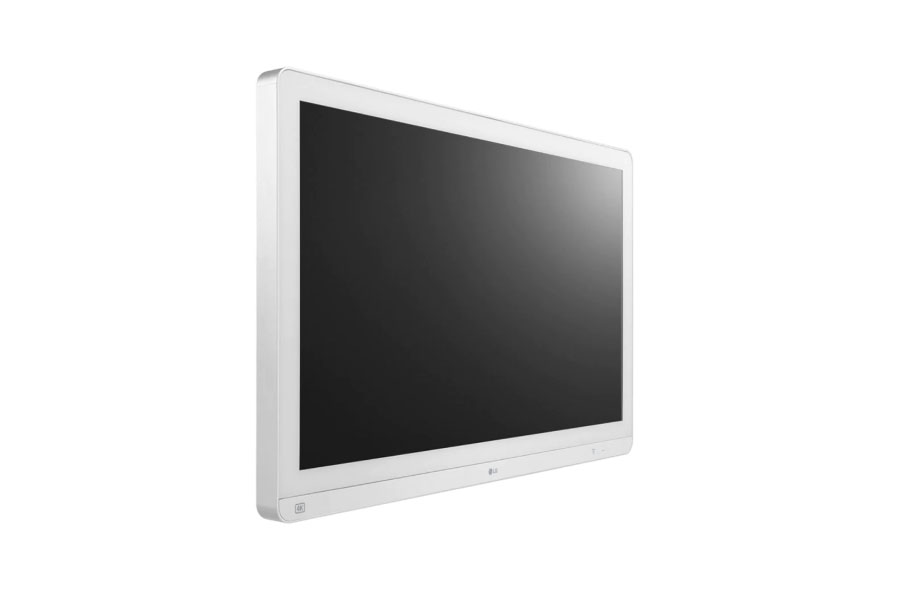

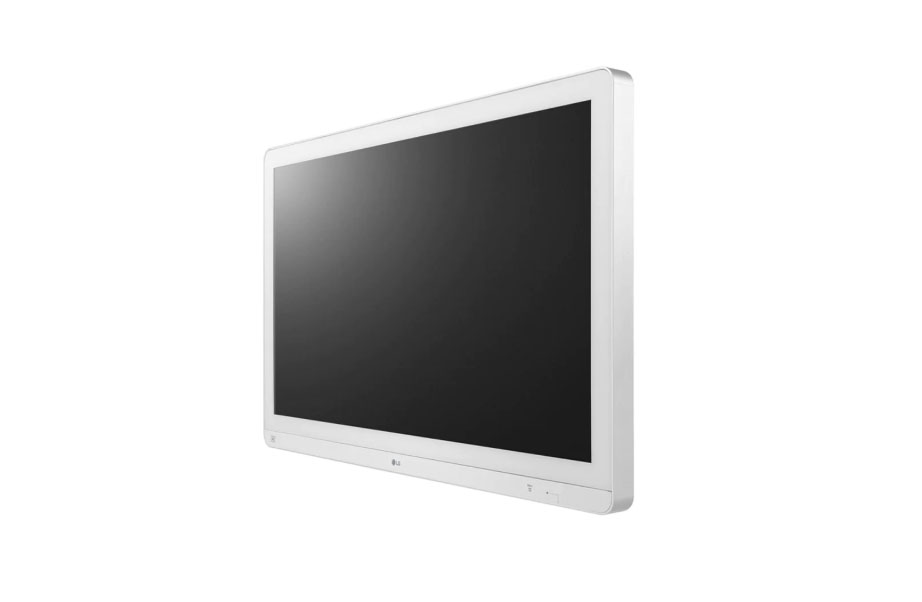

Right Perspective
Left Perspective

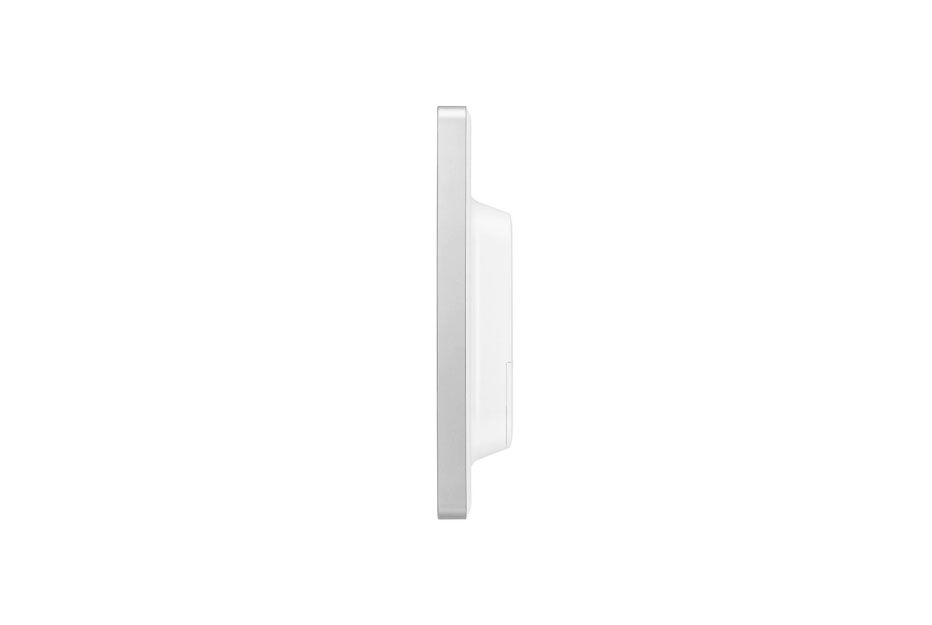

Right Side

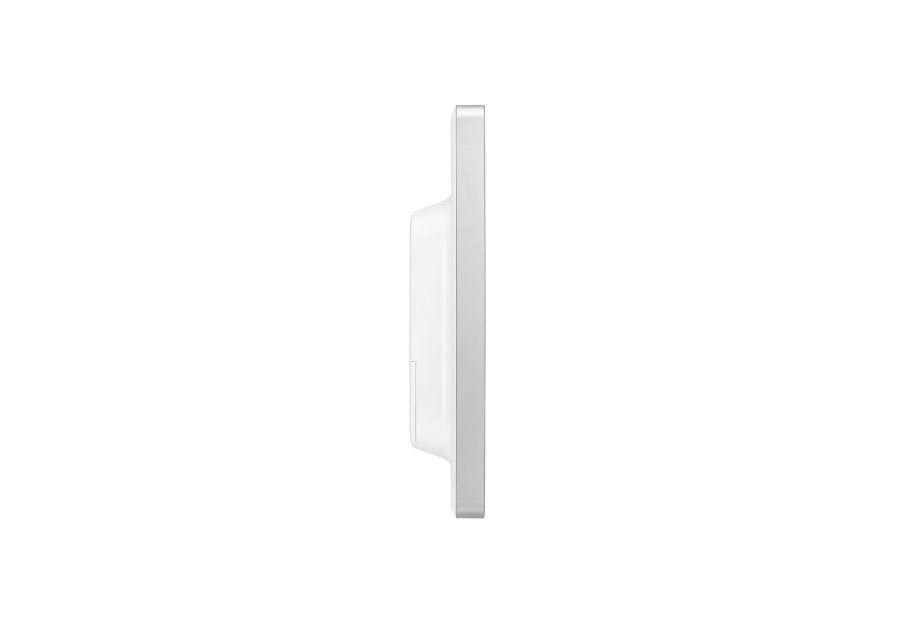

Left Side

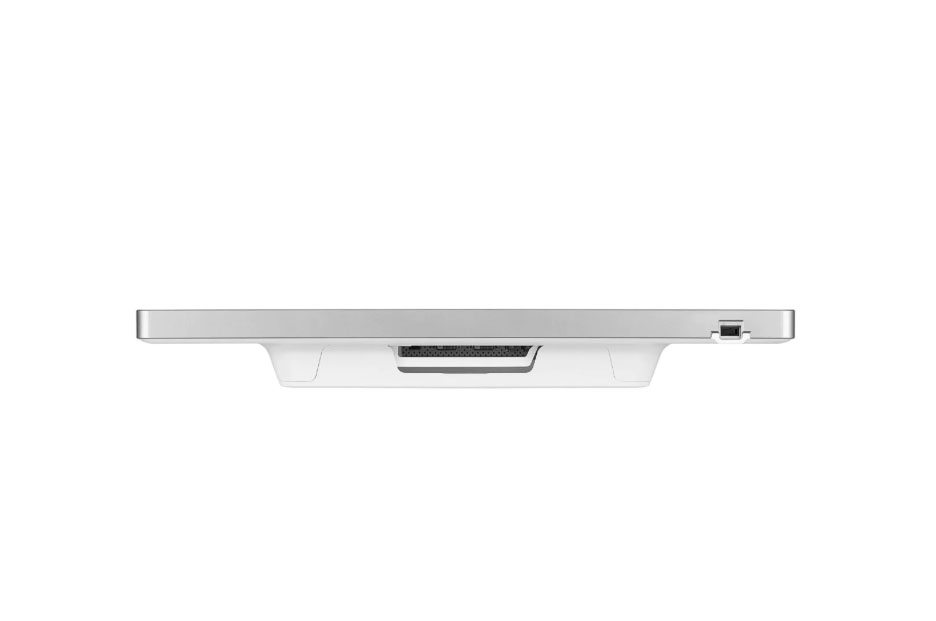

Top
Bottom
