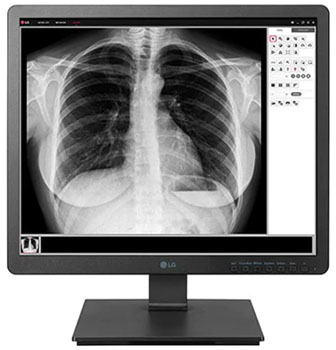

LG 19HK312C
19" 1.3 MP Clinical Review Monitor


LG 19HK312C

LG Display Products

Medical Displays
  • LG 19HK312C 19" 1.3 MP Clinical Review Monitor
    19" IPS Panel, 1280 x 1024 (FHD), VGA, DVI-D, HDMI, DP, USB 3.0 (1 UP/2 DOWN), 3-Year Warranty
    #19HK312C-B
    Our Price: $1,187.99

Click here to jump to more pricing!

Overview:

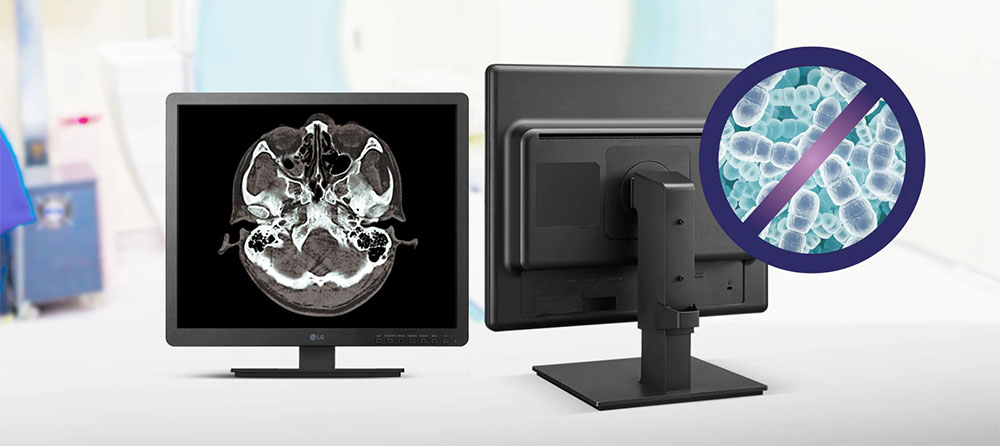

Antimicrobial Properties Plastic Housing

The antimicrobial properties are applied to the housing of this medical monitor. This medical monitor complied with the ISO22196 standard, which is the measurement of Antimicrobial properties are built in to inhibit the growth of bacteria that may affect the housing of this product.

  • UL Medical Grade Listed
  • DICOM part 14
  • Native Display Resolution 1280 x 1024
  • Contrast Ratio 900:1

Antimicrobial Properties Plastic Housing

Features:

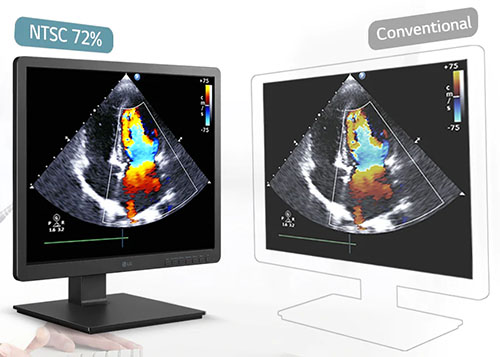

330nits & NTSC 72% Precise Resolution

The clinical review monitor offers 330nits, making it brighter. An optimal range of colors for 1.3MP HD resolution medical images represented by NTSC 72% guarantee both precise picture quality and optimal grayscale.

330nits & NTSC 72% Precise Resolution

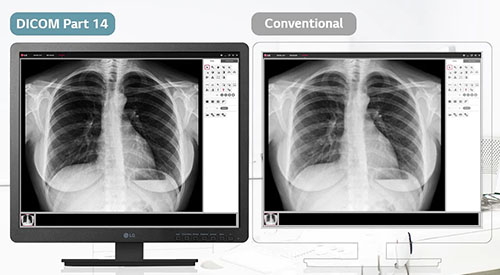

DICOM Part 14 Compatible

To ensure the most accurate and consistent shading possible for medical images, LG measures and sets every grayscale tone on the production line to produce a monitor compliant with DICOM Part 14.

DICOM Part 14 Compatible

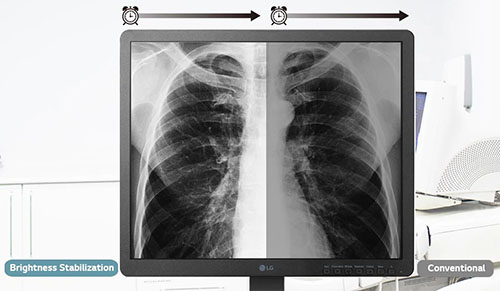

Brightness Stabilization

A sensor measures the monitor’s backlight brightness stability and automatically compensates for brightness fluctuations caused by aging, for consistently stable images during usage.

Brightness Stabilization

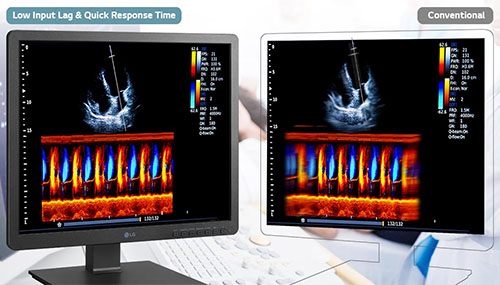

Quick Response Time

With a low input lag and quick response time, it allows the monitor to receive a signal quickly and display a clear image with no distortion, for precise decoding information to achieve an efficient review.

Quick Response Time

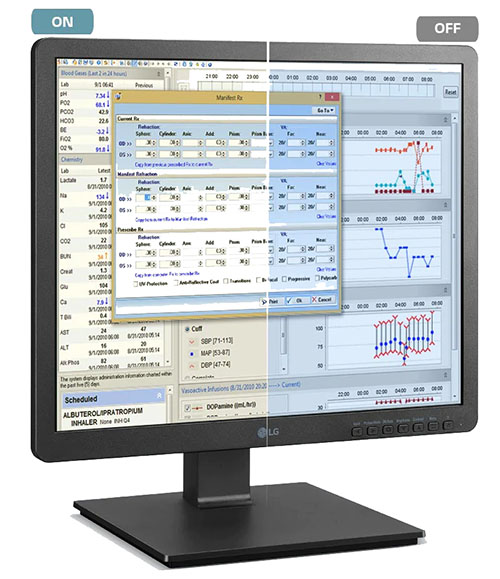

Reader Mode

Reader Mode provides optimal conditions for clinical use. Reducing blue light to help lessen eye fatigue, Reader Mode provides optimal condition for reading.

Reader Mode

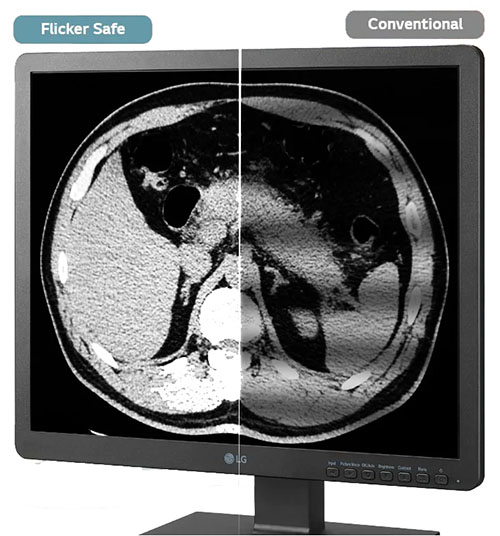

Flicker Safe

The Flicker Safe reduces the flicker level on screen that may cause eye fatigue. With this feature, looking at your computer screen for longer periods of time is more comfortable.

Flicker Safe

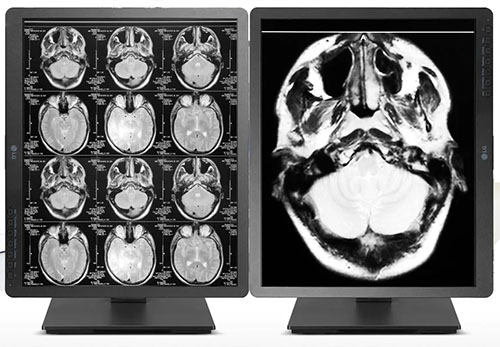

Two-Way Pivot

The monitor with Bi-directional pivot stand can be configured according to user needs and medical environment alongside other medical devices.

Two-Way Pivot


Specifications:


19HK312C Specifications
Panel
Type IPS
Size 19" class (19" Diag.)
Native Resolution 1280 x 1024
Pixel Pitch 0.1554mm x 0.1554mm
Aspect Ratio 5:4
Color Gamut (CIE 1931) NTSC 72%
Color Depth (Number of Colors) 16.7M (8bit)
Viewing Angle 178/178
Brightness (Typ.) 330cd/m2 (Typ.)
Contrast Ratio 900:1 (Typ.)
Response Time_Typ. (on/off) 14ms (Typ.)
(GTG) 5ms (High)
Viewing Angle(CR≥10) 178 / 178
Surface Treatment Anti-Glare 3H
Signal Input
Input Terminals HDMI x1 (1.4), DisplayPort x1 (1.2), D-Sub x1, DVI-D x1, USB3.0 1up 2down, Jack Location rear
Power
Type PSU (Internal Power)
Input 100-240Vac, 50/60Hz
Output 24V 2.1A
Normal On (Max) (Brightness100 + USB Load) 50W
Sleep Mode (Max) 0.5W
DC Off (Max) 0.3W
HDMI and DP Frequency
H-Frequency (D-Sub) 30~83 kHz
V-Frequency (D-Sub) 56~75 Hz
H-Frequency (DVI-D) 30~83 kHz
V-Frequency (DVI-D) 56~75 Hz
Frequency
D-Sub 30~83 kHz
DVI-D 56~75 Hz
HDMI 30~83 kHz
Display Port 56~75 Hz
Resolution
Digital (HDMI) 1280 x 1024
Digital (DVI-D) 1280 x 1024
HDMI 1280 x 1024
D-Sub 1280 x 1024
Control Key
Key Number (Power Key Included) 7
Key Type Tact
LED Color(On mode) Green
LED Color(Power save mode) Green Blinking
[ Key Location ] Front
Special Feature
Picture Mode Yes
Original Ratio Yes
Super Resolution+ Yes
Gamma Gamma 1.8, Gamma 2.0, Gamma 2.2,Gamma 2.4, Gamma 2.6, DICOM Gamma curve
Color Temperature 6500K / 7500K / 9300K, Manual (5000K ~ 10000K)
DICOM Mode Yes (Kδ <= 10%)
Factory Calibration Yes (Delta E<2, Gamma 1.8 ~ 2.6 / DICOM curve)
H/W Calibration Yes (Calibration 1-2 Mode)
Dynamic Sync Mode (Thru Mode) Yes
Flicker safe Yes
Reader Mode Yes
Brightness Stabilization Yes
Uniformity Compensation Yes
DDC/CI Yes
HDCP Yes
Key Lock Yes
Plug & Play Yes
Response Time Control Yes
DPM Yes
Color Calibrated Yes
User Preset Yes
Dual Controller Yes
Flicker Safe Yes
Automatic Standby Yes
Six Axis Control Yes
Smart Energy Saving Yes
True Color Pro Yes
4 Screen Split Yes
On Screen Contro Yes
Color
Front Black
Back Cover Black
Stand Black
Base Black
Stand
Base Detachable Yes
One Click stand set-up Yes
Tilt (Angle) Yes (-5o ~ 35o)

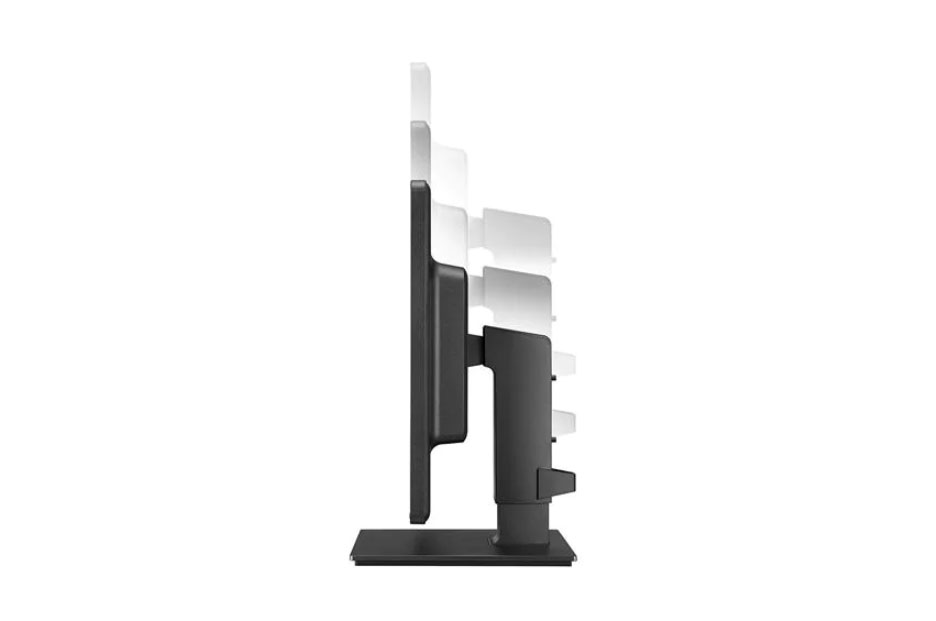

Height (mm) Yes (range 150mm)
Pivot 180o
Swivel (Angle) Yes (-177.5o ~ +177.5o)
Cabinet
Monitor (with Stand) 16.1" x 9.8" x 15.3"
Monitor (without Stand) 16.1" x 2.3" x 13.5"
Box 47.5" x 50.4" x 19.9"
VESA® Wall Mount 100 x 100
Weight (with Stand) 11.2 lbs
Weight (without Stand) 6.4 lbs
Weight (Box) 16.3 lbs
Standard
FDA (US) FDA Class I
CE (EU) Yes
CMDR (Canada) Yes
cUL (US/Canada) ANSI/AAMI ES 60601-1 CSA CAN/CSA-C22.2 NO. 60601-1
EN (EU) CB (EU) EN 60601-1
FCC (US) FCC Part 15 Class A
RoHS / REACH / WEEE Yes
EN (EU) and CB (EU) EN60601-1
CE MDD (EU) CE (MDD) Class I
CCC (China) / CISPR (Global) / ICES-003 / CE (EU) / RCM (Aus) Yes
Others DICOM part 14
Windows 10 Yes
Accessories
Power Cord Yes (5.9 ft)
D-Sub Yes
DVI-D Yes
HDMI Yes (Black)
Display Port (1.2) Yes
USB Yes (USB3.0)
Manual Yes
Factory Calibration Report Yes
Warranty Card Yes
CD-ROM Yes (User Manual/True Color Pro/Dual Controller/On Screen Control 2.0r)
Others Adapter
Warranty
Warranty 3-Year Limited Warranty (Parts and Labor)

Views:

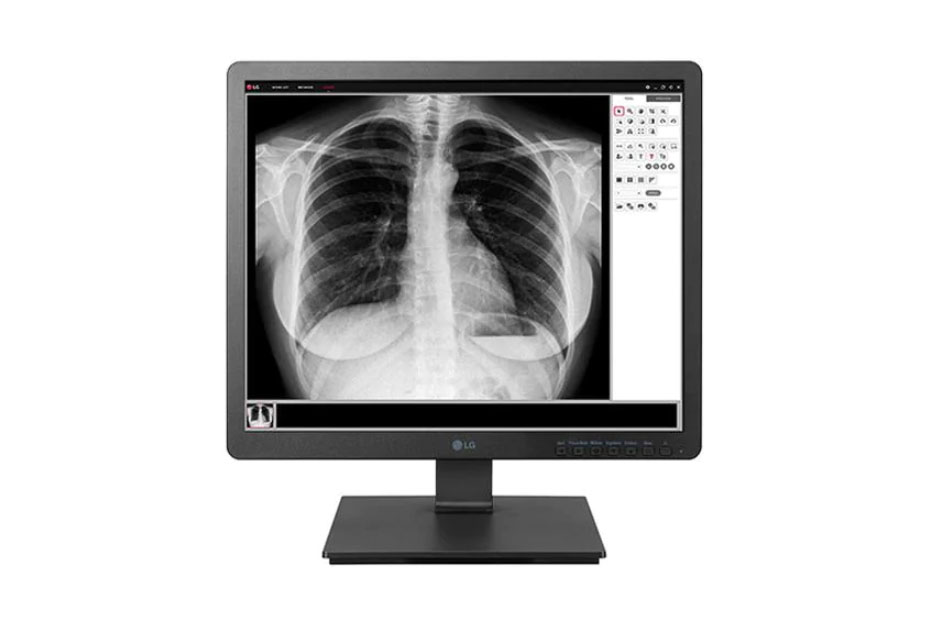

Front

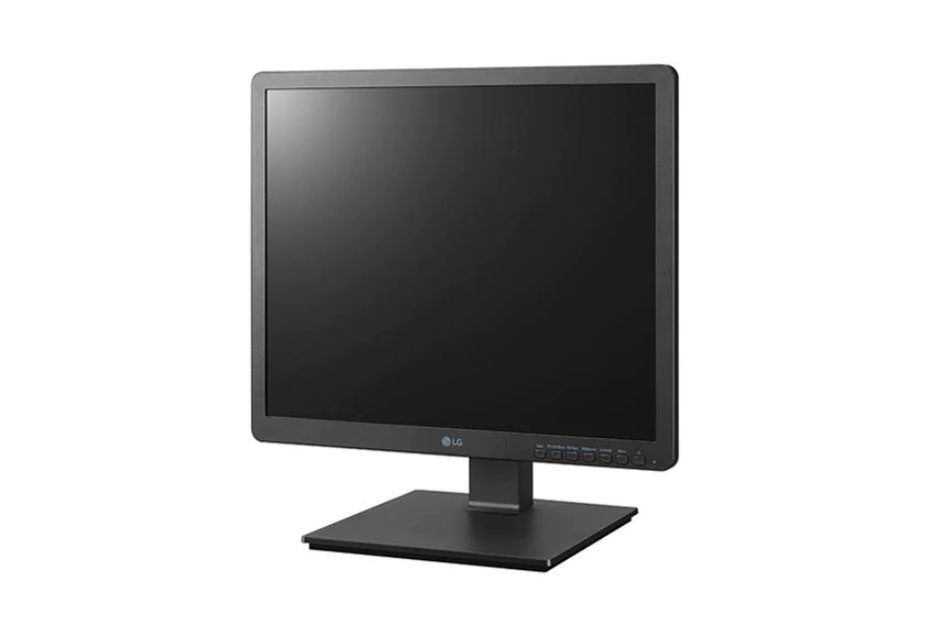

Right Perspective

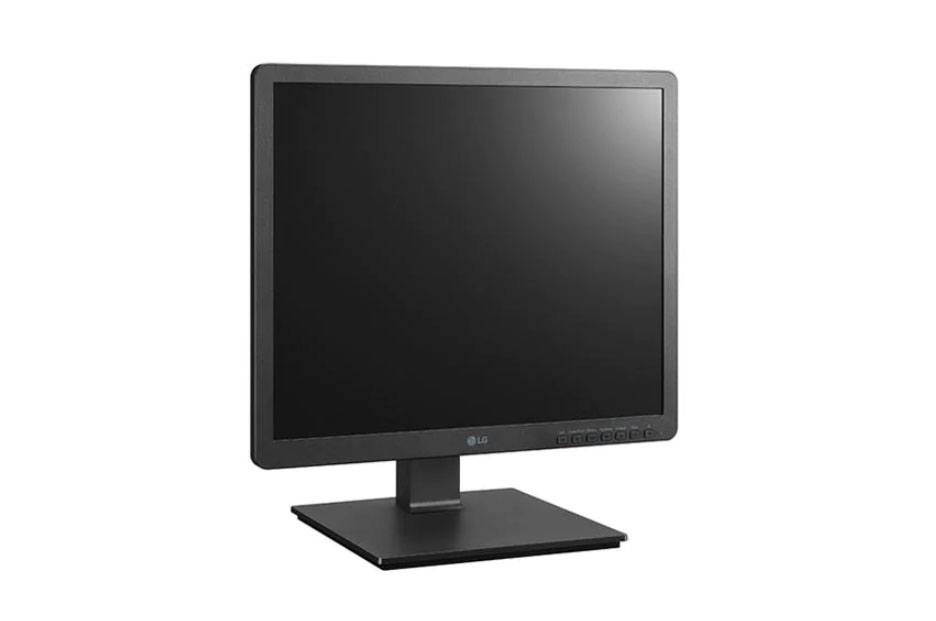

Left Perspective

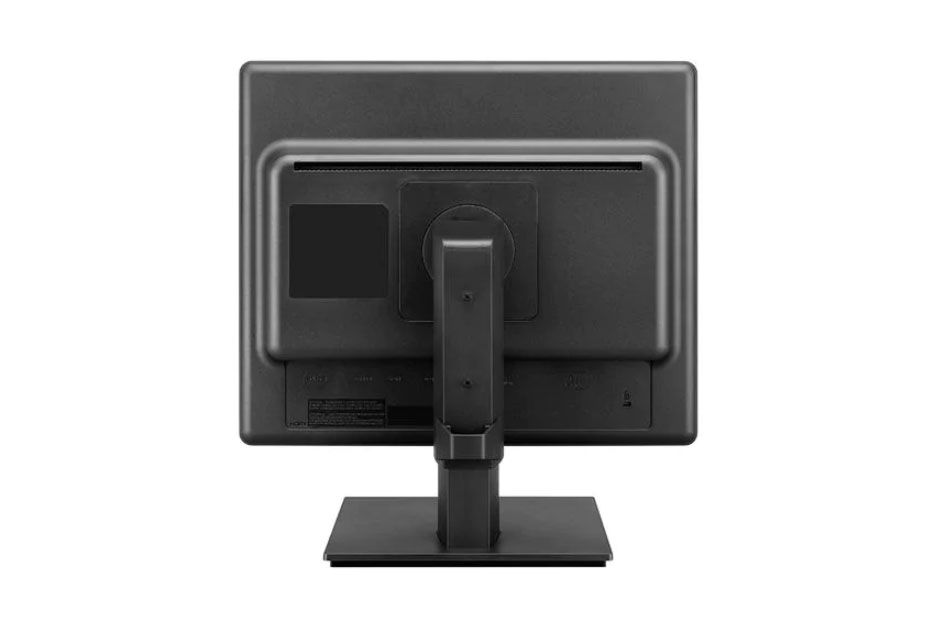

Rear

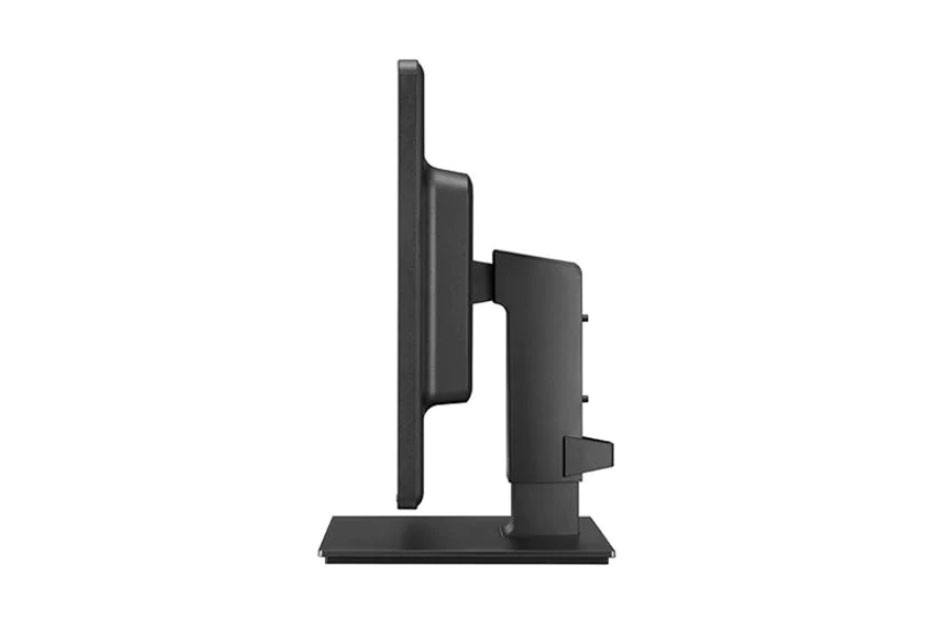

Right Side
Left Side

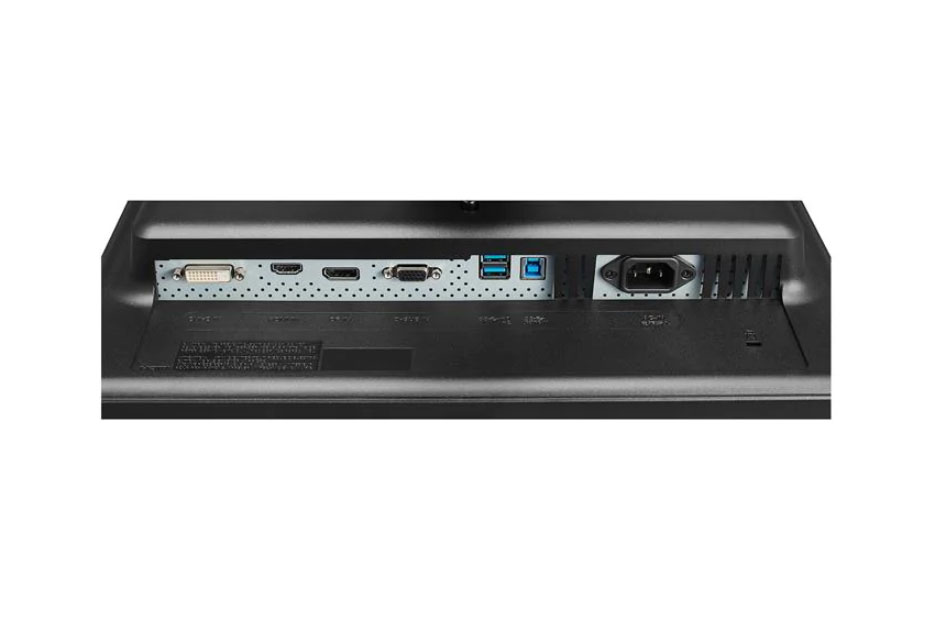

Bottom

Documentation:

Download the LG 19HK312C-B 1.3 MP Clinical Review Monitor Datasheet (.PDF)
